Ignition Coil: Service and Repair

IGNITION COIL-ON-PLUG

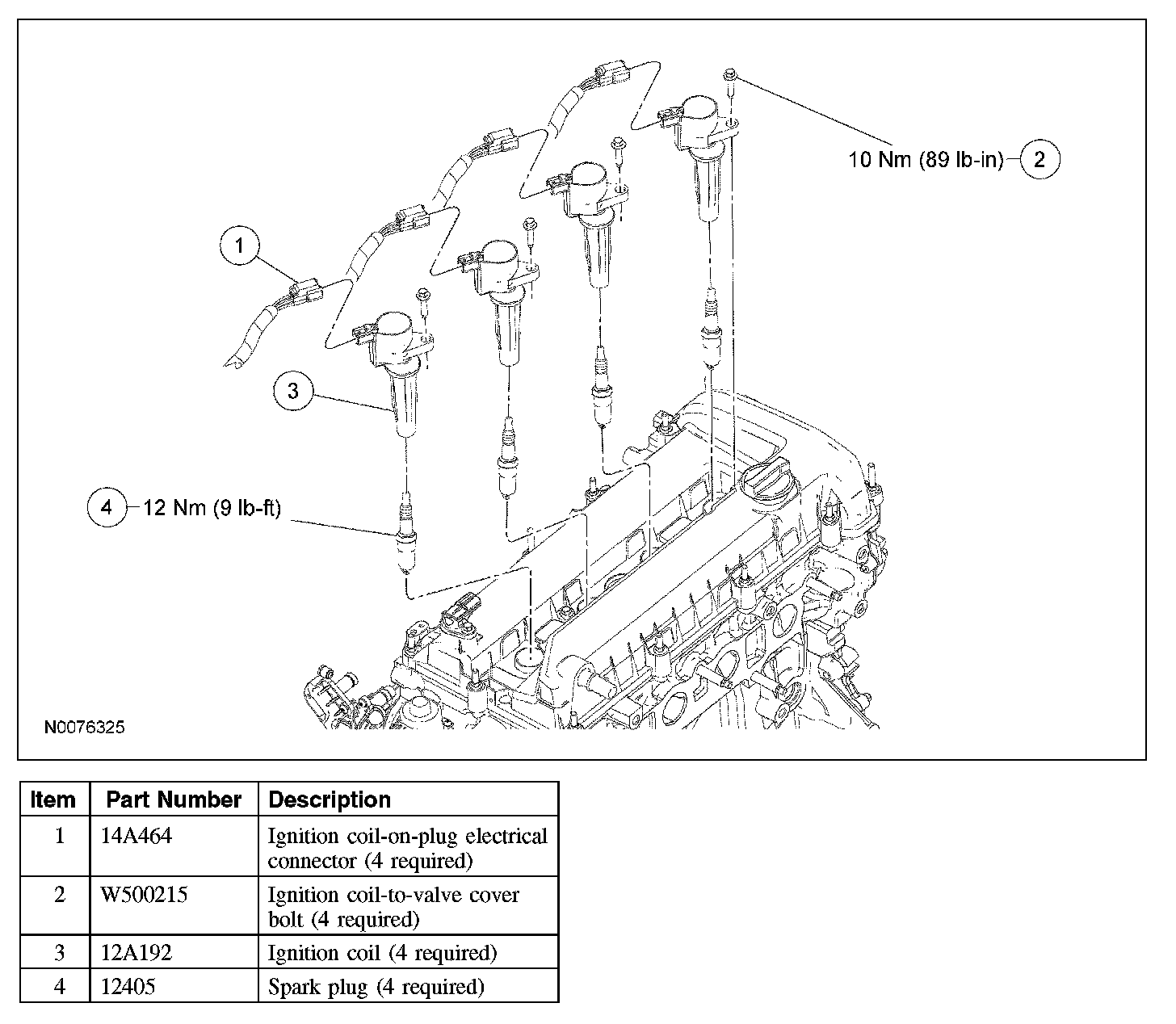

Exploded View







Removal and Installation
1. Disconnect the ignition coil-on-plug electrical connector.
2. Remove the bolt and the ignition coil.
- To install, tighten to 10 Nm (89 lb-in).

3. To install, reverse the removal procedure.
- Apply silicone dielectric compound to the inside of the ignition coil boot.
