Direct Clutch Hub Shim Selection Chart
Direct Clutch Hub Shim Selection Chart

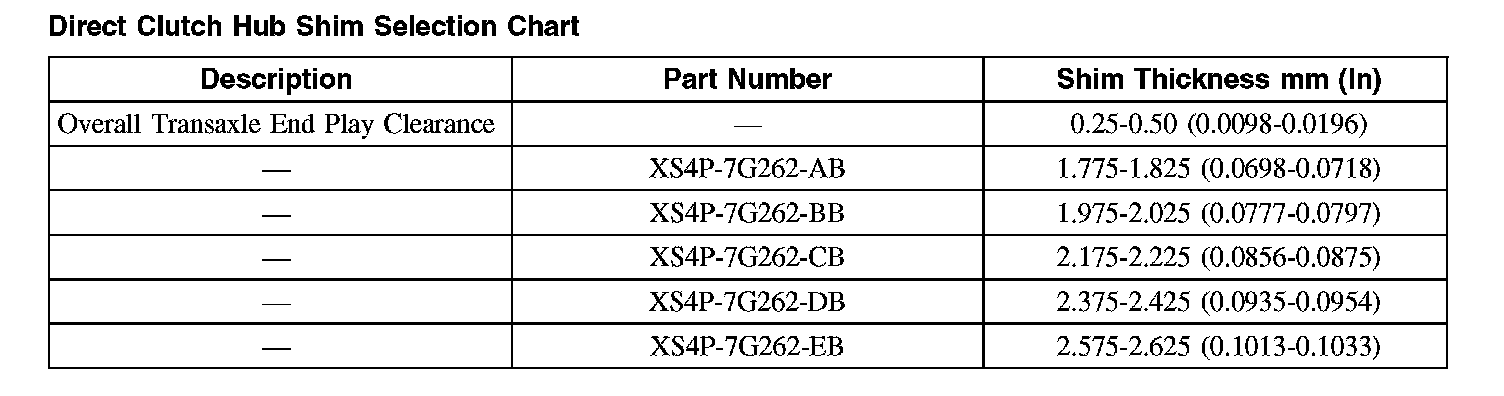

Direct Clutch Hub Shim Selection Chart:
