Audio Digital Signal Processing (DSP) Module

AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE

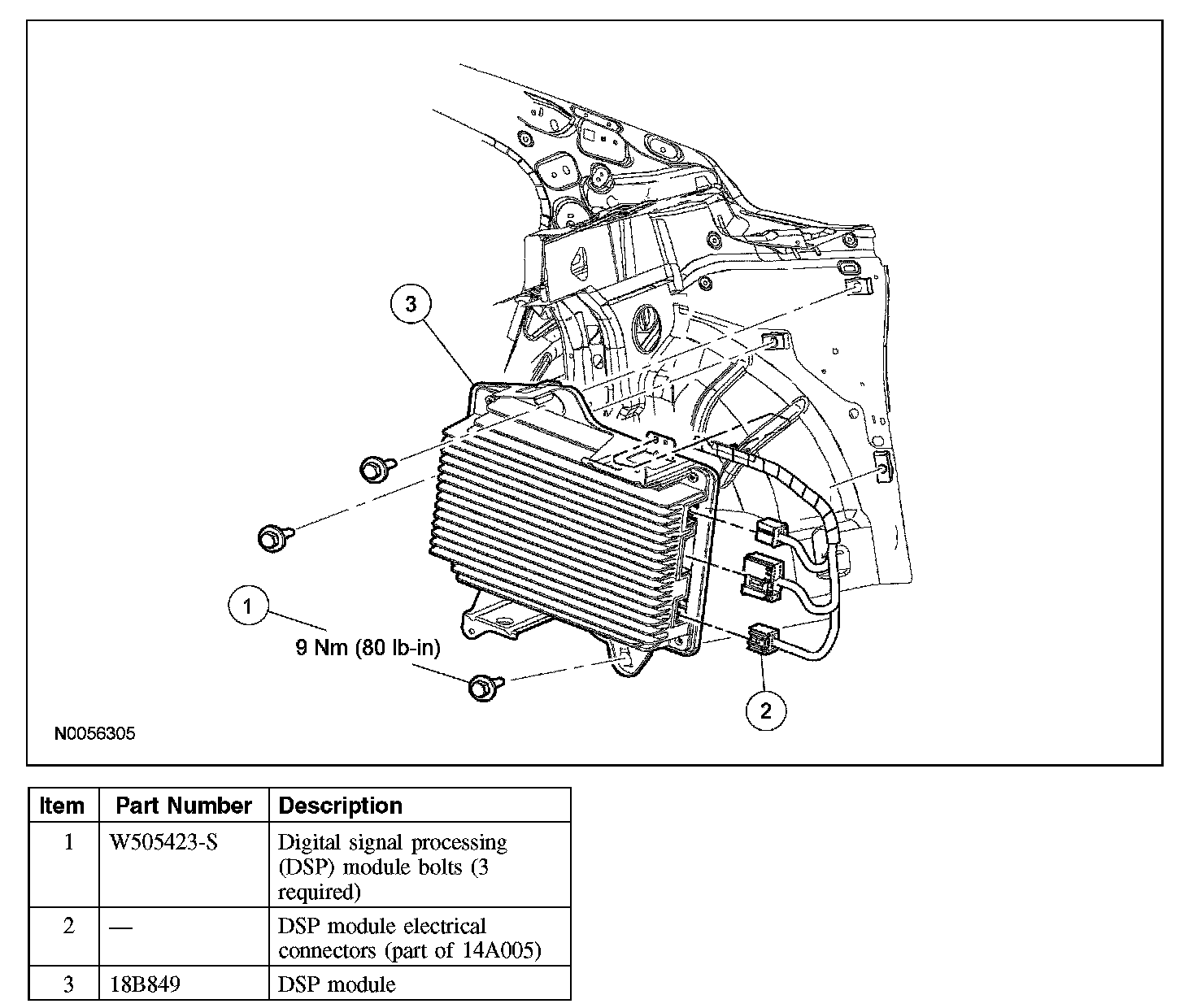

Removal and Installation
1. Remove the 4 pushpins and the RH luggage compartment trim panel.
2. Disconnect the DSP module electrical connectors.
3. Remove the 3 bolts and the DSP module.
- To install, tighten to 9 Nm (80 lb-in).

4. To install, reverse the removal procedure.
