Caster Adjustment - Rear

Camber Adjustment - Rear

NOTE: Before carrying out a camber adjustment, check the tires for the correct pressure. Inspect the tires for incorrect wear or damage. Inspect the front suspension components for wear or damage.

1. Using alignment equipment and the manufacturer's instructions, measure the rear camber.

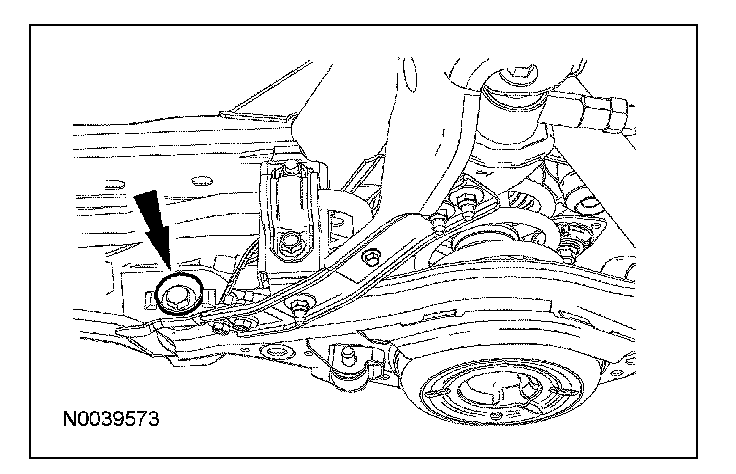

2. Loosen the rear camber adjustment nut.





3. Rotate the camber adjustment bolt until the camber setting is within specifications.

4. NOTE: Do not allow the camber adjustment bolt to rotate while tightening the nut.

Tighten the camber adjustment nut to 101 Nm (74 lb-ft).
5. Recheck the rear camber and adjust as necessary.
