Smart Junction Box (SJB)
Smart Junction Box (SJB)

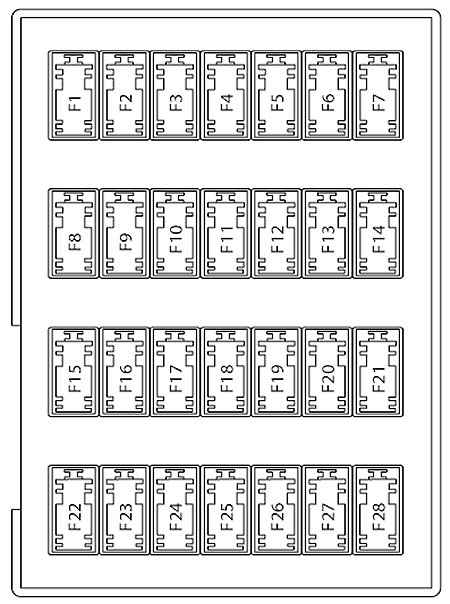

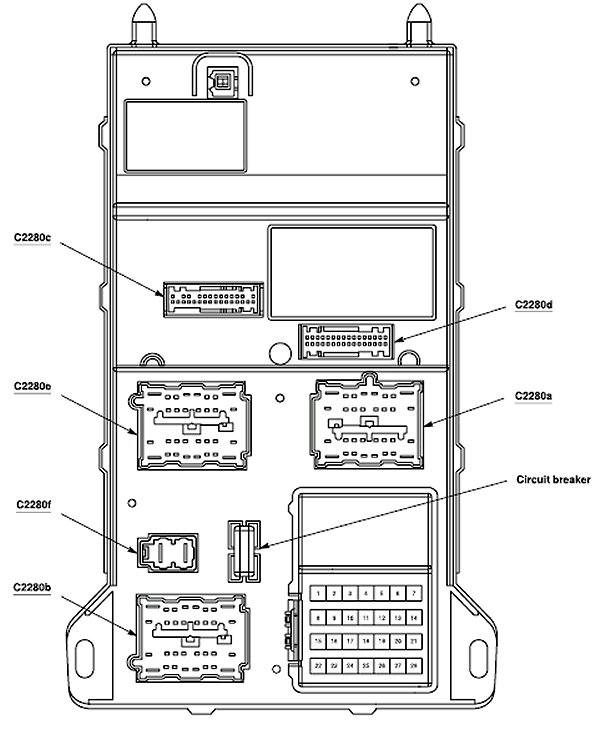

Smart Junction Box (1 Of 4):

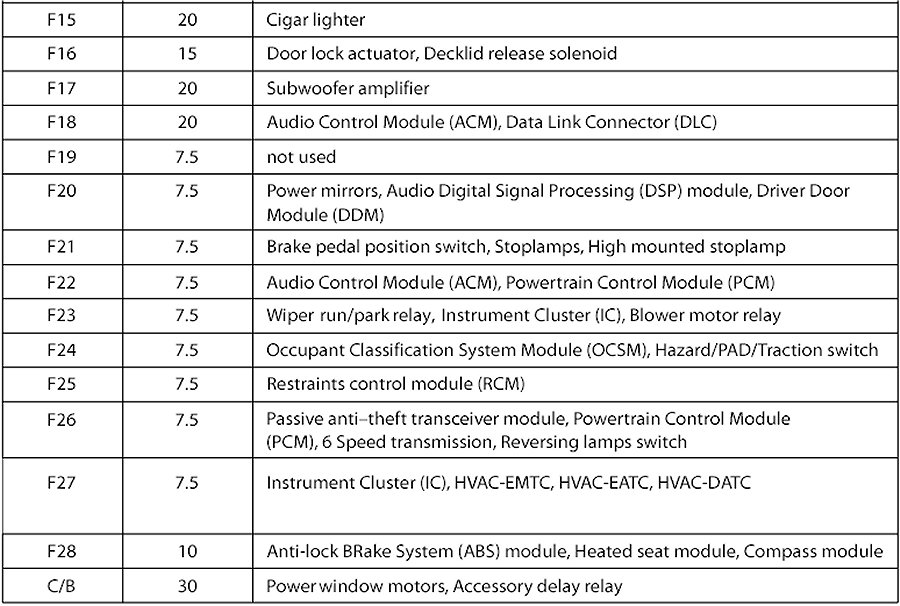

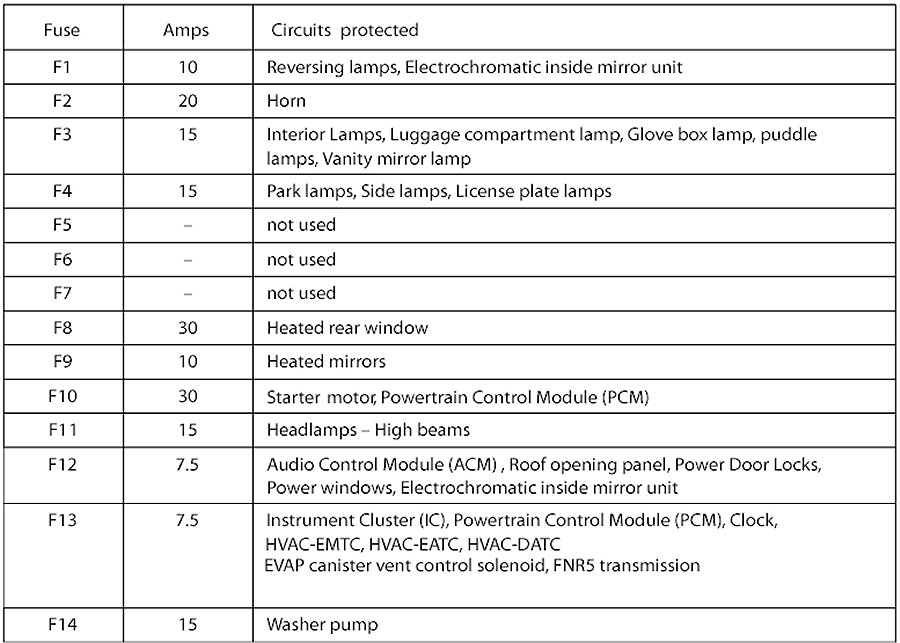

Smart Junction Box (2 Of 5):
Smart Junction Box (3 Of 4):
Smart Junction Box (4 Of 4):
