Battery Tray

BATTERY TRAY

Exploded View

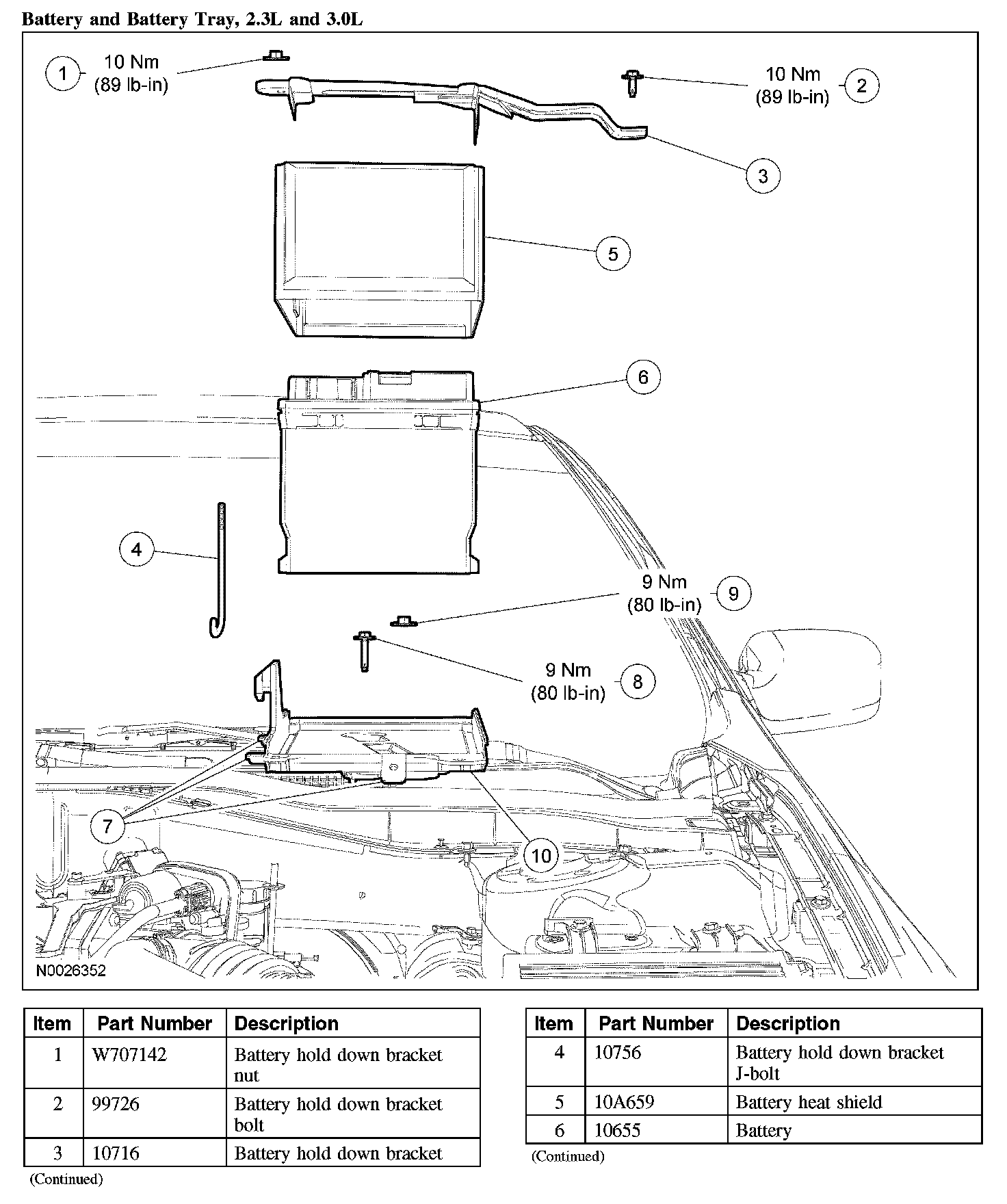

Battery and Battery Tray, 2.3L and 3.0L (Part 1):

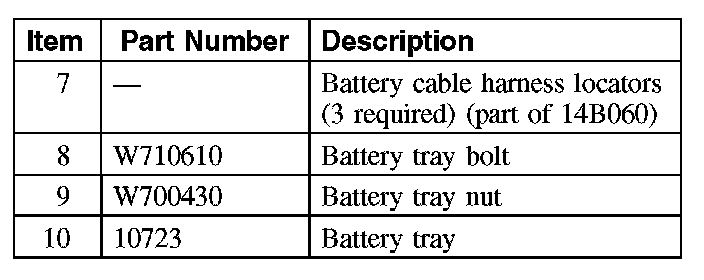

Battery and Battery Tray, 2.3L and 3.0L (Part 2):

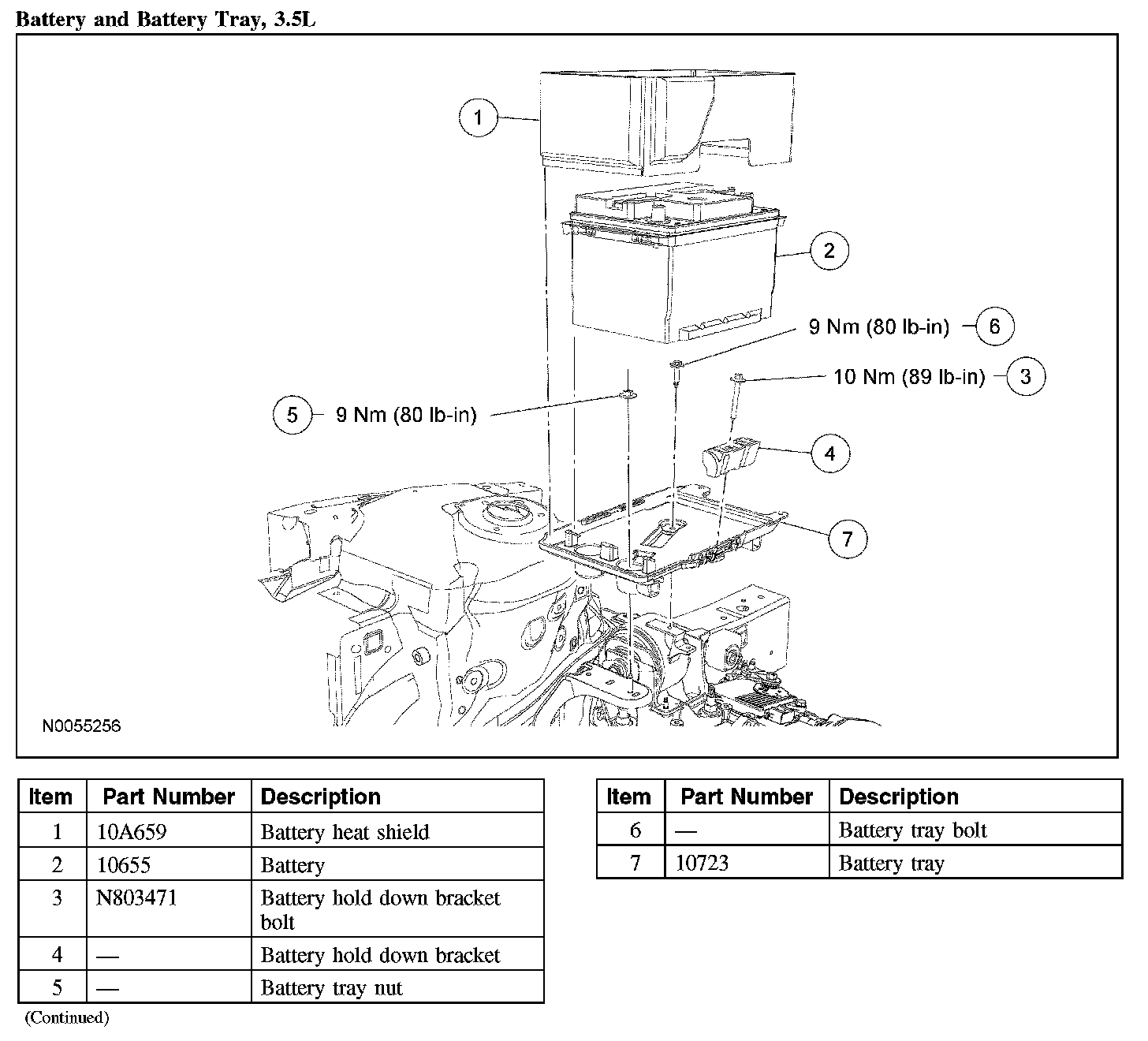

Battery and Battery Tray, 3.5L:

Removal and Installation
1. Remove the battery.
2. Remove the 3 battery cable harness locators from the battery tray.
3. Remove the battery tray bolt and nut.
- To install, tighten to 9 Nm (80 lb-in).

4. Remove the battery tray.
5. To install, reverse the removal procedure.
