Test I: Transmission Control Module (TCM)

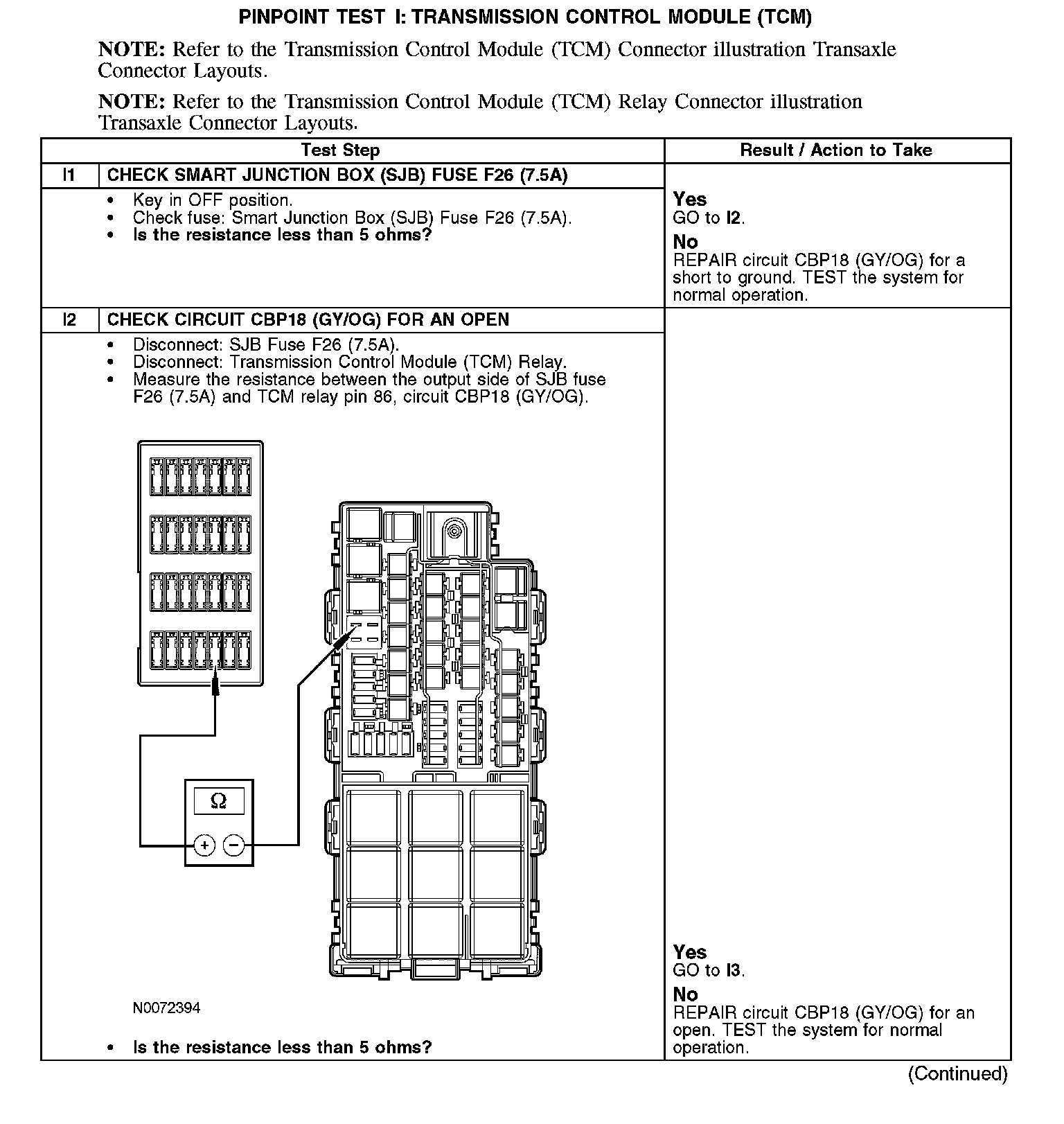

PINPOINT TEST I: TRANSMISSION CONTROL MODULE (TCM)

I1 (Continued)-I2:

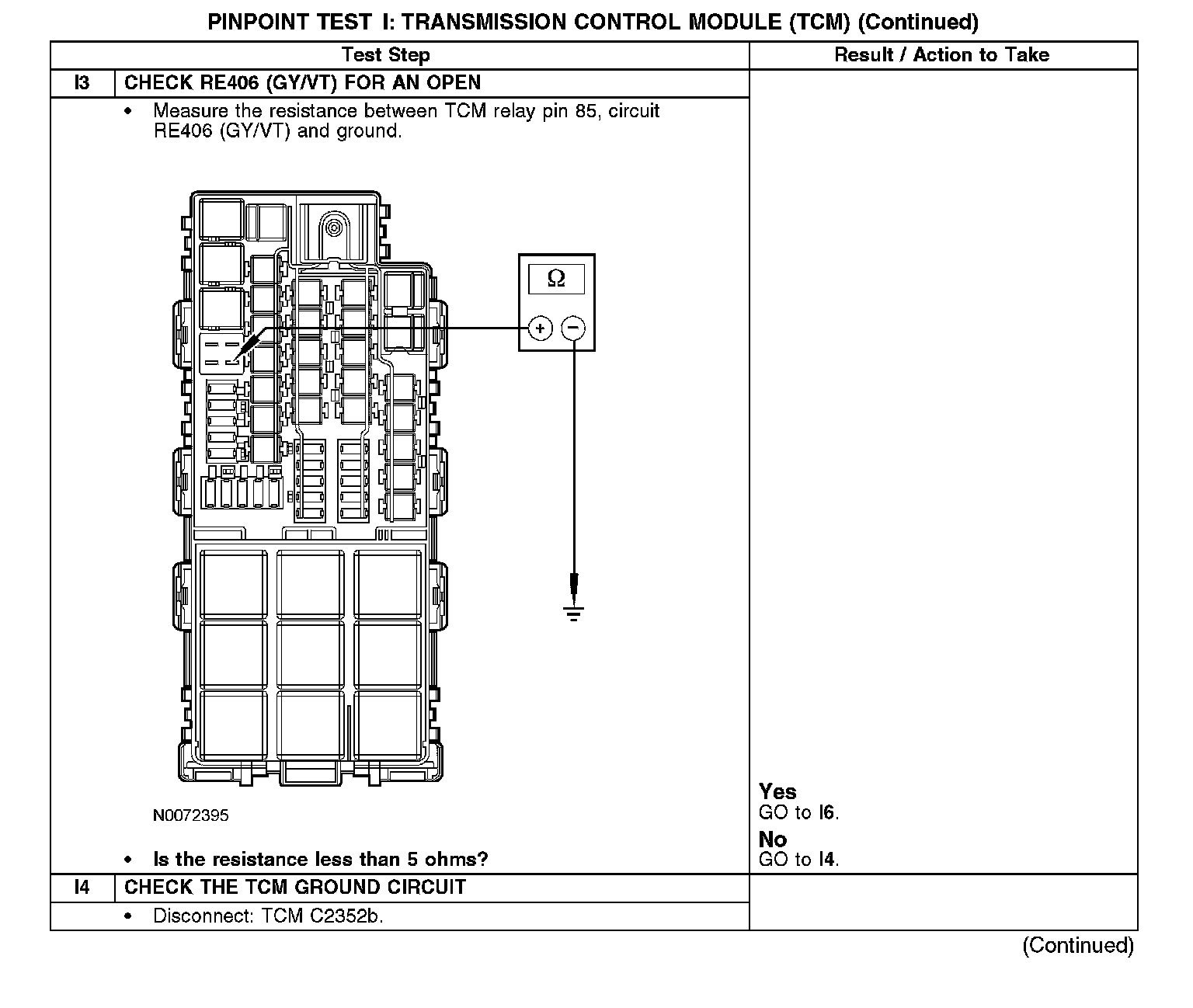

I3-I4:

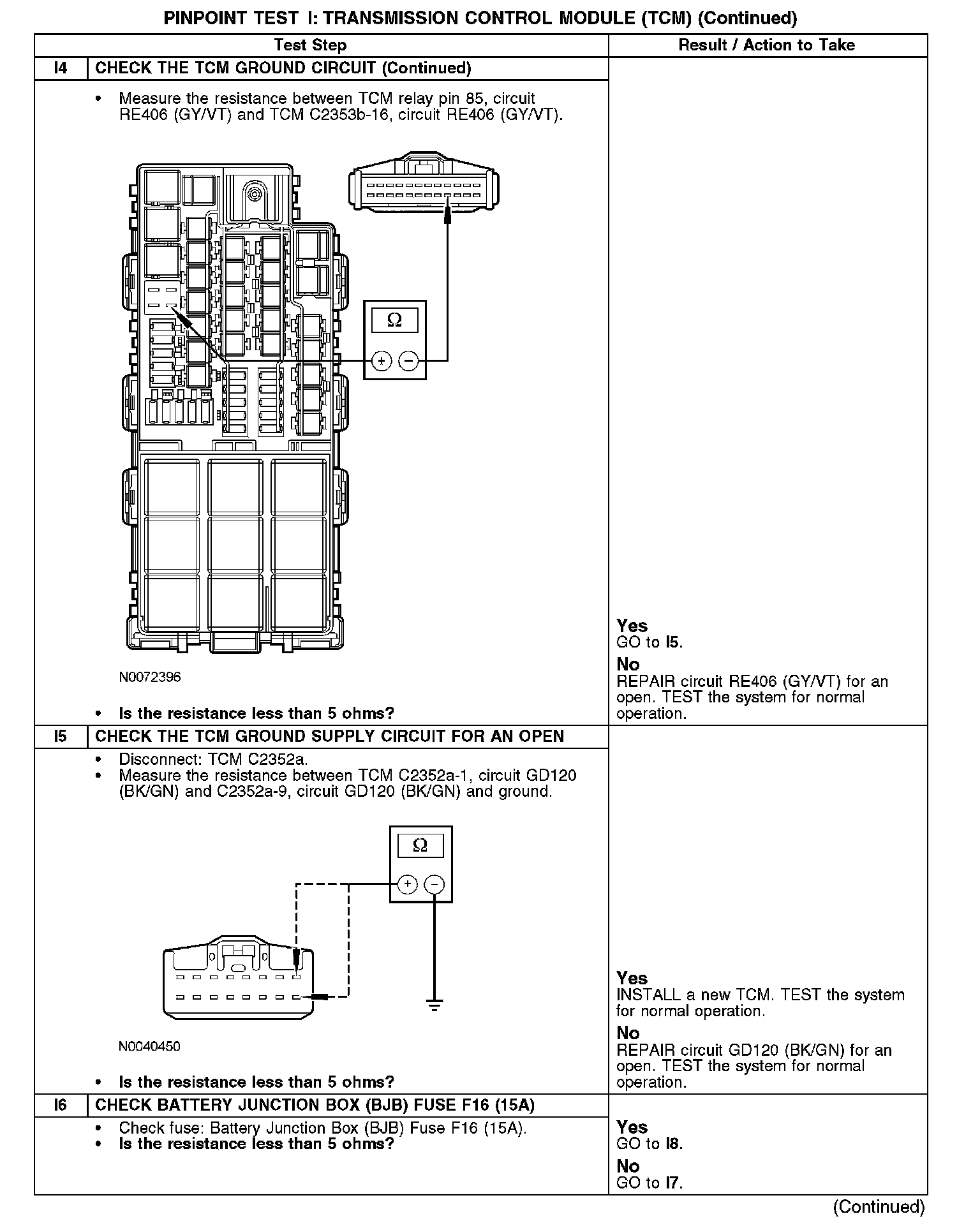

I4 (Continued)-I6:

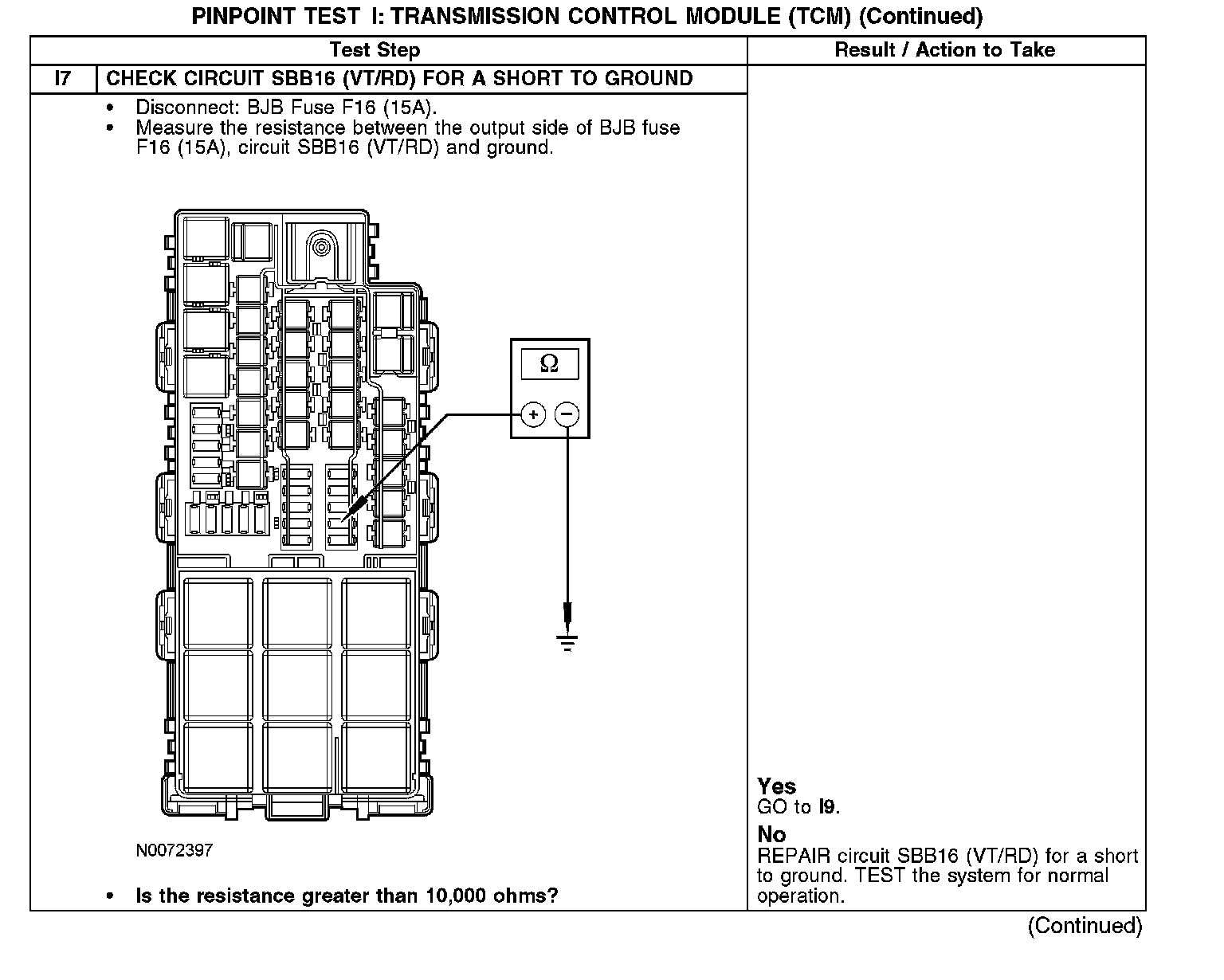

I7:

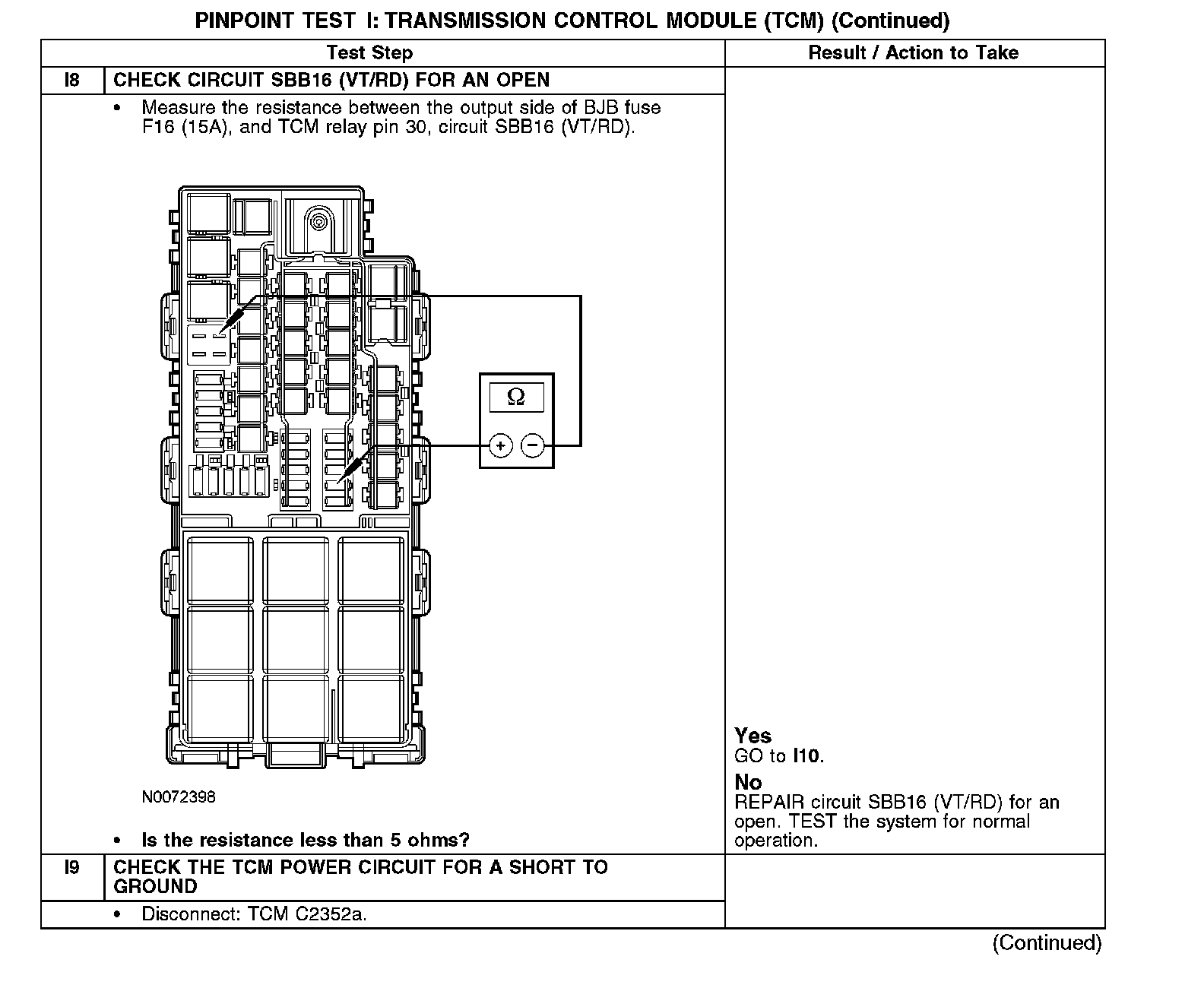

I8-I9:

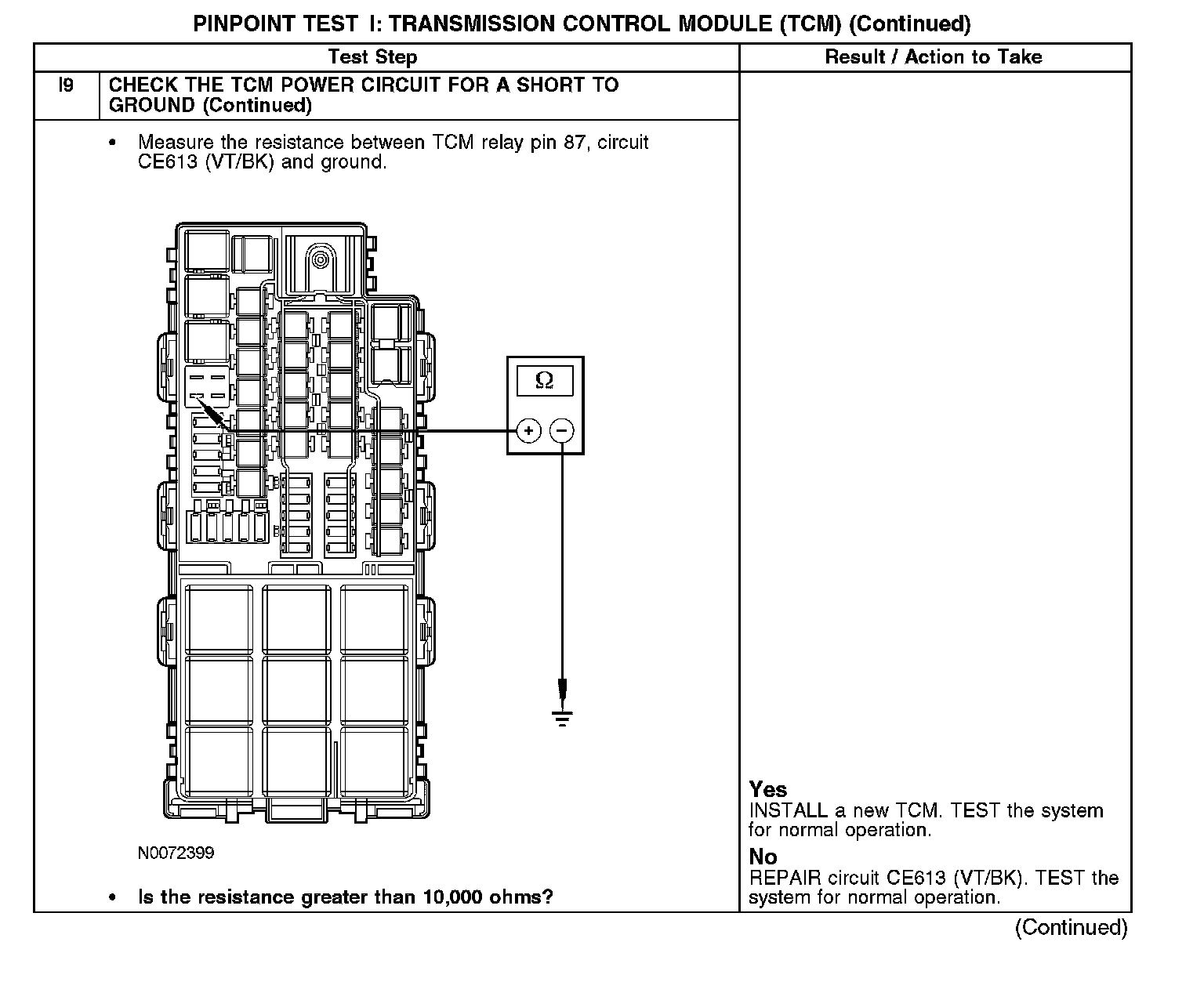

I9 (Continued):

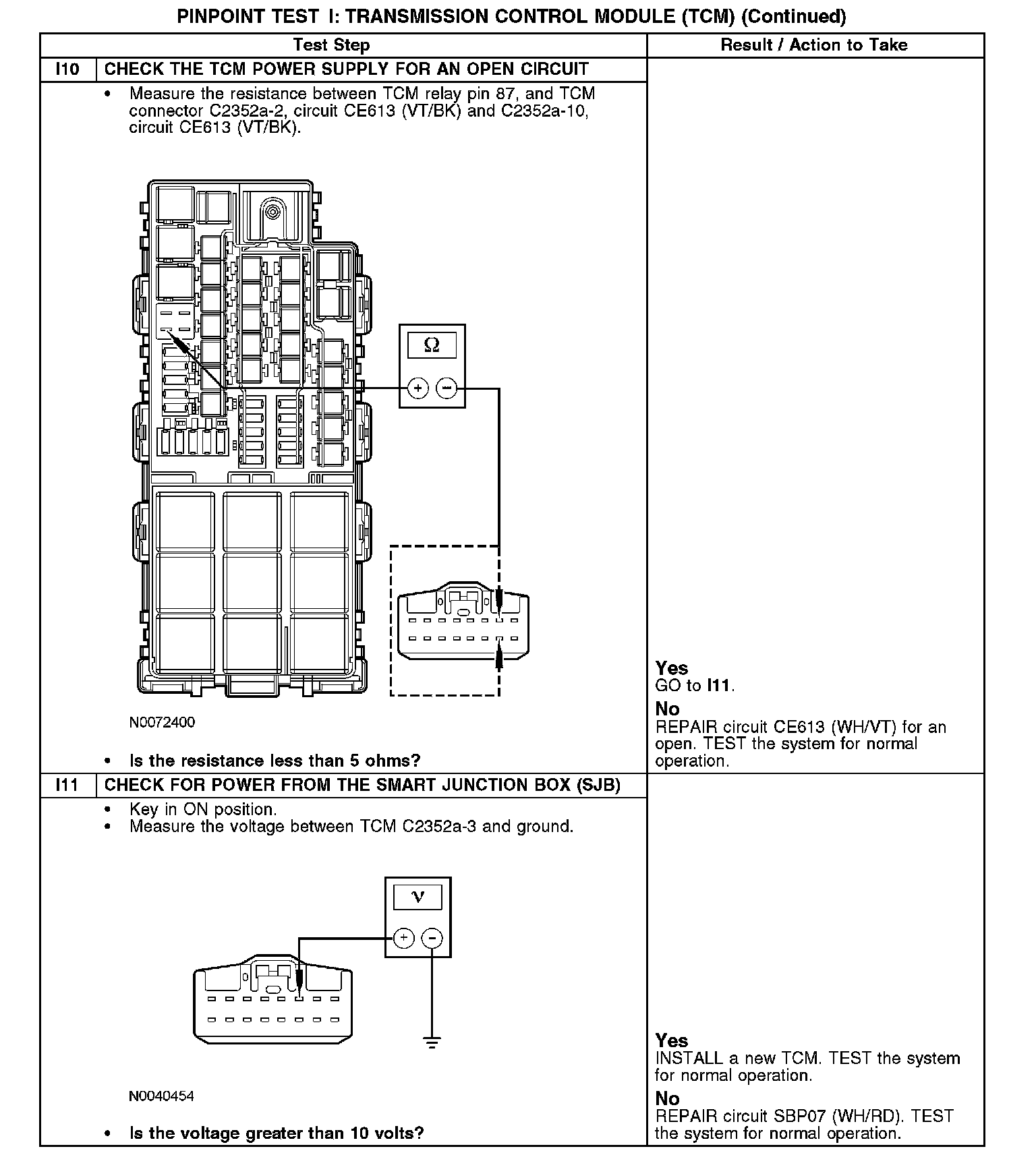

I10-I11:
