Emission Control Systems: Diagrams

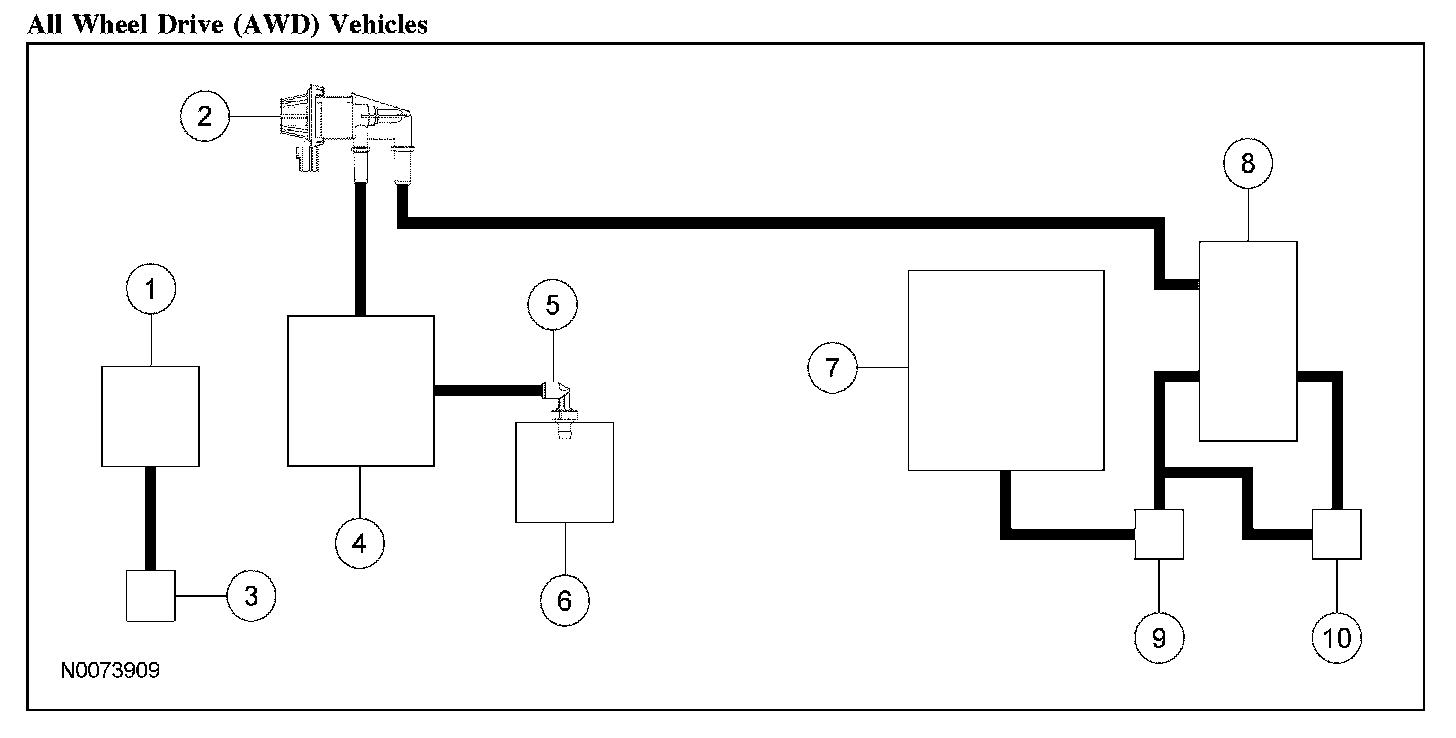

All Wheel Drive (AWD) Vehicles (Part 1):

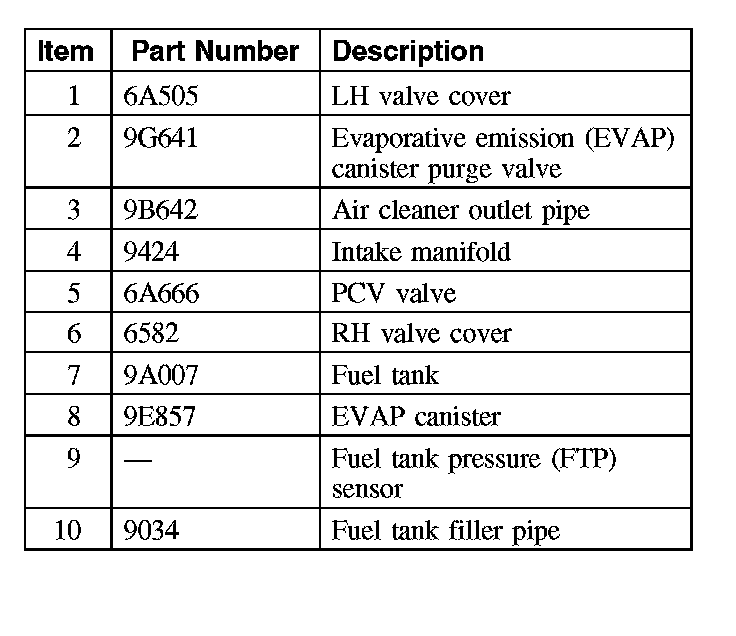

All Wheel Drive (AWD) Vehicles (Part 2):
