Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION (CMP) SENSOR

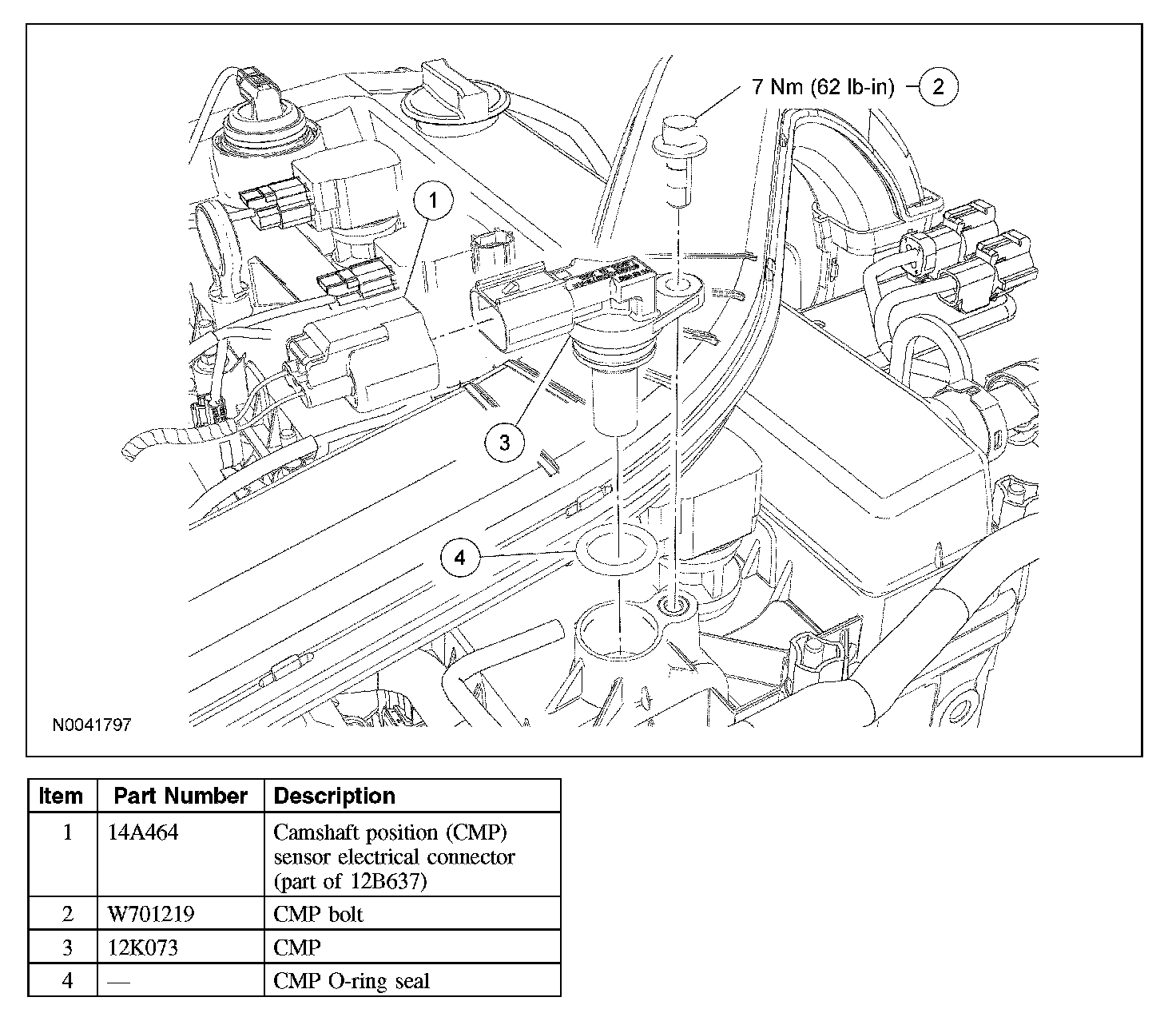

Removal and Installation
1. Disconnect the camshaft position (CMP) sensor electrical connector.
2. Remove the bolt and the CMP.
- To install, tighten to 7 Nm (62 lb-in).

3. NOTE: Lubricate the CMP O-ring seal with clean engine oil.

To install, reverse the removal procedure.
