Differential Assembly: Service and Repair

Axle Assembly

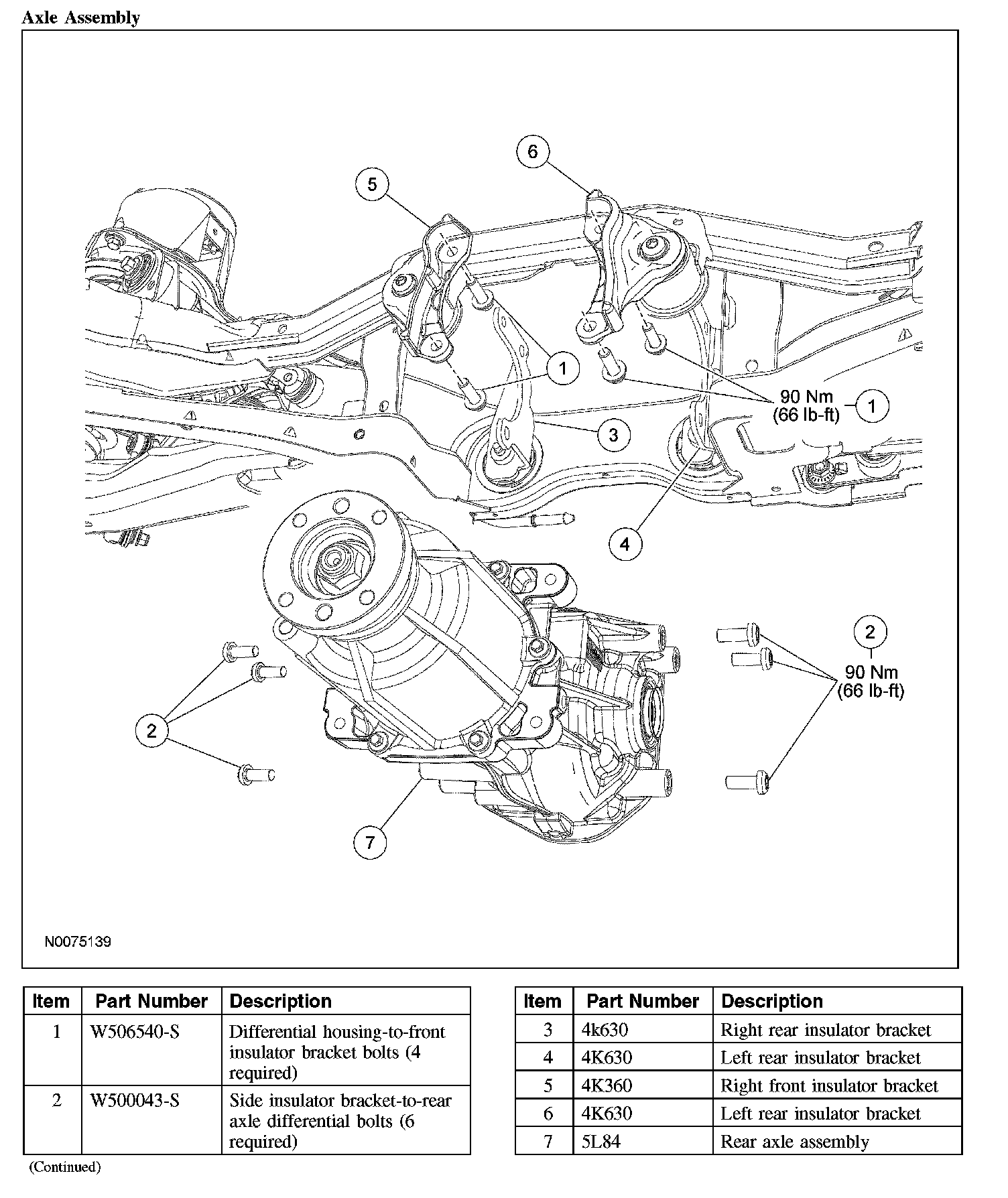

Axle Assembly:

Removal and Installation
1. Remove the driveshaft.
2. Remove the rear halfshafts.

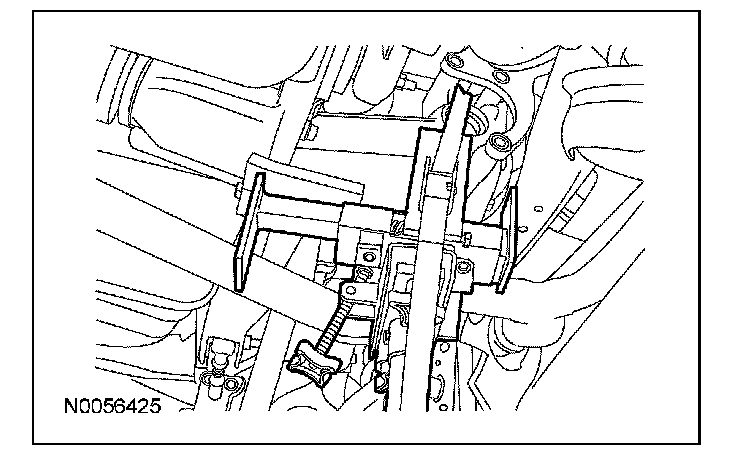

3. Position a suitable transmission hydraulic jack to the axle housing. Securely strap the jack to the housing.

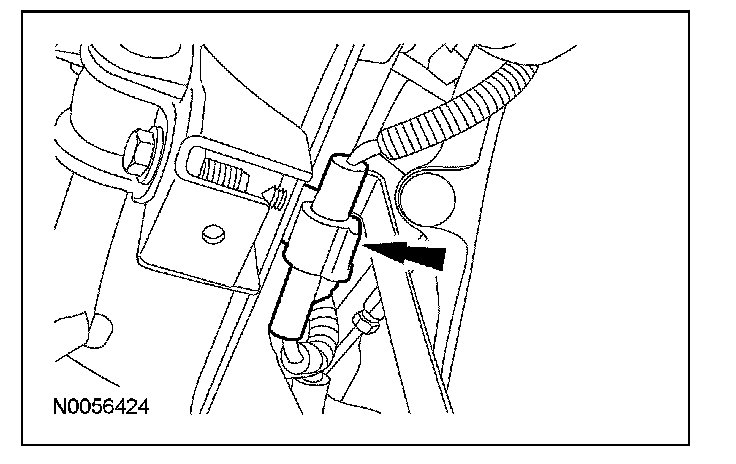

4. Disconnect the active torque coupling electrical connector.

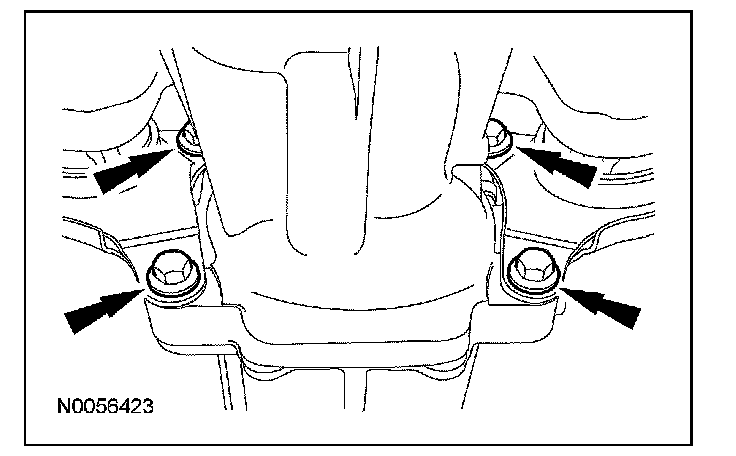

5. Remove the 4 differential housing-to-front insulator bracket bolts.
^ To install, tighten to 90 Nm (66 lb-ft).





6. Loosen the LH front insulator bracket-to-subframe bolt, and rotate the bracket aside.
^ To install, tighten to 90 Nm (66 lb-ft).

7. Loosen the RH front insulator bracket-to-subframe bolt and the bracket, and rotate the bracket aside.
^ To install, tighten to 90 Nm (66 lb-ft).

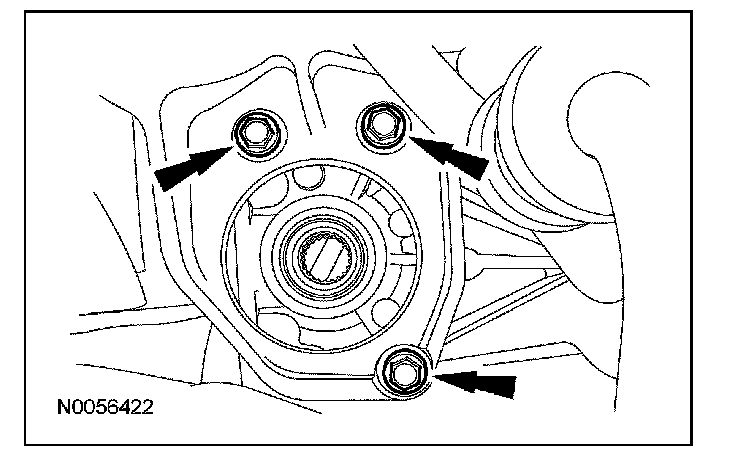

8. Remove the 3 RH side insulator bracket-to-rear axle differential bolts.
^ To install, tighten to 90 Nm (66 lb-ft).

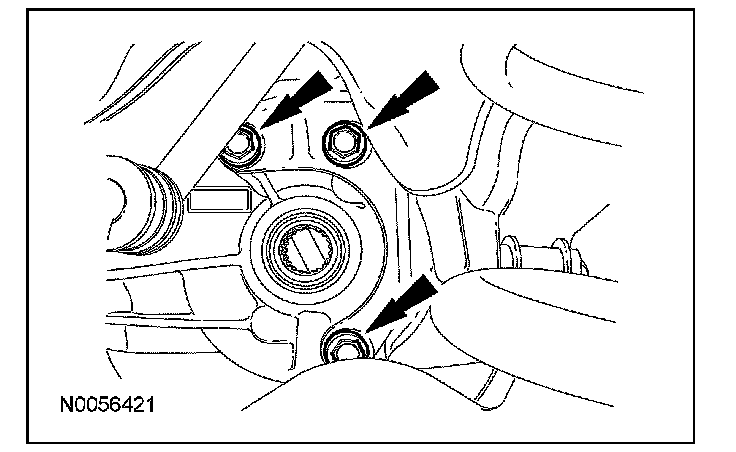

9. Remove the 3 LH side insulator or bracket-to-rear axle differential bolts.
^ To install, tighten to 90 Nm (66 lb-ft).





10. Lower the rear axle assembly.
11. To install, reverse the removal procedure.
