Coolant Temperature Sensor/Switch (For Computer): Service and Repair

ENGINE COOLANT TEMPERATURE (ECT) SENSOR







Removal and Installation
1. Drain the cooling system.

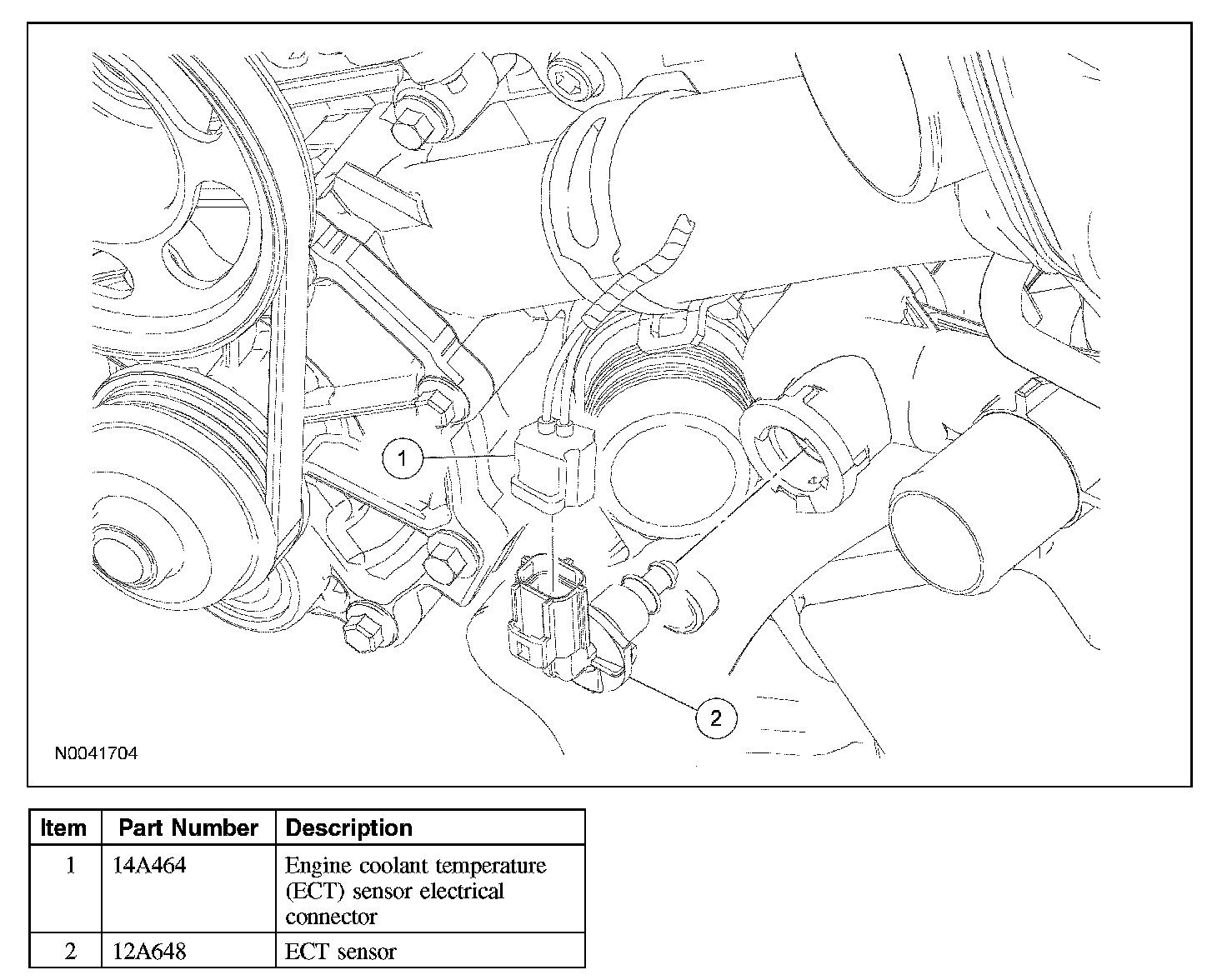

2. Disconnect the engine coolant temperature (ECT) sensor electrical connector.
3. Remove the ECT sensor.

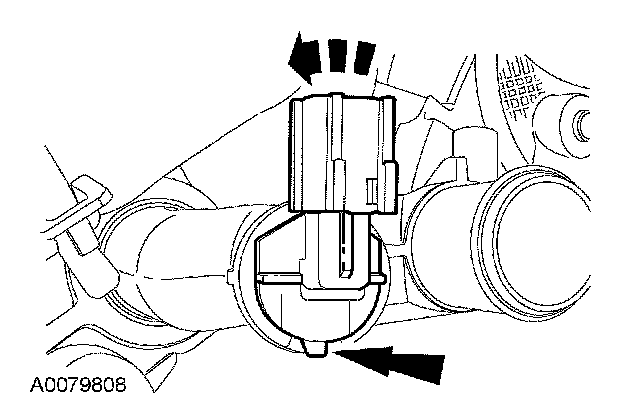

- Pull upward on the locking tab.
- Rotate the sensor counterclockwise and remove.







4. To install, reverse the removal procedure.
