Crankshaft Position Sensor: Service and Repair

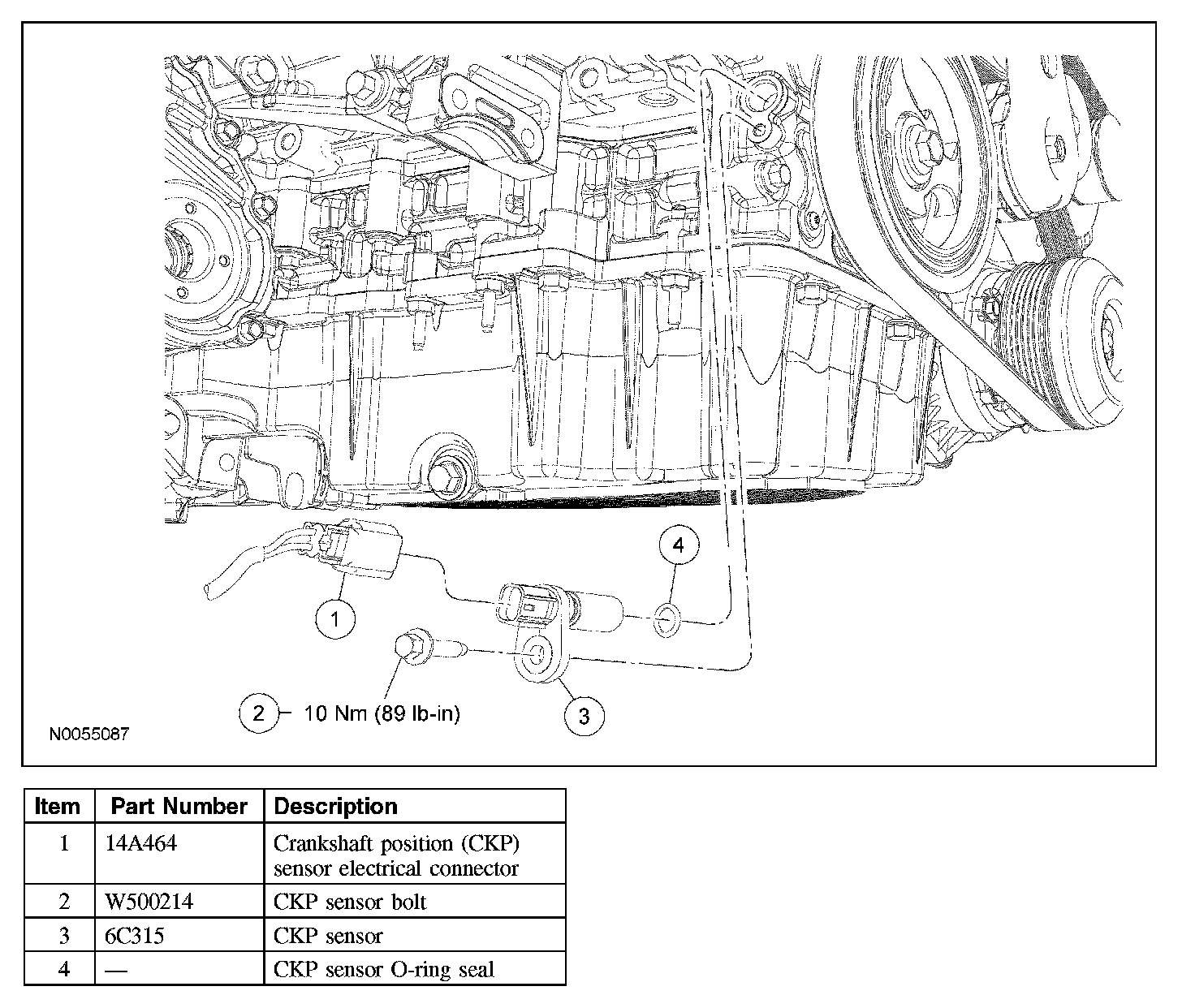

CRANKSHAFT POSITION (CKP) SENSOR







Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist
2. Disconnect the crankshaft position (CKP) sensor electrical connector.
3. Remove the bolt and the CKP.
- To install, tighten to 10 Nm (89 lb-in).

4. NOTE: Lubricate the CKP O-ring seal with clean engine oil.

To install, reverse the removal procedure.
