Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

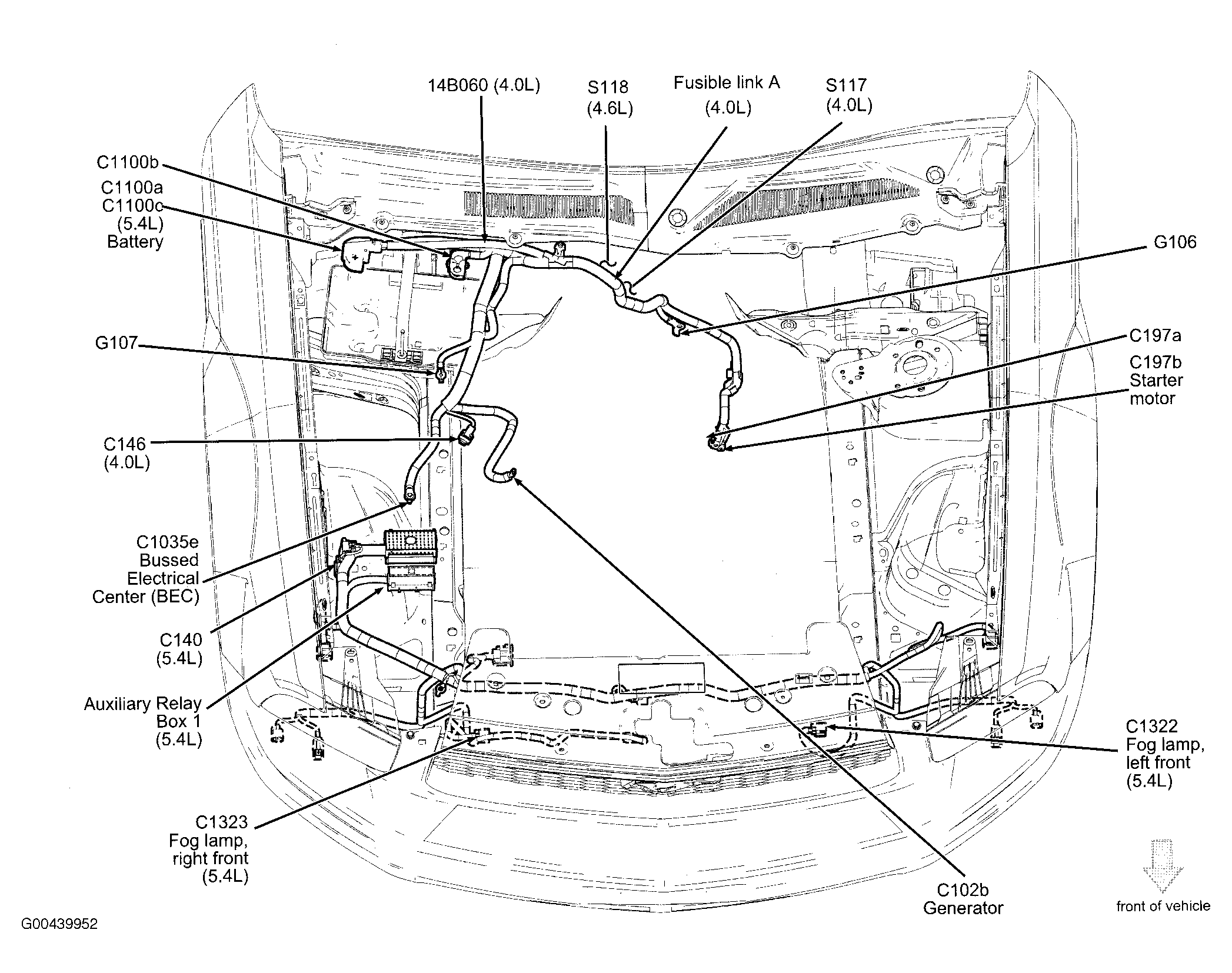

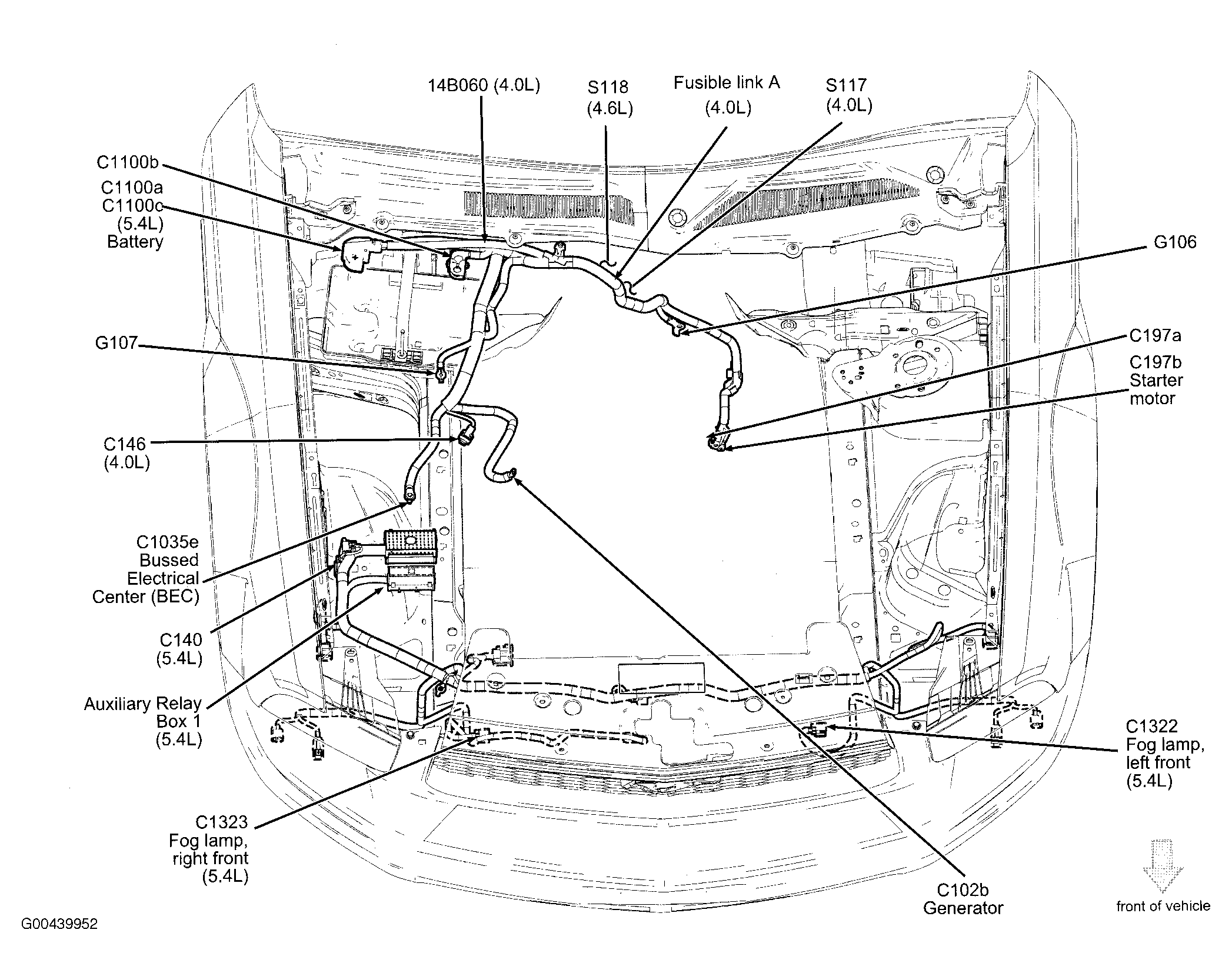

| Auxiliary Relay Box 1 (5.4L) | Right side of engine compartment. See Figure. |

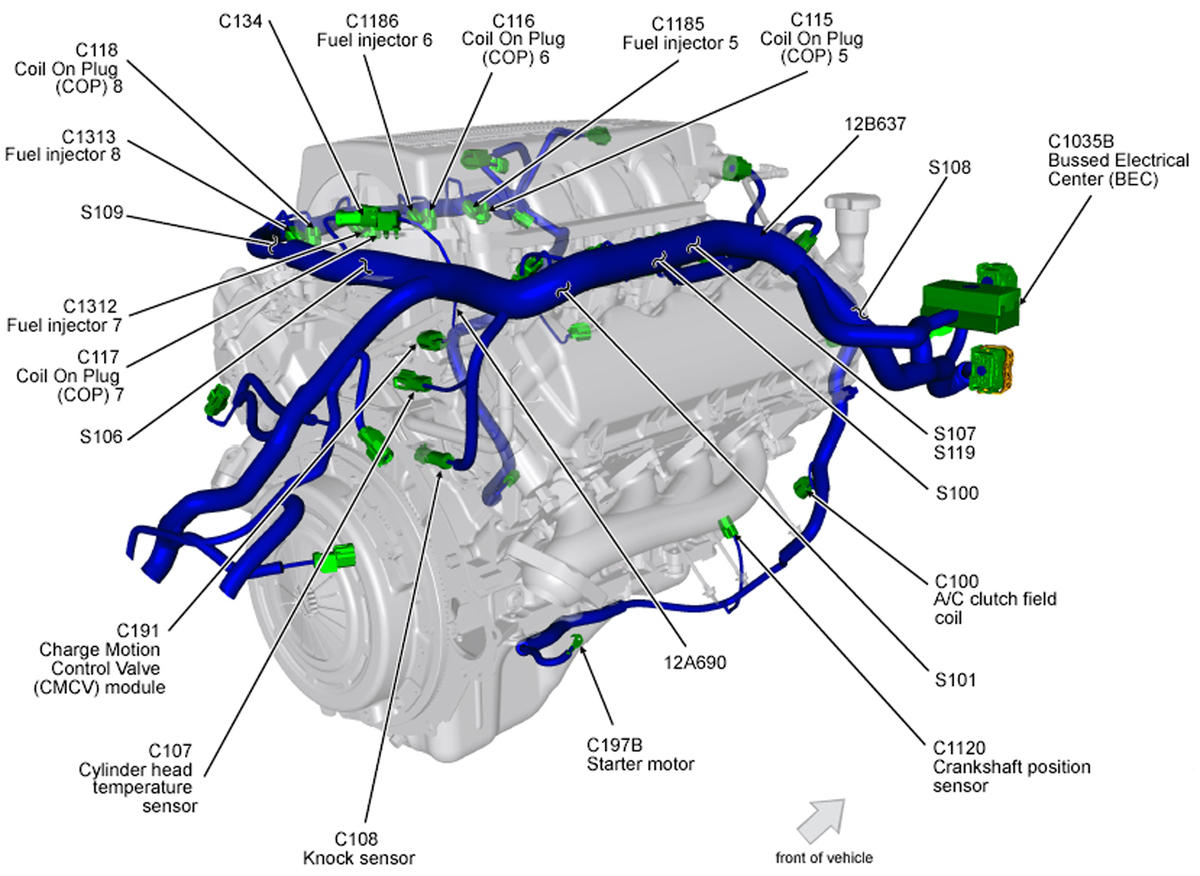

| Bussed Electrical Center (BEC) | Right front of engine compartment. See Figure. |
| Heated Seat Relay Box | Behind left end of dash. See Figure. |

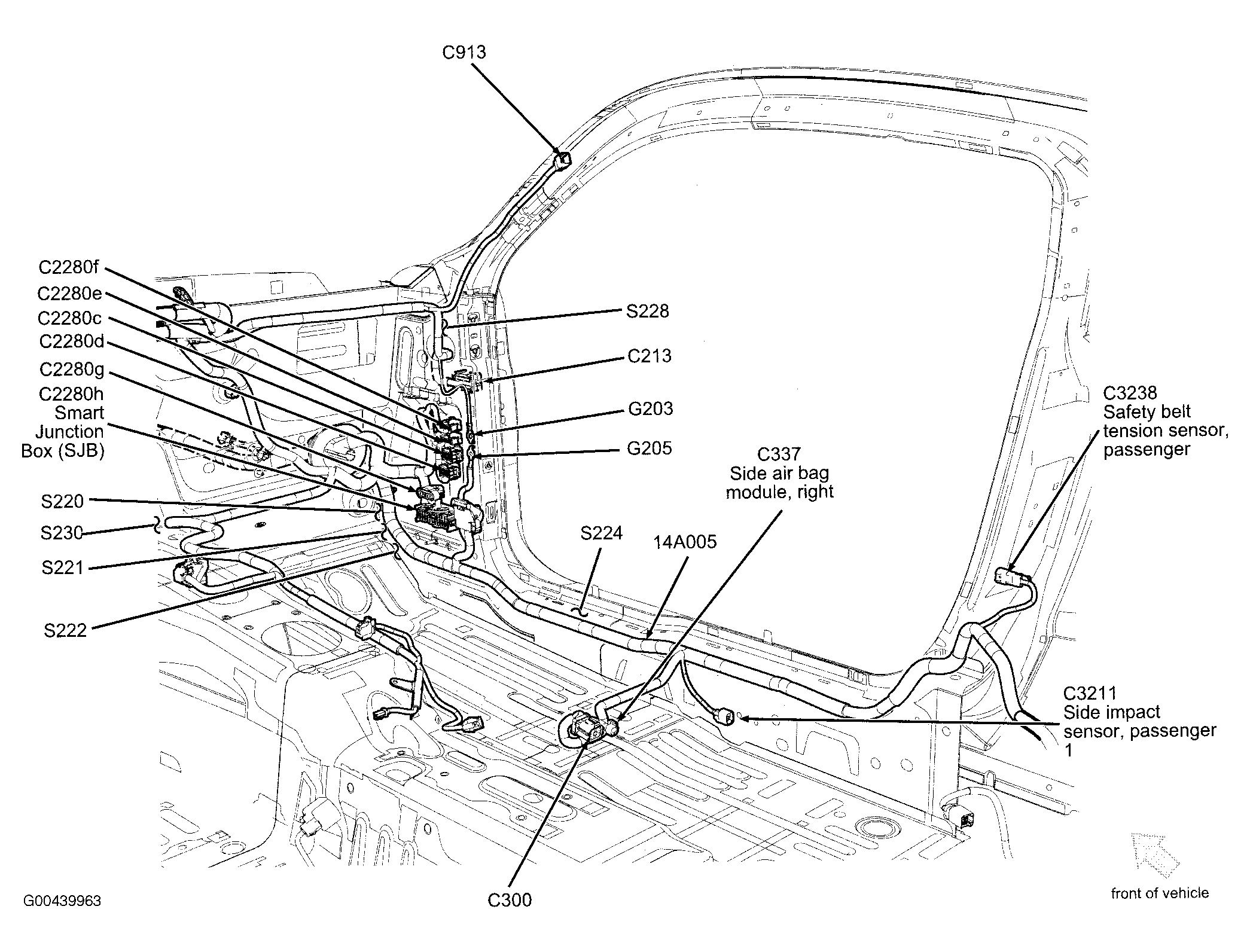

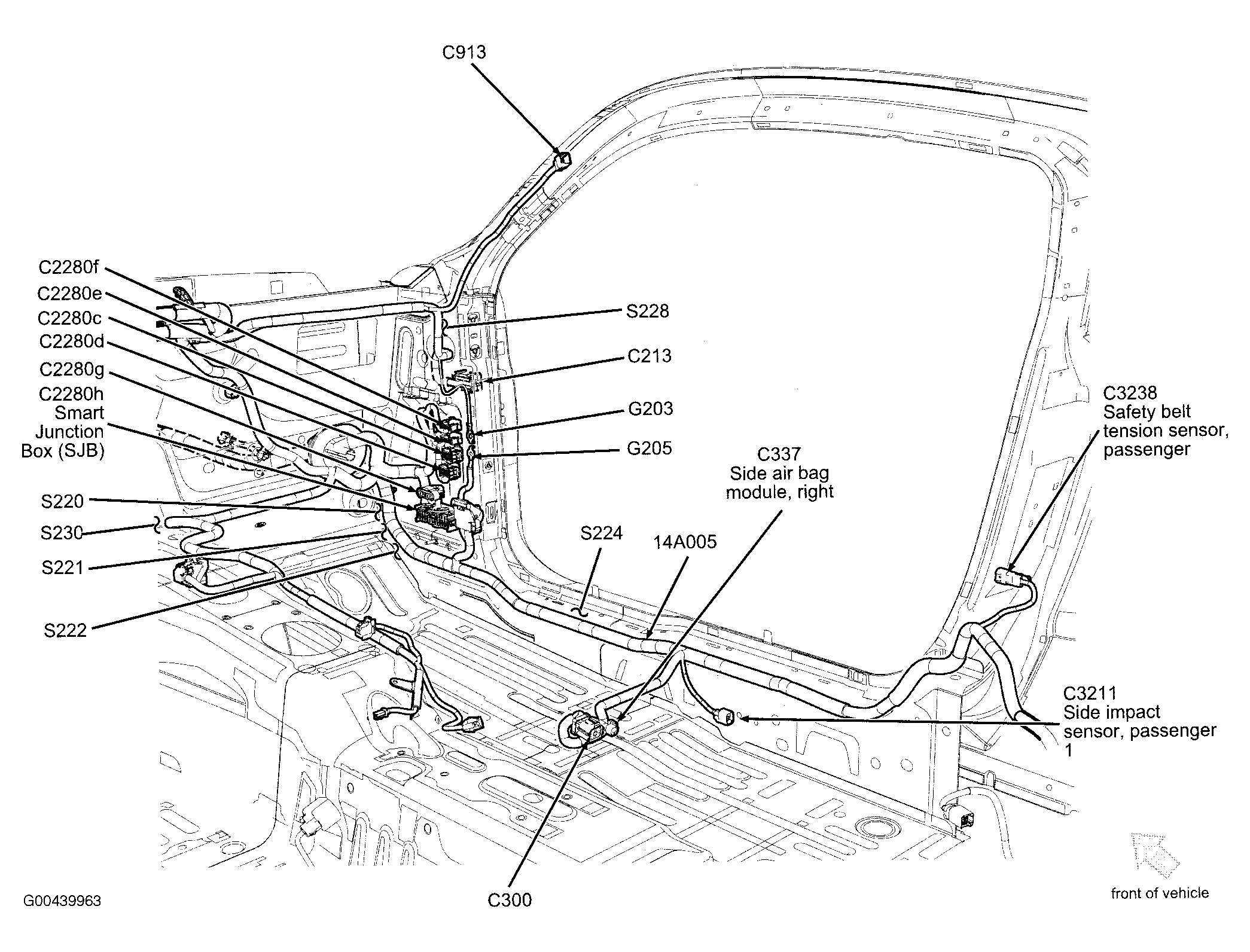

| Smart Junction Box (SJB) | Right kick panel. See Figure. |
