Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

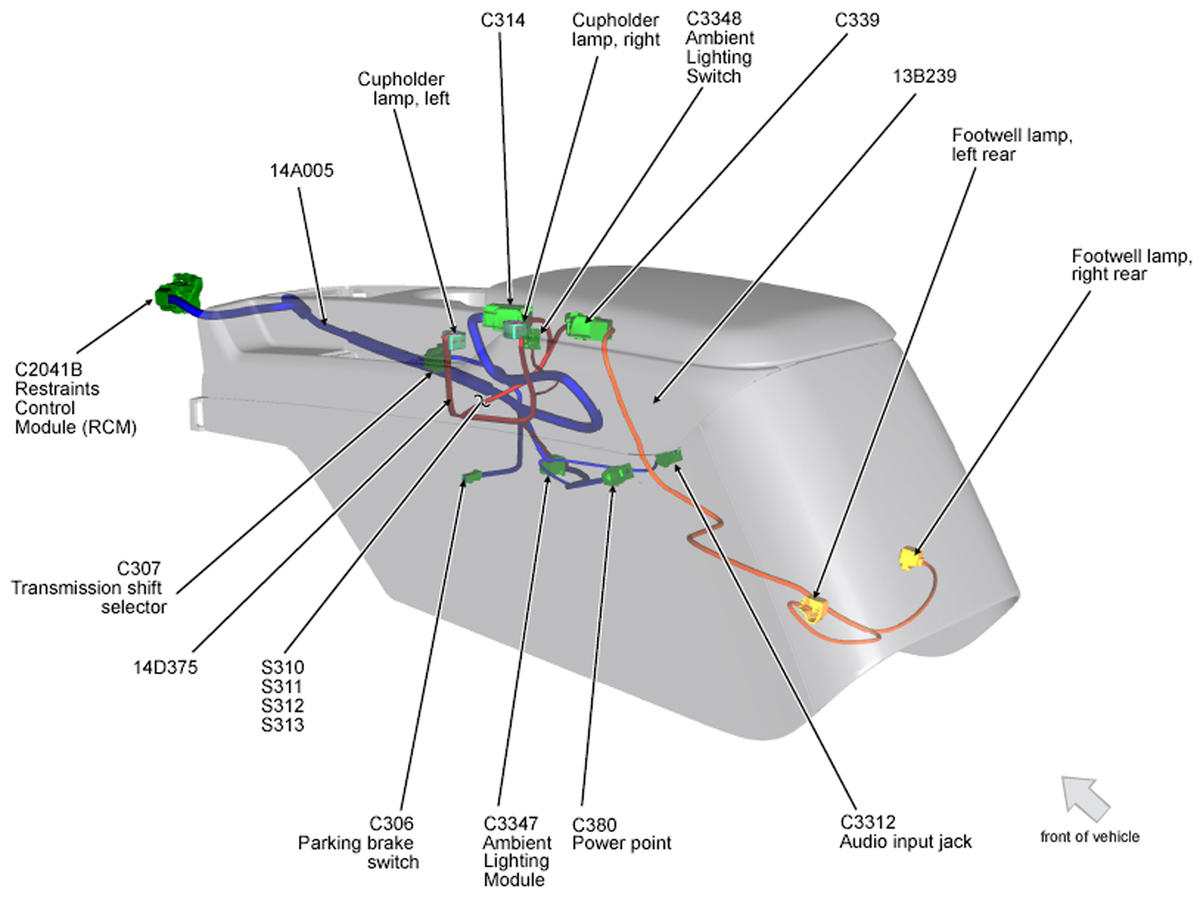

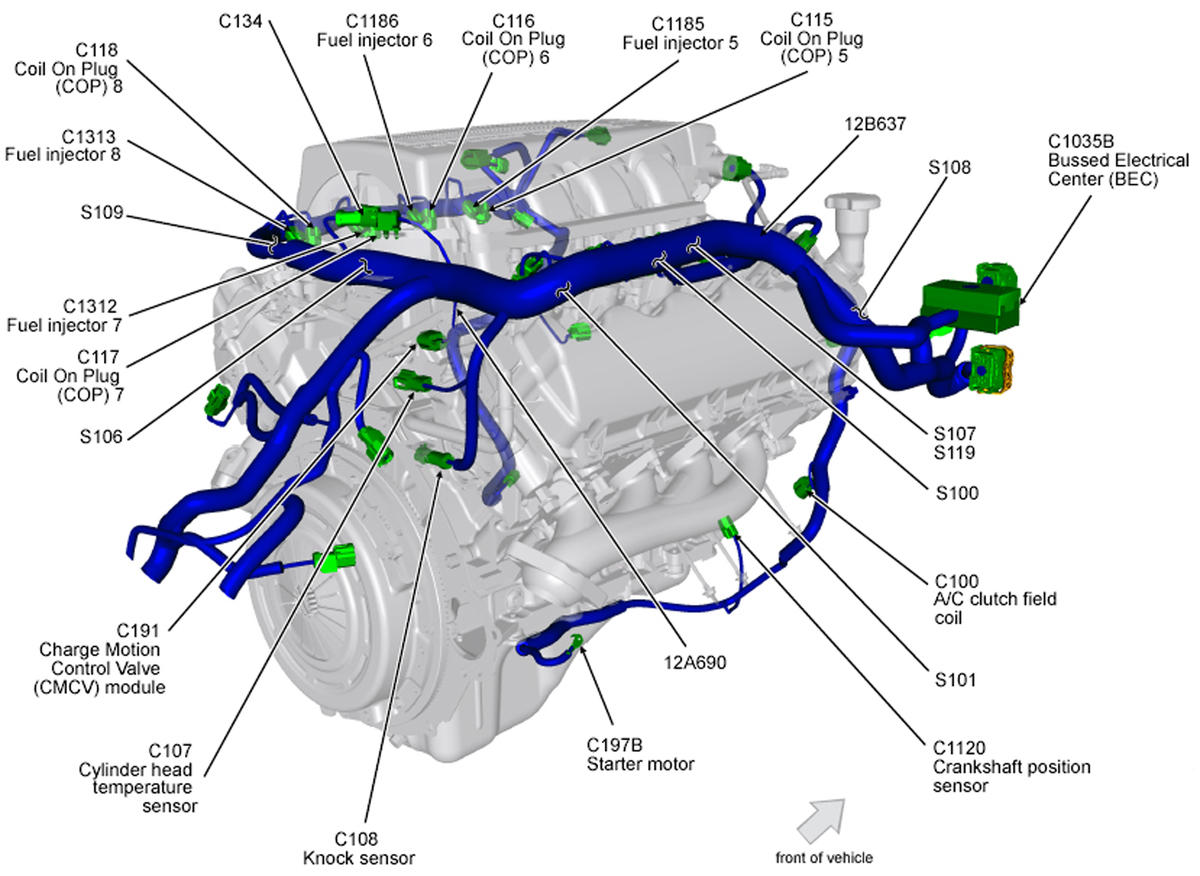

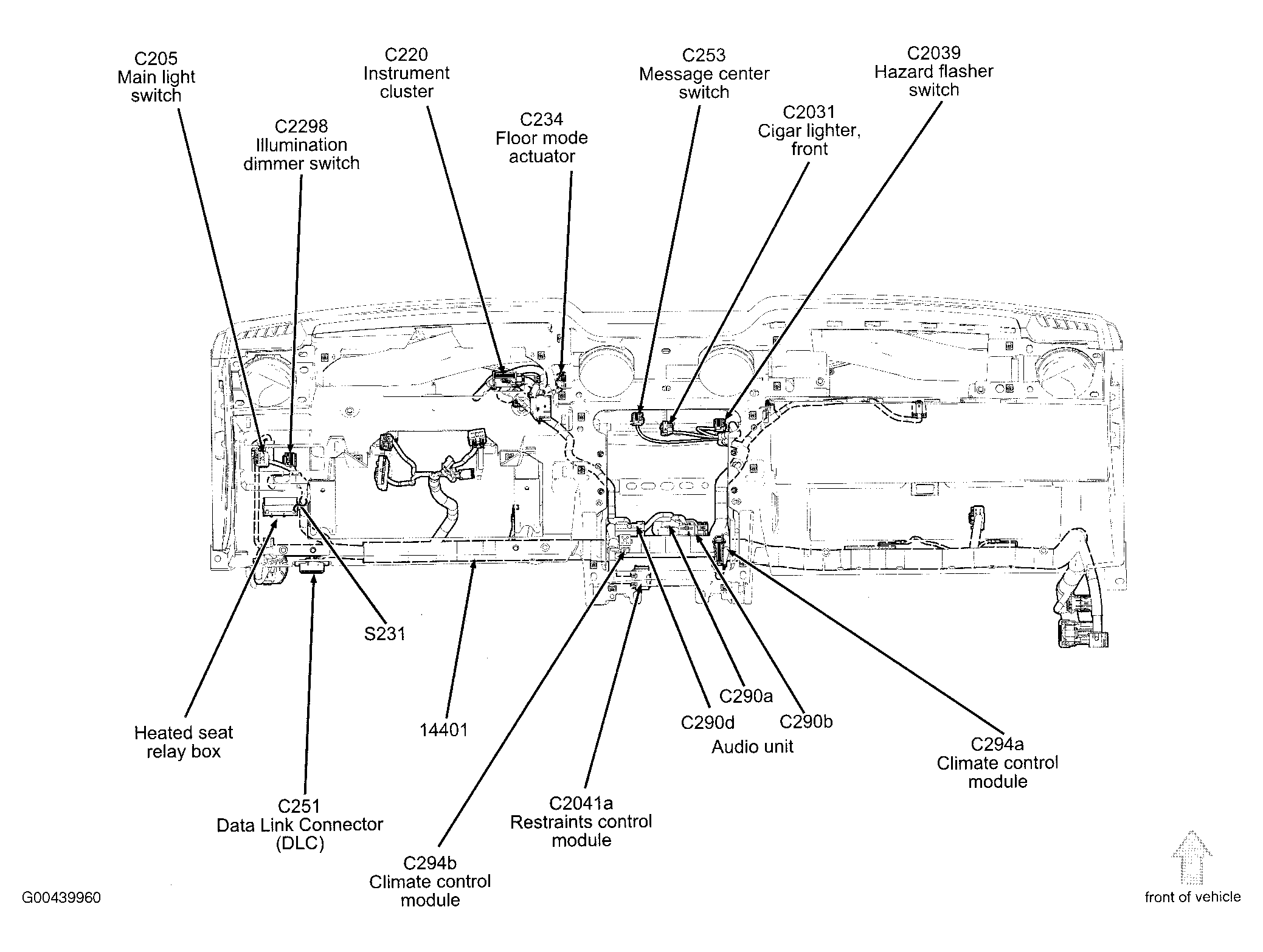

| Ambient Lighting Module | Under center console. See Figure. |
| Anti-Lock Brake System (ABS) Module | Left front of engine compartment. See Figure. |
| Charge Motion Control Valve Module | Front of left cylinder head. See Figure. |
| Climate Control Module | Behind center of dash. See Figure. |

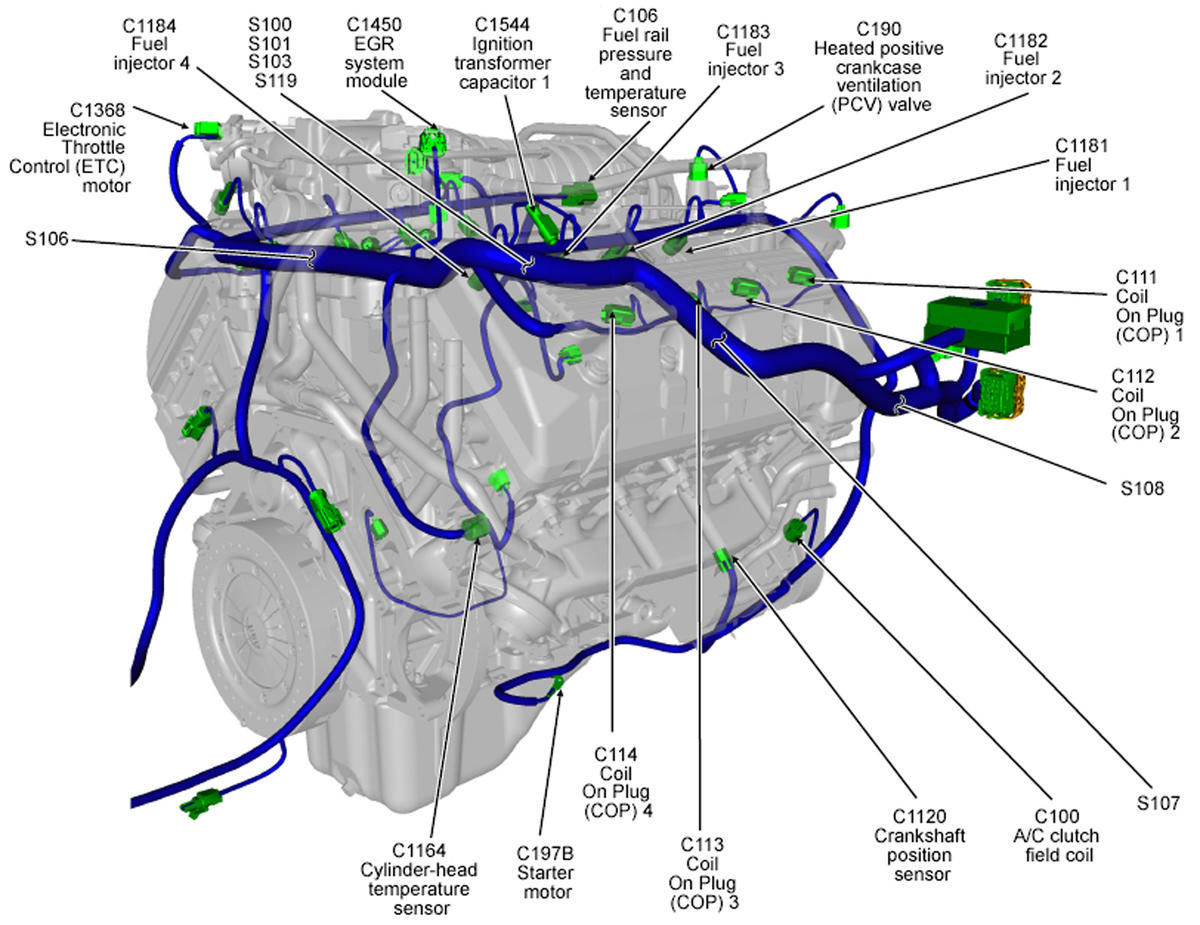

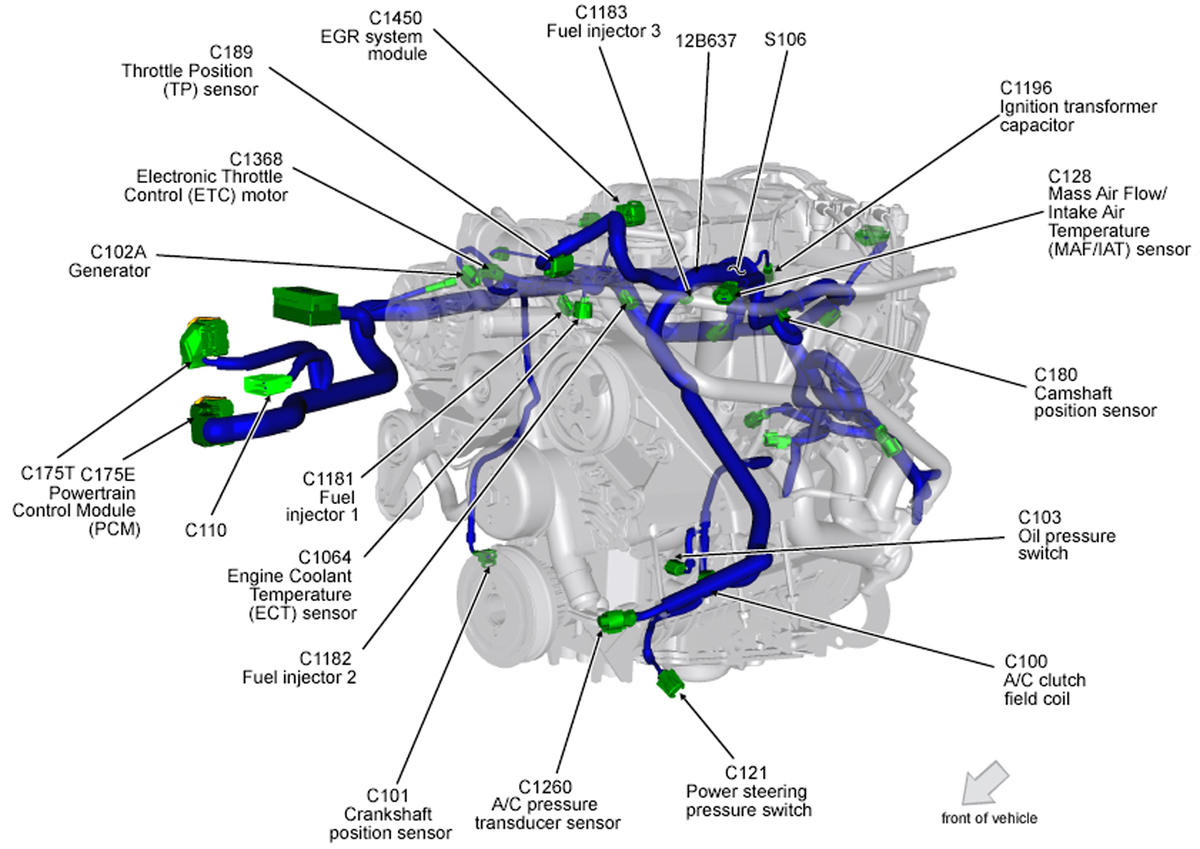

| EGR System Module (4.0L) | Top center of engine. See Figure. |
| EGR System Module (5.4L) | Top center of engine. See Figure. |

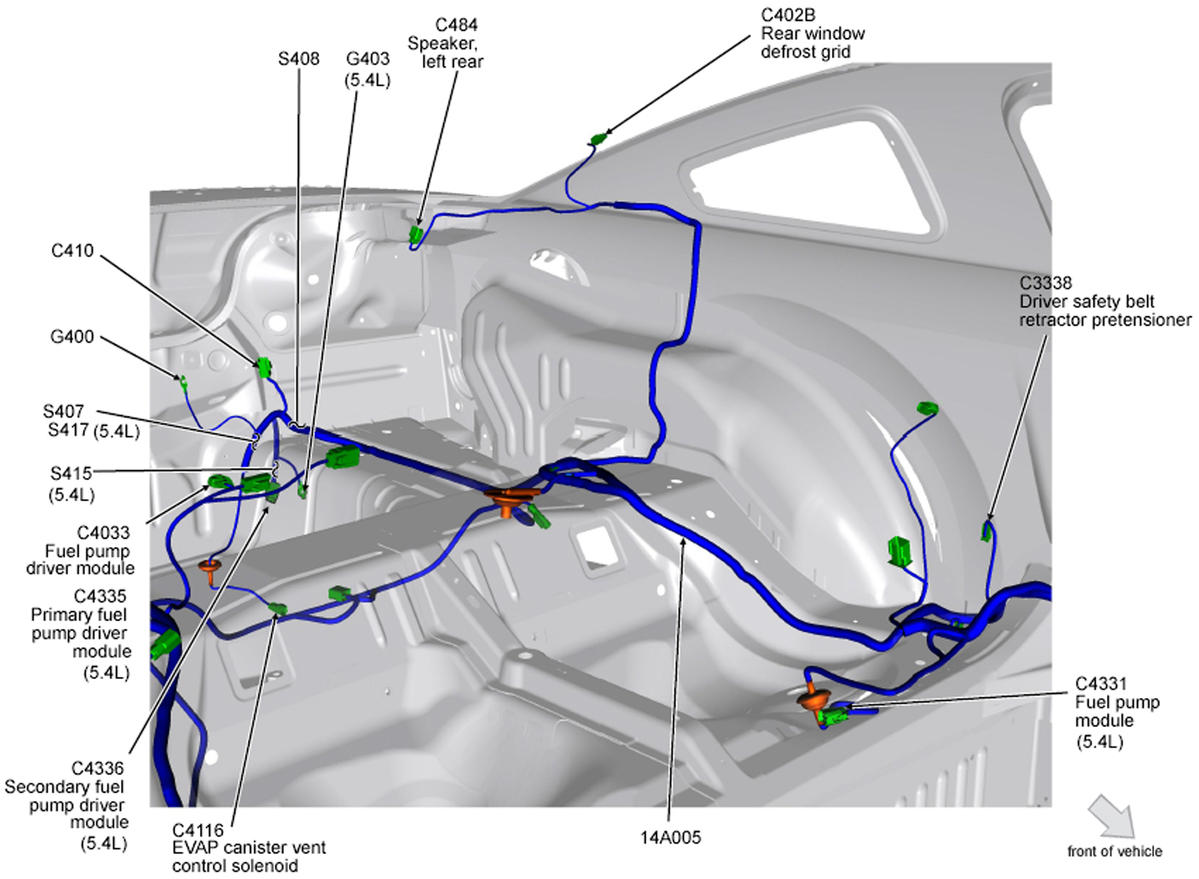

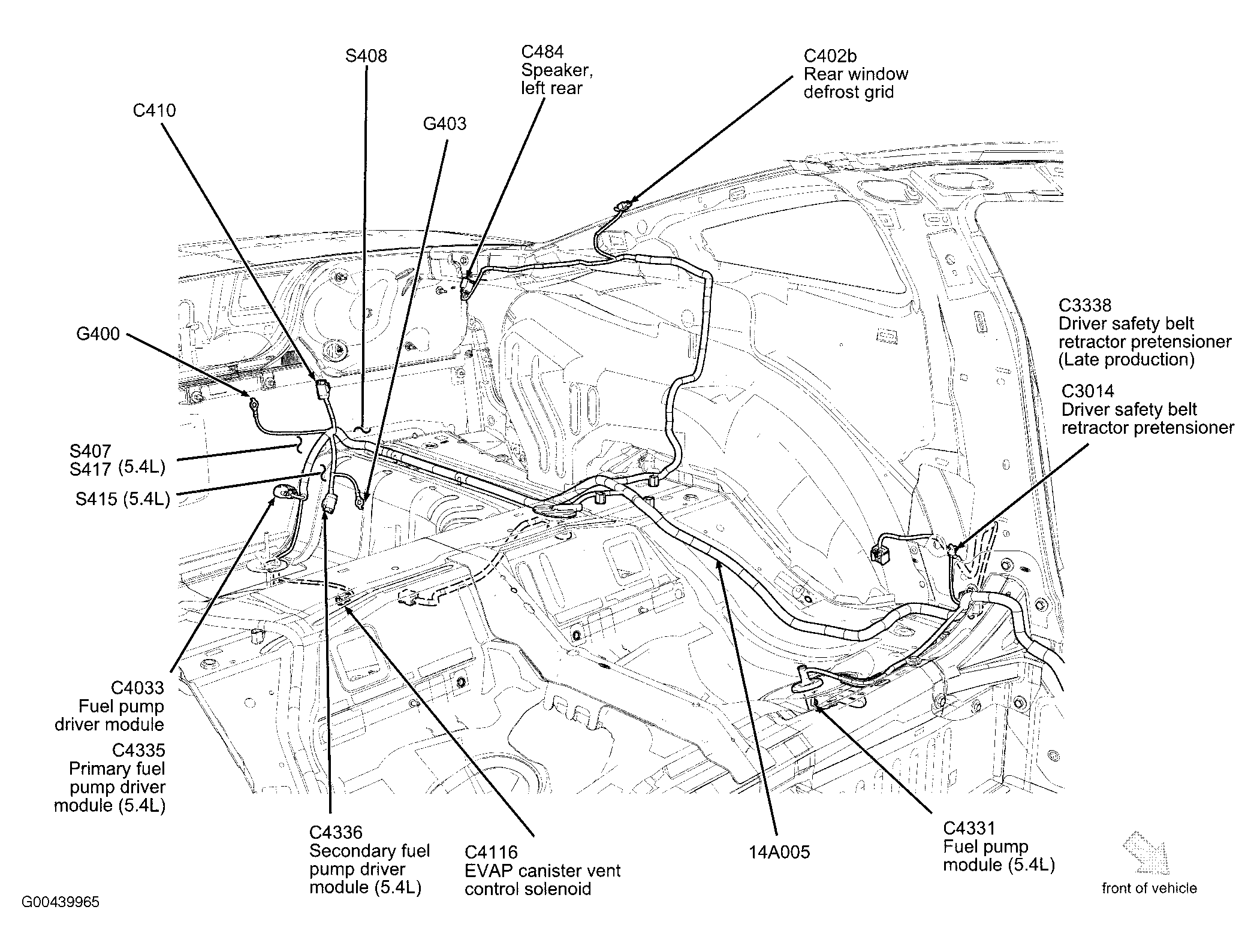

| Fuel Pump Driver Module | Underside of luggage compartment. See Figure. |
| Fuel Pump Module (5.4L) | Top left side of fuel tank. See Figure. |

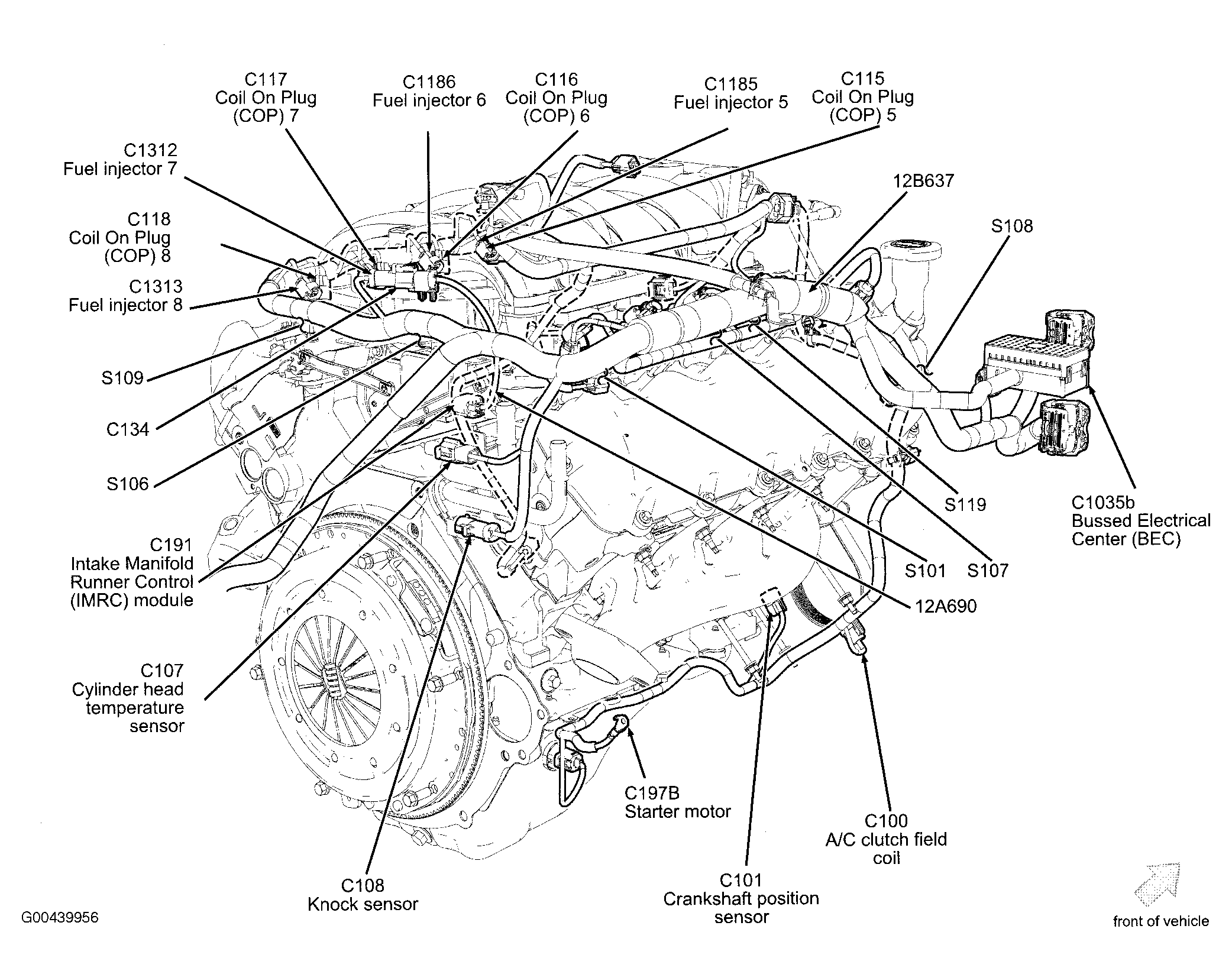

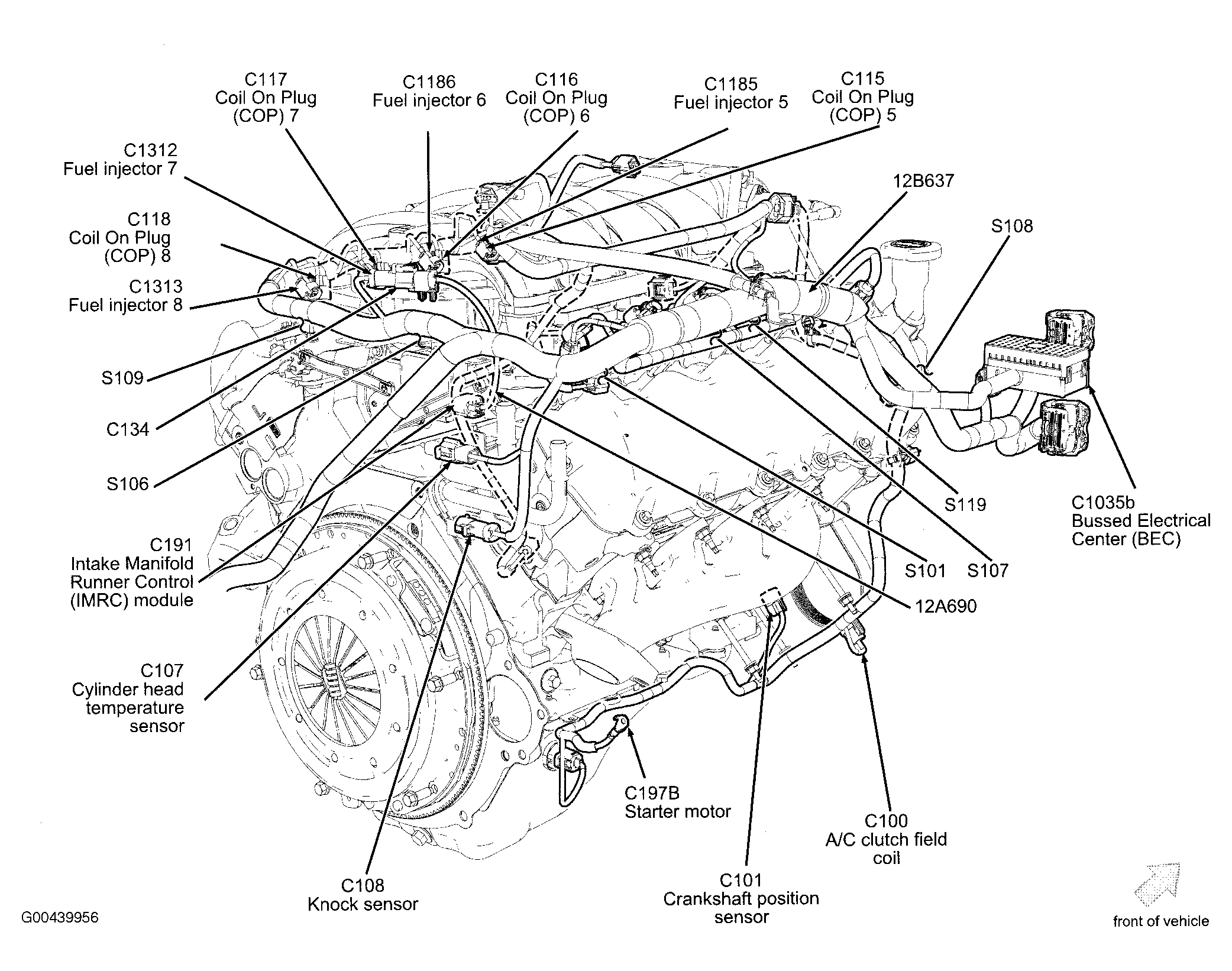

| Inlet Manifold Runner Control (IMRC) Module (4.6L) | Right rear of engine compartment. See Figure. |

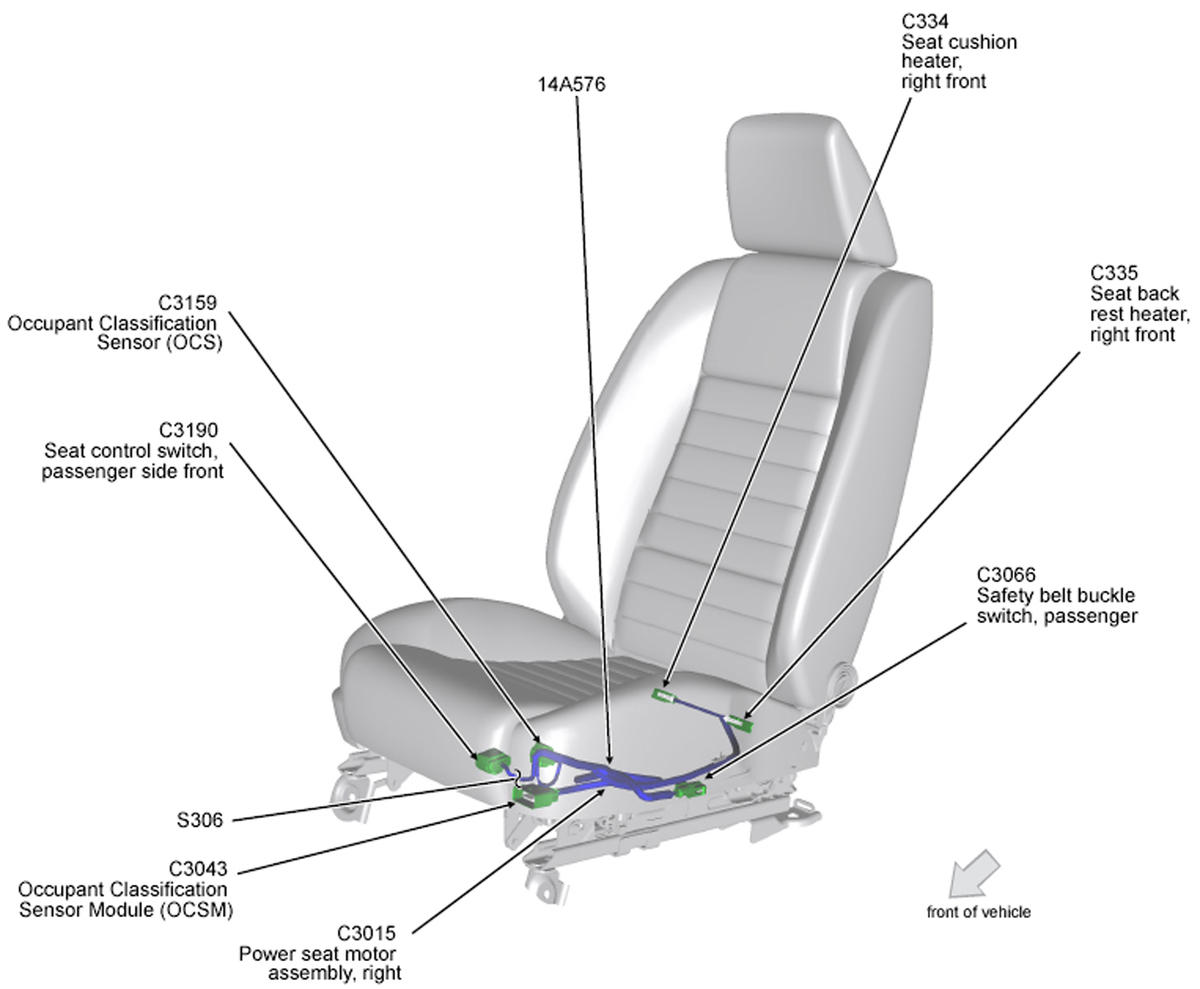

| Occupant Classification Sensor Module | Under passenger's seat. See Figure. |

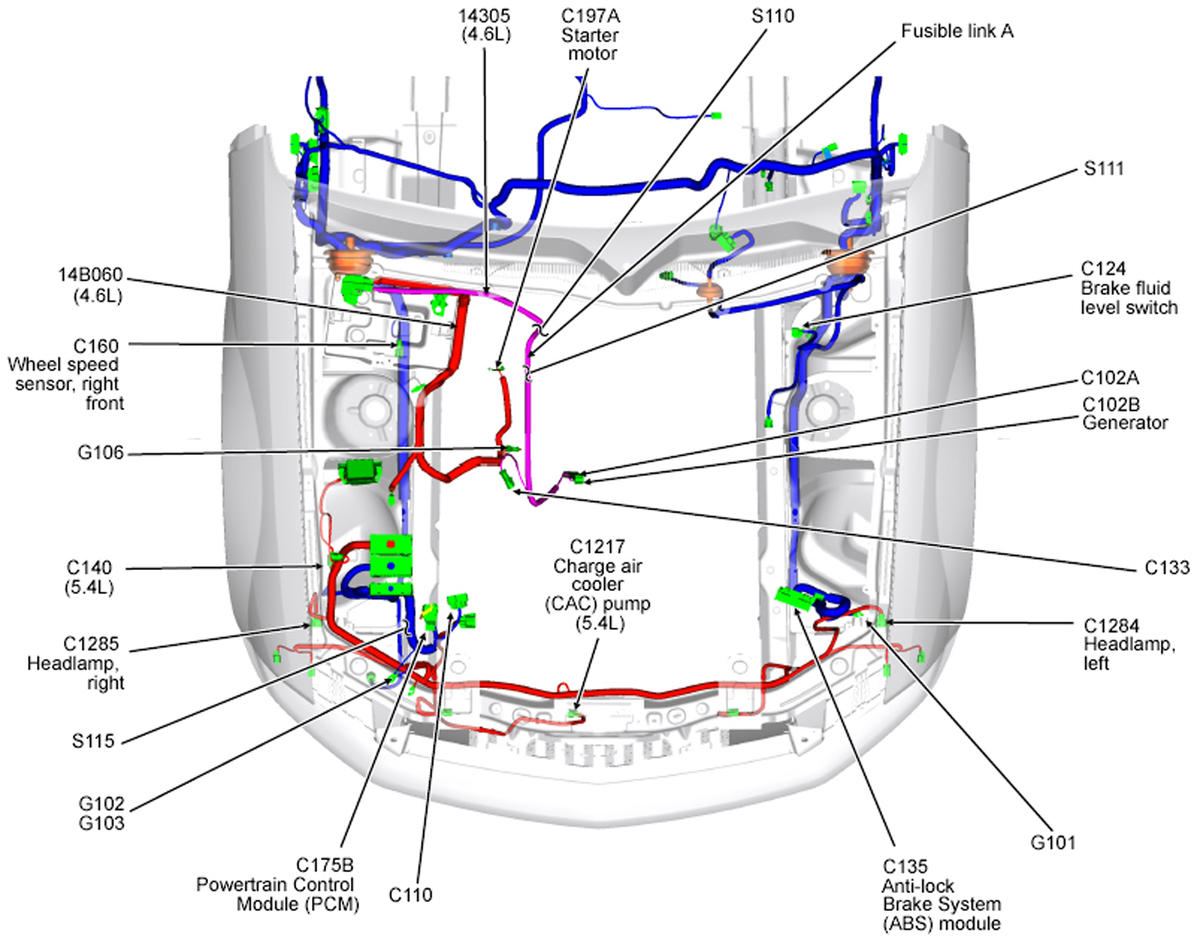

| Powertrain Control Module (PCM) | Right front of engine compartment. See Figure. |
| Primary Fuel Pump Driver Module (5.4L) | Top left rear of fuel tank. See Figure. |
| Restraints Control Module | Behind lower center of dash. See Figure. |
| Secondary Fuel Pump Driver Module (5.4L) | Top left rear of fuel tank. See Figure. |
