Spark Plug: Service and Repair

SPARK PLUGS

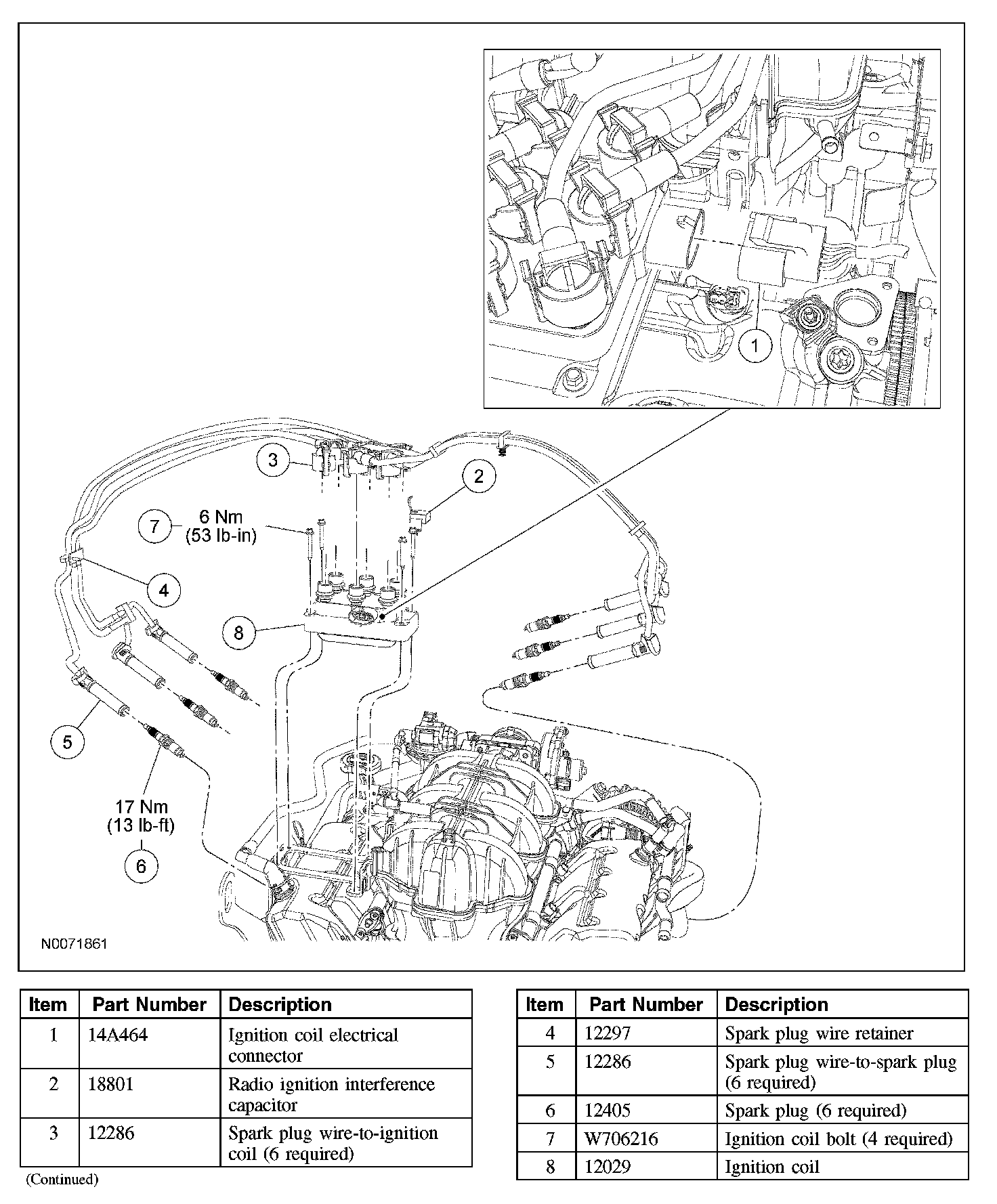

Exploded View

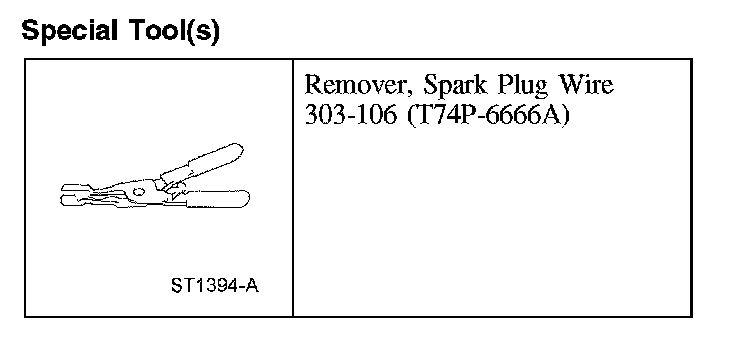

Special Tool(s)

Special Tool(s):

Removal

1. CAUTION: It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire.

NOTE: Spark plug wires must be connected to the correct spark plug.

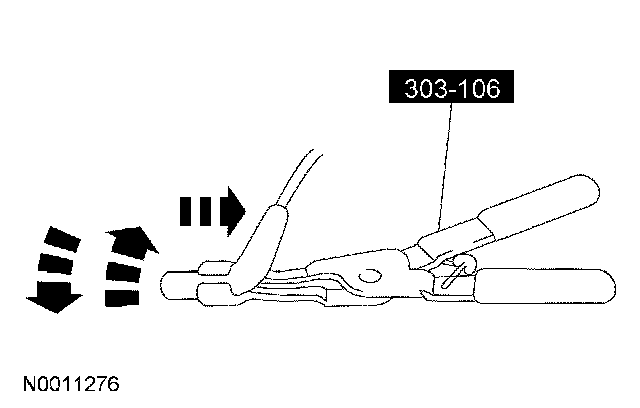

Using the special tool, remove the spark plug wires from the spark plugs using a twisting motion.







2. CAUTION: Only use hand tools when removing or installing the spark plugs, or damage may occur to the cylinder head or spark plug.

NOTE: Use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.

Remove the 6 spark plugs.

Installation

1. CAUTION: Only use hand tools when removing or installing the spark plugs, or damage may occur to the cylinder head or spark plug.

Install the 6 spark plugs.
- Tighten to 17 Nm (13 lb-ft).

2. Apply silicone brake caliper grease and dielectric compound to the inside of the spark plug wire-to-boots.

3. NOTE: Make sure the spark plug boots are positioned so that the spark plug wires do not contact the exhaust manifold, or any sharp edges.

Connect the 6 spark plug wires to the spark plugs.
