Drive Belt

Front End Accessory Drive (FEAD) - Exploded View

4.0L SOHC

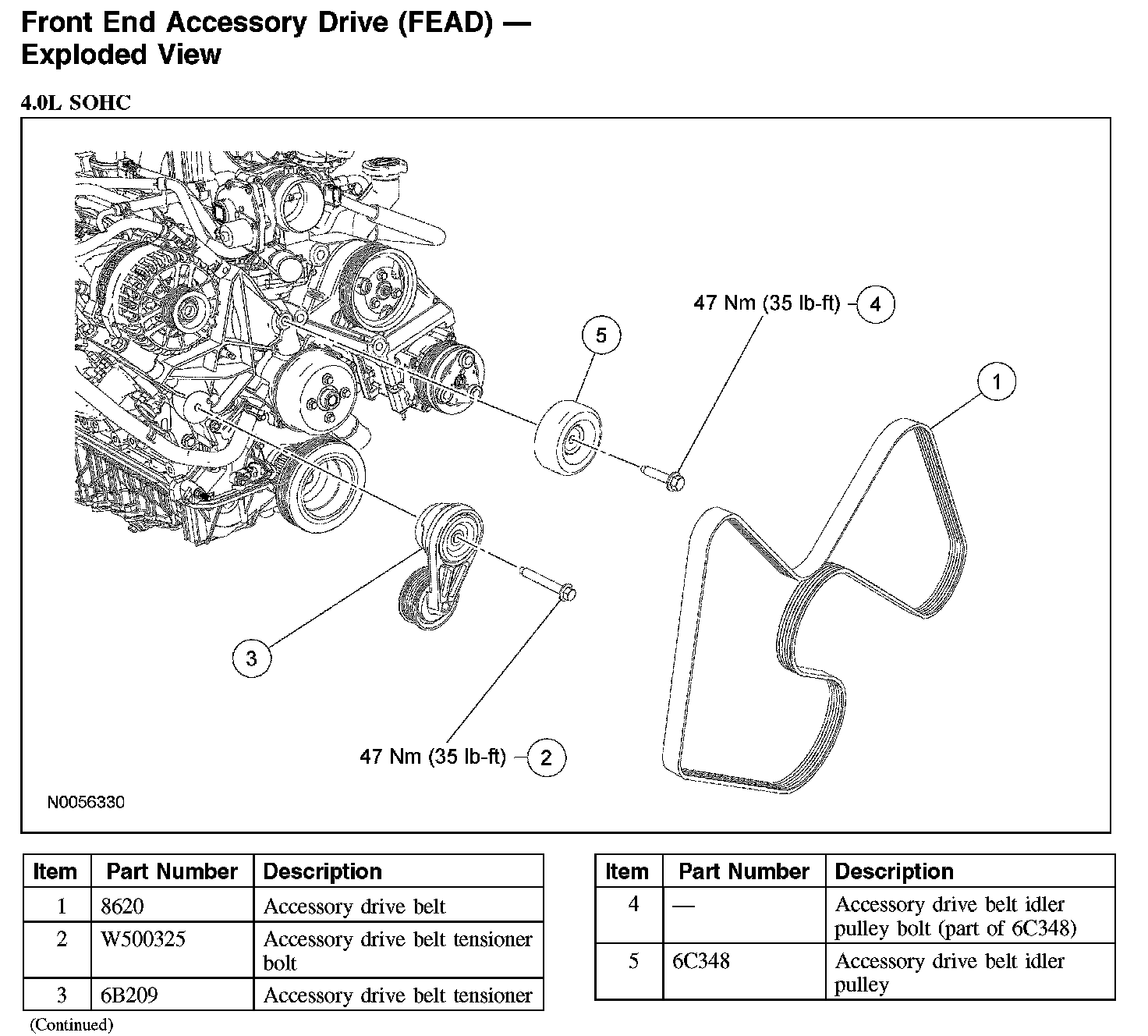

Front End Accessory Drive (FEAD) - Exploded View 4.0L SOHC:





4.6L (3V)

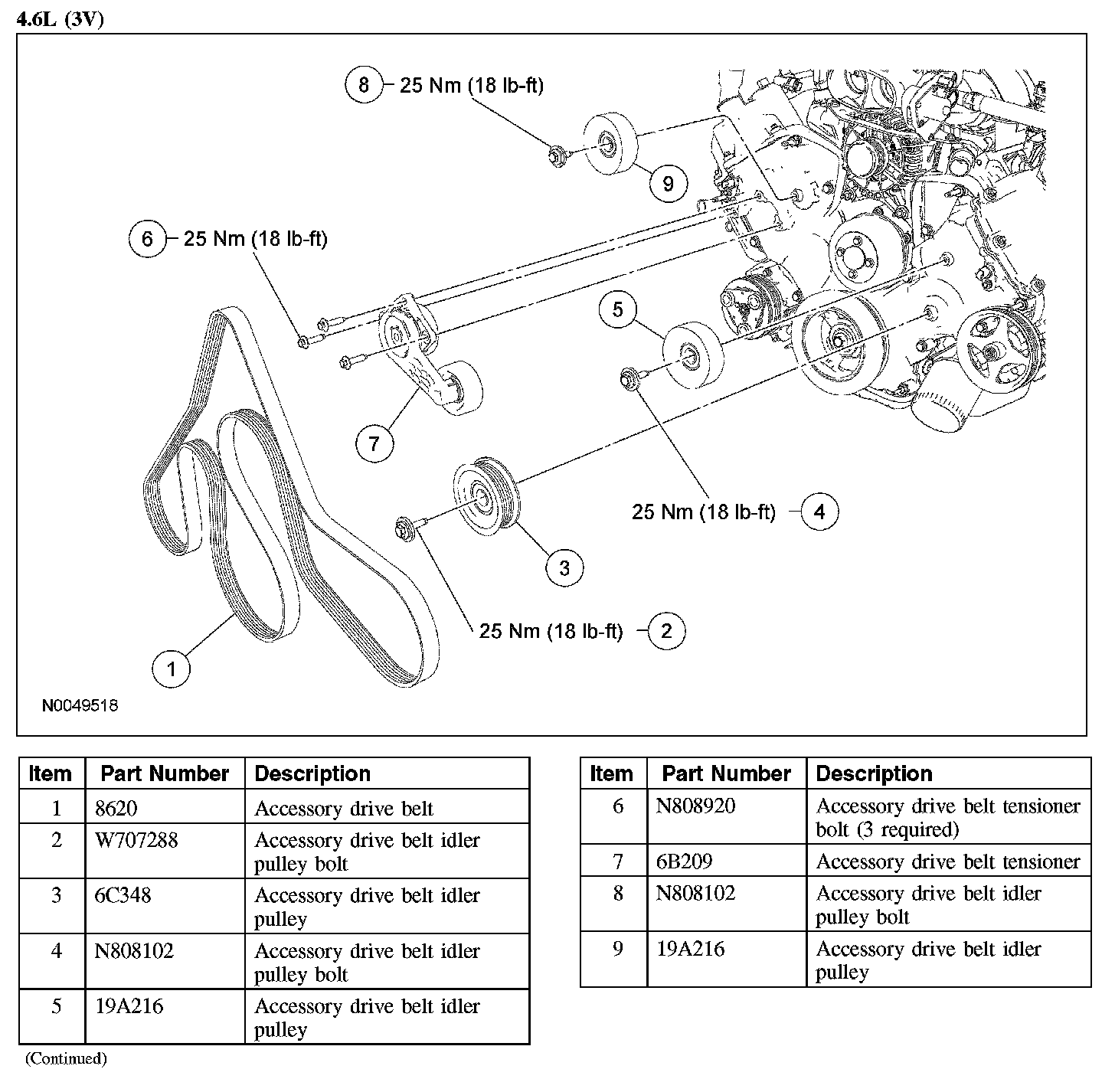

Front End Accessory Drive (FEAD) - Exploded View 4.6L (3V):





5.4L (4V)

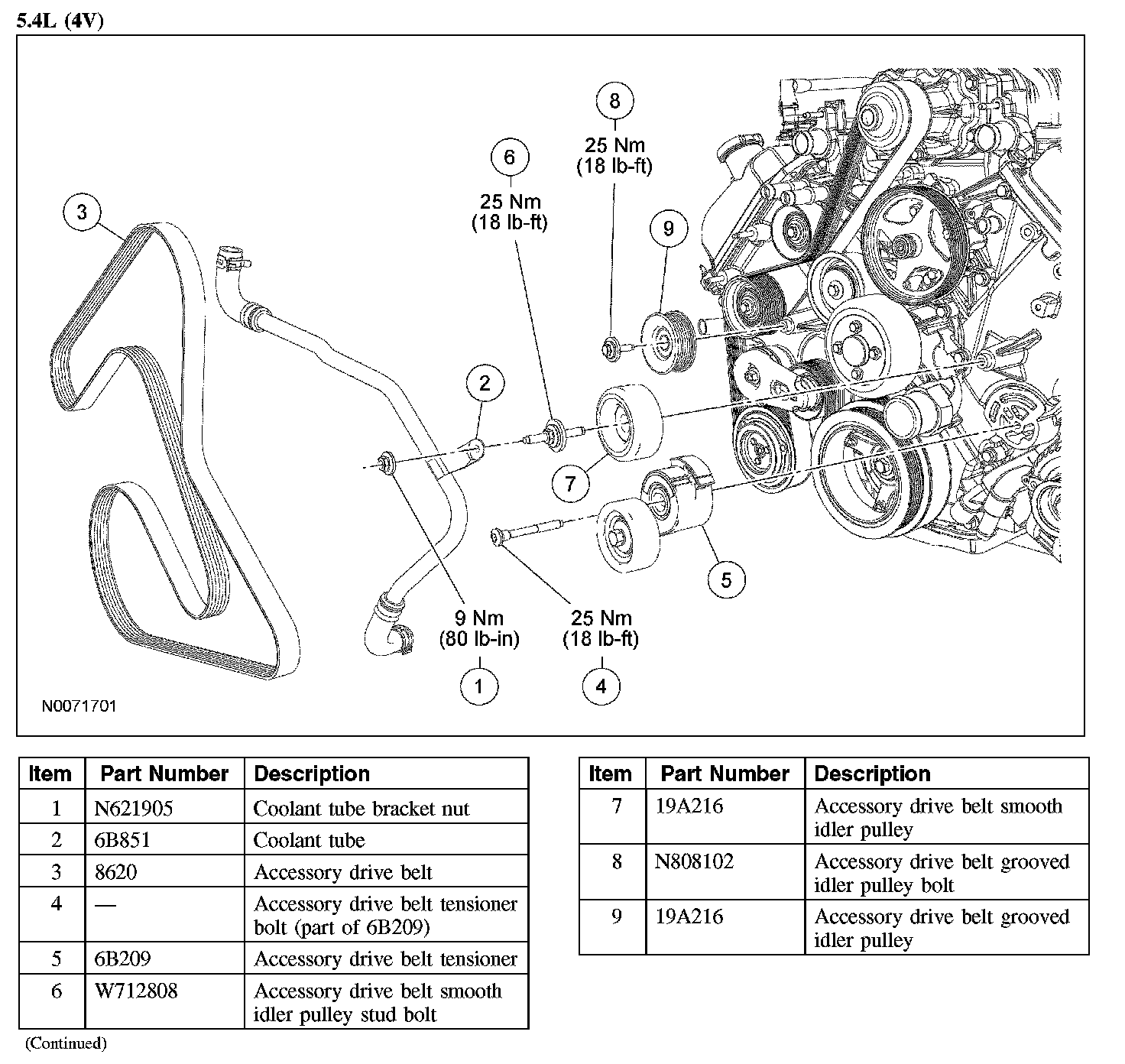

Front End Accessory Drive (FEAD) - Exploded View 5.4L (4V):
