Connecting Rod

Connecting Rod Bearing Journal Taper and Out-of-Round

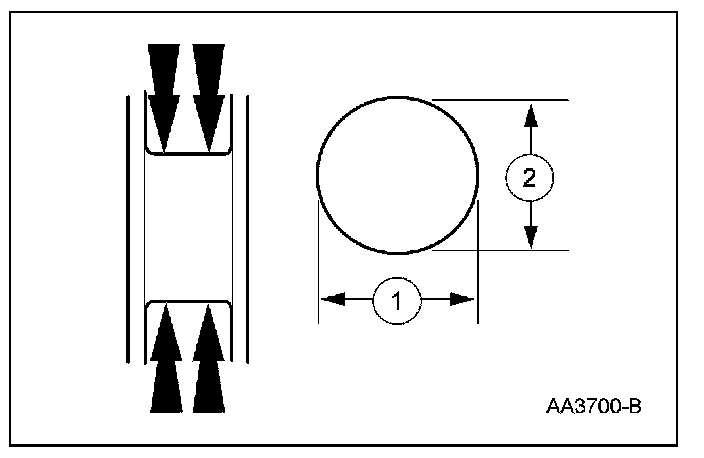

1. Measure the crankshaft connecting rod journal diameters in 2 directions perpendicular to one another at each end of the connecting rod journal. The difference in the measurements from one end to the other is the taper. Verify measurement is within the wear limit.





Connecting Rod-to-Piston Clearance

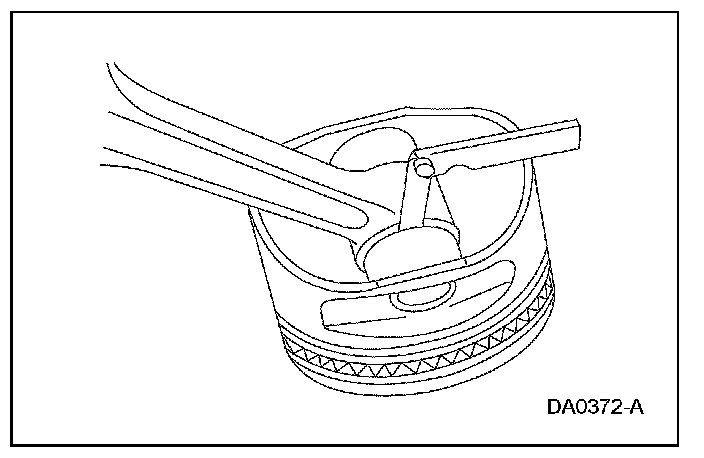

1. Measure the clearance between the connecting rod and the piston. Verify the measurement is within specification.
