Control Assembly: Service and Repair

HEATING VENTILATION AIR CONDITIONING (HVAC) MODULE







Removal and Installation

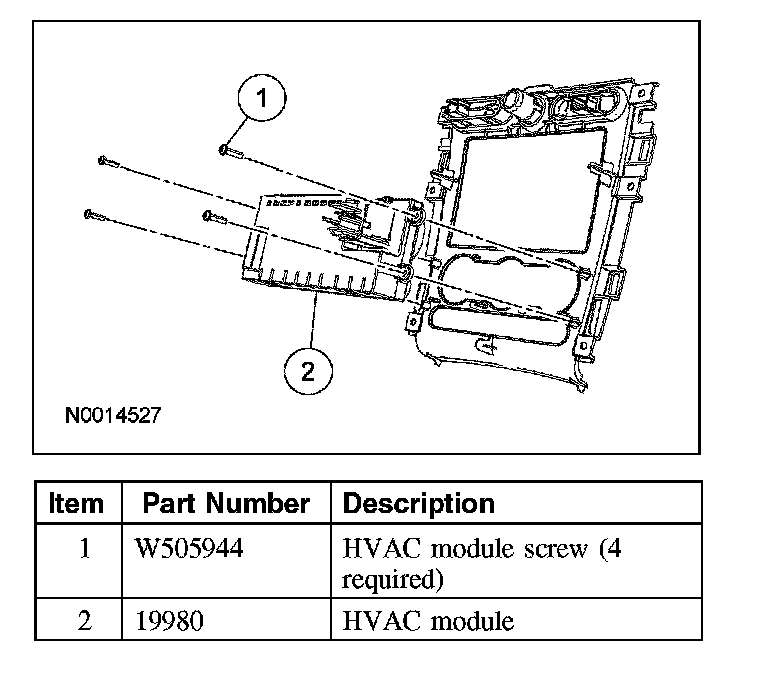

1. Remove the center instrument panel finish panel.
2. Remove the 4 HVAC module screws.
3. Remove the HVAC module.

4. NOTE: Be sure that all HVAC module electrical connectors are securely fastened before installing the center instrument panel finish panel.

To install, reverse the removal procedure.
