Transmission Position Sensor/Switch: Adjustments

Transmission Range (TR) Sensor Adjustment

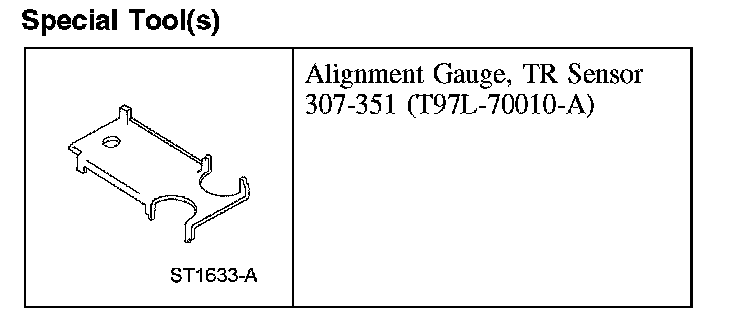

Special Tool(s):

Adjust
1. With the vehicle in NEUTRAL, position it on a hoist.

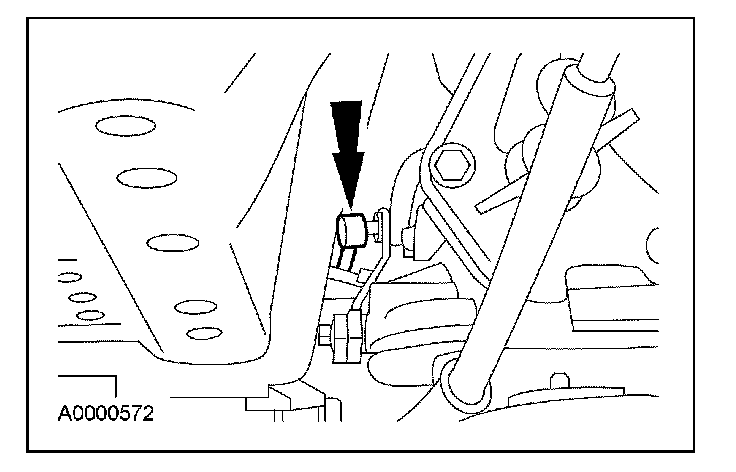

2. Disconnect the selector lever cable from the manual control lever.

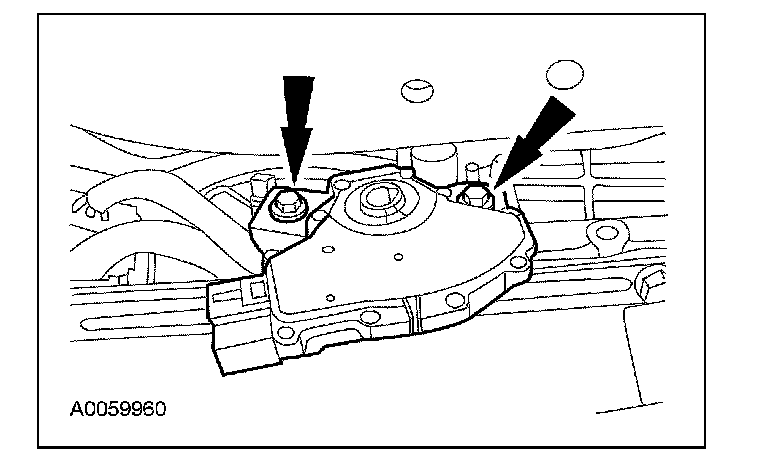

3. Loosen the screws.





4. CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

NOTE: The manual lever must be in the NEUTRAL position.

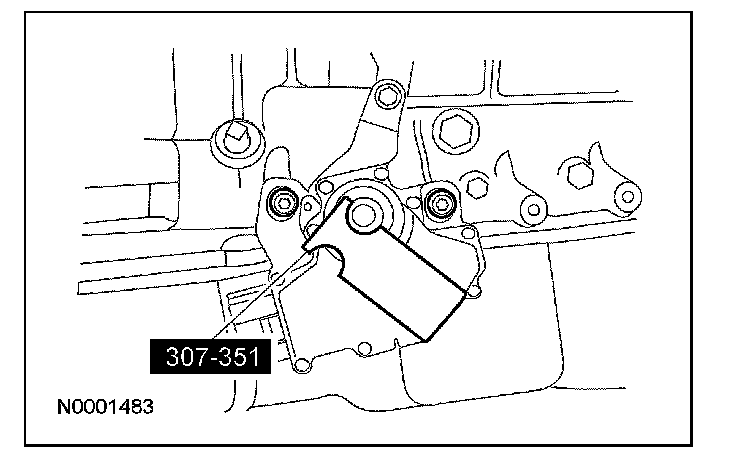

Using the special tool, align the digital TR sensor and tighten the screws in an alternating sequence.
^ Tighten 8 Nm (71 lb-in).

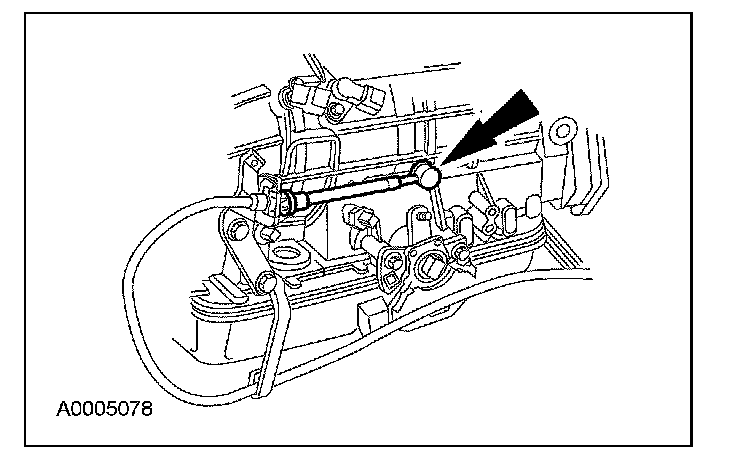

5. Install the selector lever cable to the manual control lever.





6. Verify that the selector lever cable is adjusted correctly.
