Knock Sensor: Service and Repair

KNOCK SENSOR (KS)

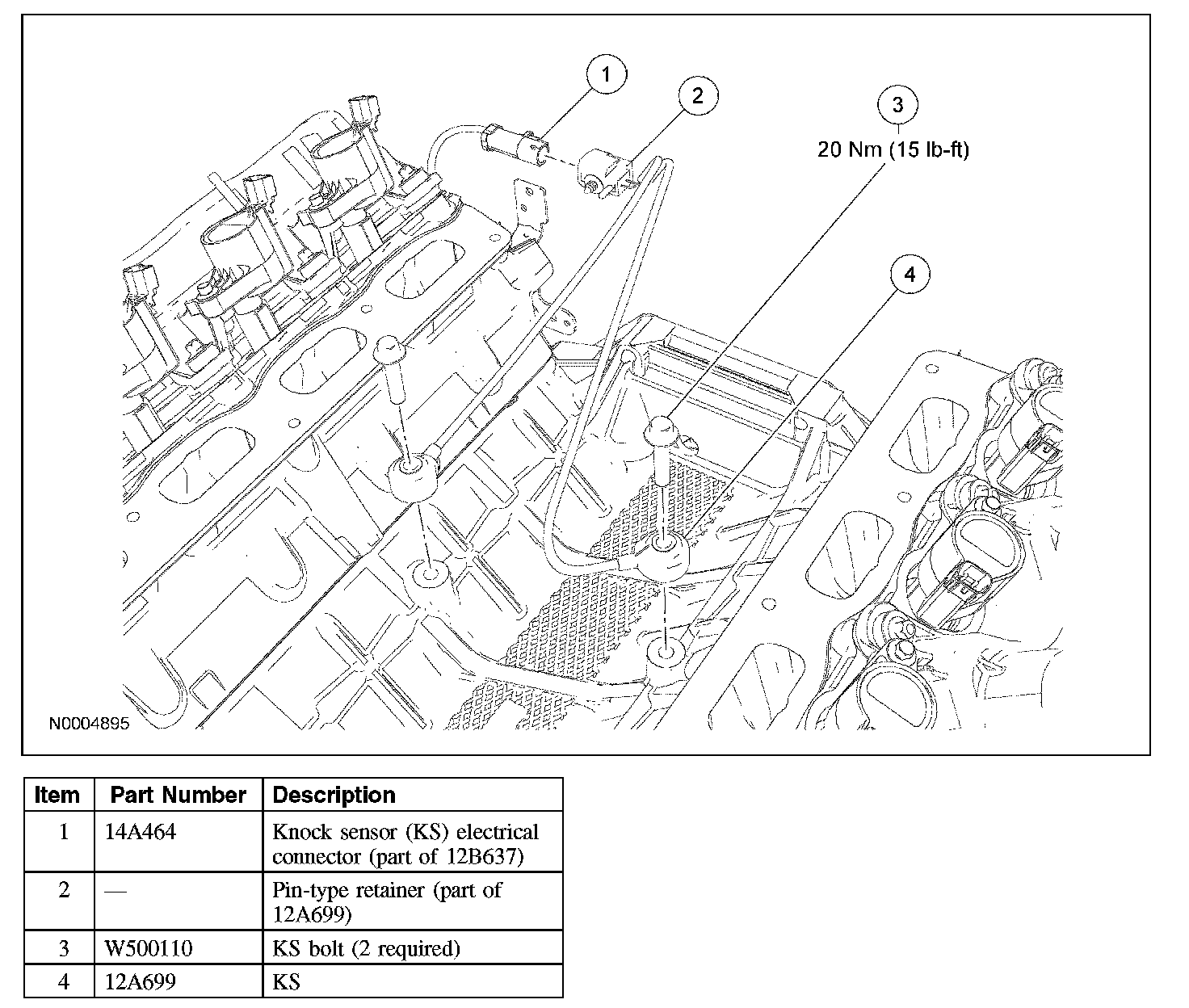

Removal and Installation
1. Remove the intake manifold.
2. Disconnect the knock sensor (KS) electrical connector.
- Detach the pin-type retainer.

3. Remove the 2 bolts and the KS.
- To install, tighten to 20 Nm (15 lb-ft).

4. To install, reverse the removal procedure.
