System Specifications

Timing Chain Tensioner Bolts 25 Nm (18 lb-ft).

Crankshaft Pulley Bolt
Discard the crankshaft pulley bolt.

First pass 90 Nm (66 lb-ft).
Second pass Loosen 360°
Third pass 50 Nm (37 lb-ft).
Final pass Tighten an additional 90°

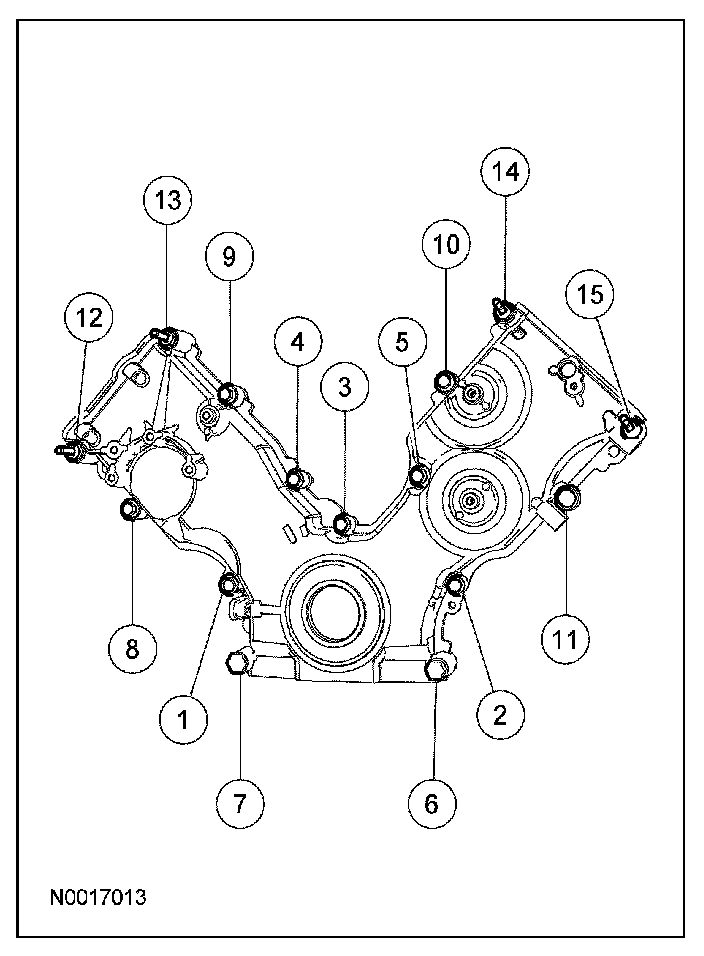

Engine Front Cover Front Fasteners 25 Nm (18 lb-ft).

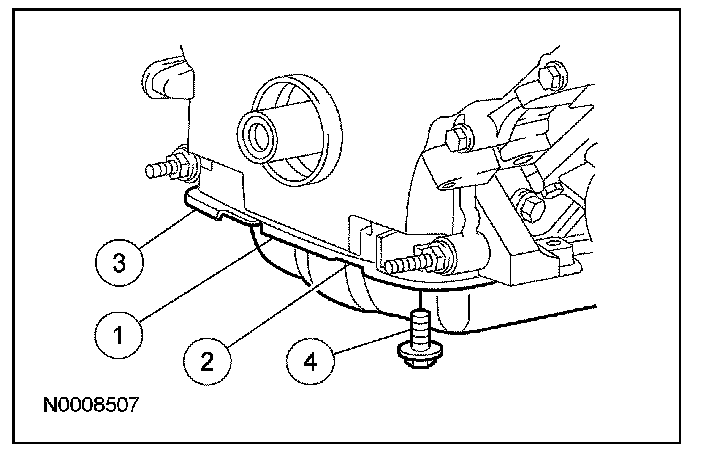

Engine Front Cover Lower Fasteners





First pass 20 Nm (15 lb-ft).
Final pass Tighten an additional 60°
