Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR







Removal and Installation

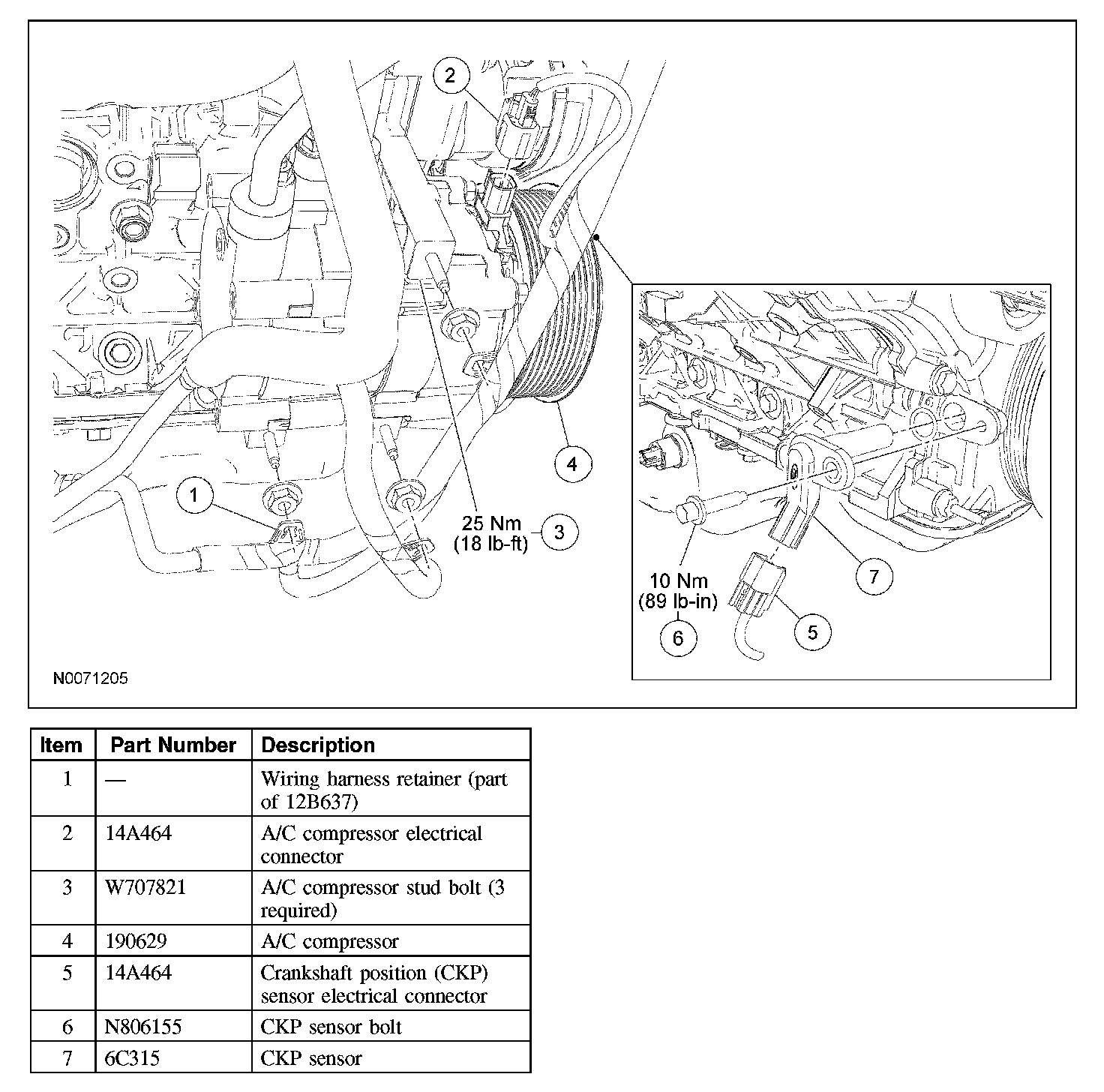

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the supercharger (SC) belt.
3. Detach the wiring harness retainers from the A/C compressor stud bolts.
4. Disconnect the A/C compressor field coil and the crankshaft position (CKP) sensor electrical connectors.
5. Remove the 3 studbolts and position the A/C compressor aside.
- To install, tighten to 25 Nm (18 lb-ft).

6. Remove the CKP sensor bolt and sensor.
- To install, tighten to 10 Nm (89 lb-in).

7. To install, reverse the removal procedure.
