Solenoid Operation Chart
Solenoid Operation Chart

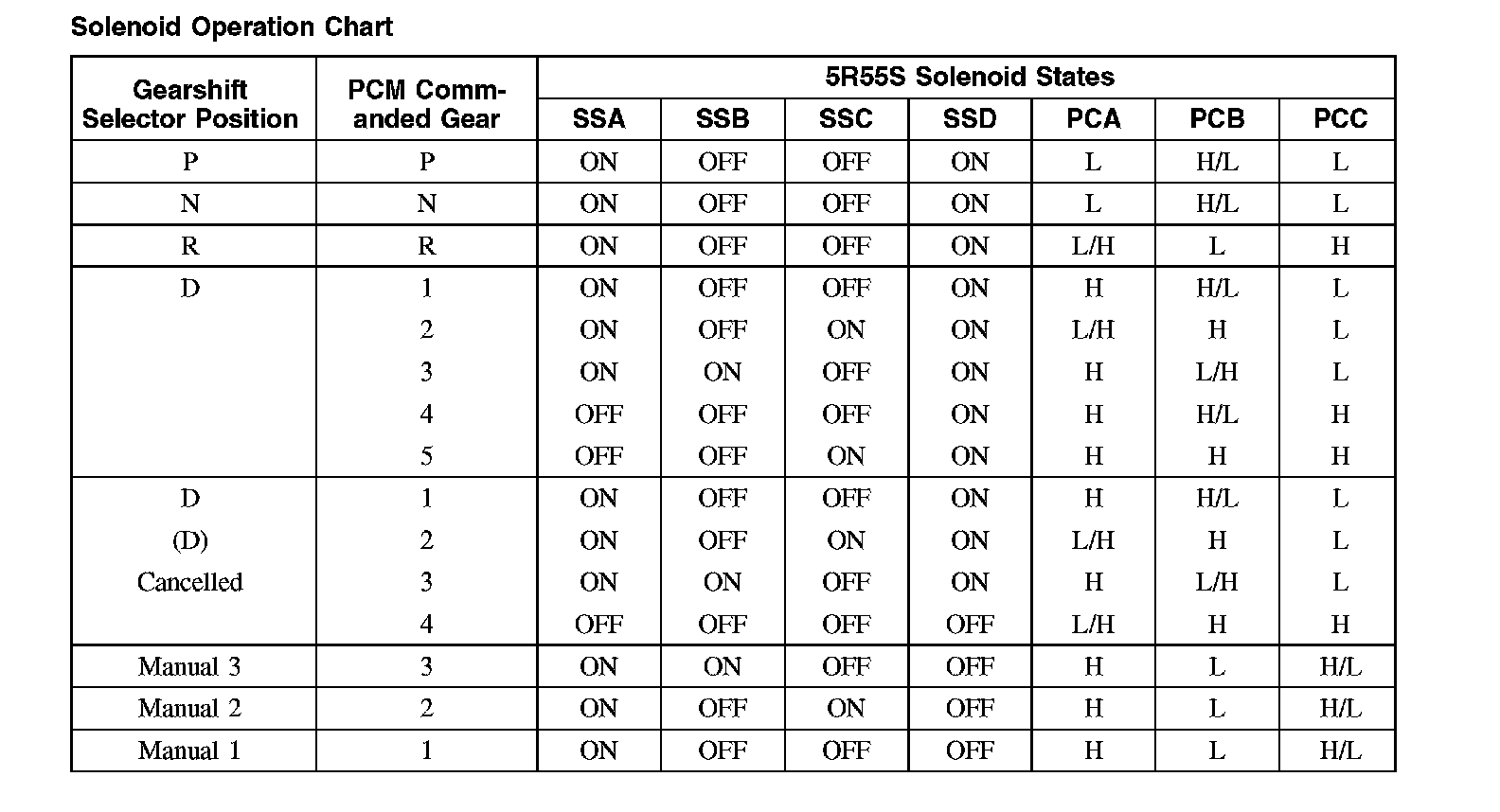

Solenoid Operation Chart (Part 1):
Solenoid Operation Chart (Part 2):
