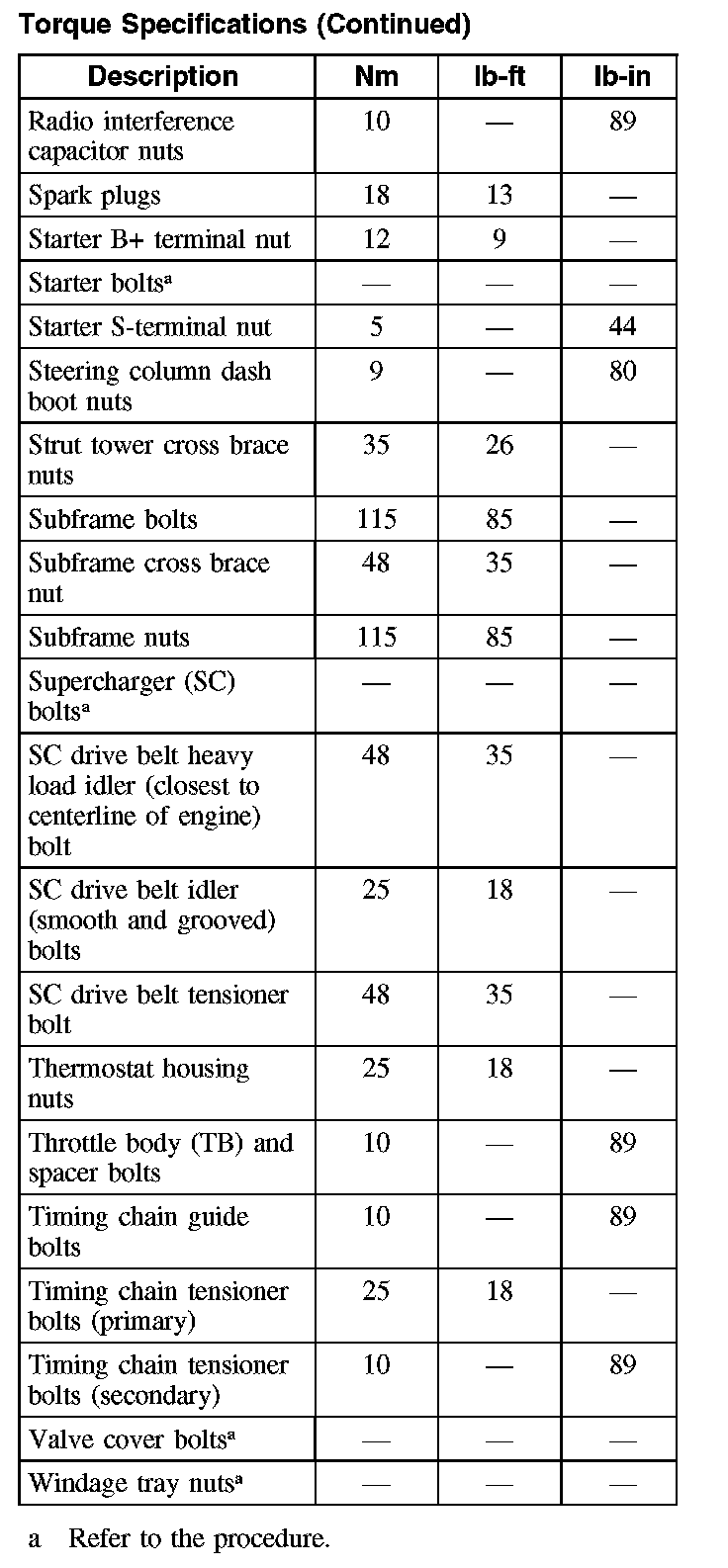

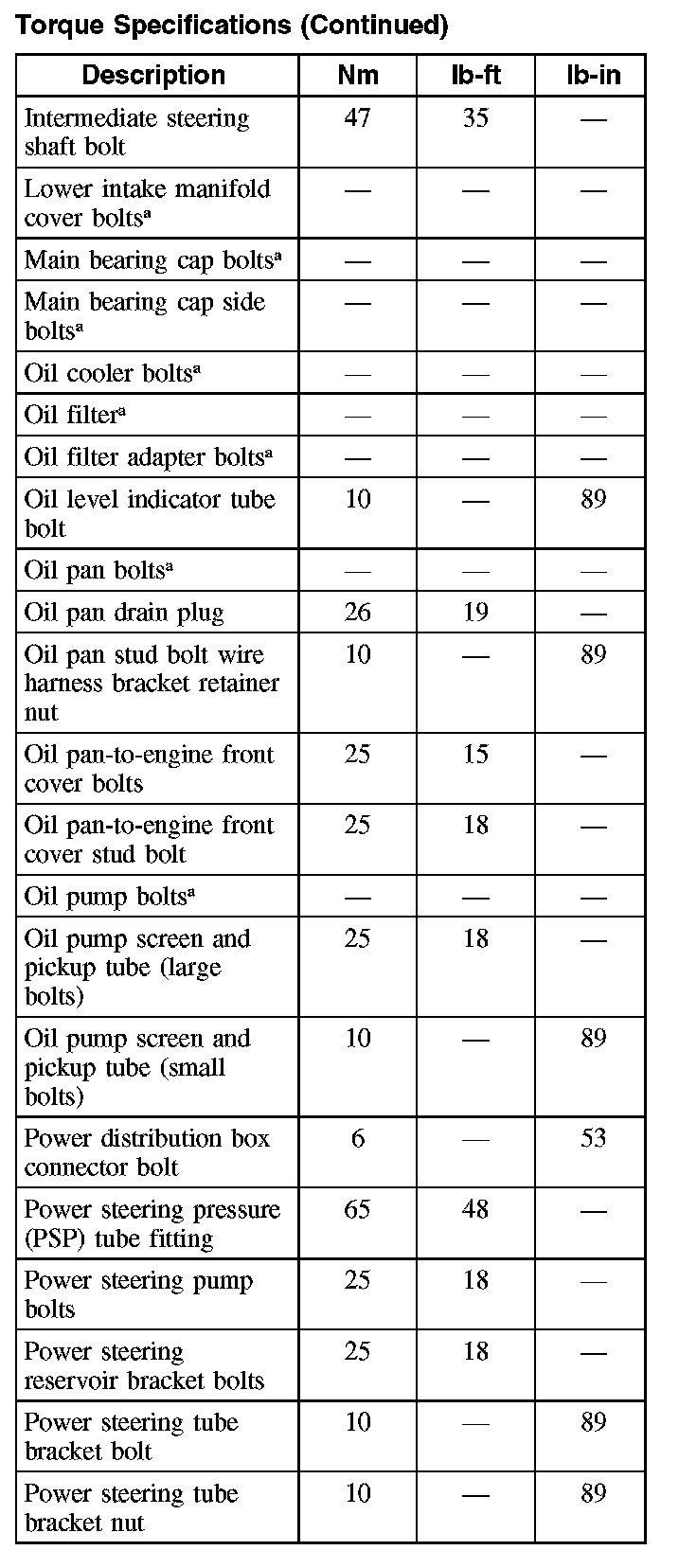

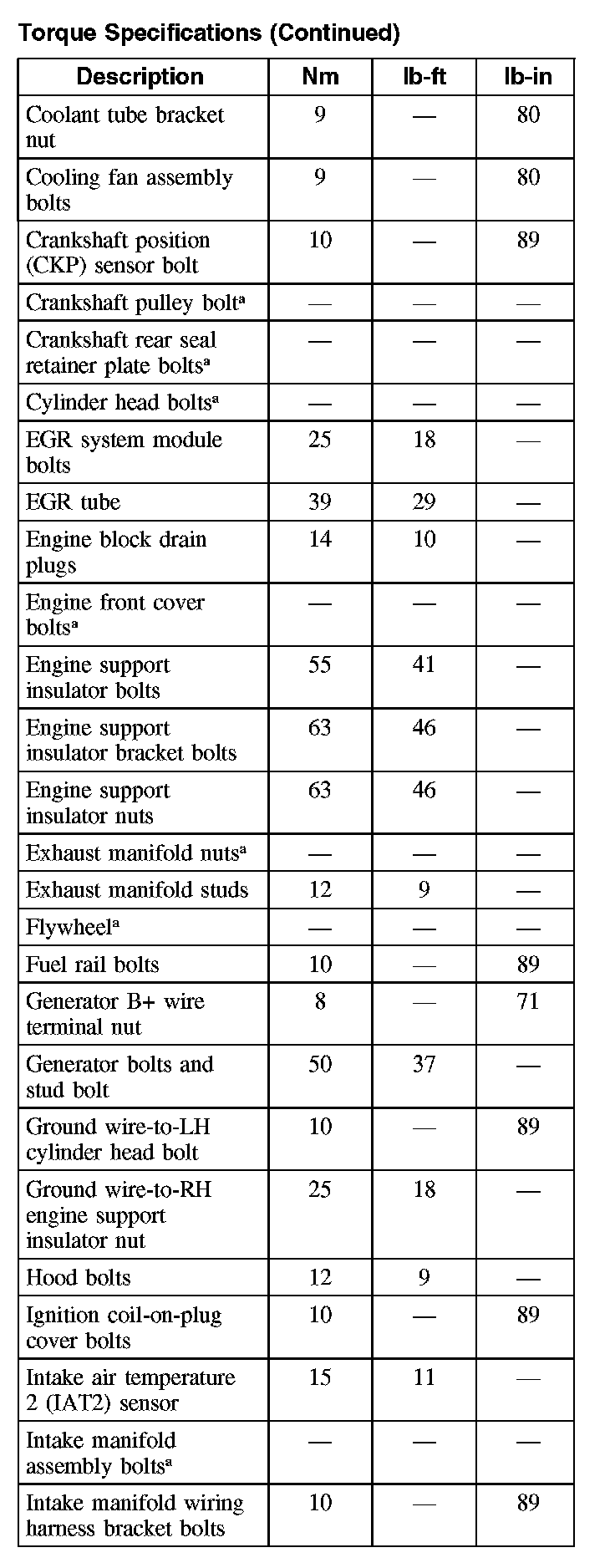

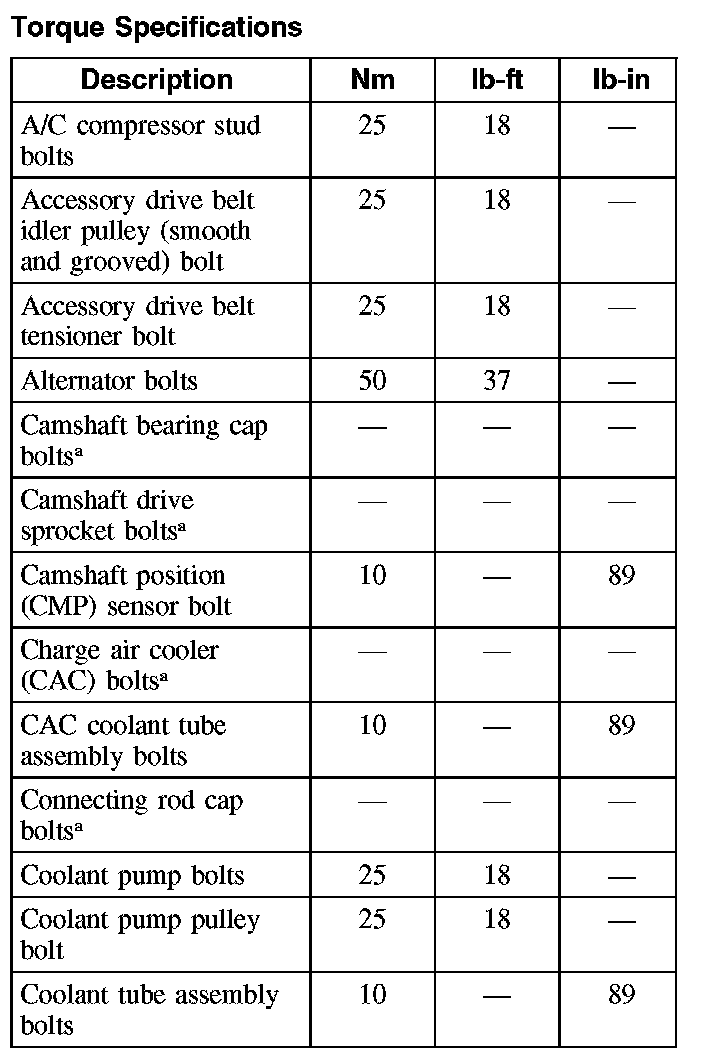

Torque Specifications

Torque Specifications














Cylinder Head Bolts

CAUTION: The cylinder head bolts must be discarded and new bolts must be installed. They are a tighten-to-yield design and cannot be reused.
