Diagnostic Trouble Code (DTC) Chart

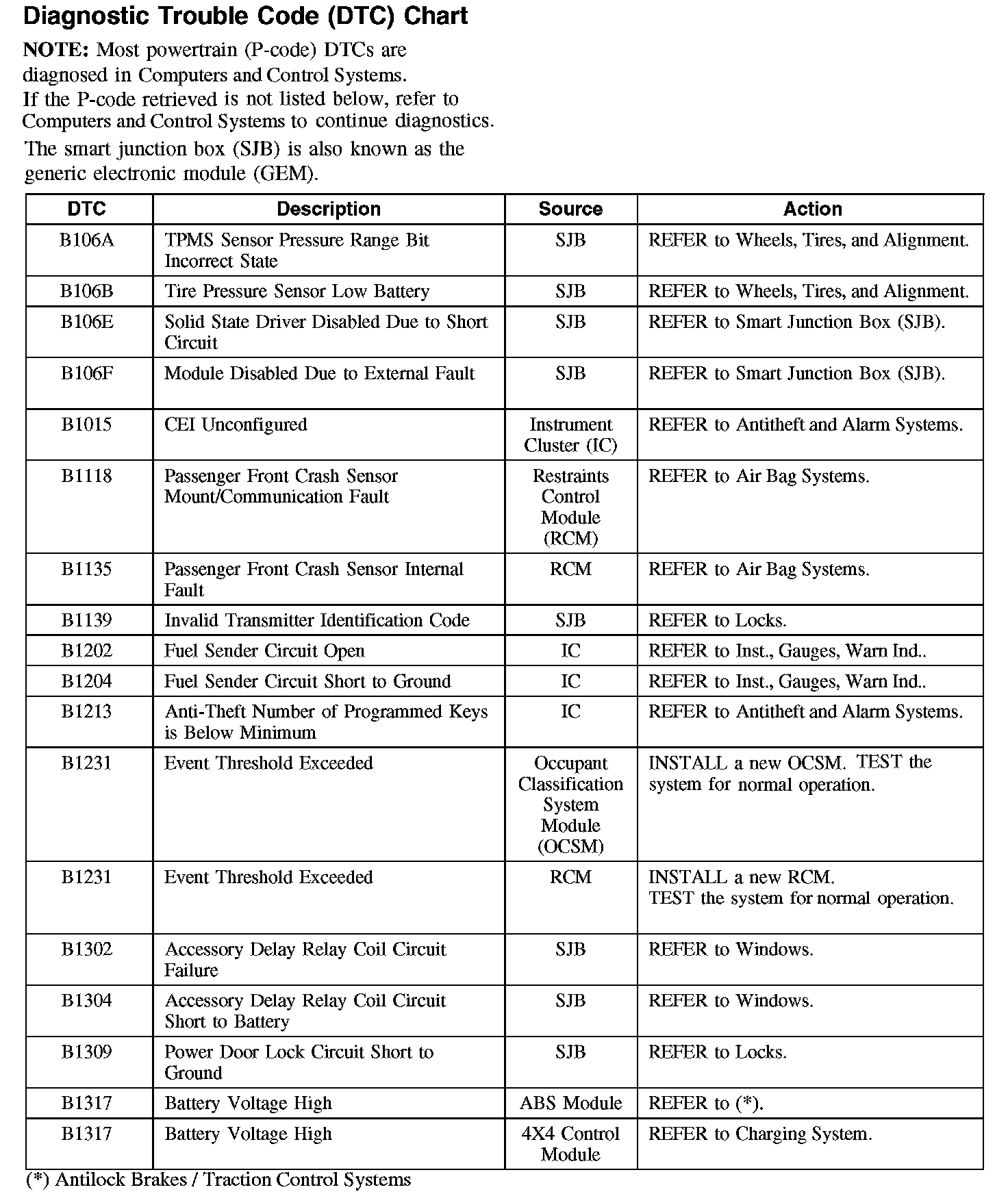

B106A-B1317:

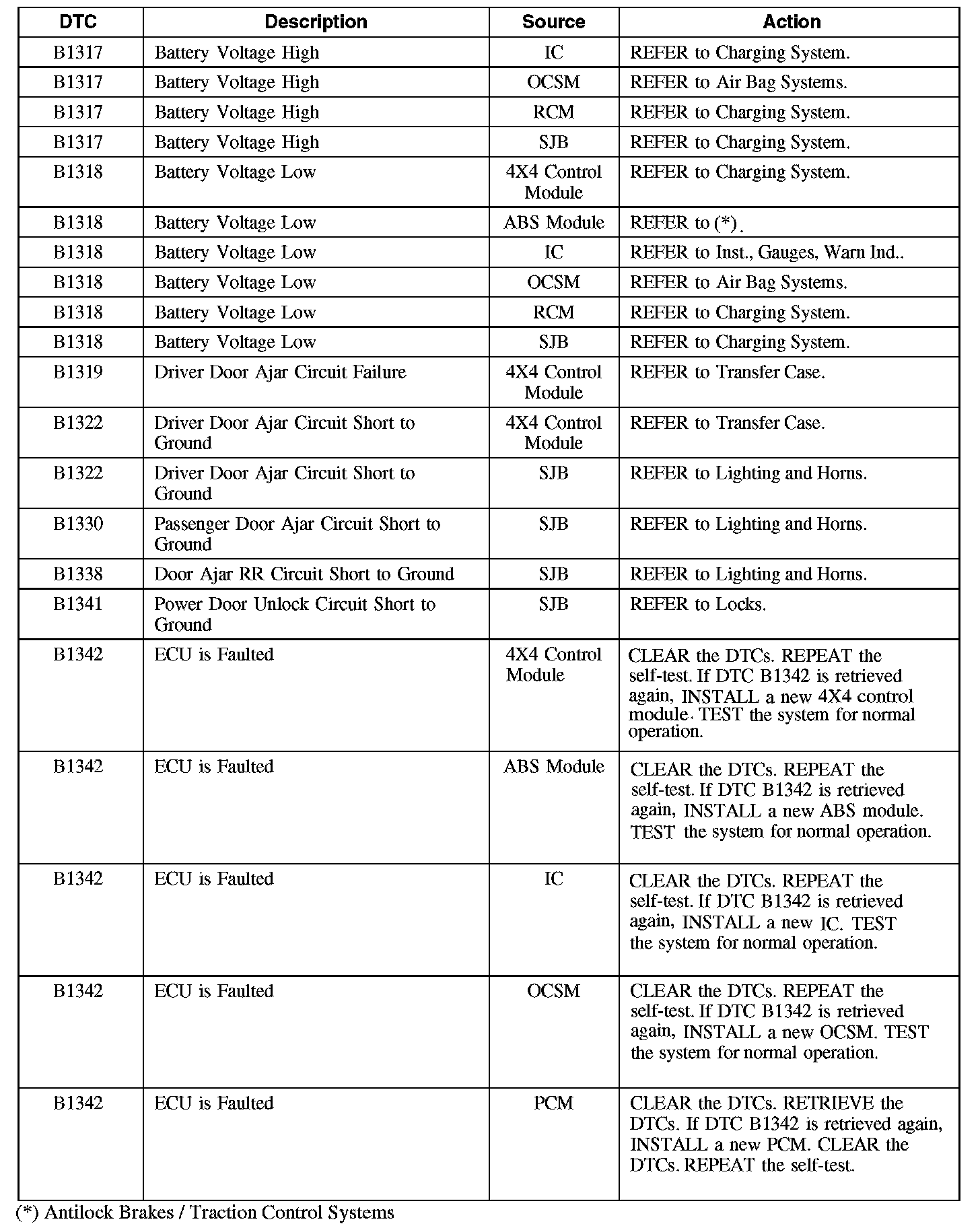

B1317-B1342:

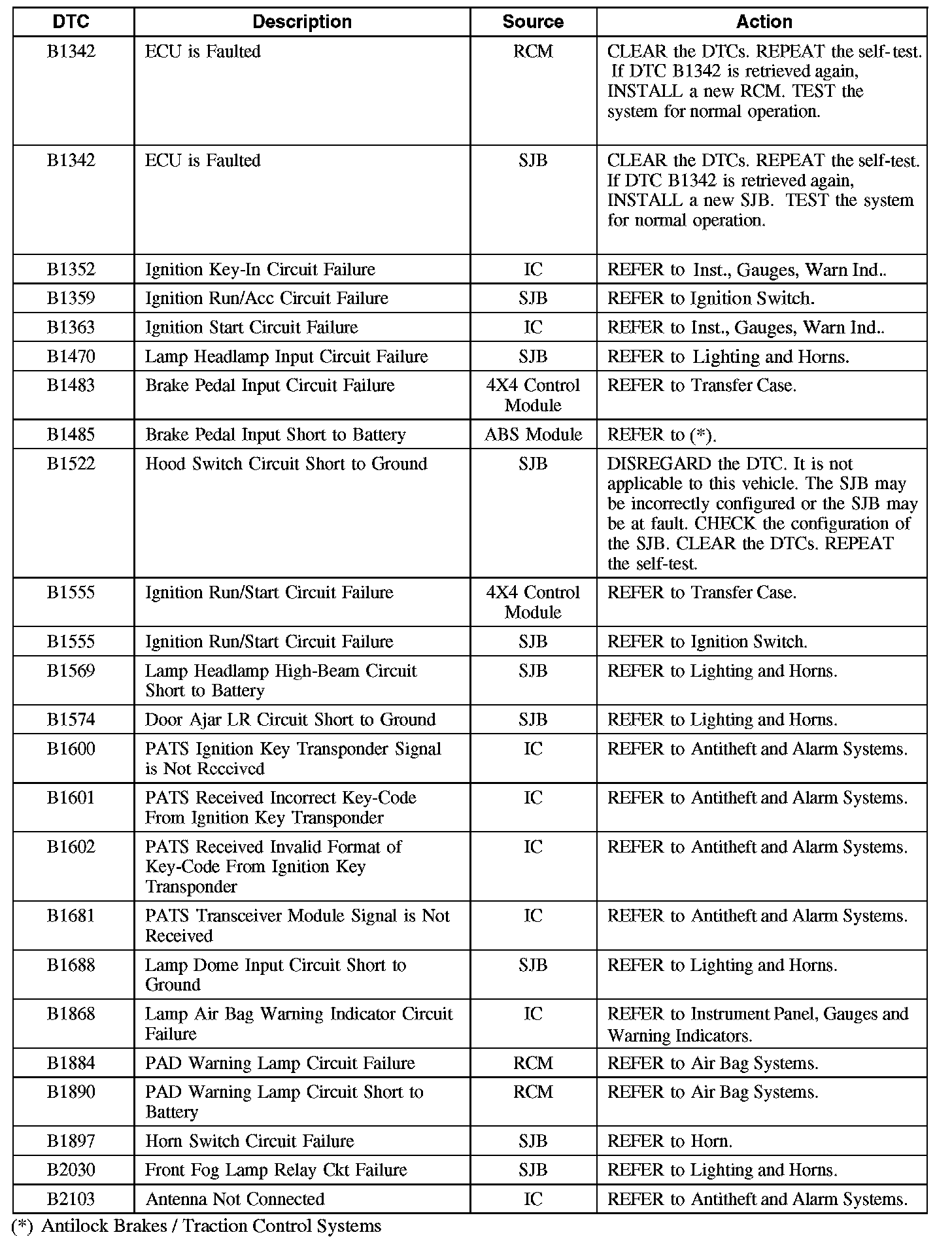

B1342-B2103:

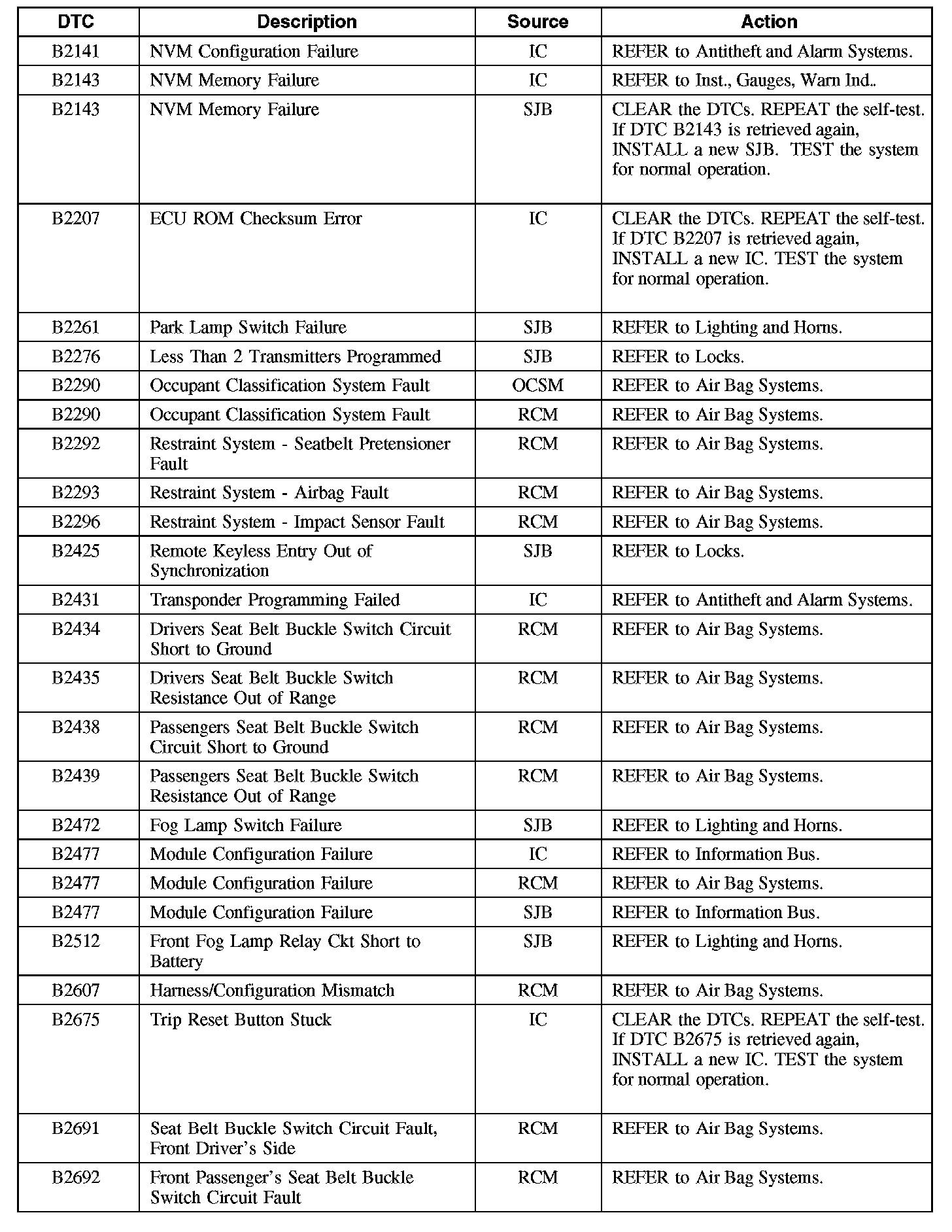

B2141-B2692:

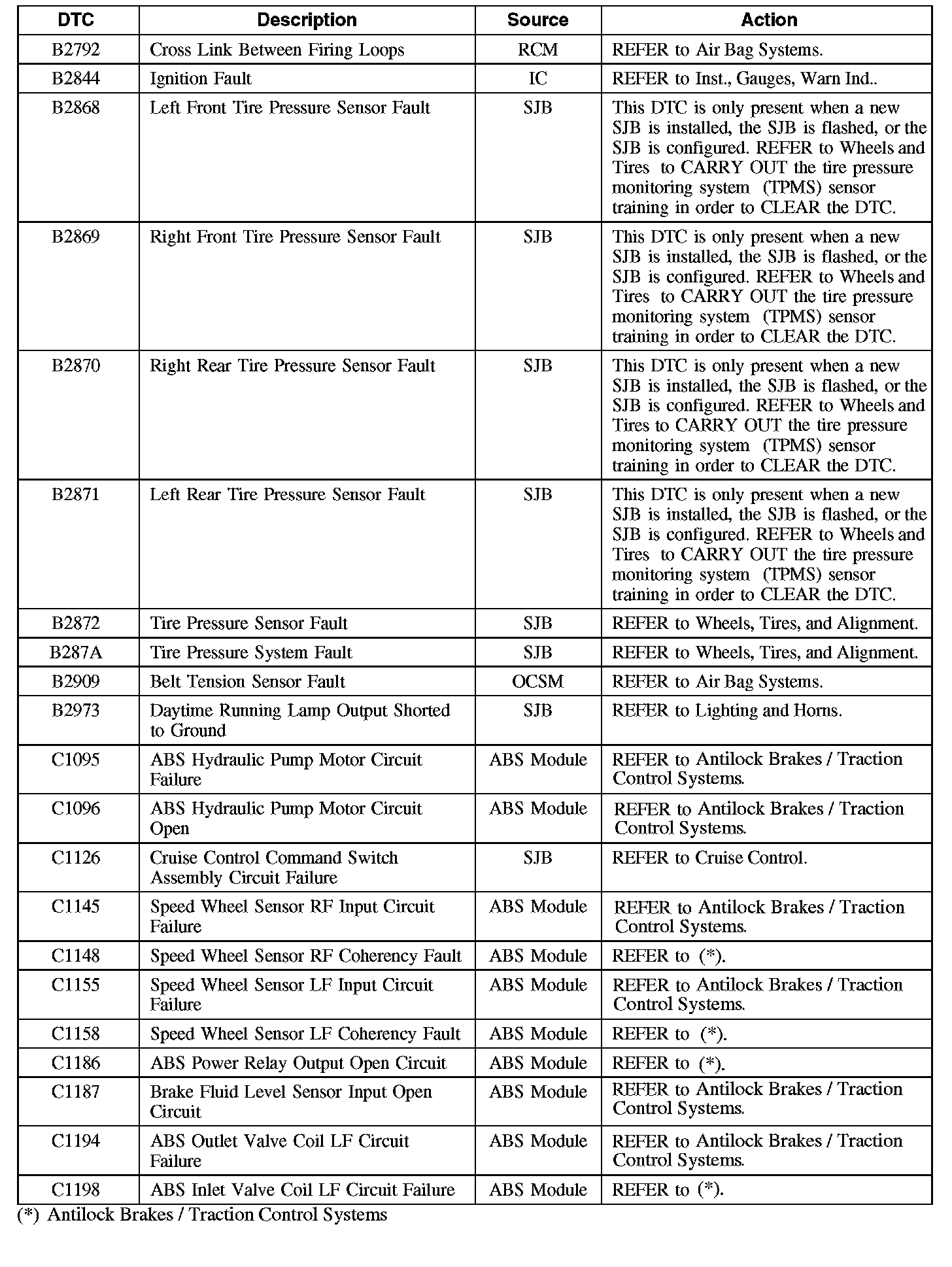

B287A-B2973 / C1095-C1198:

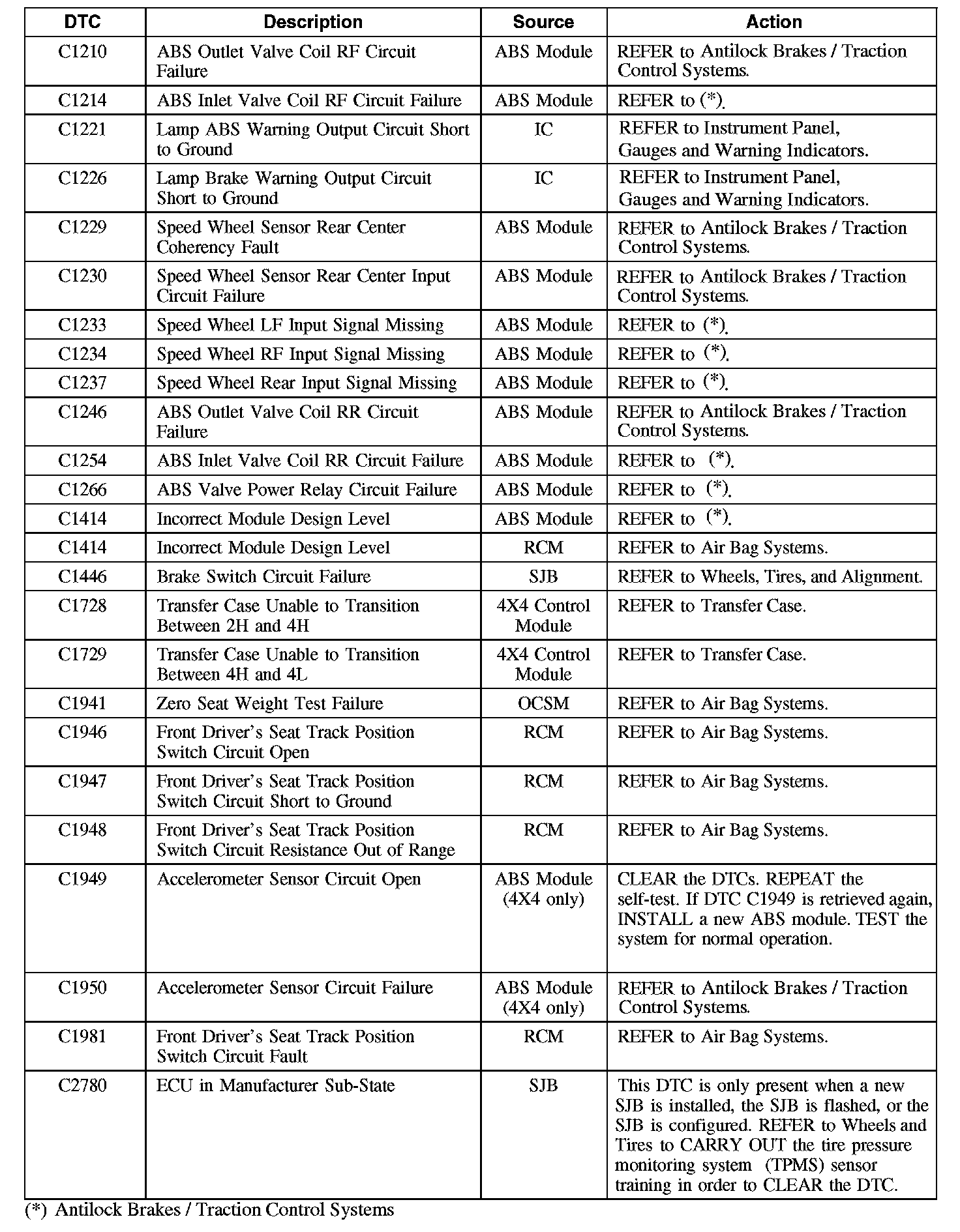

C1210-C2780:

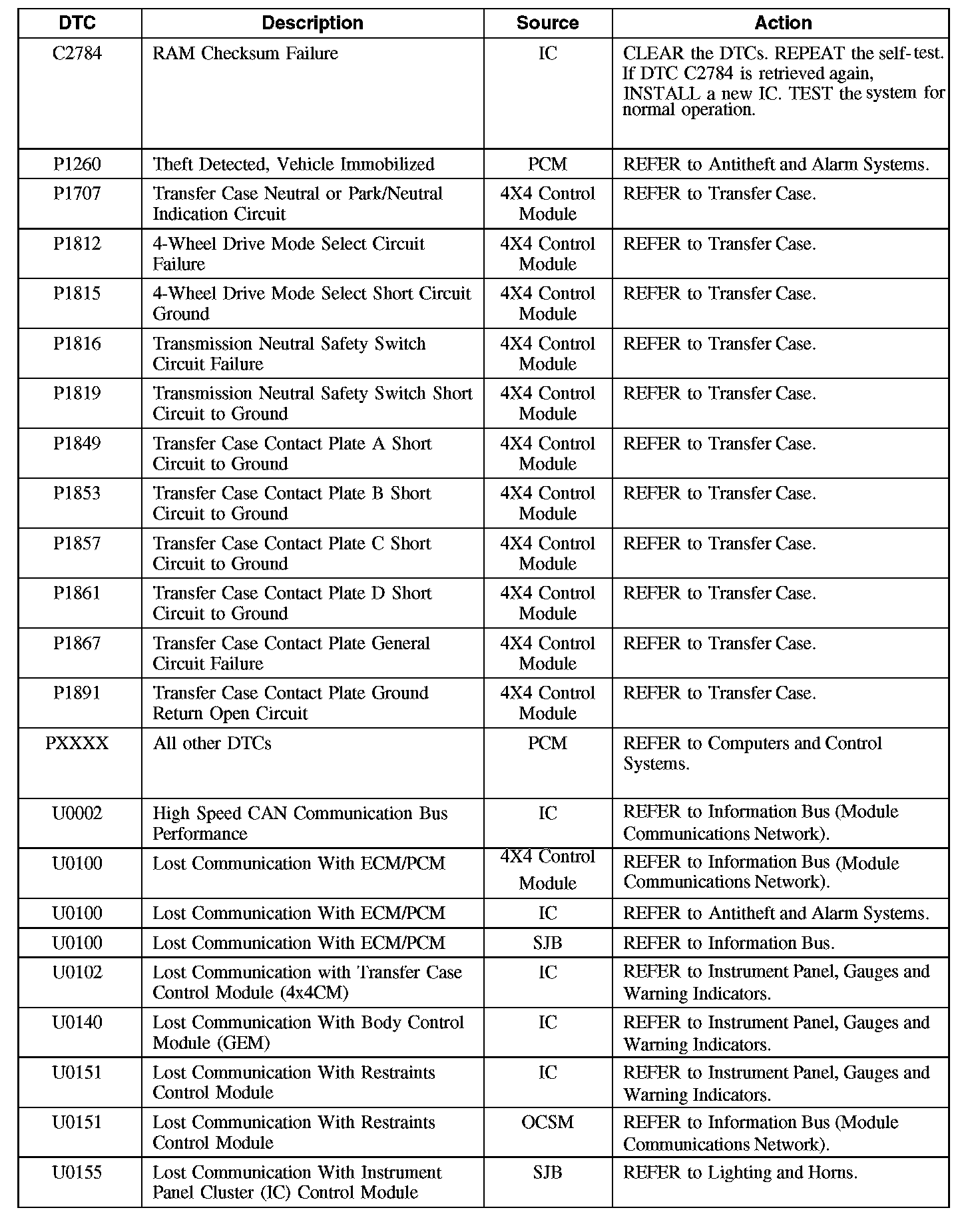

C2784 / P1260-P1891 / U0002-U0155:

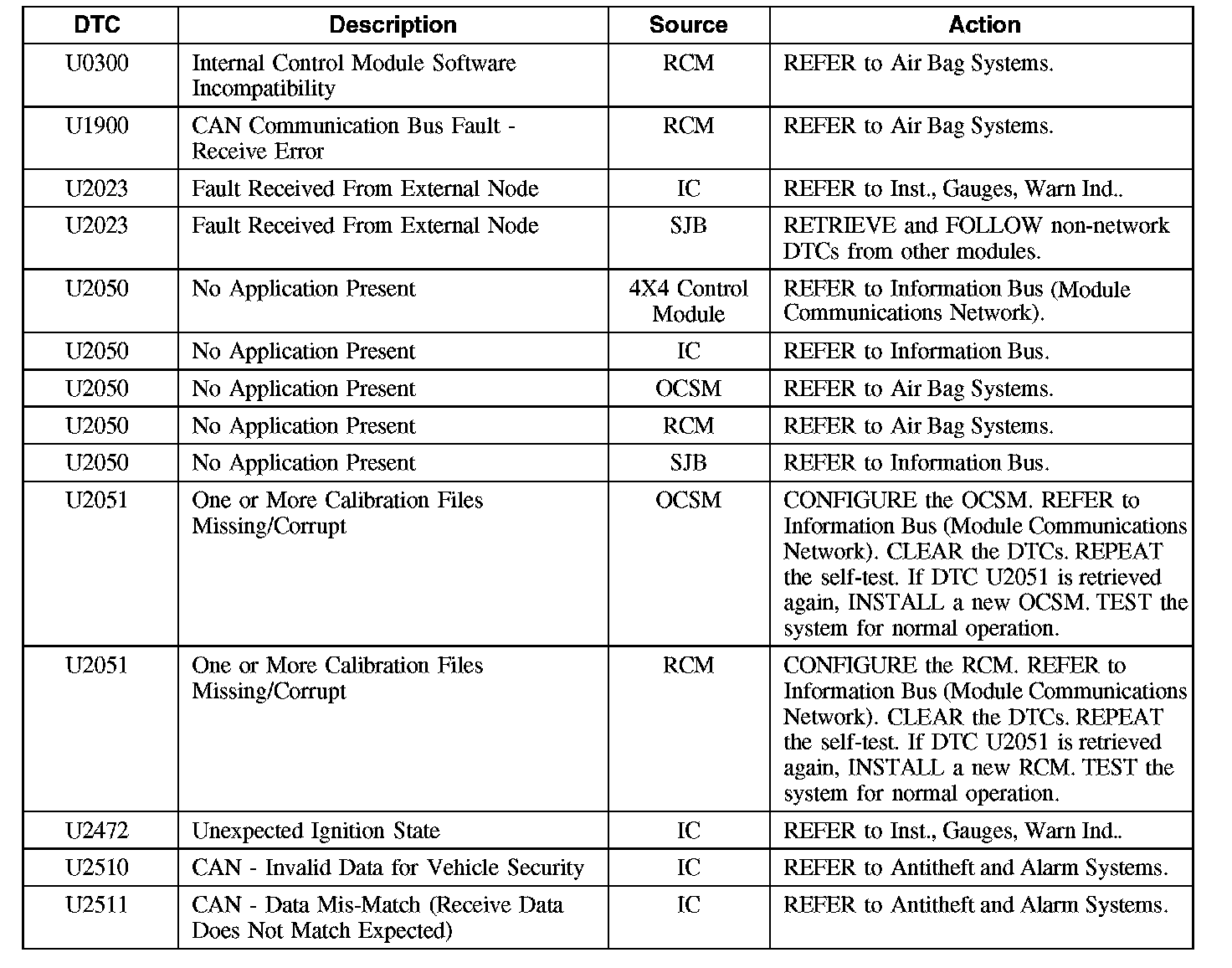

U0300-U2511:
