Cruise Control Switch: Service and Repair

SPEED CONTROL SWITCH

Removal and Installation
1. Remove the steering wheel.

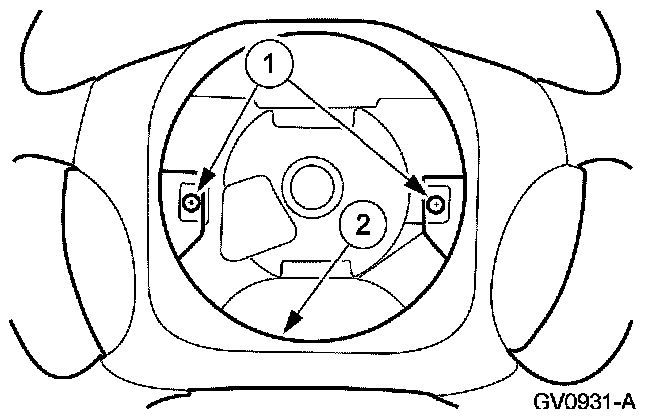

2. Remove the steering wheel rear cover.
1 Remove the 2 screws.
2 Remove the steering wheel rear cover.

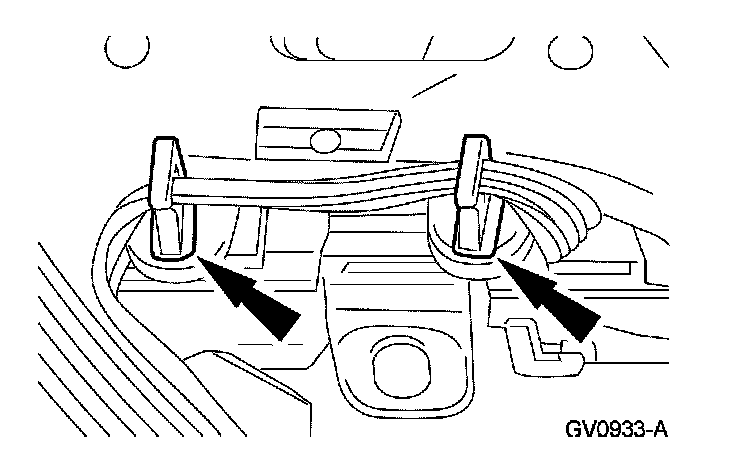

3. Remove the ribbon harness from the clips.

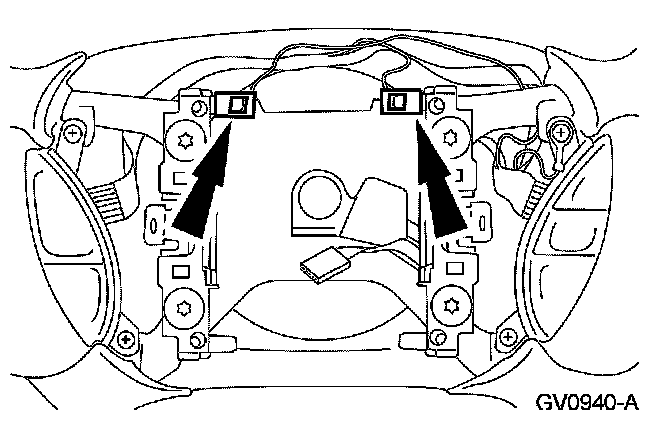

4. Disconnect the horn contact electrical connectors.

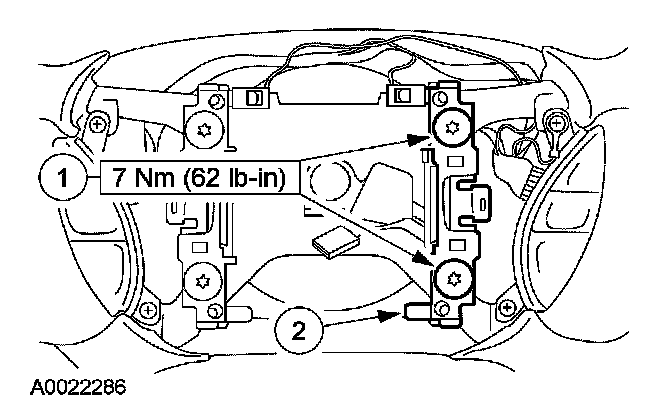

5. Remove the right side horn contact.
1 Remove the 2 screws.
- To install, tighten to 7 Nm (62 lb-in).

2 Remove the horn contact.

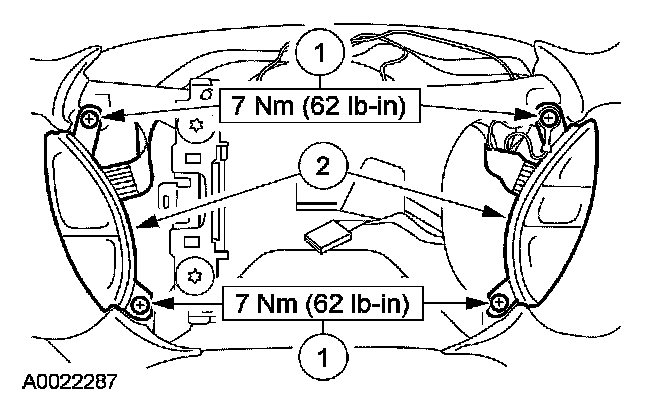

6. Remove the speed control switch assembly.
1 Remove the 4 screws.
- To install, tighten to 7 Nm (62 lb-in).

2 Remove the speed control switch assembly.







7. To install, reverse the removal procedure.
