Test H: The Speed Control Switch Is Inoperative

PINPOINT TEST H: THE SPEED CONTROL SWITCH IS INOPERATIVE

Normal Operation
The speed control actuator sends a signal through circuit VES10 (WH) to the speed control switches, which passes through the clockspring. The signal is sent back through the clockspring to circuit RES08 (GN/BN).

This pinpoint test is intended to diagnose the following:
- Speed control switch
- Speed control actuator

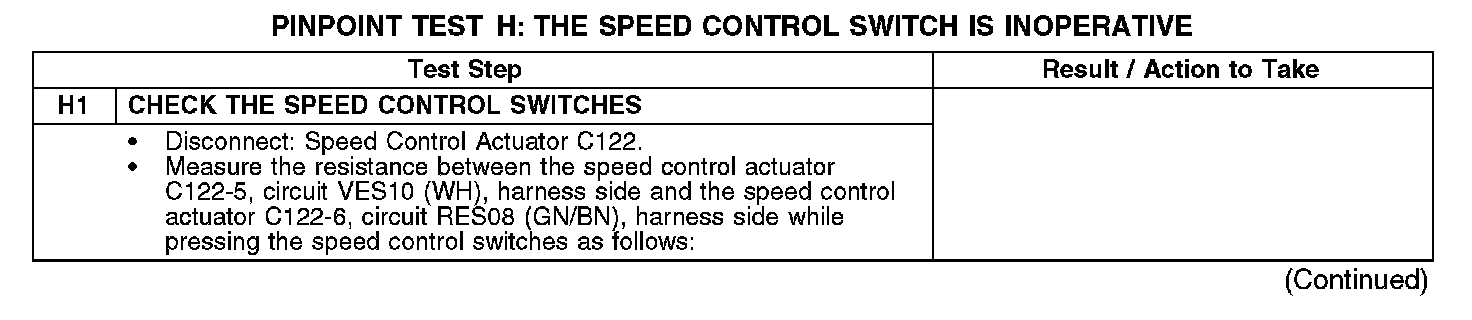

H1:

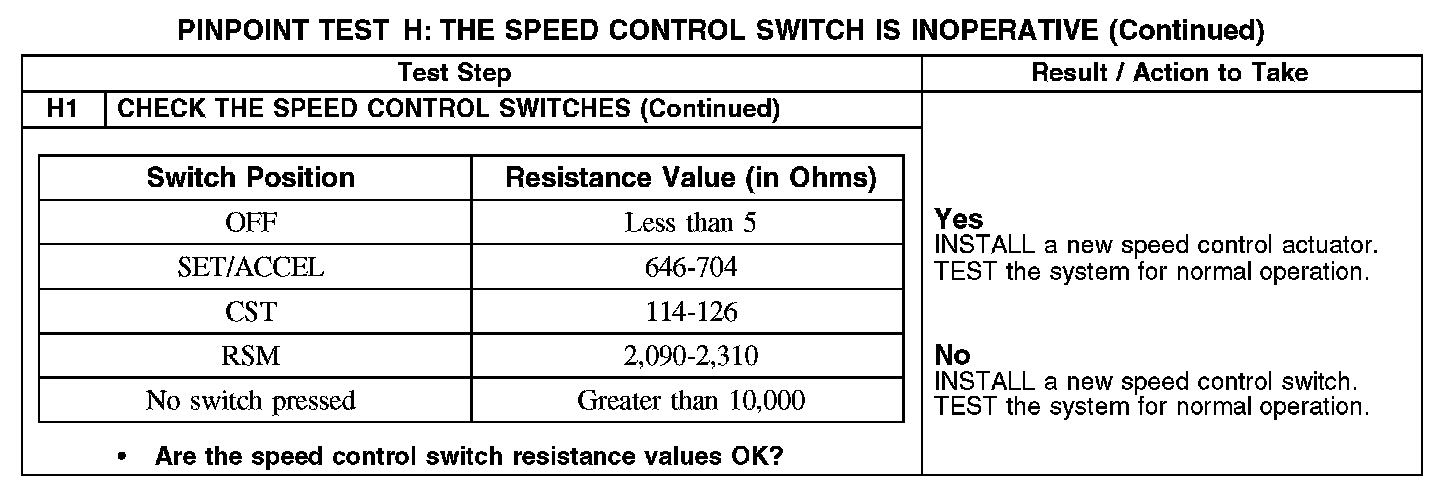

H1 Continued:
