Drive/Propeller Shaft

Driveshaft - Exploded View

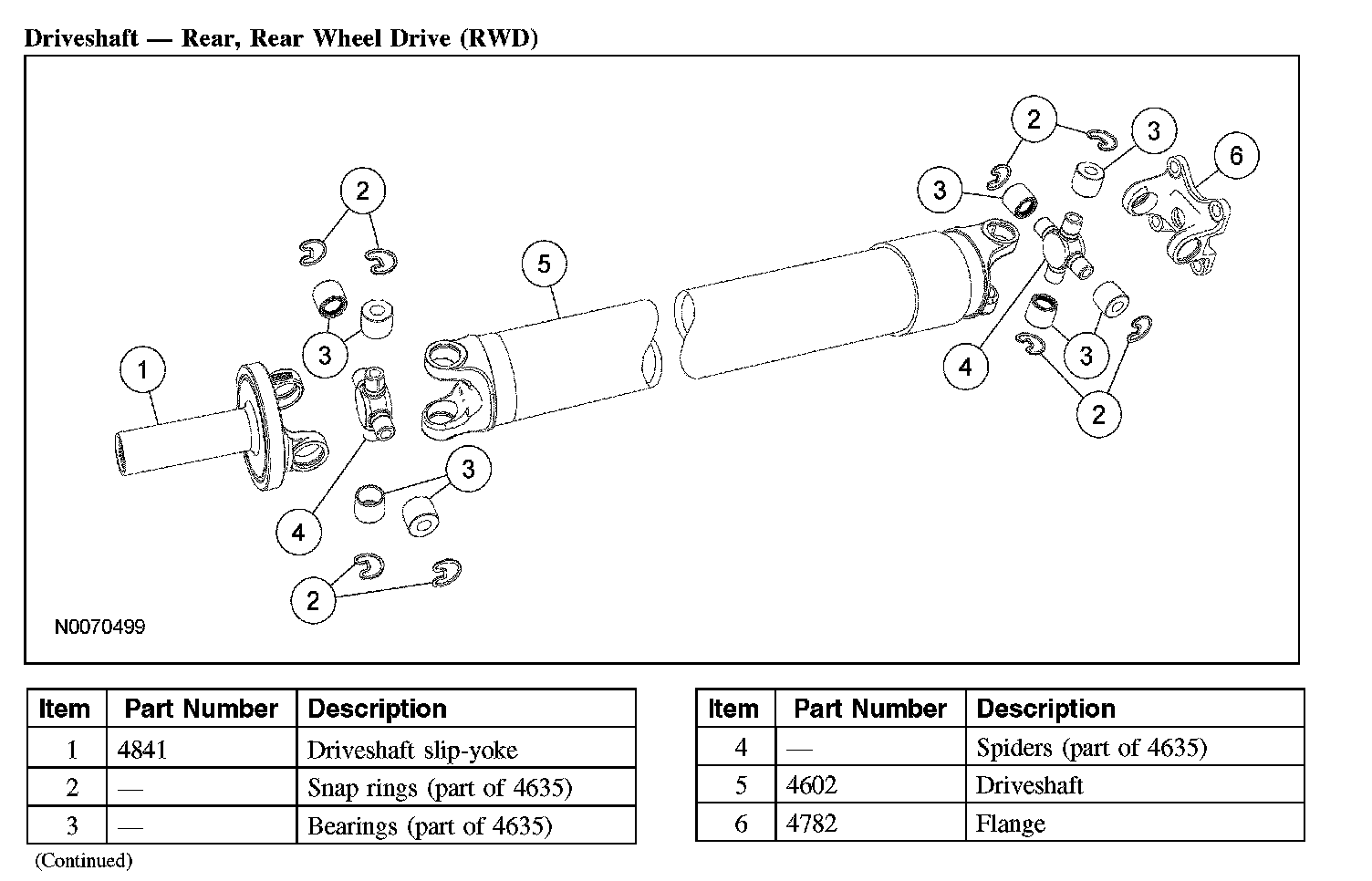

Driveshaft - Rear, Rear Wheel Drive (RWD)

Driveshaft - Rear, Rear Wheel Drive (RWD):

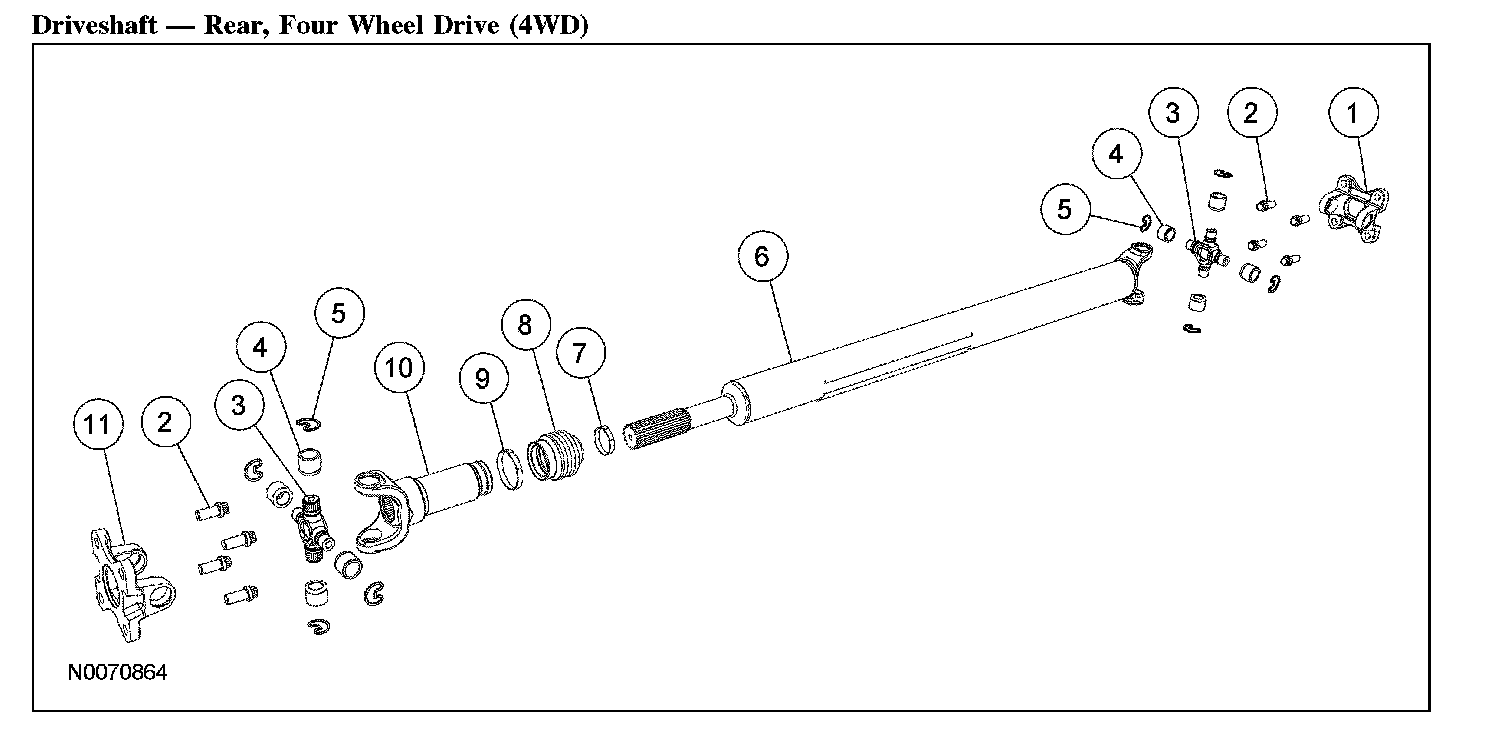

Driveshaft - Rear, Four Wheel Drive (4WD)

Driveshaft - Rear, Four Wheel Drive (4WD) (Part 1):

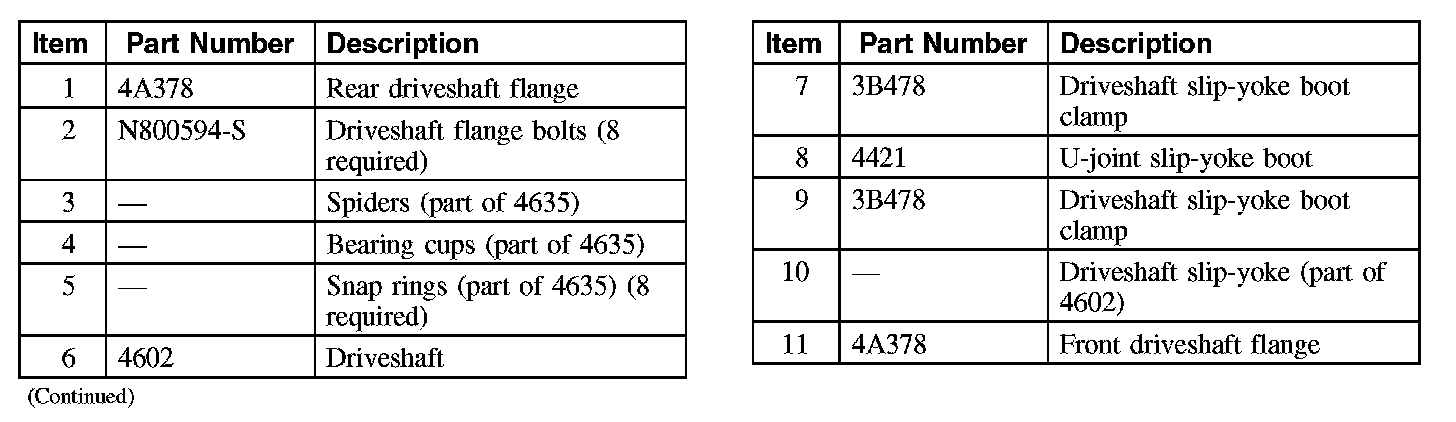

Driveshaft - Rear, Four Wheel Drive (4WD) (Part 2):

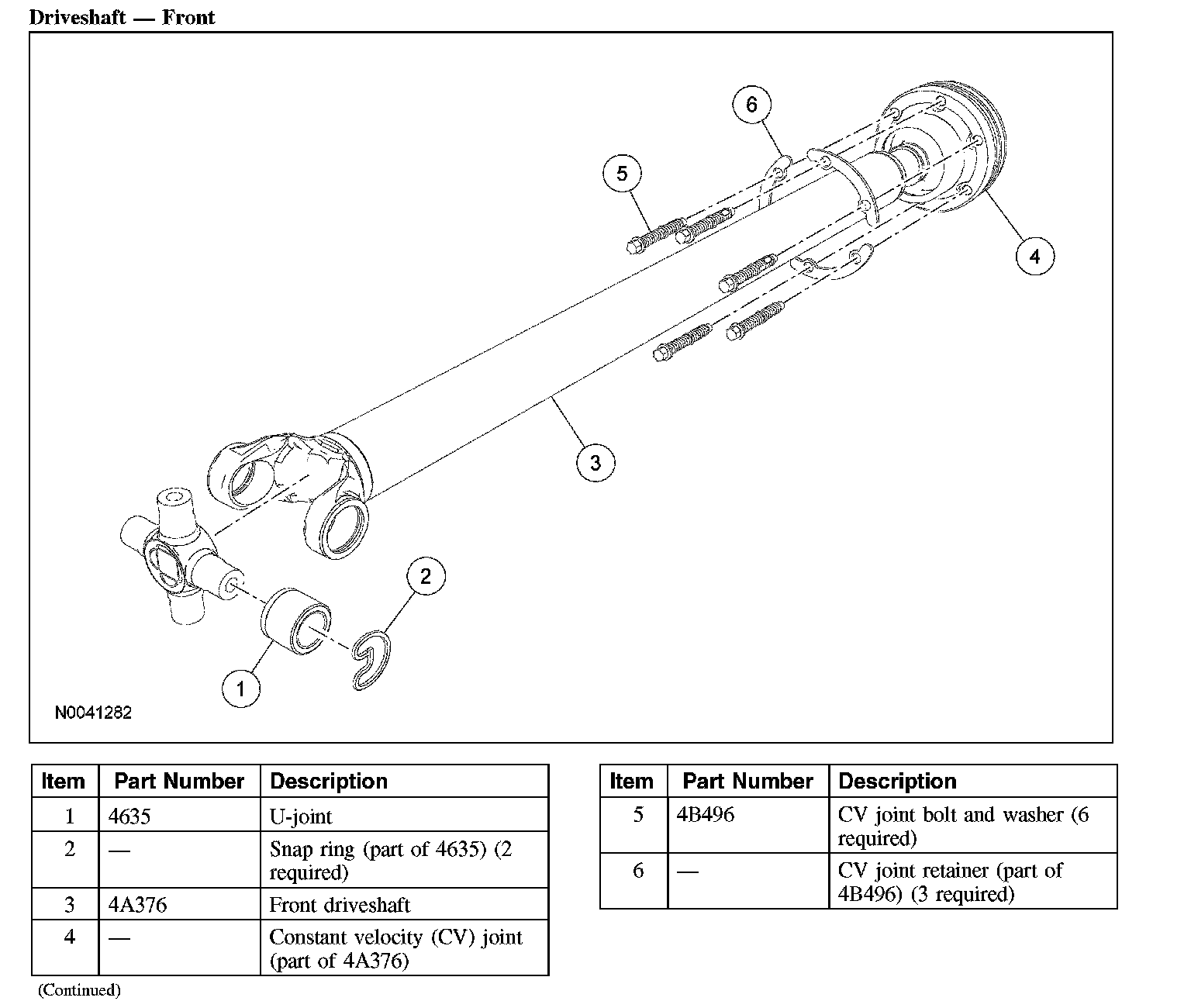

Driveshaft - Front:





Driveshaft - Front

Driveshaft - Front:
