Engine Lubrication

Engine Lubrication Components - Exploded View

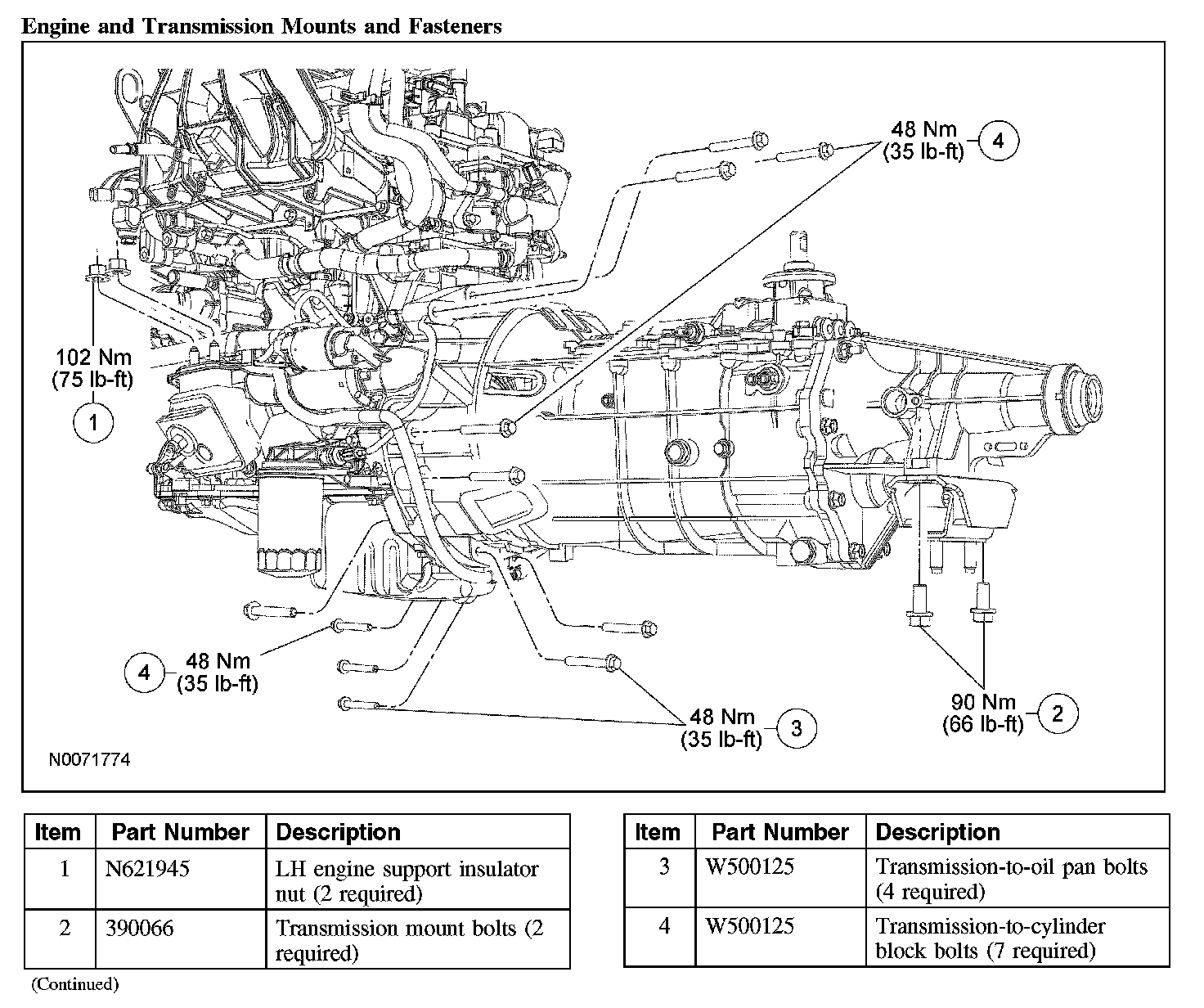

Engine and Transmission Mounts and Fasteners

Engine and Transmission Mounts and Fasteners:

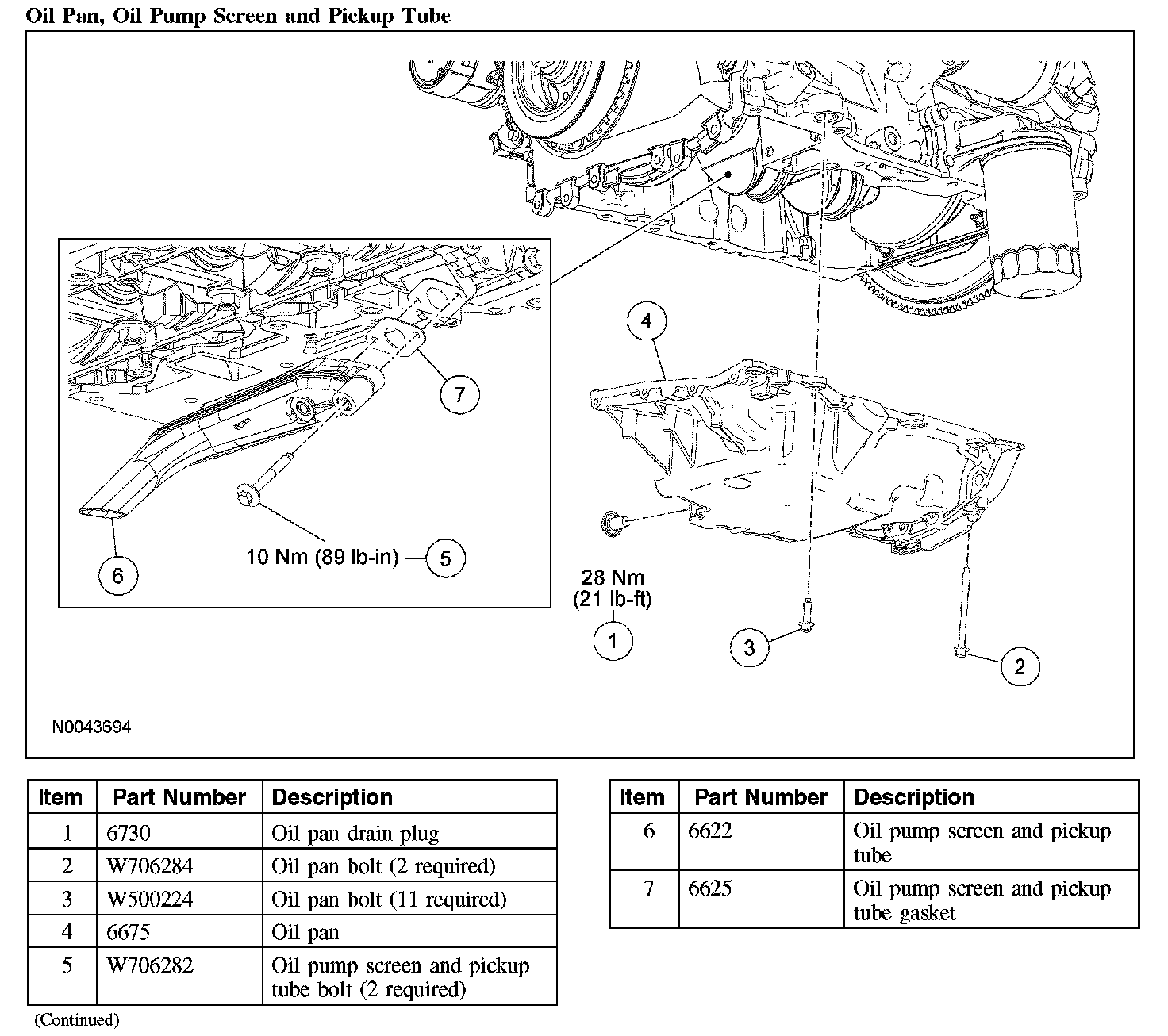

Oil Pan, Oil Pump Screen and Pickup Tube

Oil Pan, Oil Pump Screen and Pickup Tube:

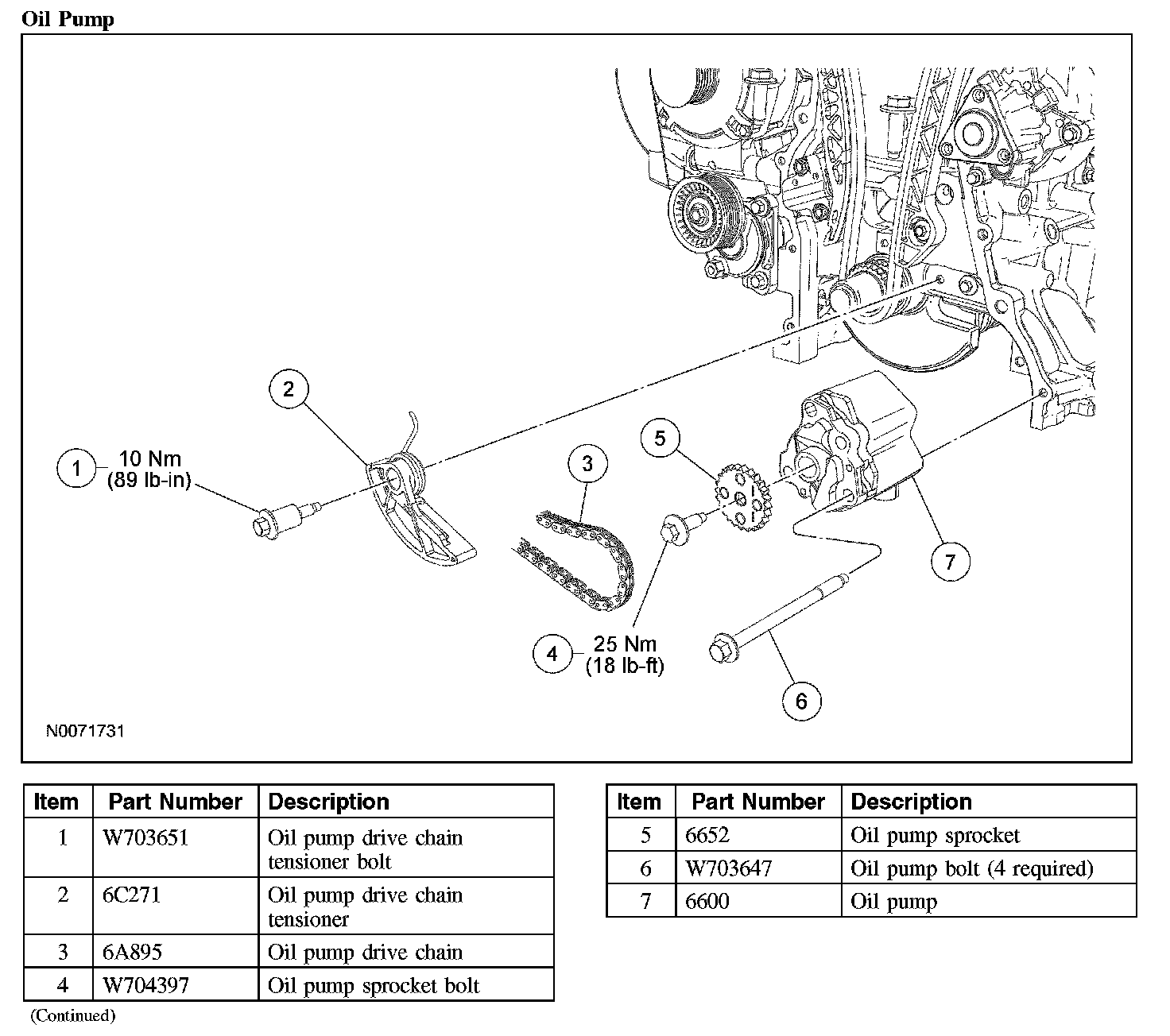

Oil Pump

Oil Pump:
