Flywheel

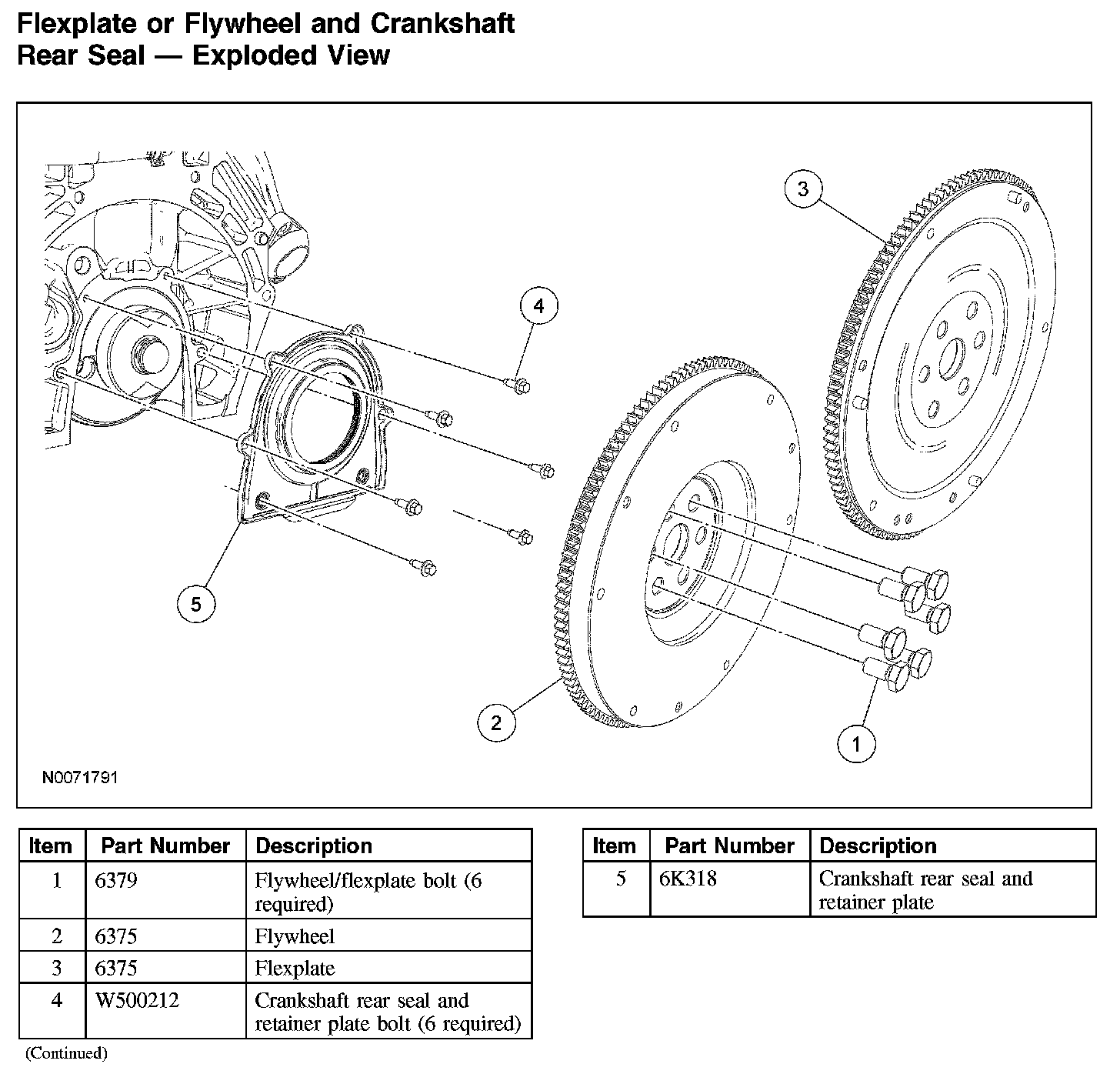

Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View

Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View:
