Idler Pulley

Front End Accessory Drive (FEAD) - Exploded View

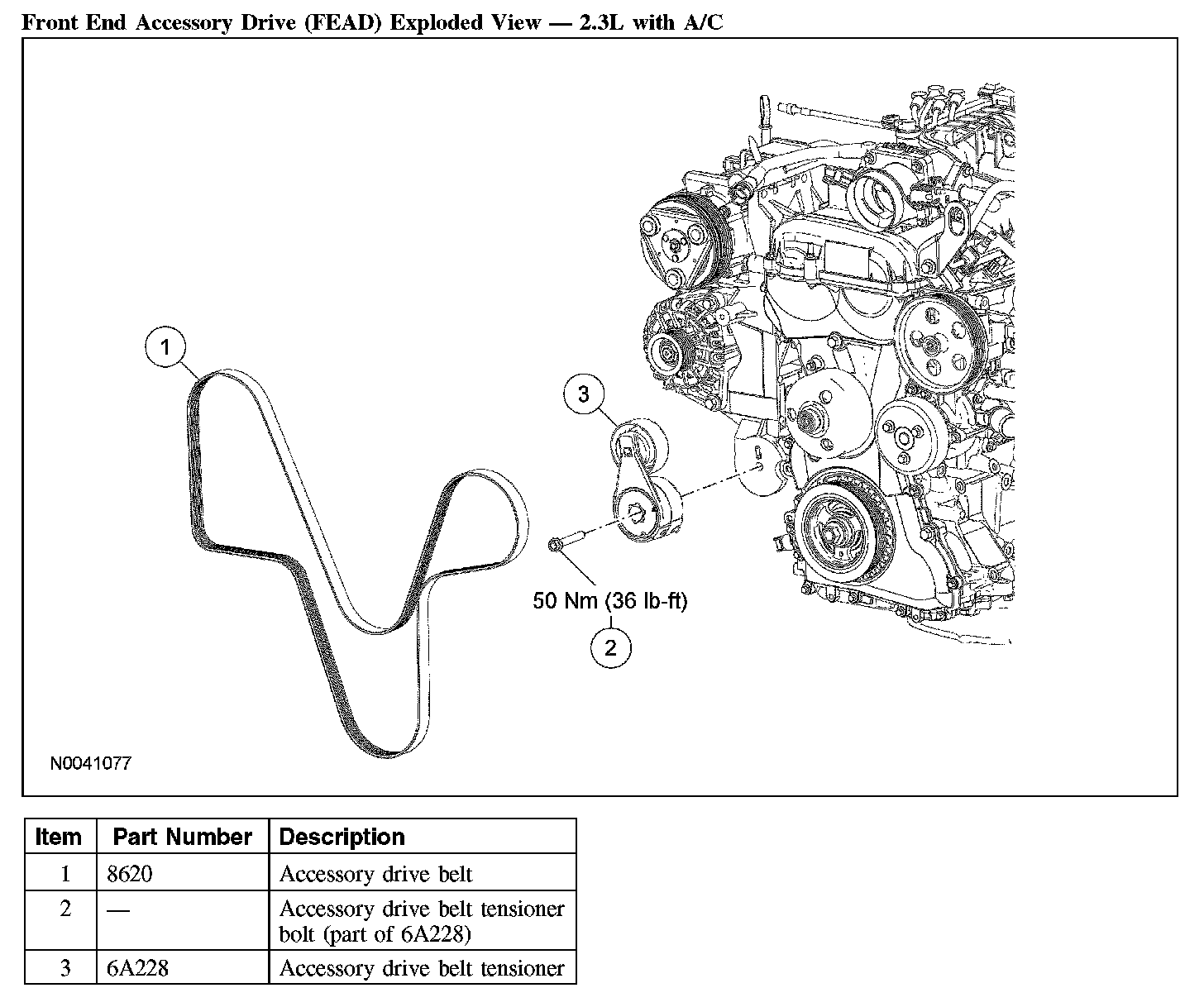

Front End Accessory Drive (FEAD) Exploded View - 2.3L with A/C

Front End Accessory Drive (FEAD) Exploded View - 2.3L with A/C:

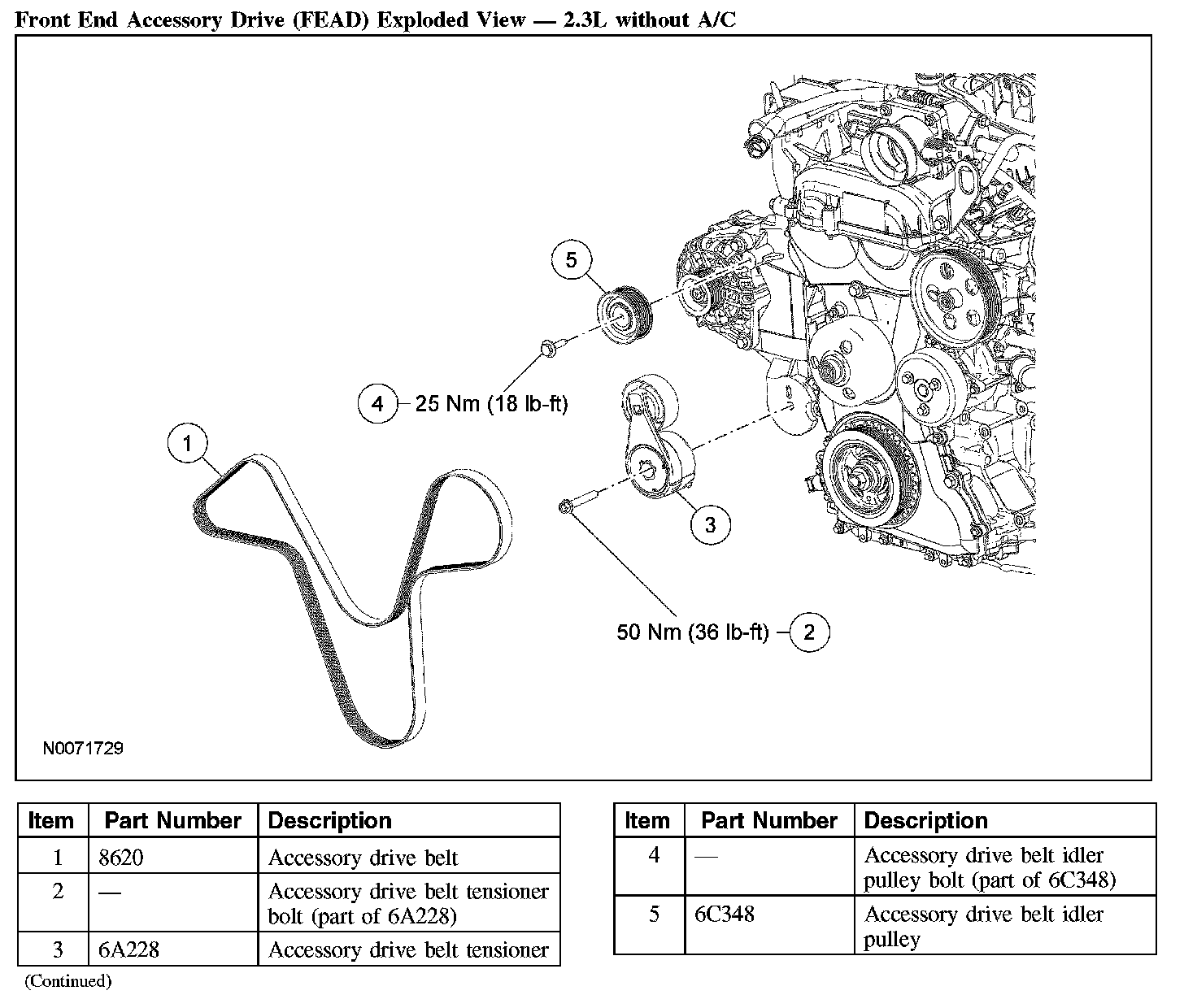

Front End Accessory Drive (FEAD) Exploded View - 2.3L without A/C

Front End Accessory Drive (FEAD) Exploded View - 2.3L without A/C:

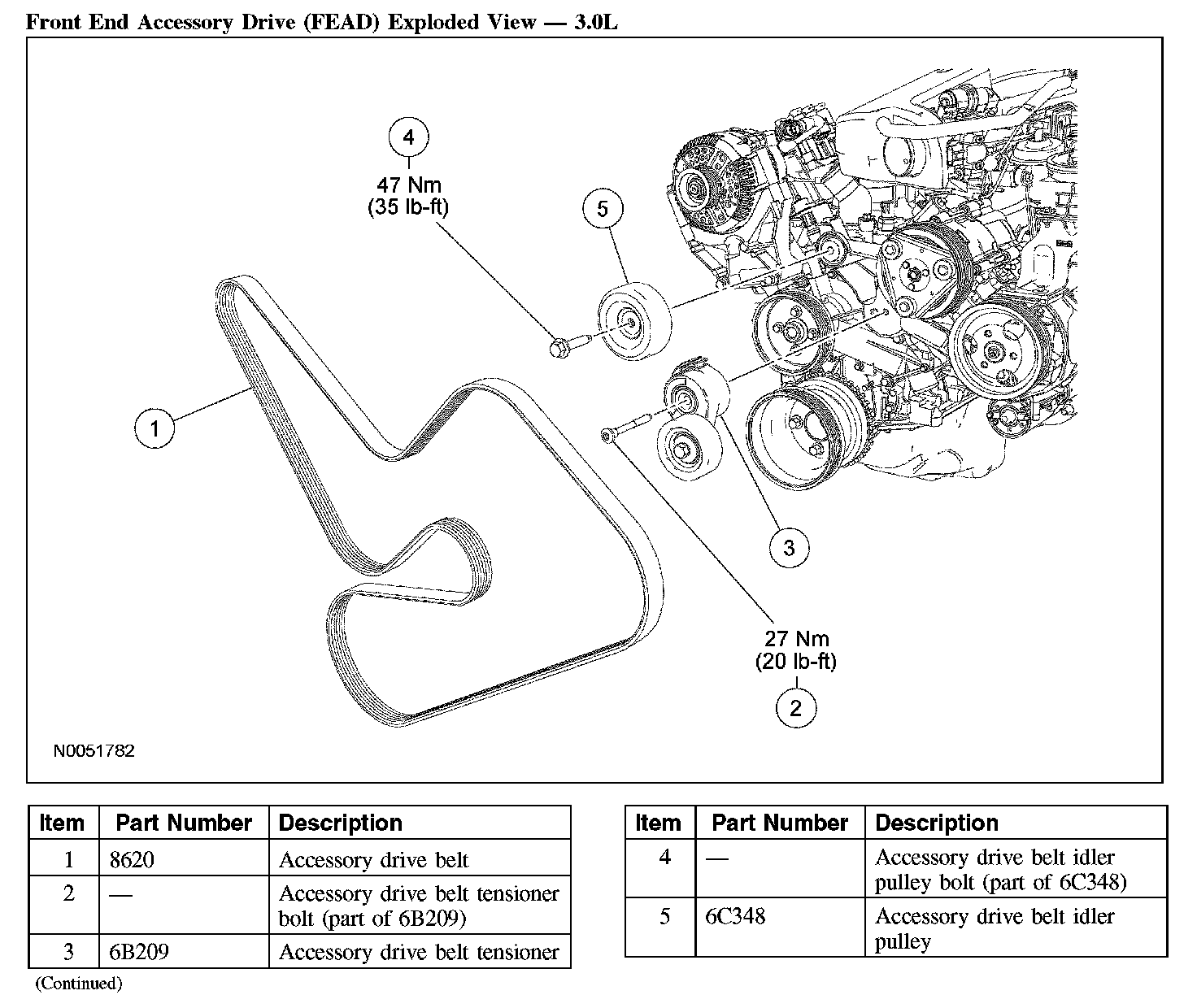

Front End Accessory Drive (FEAD) Exploded View - 3.0L

Front End Accessory Drive (FEAD) Exploded View - 3.0L:

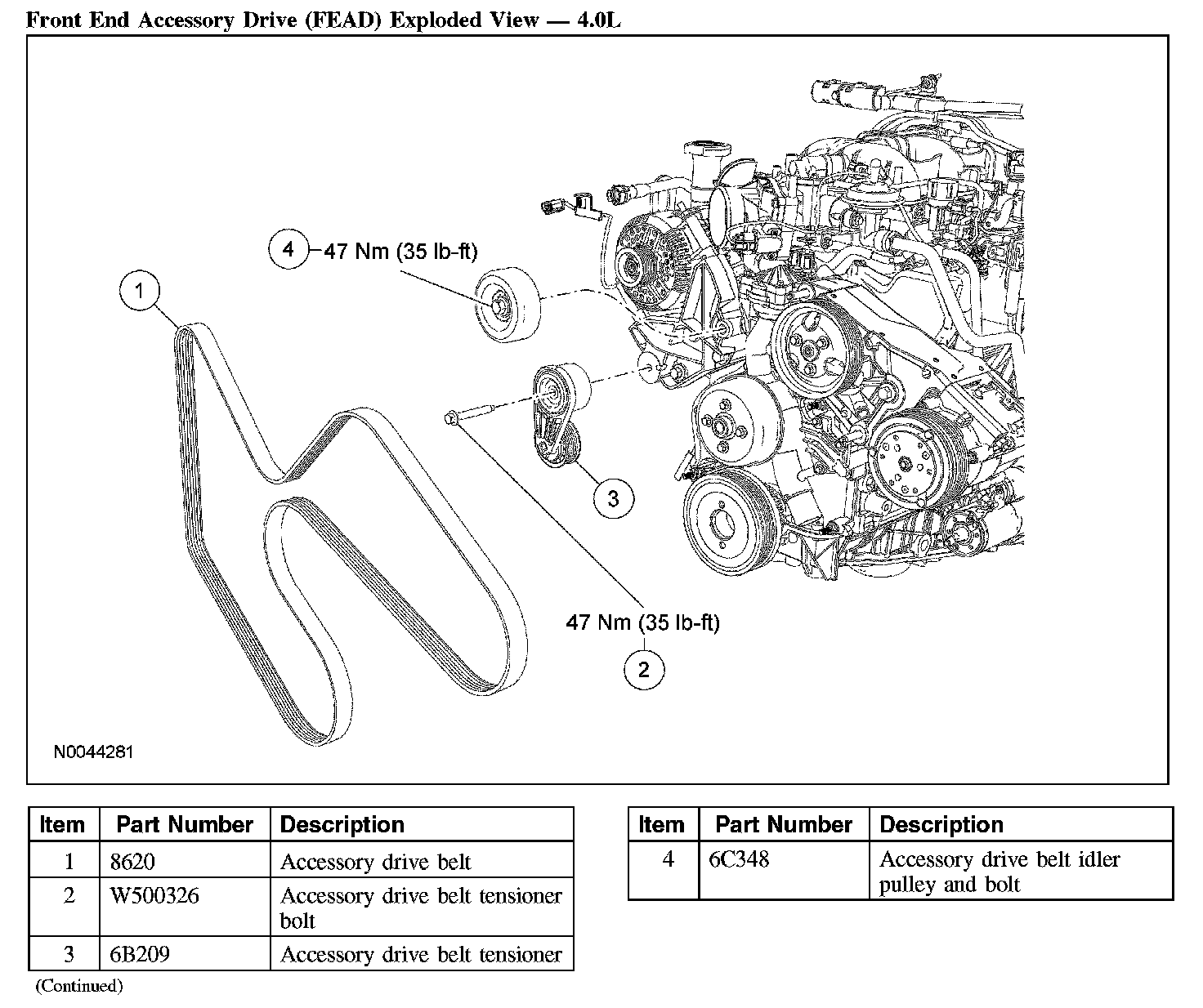

Front End Accessory Drive (FEAD) Exploded View - 4.0L

Front End Accessory Drive (FEAD) Exploded View - 4.0L:
