Engine Temperature Sensor: Service and Repair

CYLINDER HEAD TEMPERATURE (CHT) SENSOR






Removal and Installation

1. Disconnect the battery ground cable.

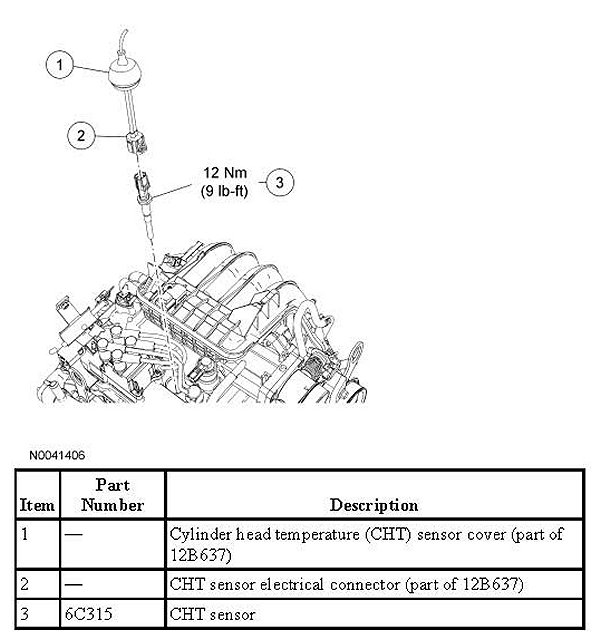

2. Pull back the cylinder head temperature (CHT) sensor cover and disconnect the electrical connector.

3. Remove the CHT sensor.

- To install, tighten to 12 Nm (9 lb-ft).

4. To install, reverse the removal procedure.
