Manifold Pressure/Vacuum Sensor: Service and Repair

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

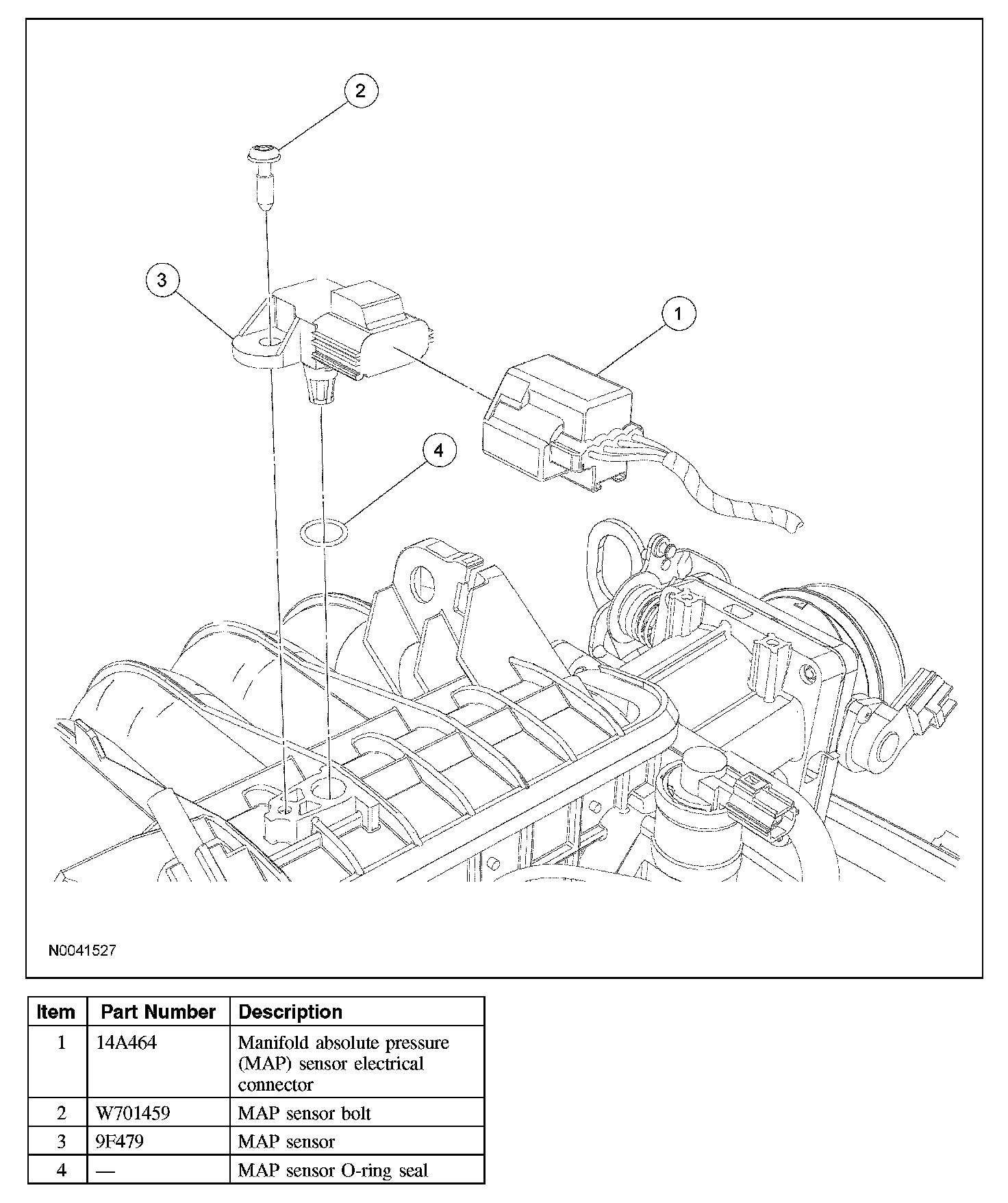

Removal and Installation
1. Disconnect the manifold absolute pressure (MAP) sensor electrical connector.
2. Remove the bolt and lift the MAP sensor out of the intake manifold.
- Discard the O-ring seal.

3. To install, reverse the removal procedure.
- Install a new O-ring seal.
