Ignition Switch: Service and Repair

Ignition Switch

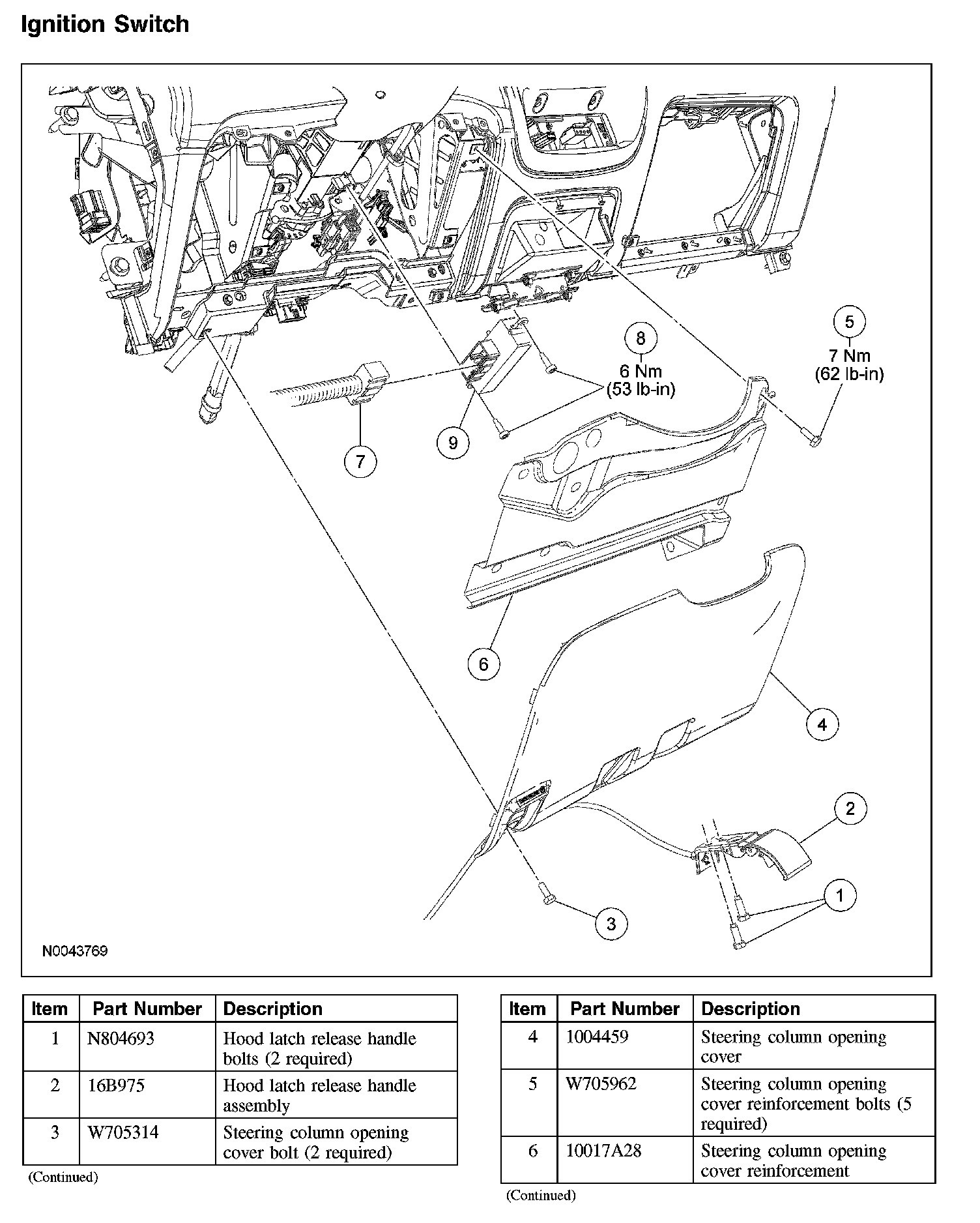

Ignition Switch (Part 1):

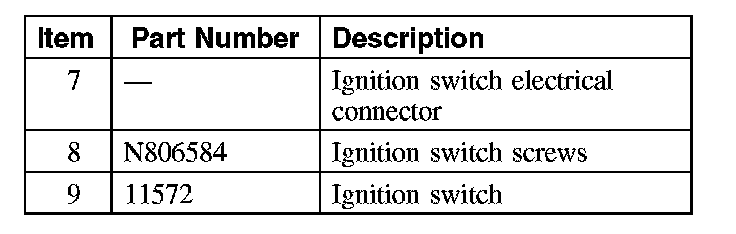

Ignition Switch (Part 2):

Removal and Installation
1. Depower the supplemental restraint system (SRS).
2. Remove the 2 bolts and position the hood latch release handle aside.
3. Remove the 2 bolts and the steering column opening cover.
4. Remove the 5 steering column opening cover reinforcement bolts and the reinforcement.
^ To install, tighten to 7 Nm (62 lb-inch).
5. Disconnect the ignition switch electrical connector.

6. NOTE: The ignition switch should be in the OFF position.

Remove the 2 ignition switch screws and the ignition switch.
^ To install, tighten to 6 Nm (53 lb-inch).
7. To install, reverse the removal procedure.
8. Repower the SRS.
