Engine Lubrication

Engine Lubrication Components - Exploded View

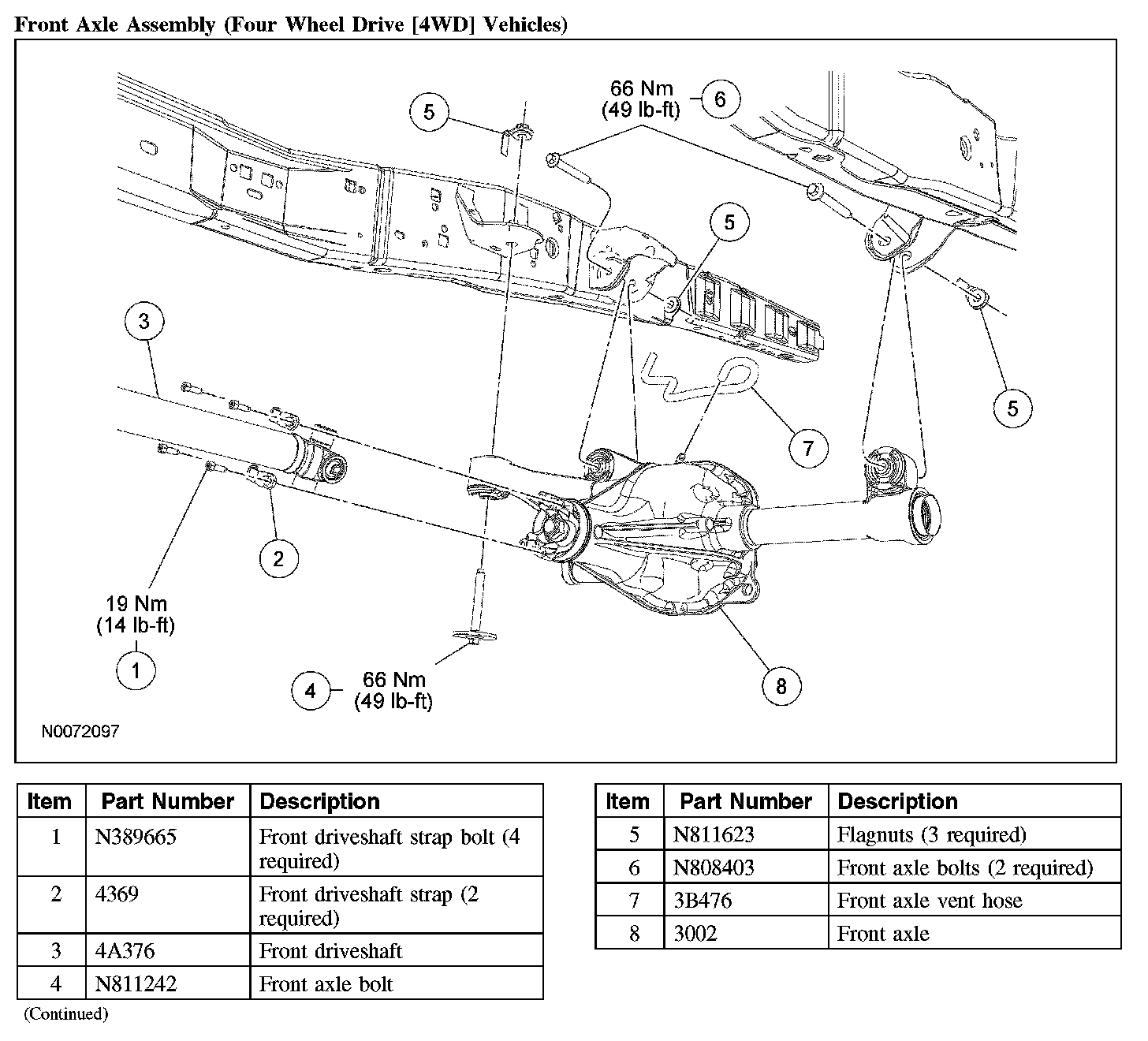

Front Axle Assembly (Four Wheel Drive [4WD] Vehicles)

Front Axle Assembly (Four Wheel Drive [4WD] Vehicles):

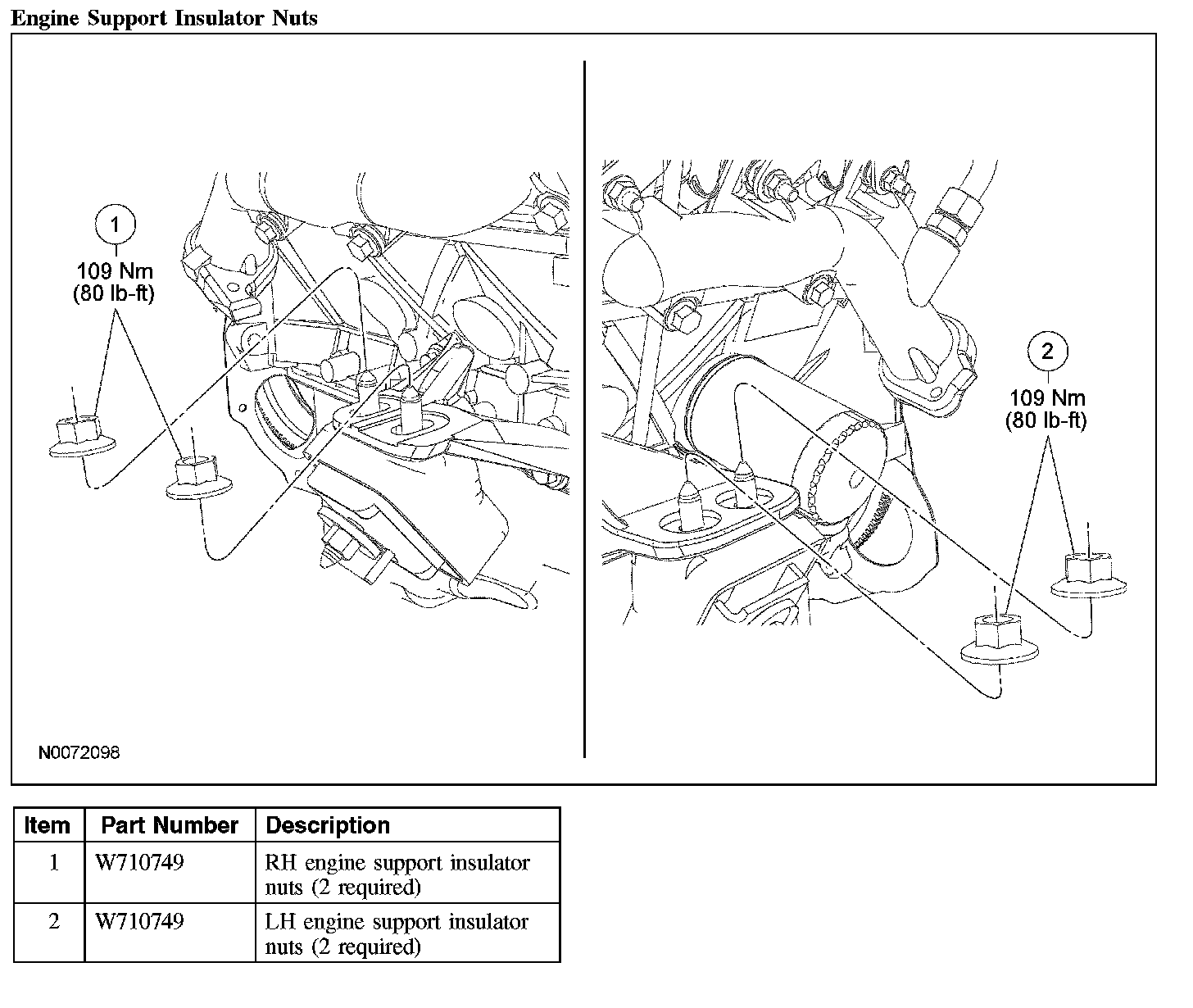

Engine Support Insulator Nuts

Engine Support Insulator Nuts:

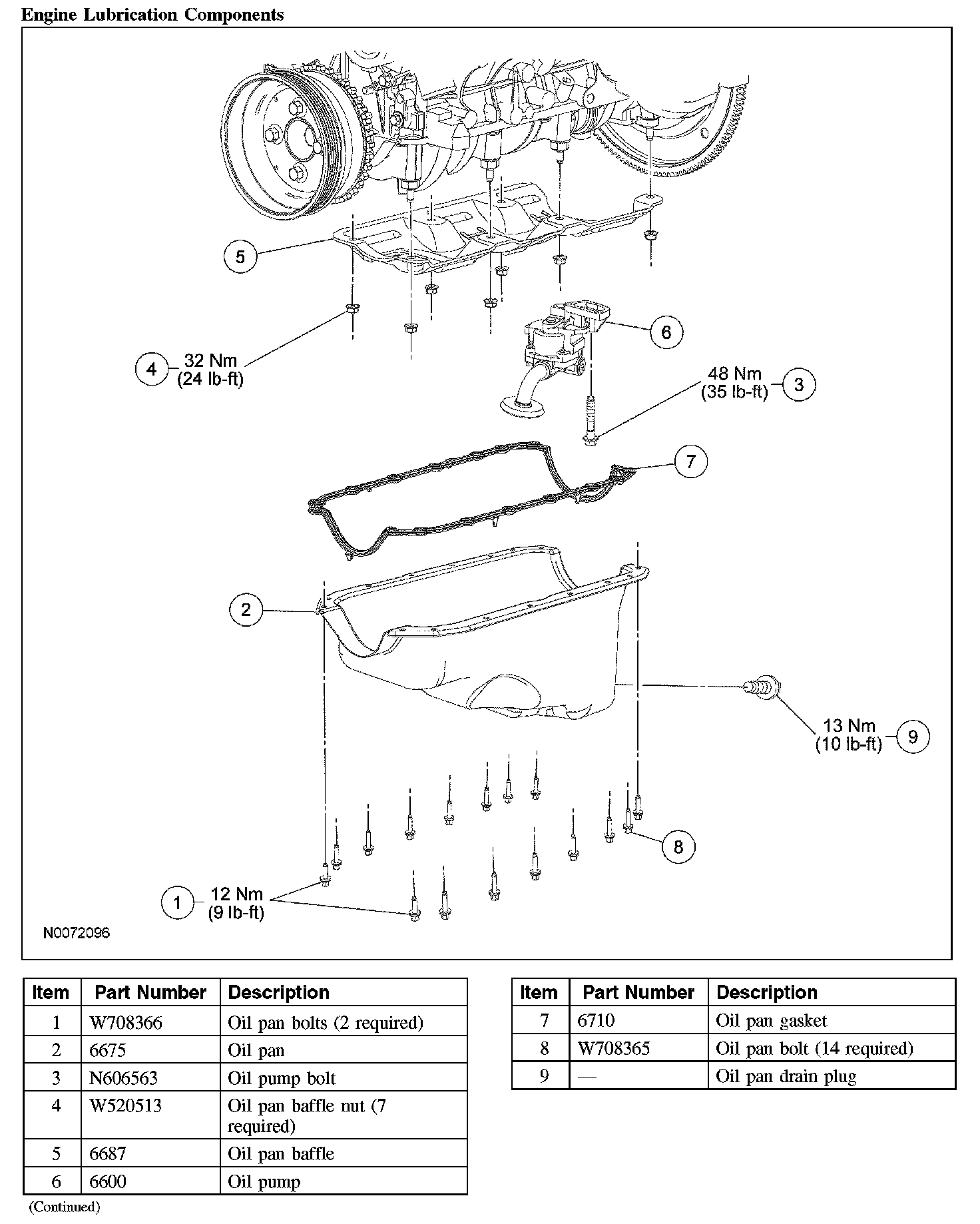

Engine Lubrication Components

Engine Lubrication Components:
