Intake Manifold

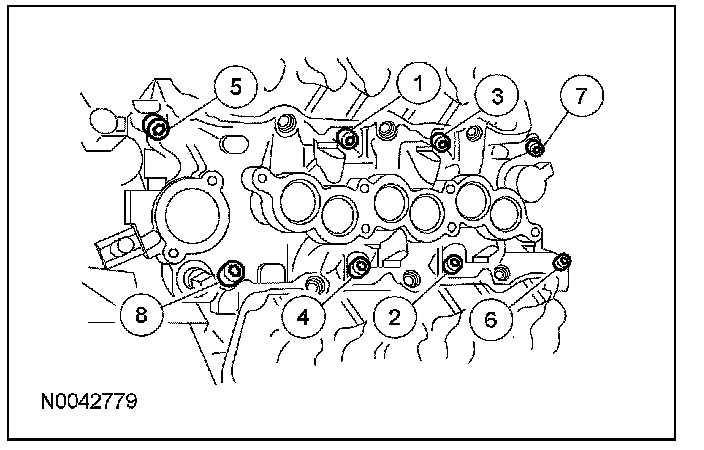

Lower intake manifold bolts:
Stage 1 15 Nm (11 lb-ft)
Stage 2 32 Nm (24 lb-ft)

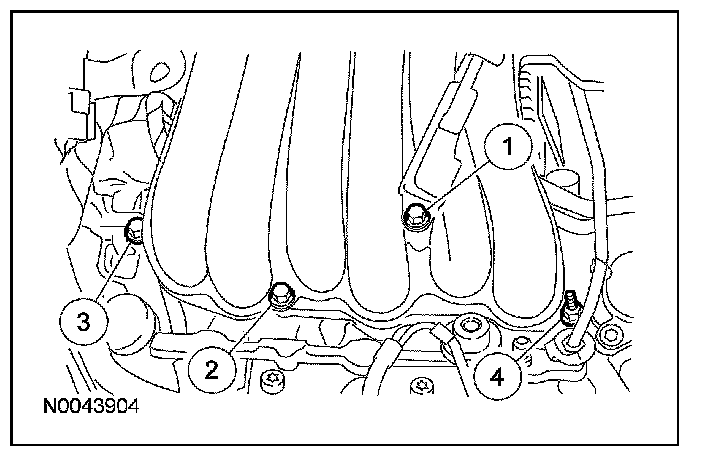

Upper intake manifold bolts 10 Nm (89 lb-inch)





Throttle Body (TB) Bolts and Stud Bolt 10 Nm (89 lb-in).
