Alternator: Service and Repair

GENERATOR

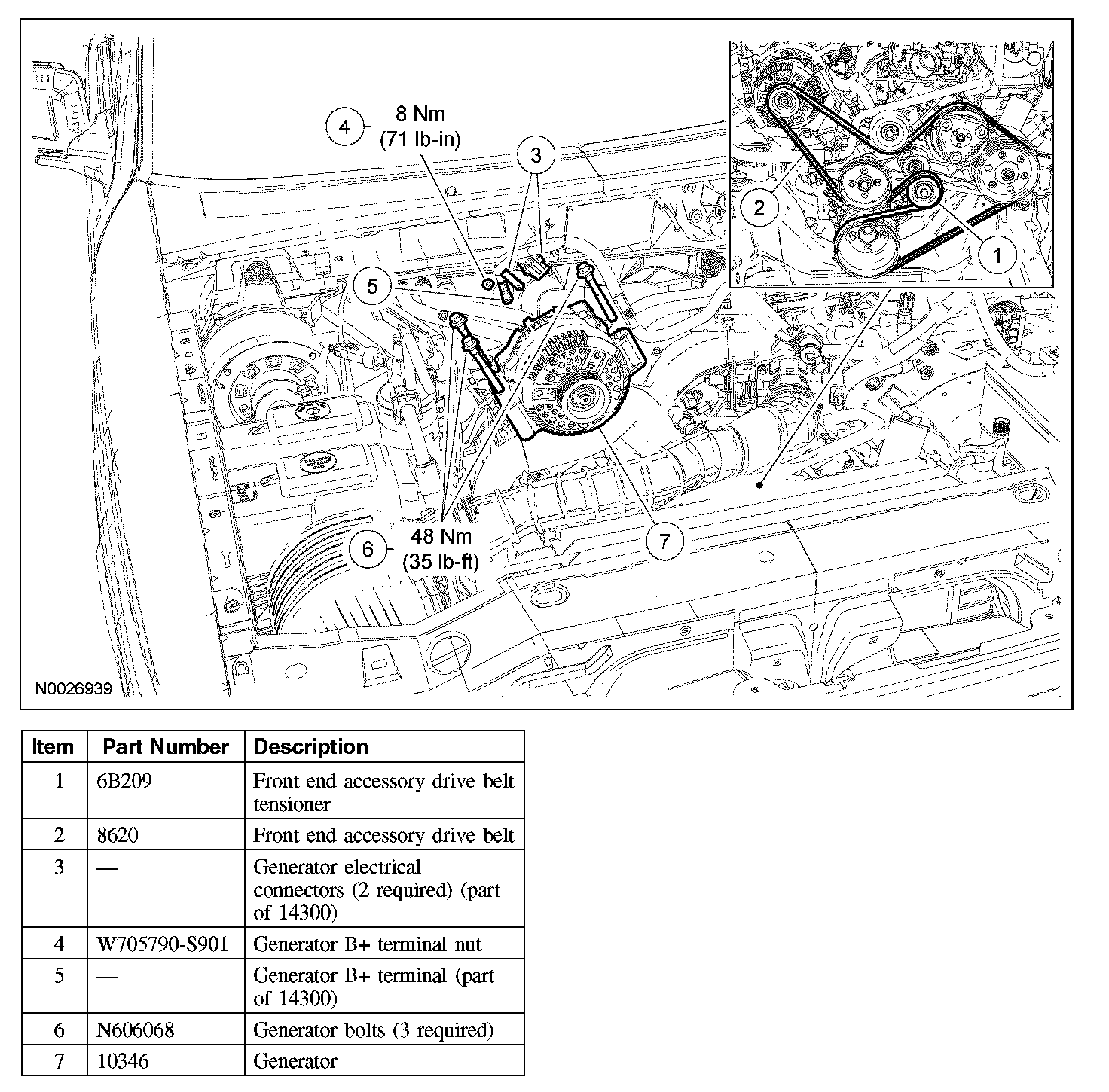

Removal and Installation
1. Disconnect the battery.
2. Rotate the front end accessory drive belt tensioner clockwise and position the accessory drive belt aside.
3. Disconnect the 2 electrical connectors from the generator.
4. Position the protective cover aside, remove the nut and position the generator B+ terminal aside.
- To install, tighten to 8 Nm (71 lb-in).

5. Remove the 3 bolts and the generator.
- To install, tighten to 48 Nm (35 lb-ft).

6. To install, reverse the removal procedure.
