Radiator

Radiator and Cooling Fan - Exploded View, 3.0L and 4.0L

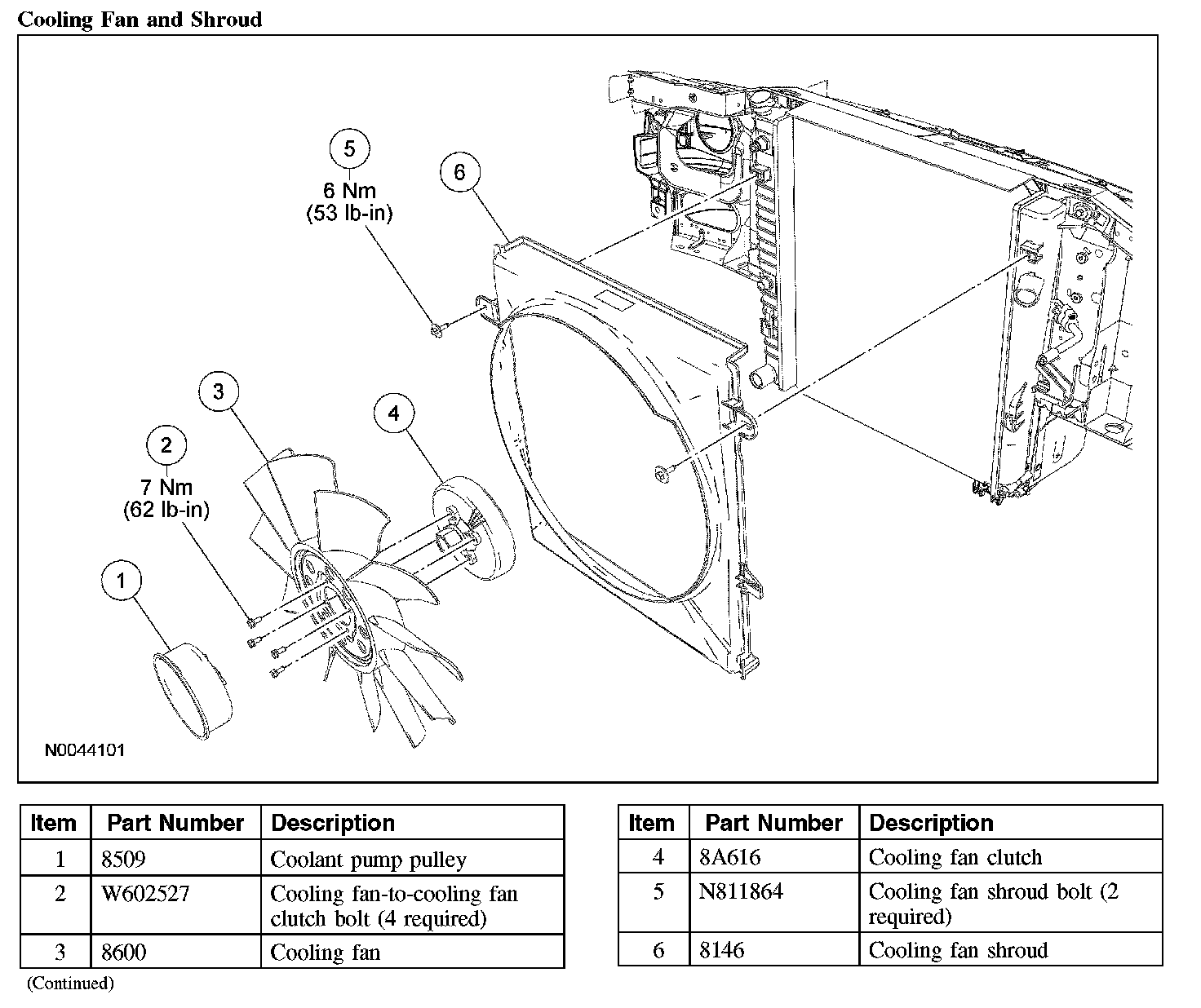

Cooling Fan and Shroud

Cooling Fan and Shroud:

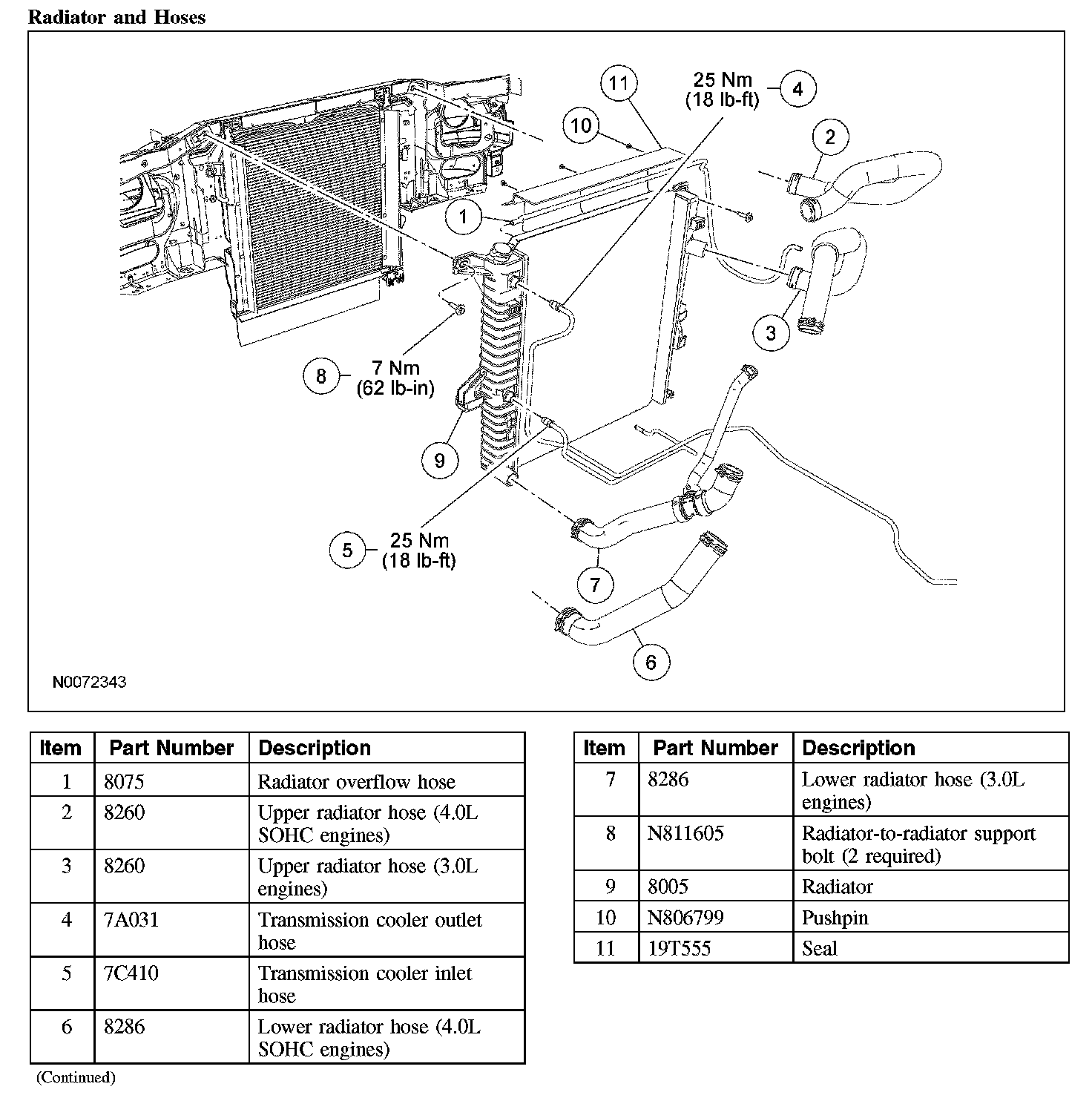

Radiator and Hoses

Radiator and Hoses:
