Climate Control Assembly

CLIMATE CONTROL ASSEMBLY







Removal and Installation
1. Remove the audio unit.

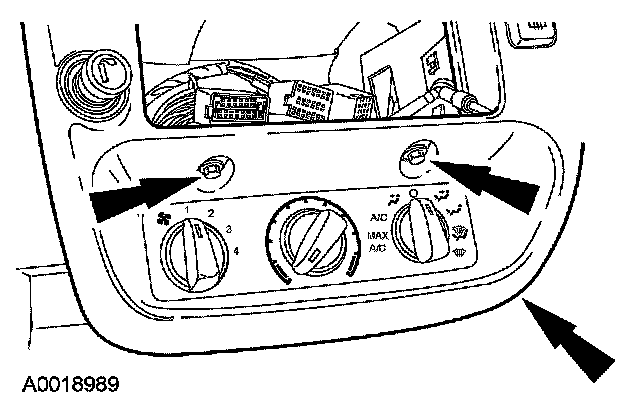

2. Remove the 2 screws and the instrument panel center finish panel.
- Disconnect the electrical connector.

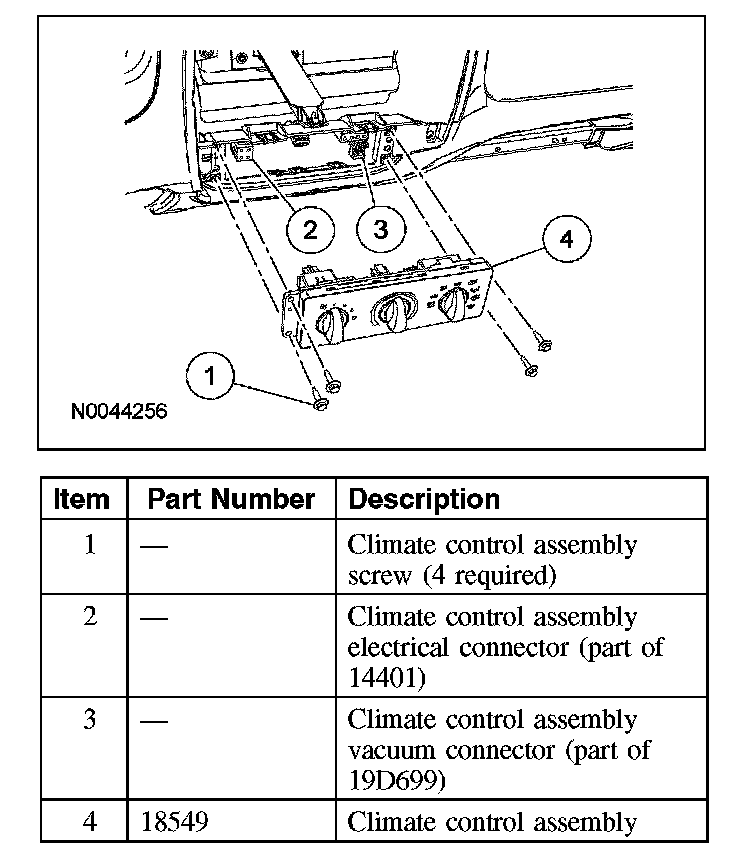

3. Remove the 4 climate control assembly screws.
4. Disconnect the climate control assembly electrical connectors and vacuum connector.
5. Remove the climate control assembly.
6. To install, reverse the removal procedure.
