General Specifications

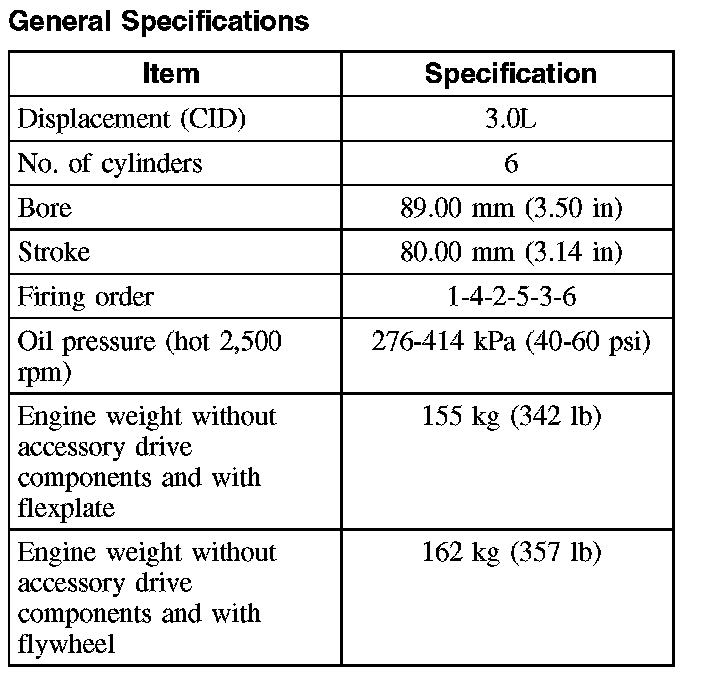

General Specifications

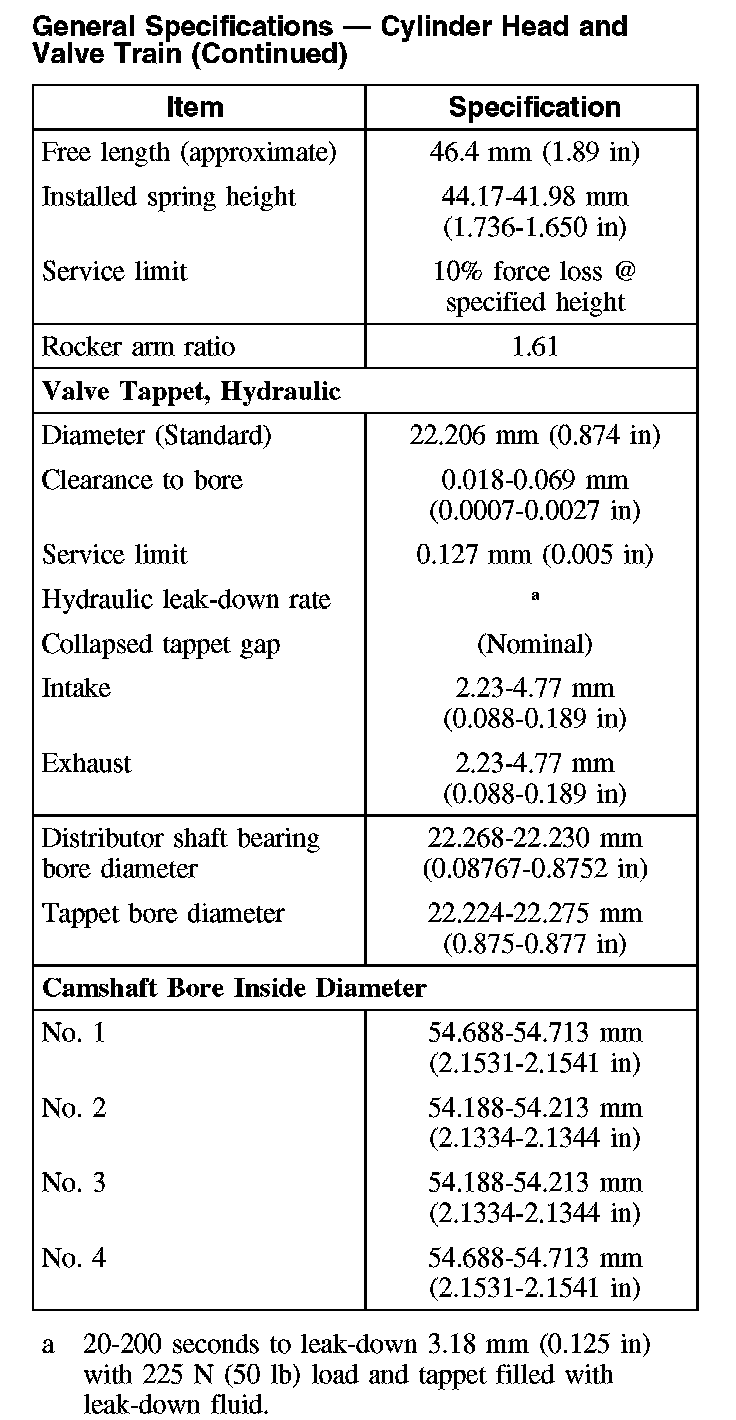

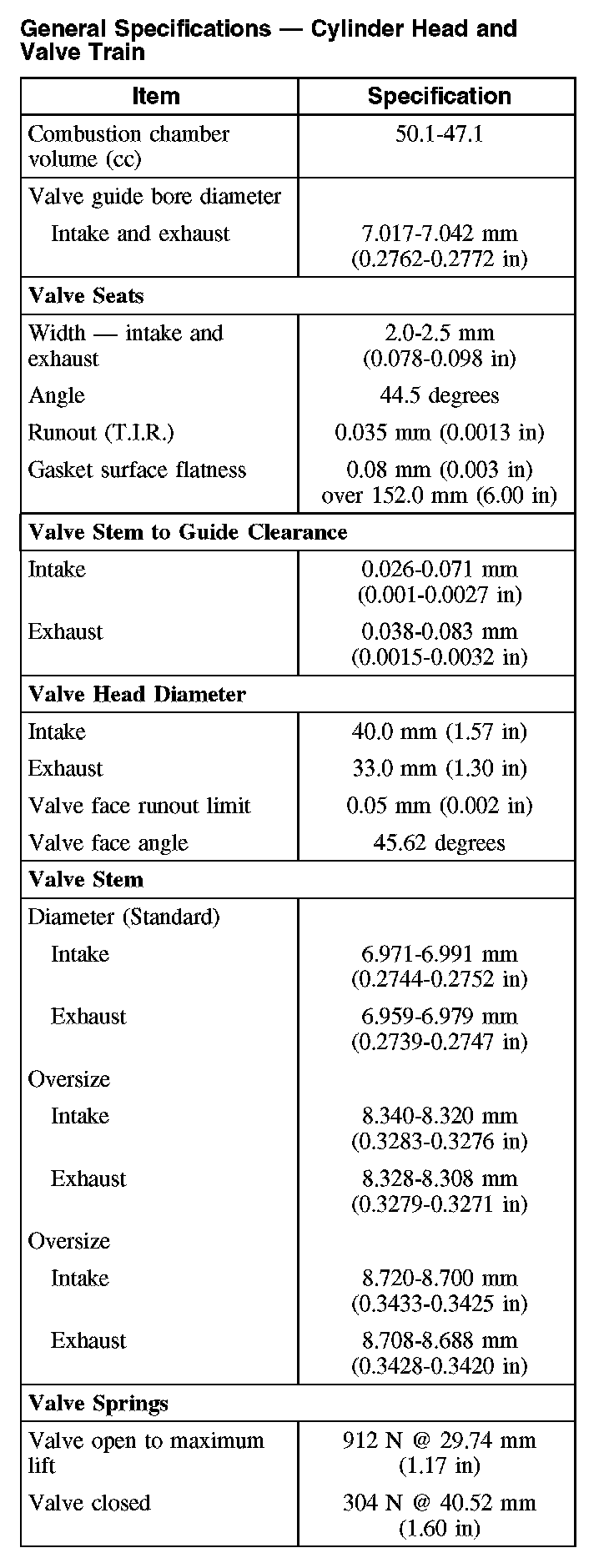

General Specifications - Cylinder Head and Valve Train

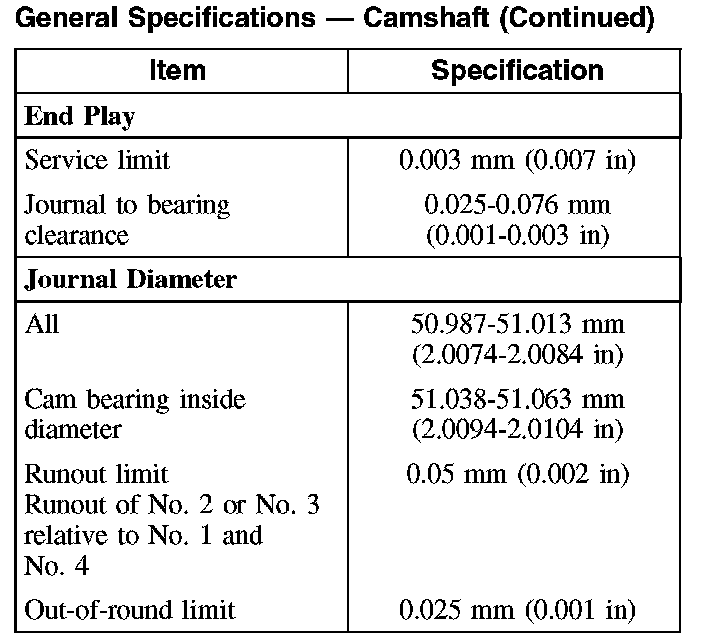

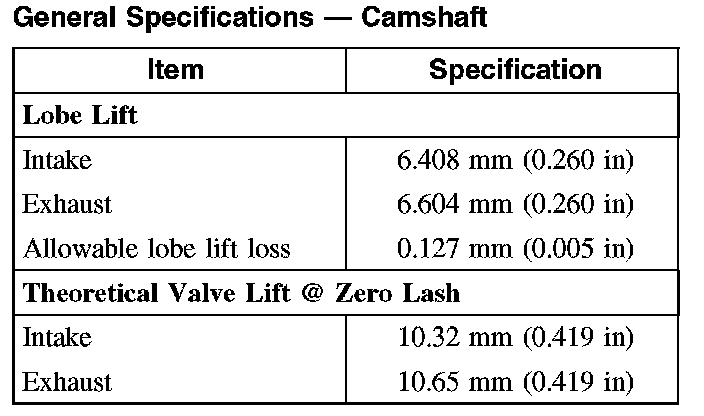

General Specifications - Camshaft

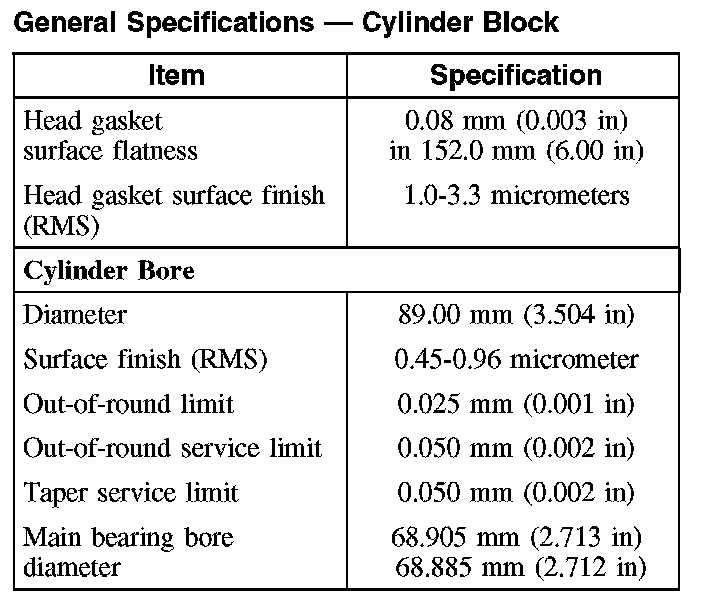

General Specifications - Cylinder Block

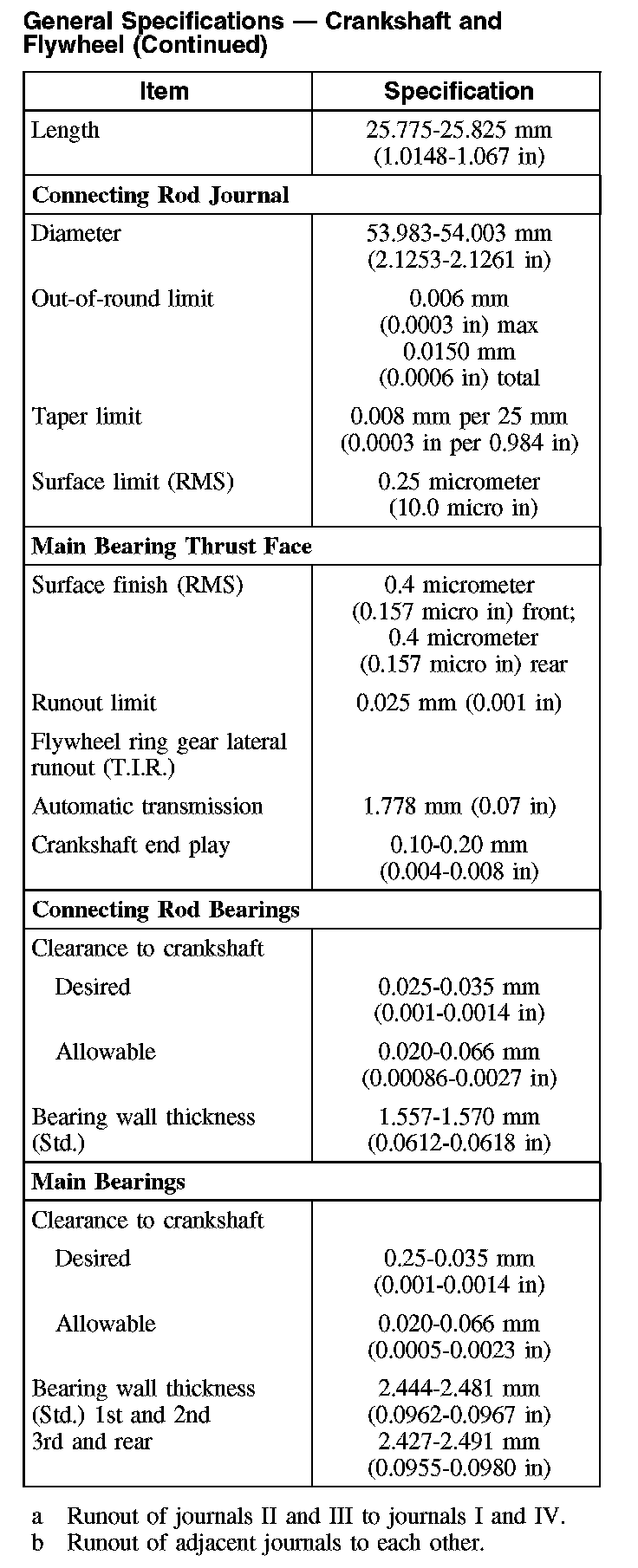

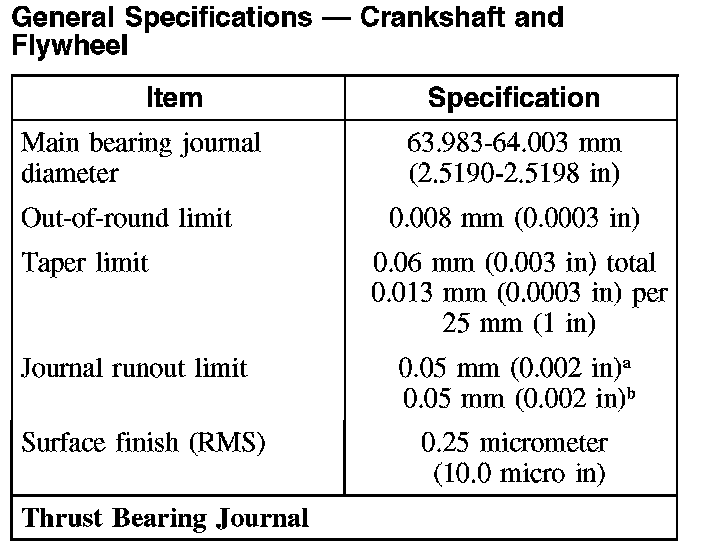

General Specifications - Crankshaft and Flywheel

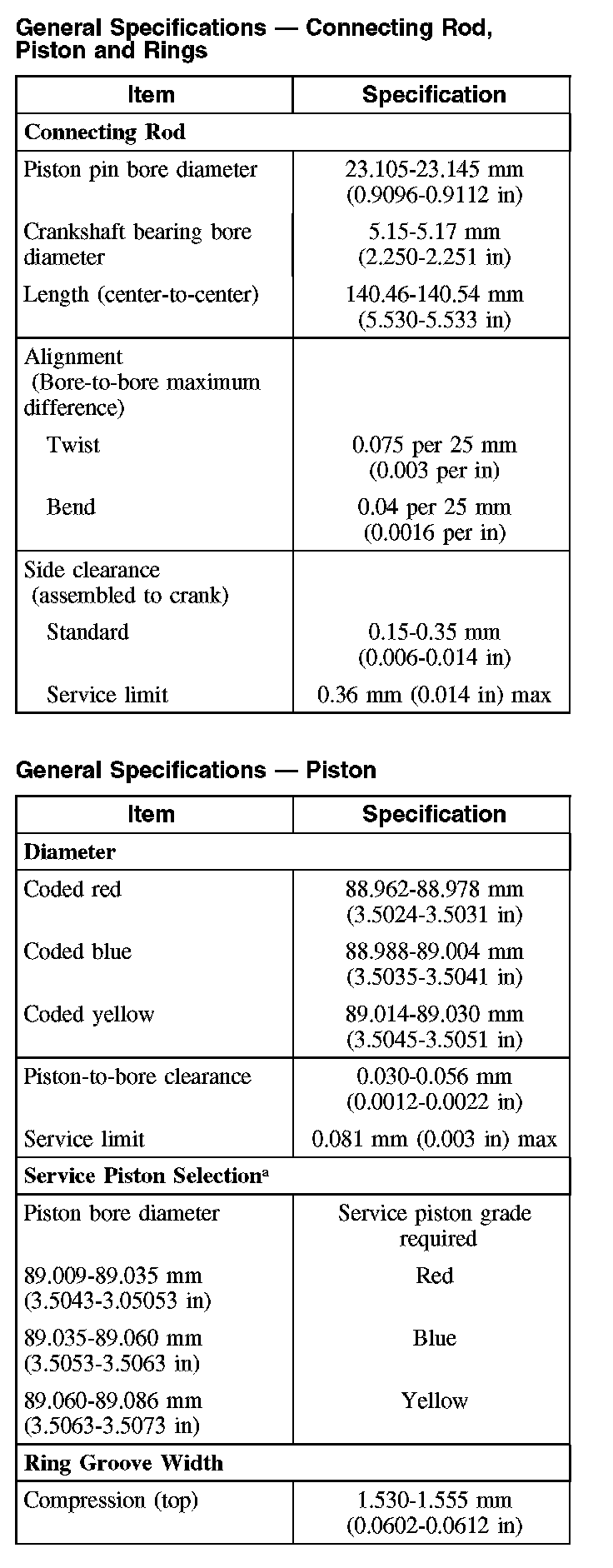

General Specifications - Connecting Rod, Piston and Rings

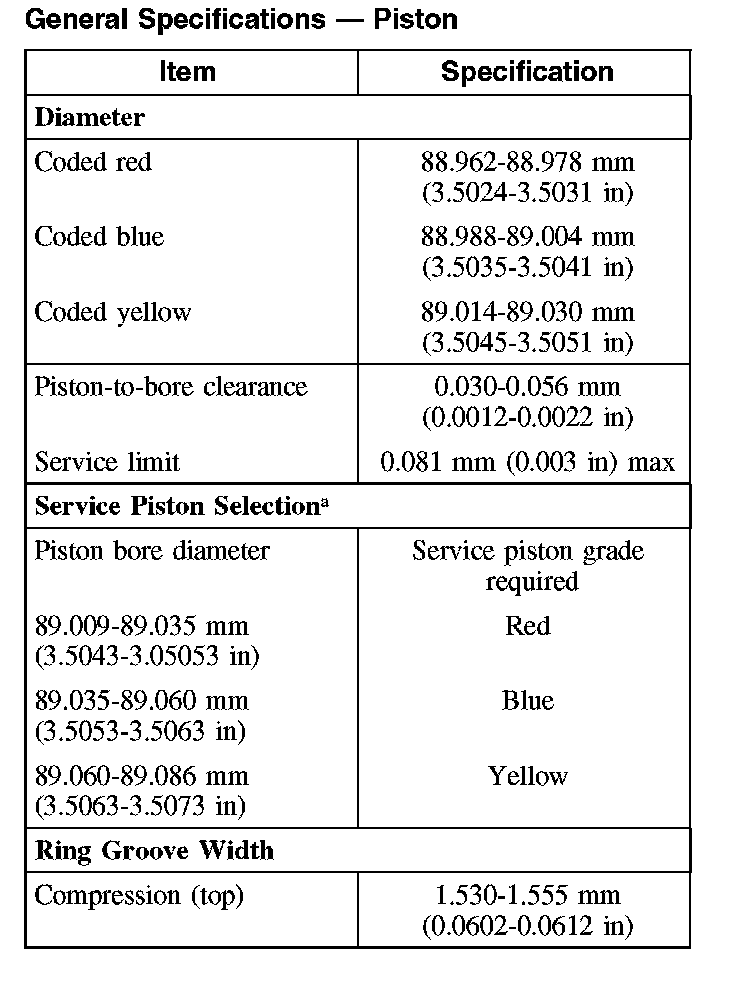

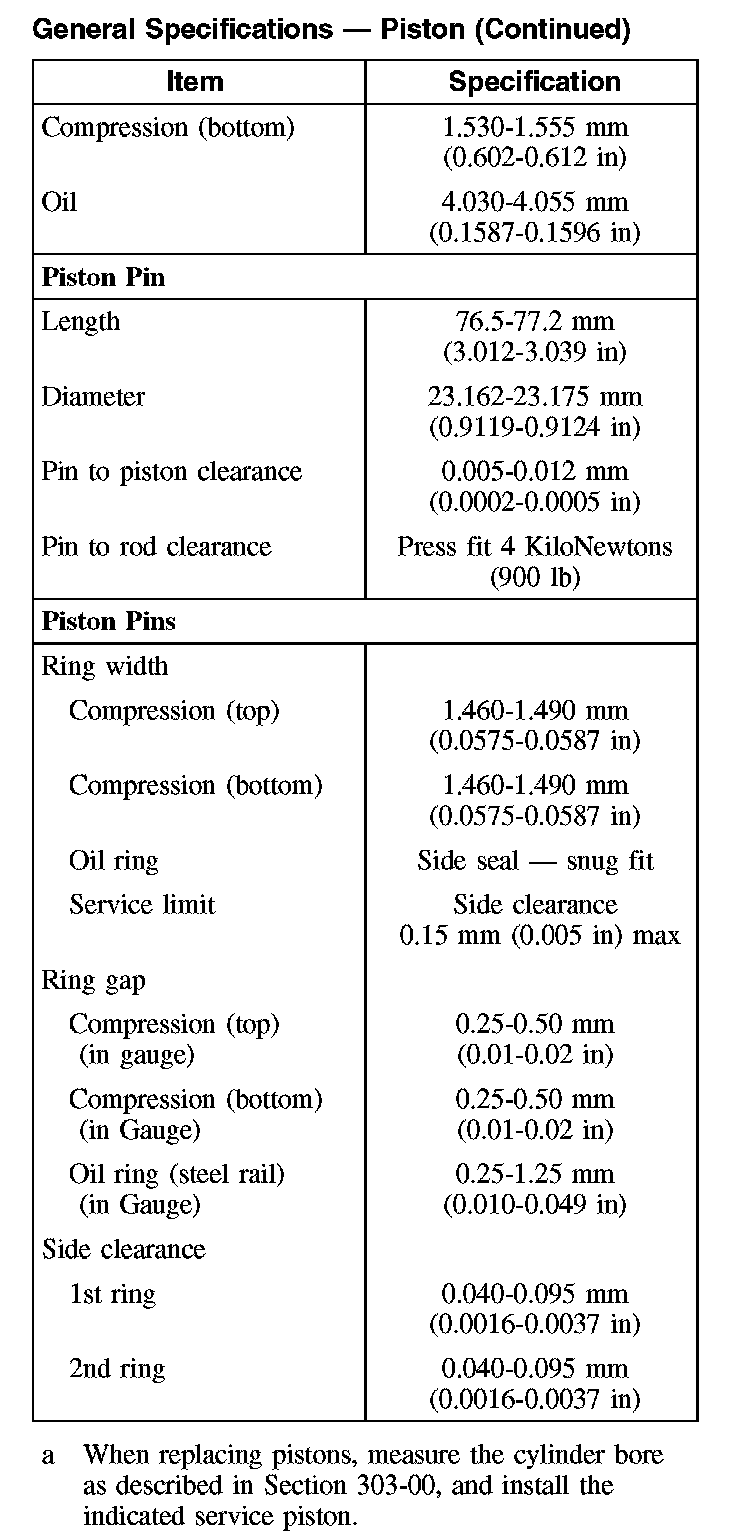

General Specifications - Piston

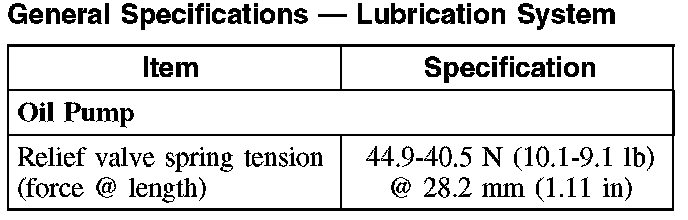

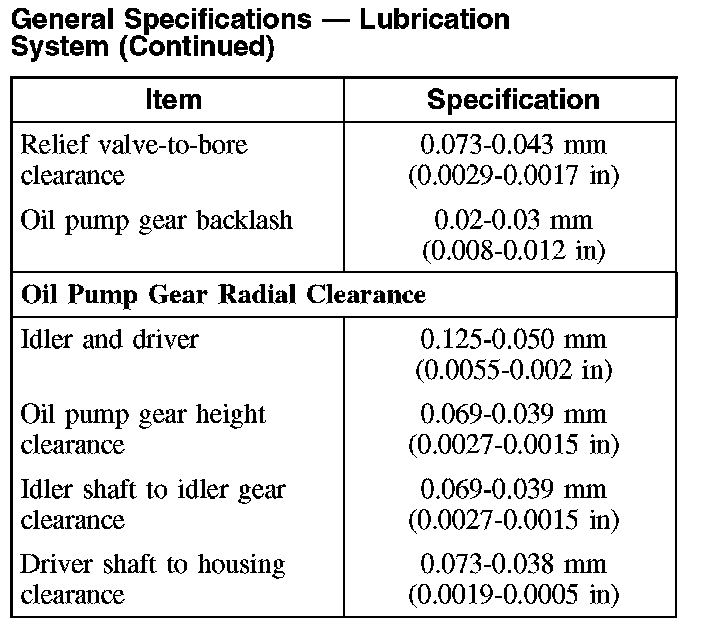

General Specifications - Lubrication System
