Torque Specifications

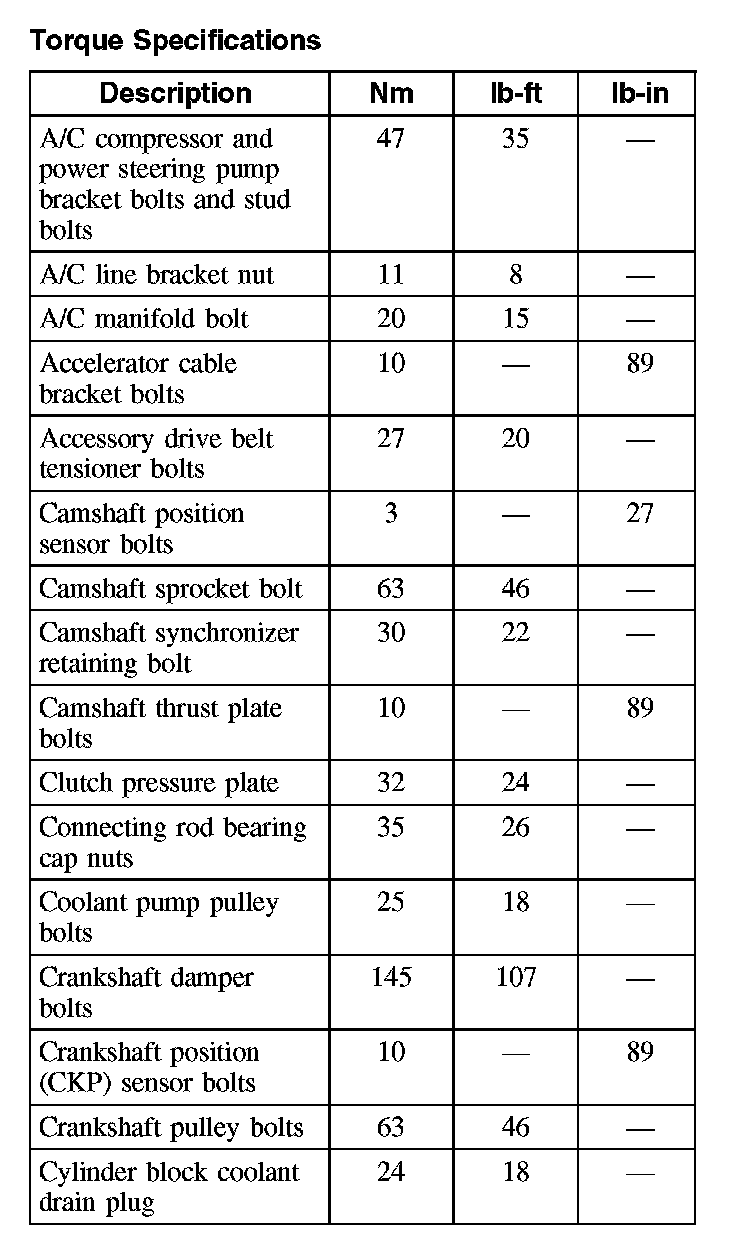

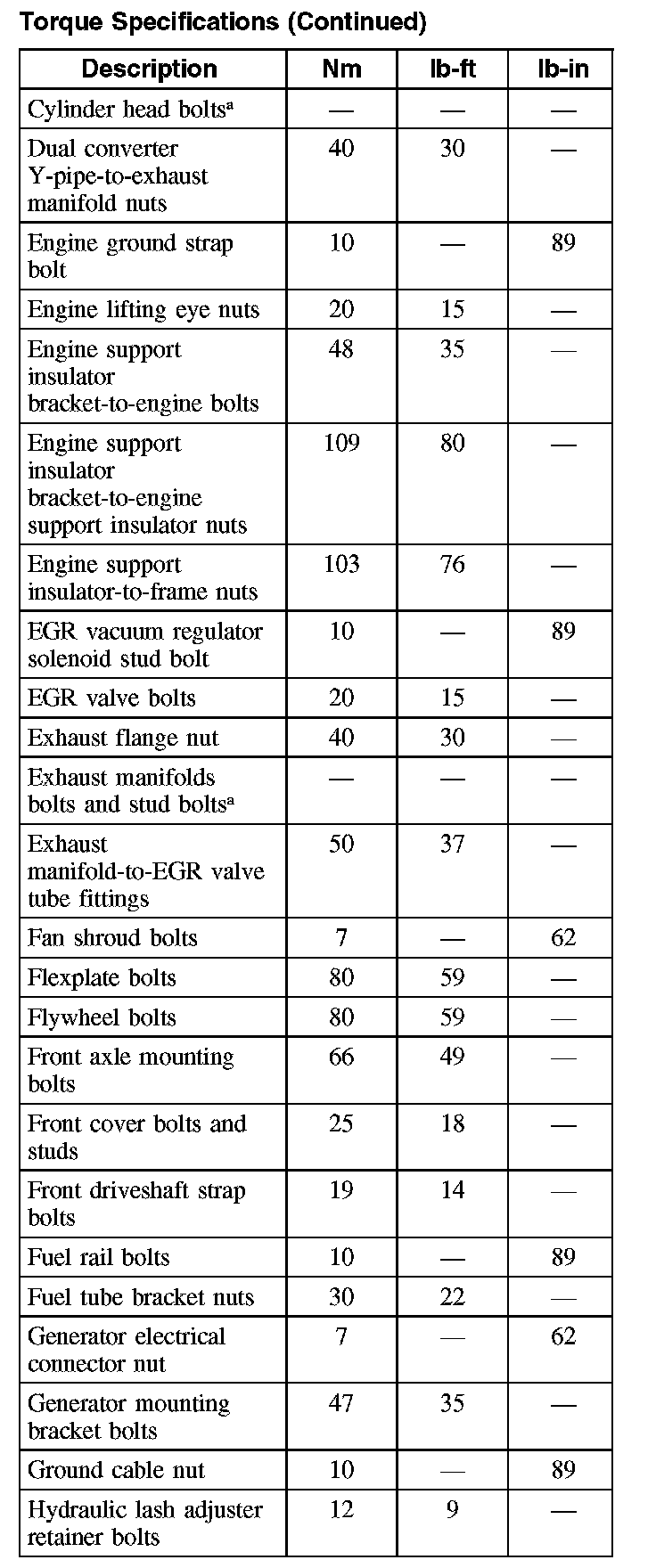

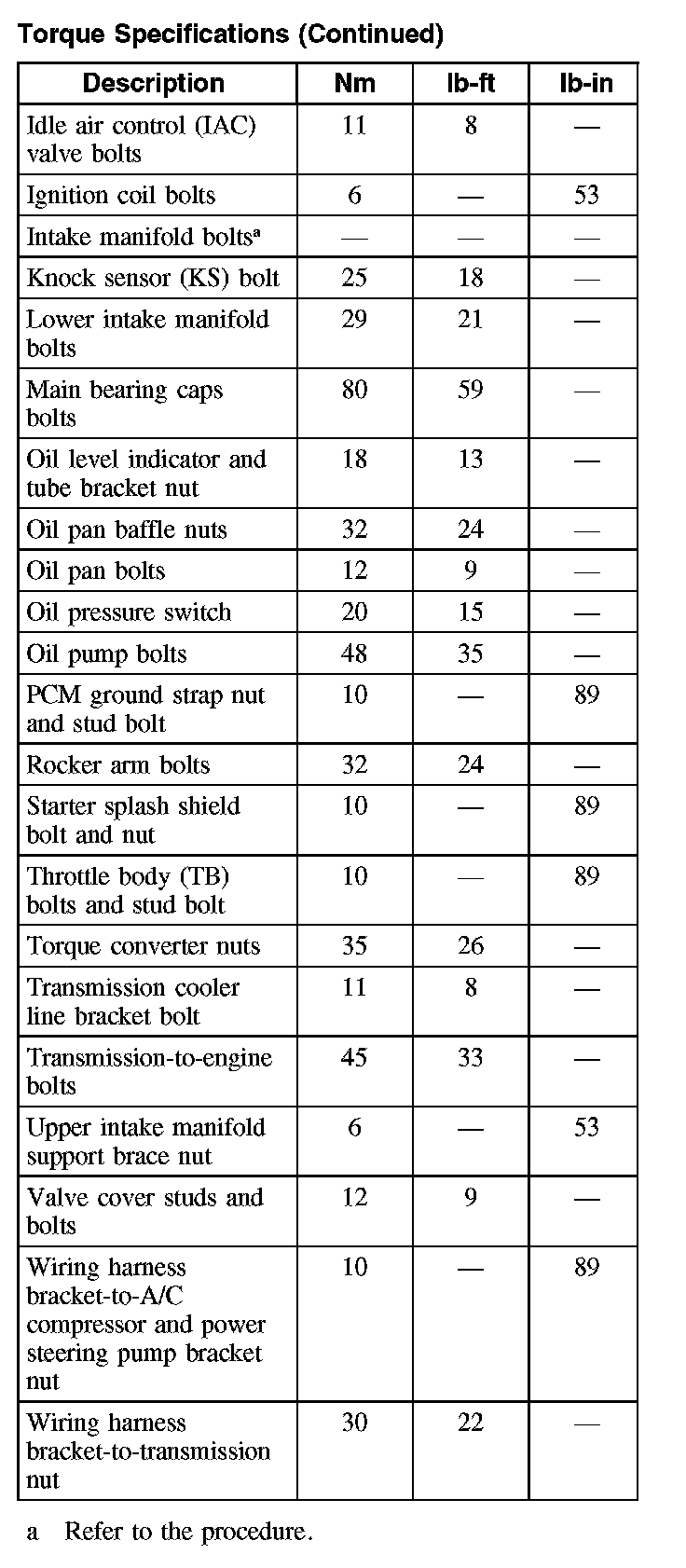

Torque Specifications

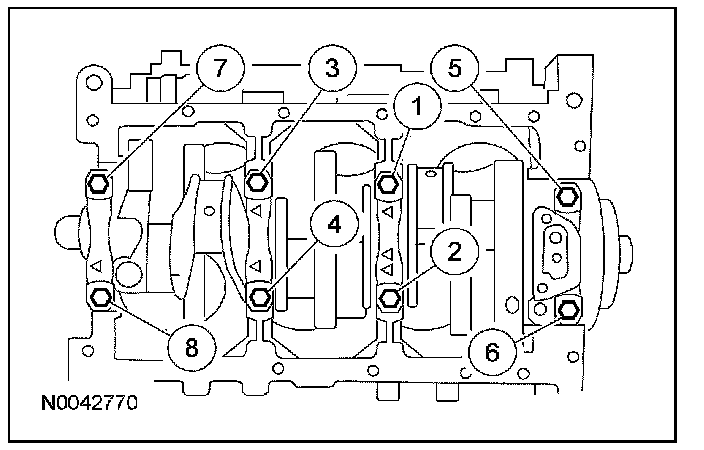

Main Bearing Cap Bolt Sequence:

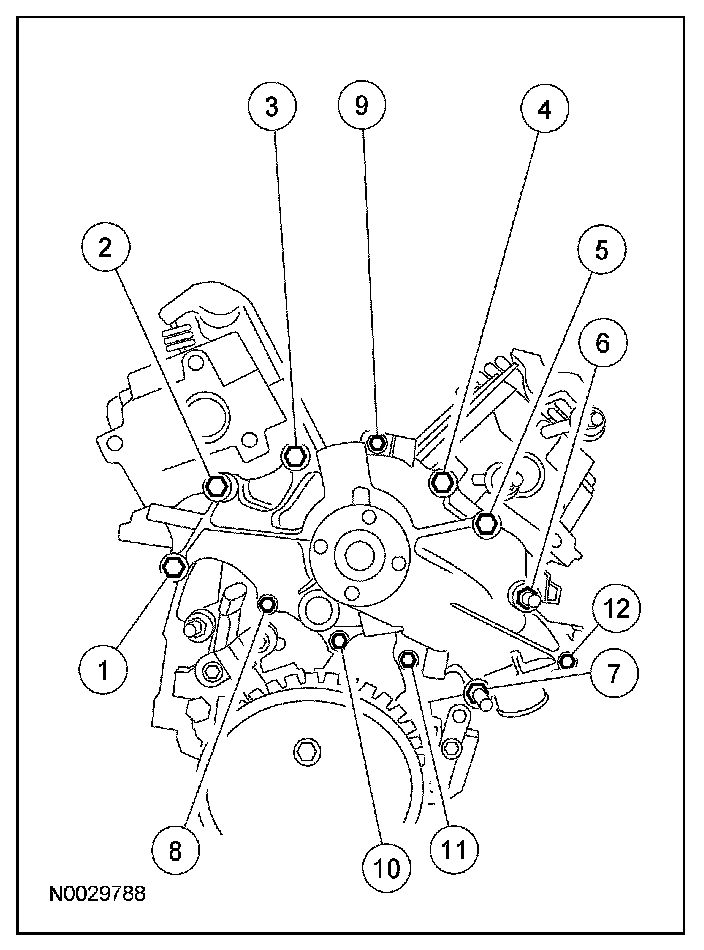

Coolant pump bolts:
bolts 1-7 25 Nm (18 lb-ft).
bolts 8-12 10 Nm (89 lb-inch).





Flexplate Bolt Sequence Criss-cross pattern
Flywheel Bolt Sequence Criss-cross pattern
