Front
Disc Brake System
- Exploded View

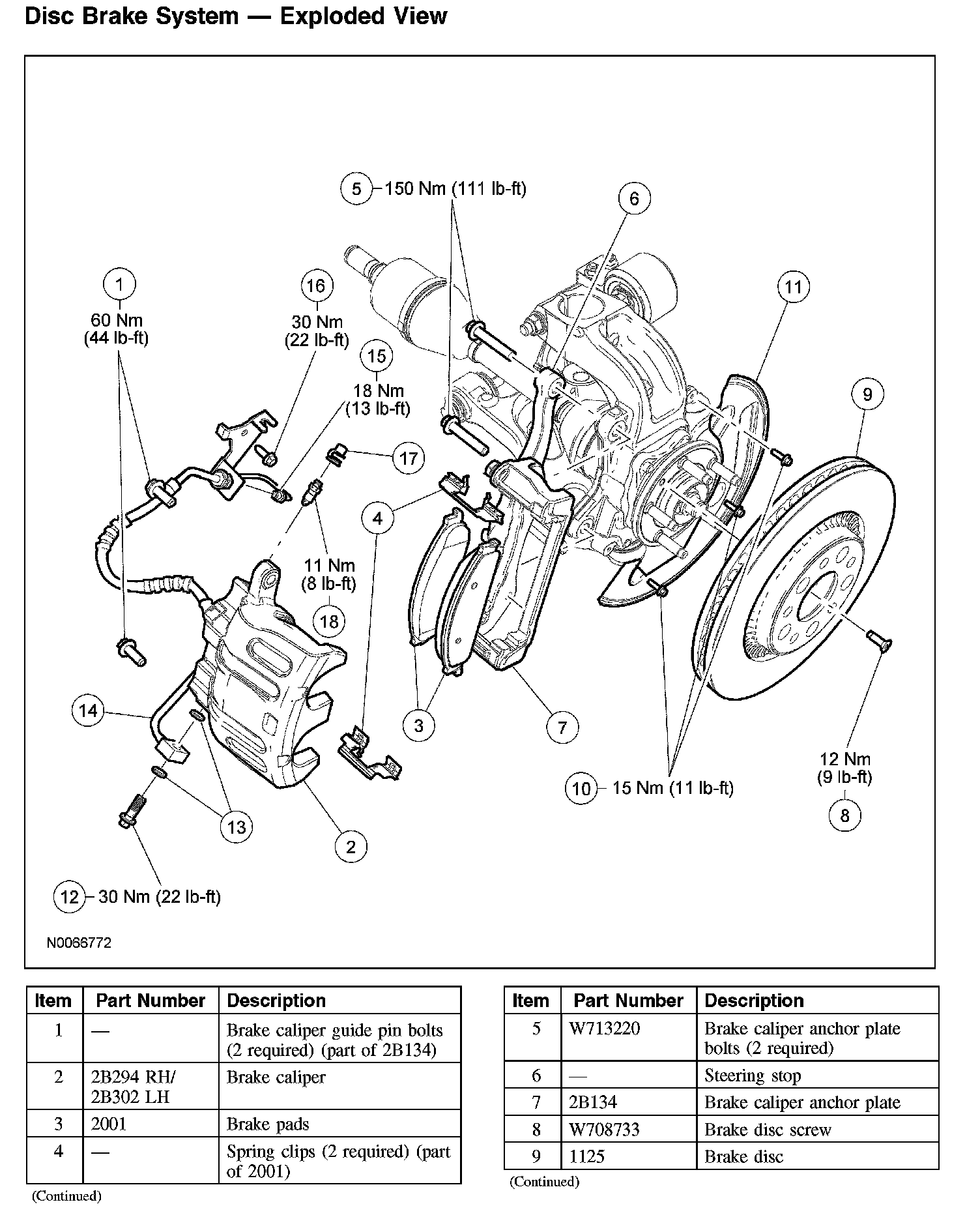

Disc Brake System - Exploded View (Part 1):

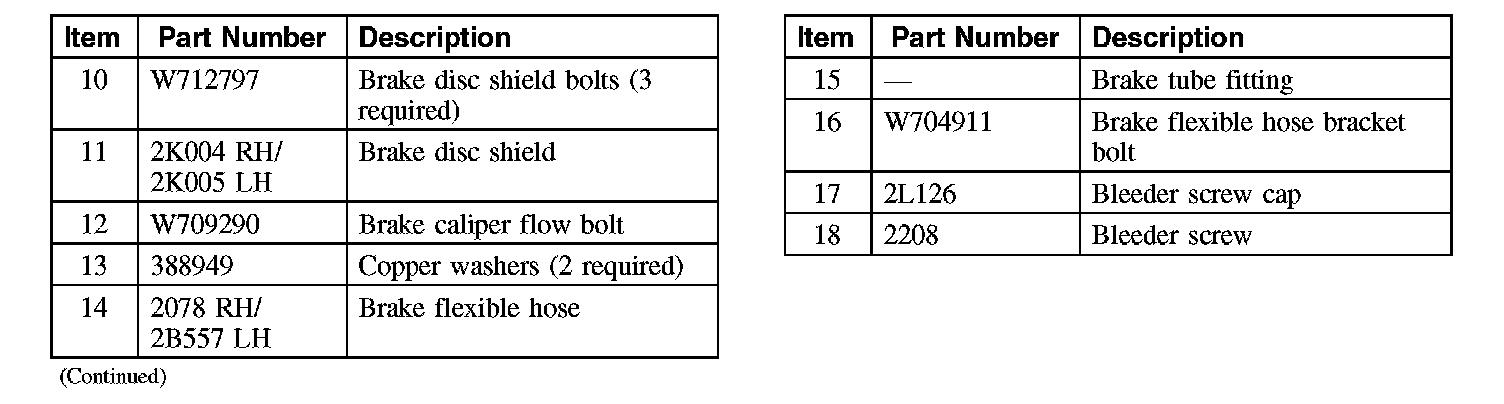

Disc Brake System - Exploded View (Part 2):
