Connectors

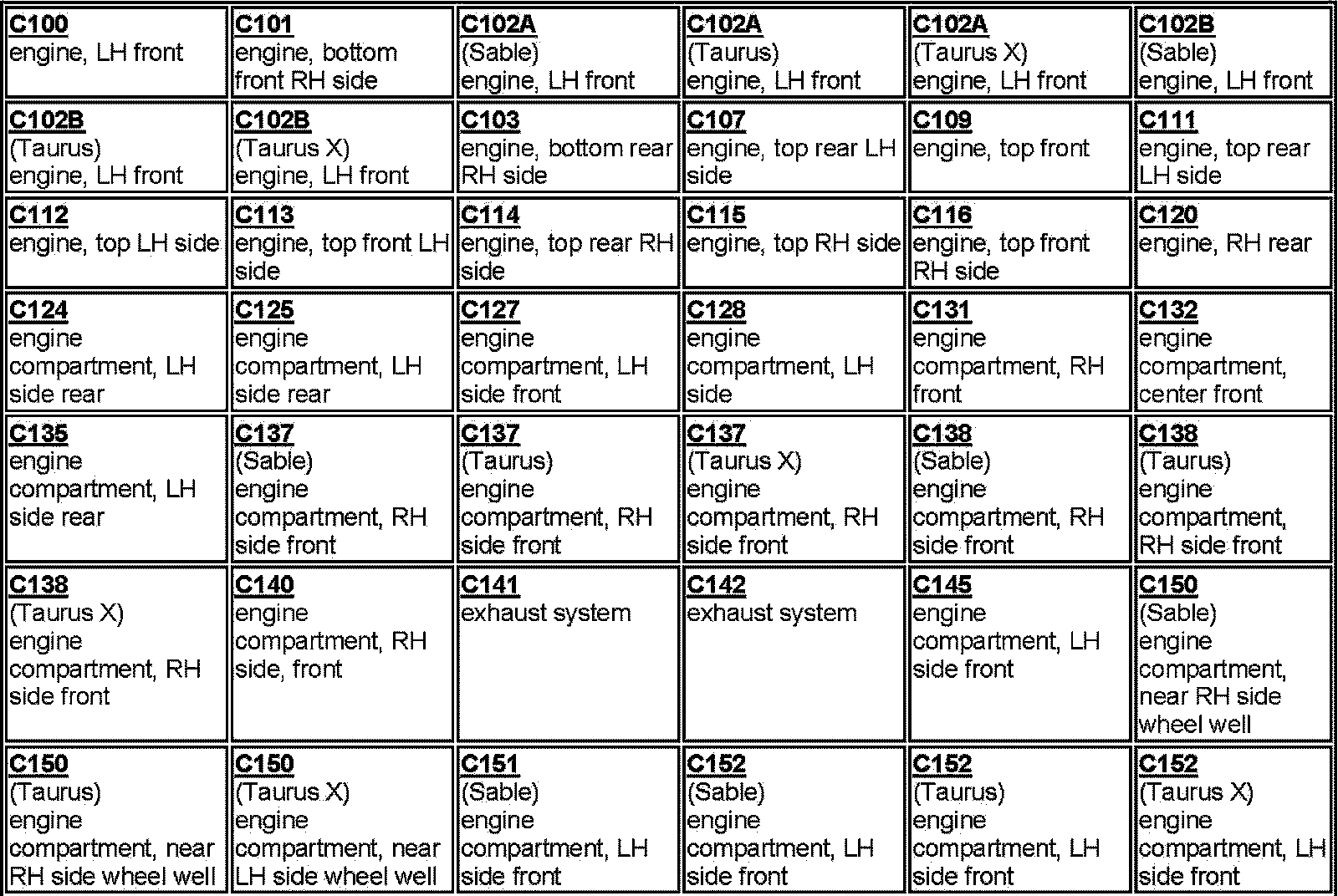

C100-C152:

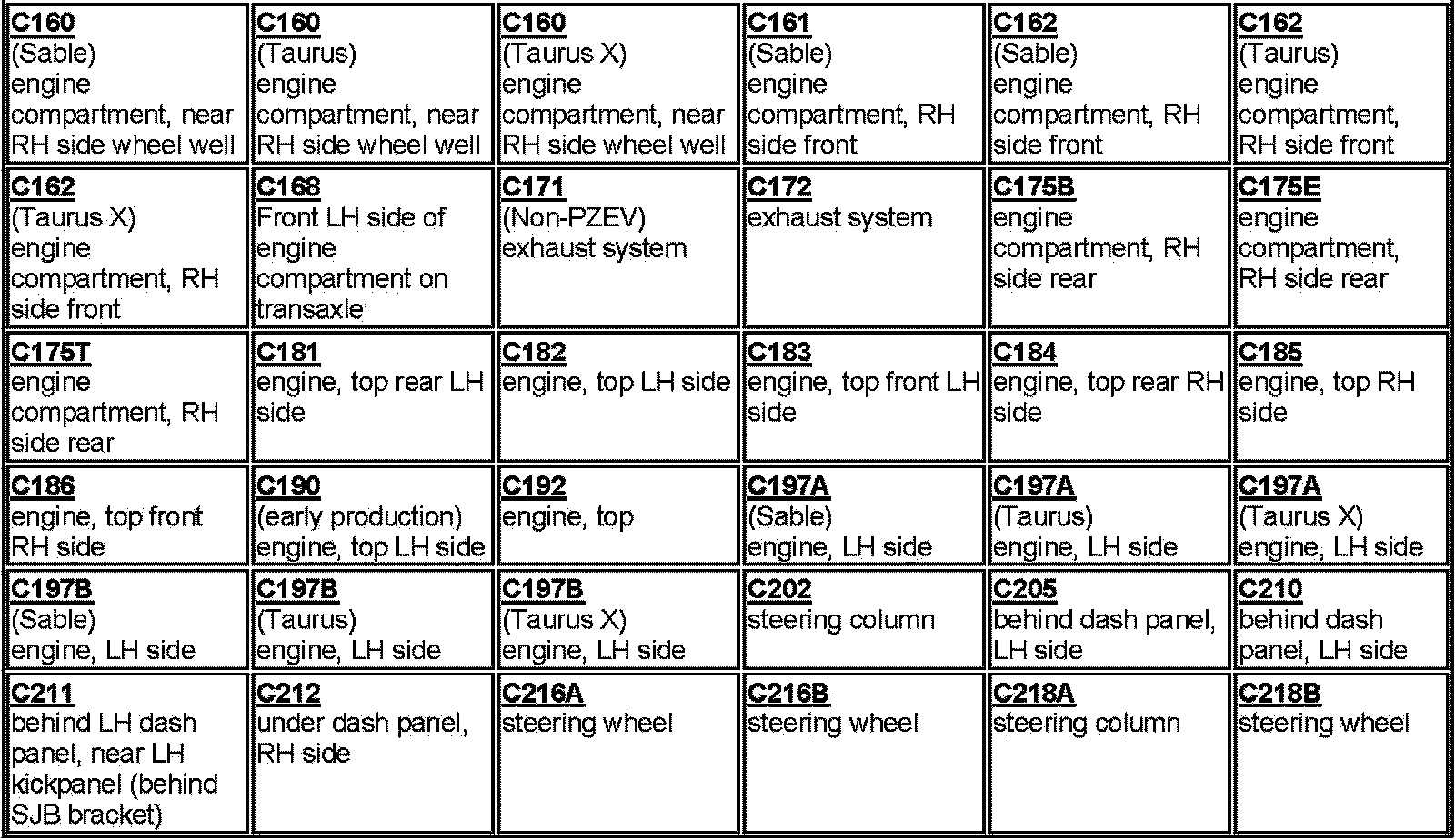

C160-C218B:

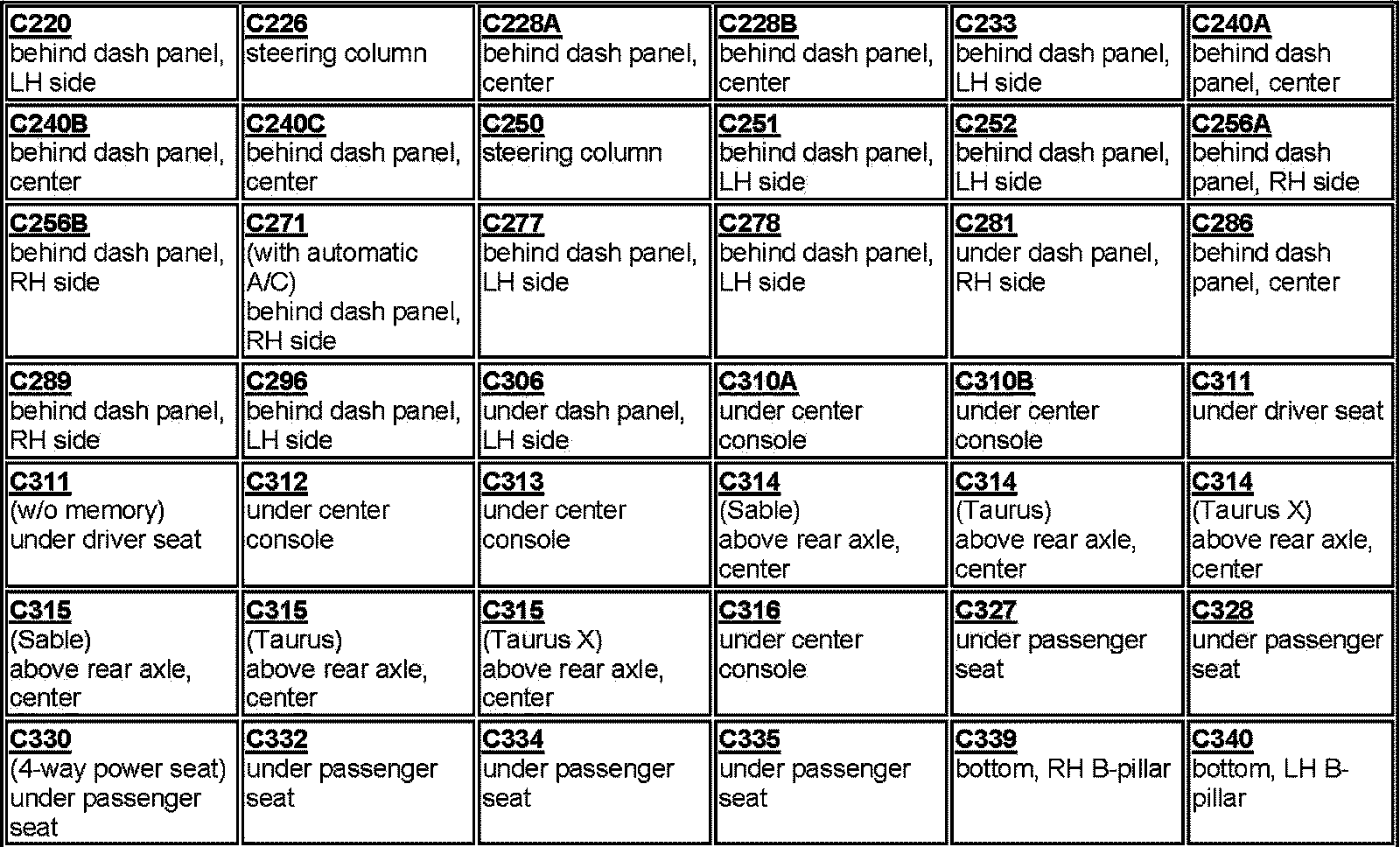

C220-C340:

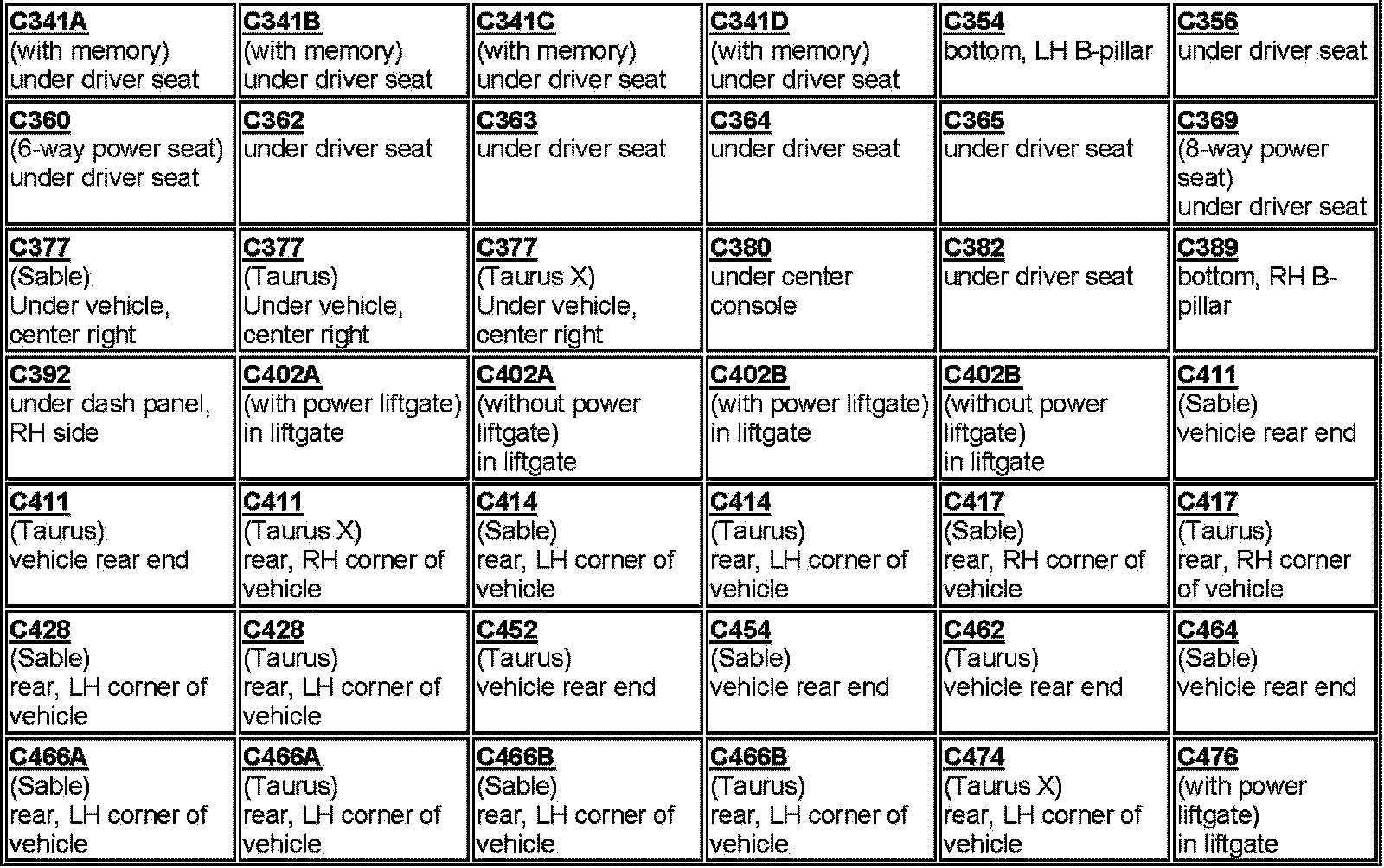

C341A-C476:

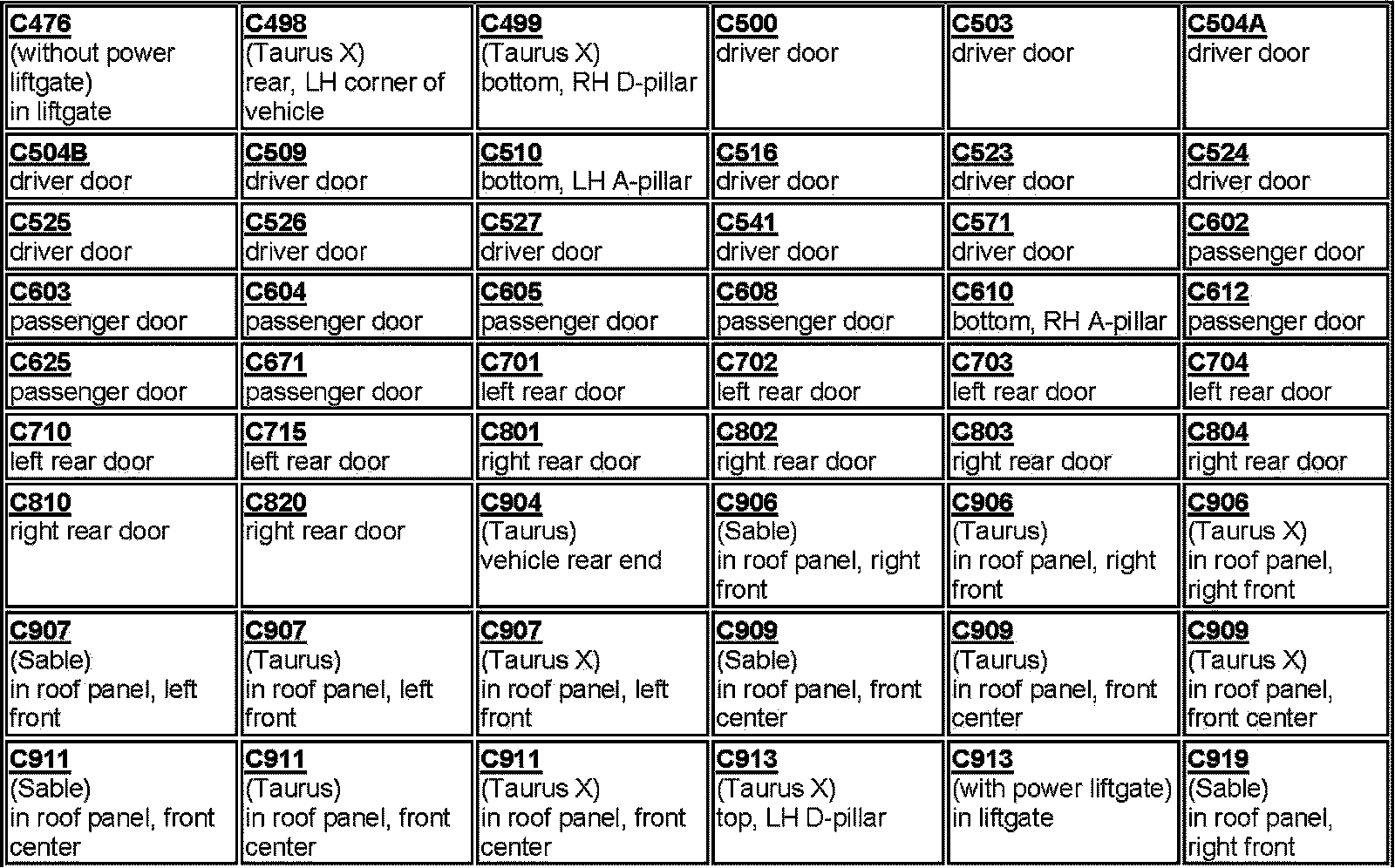

C476-C919:

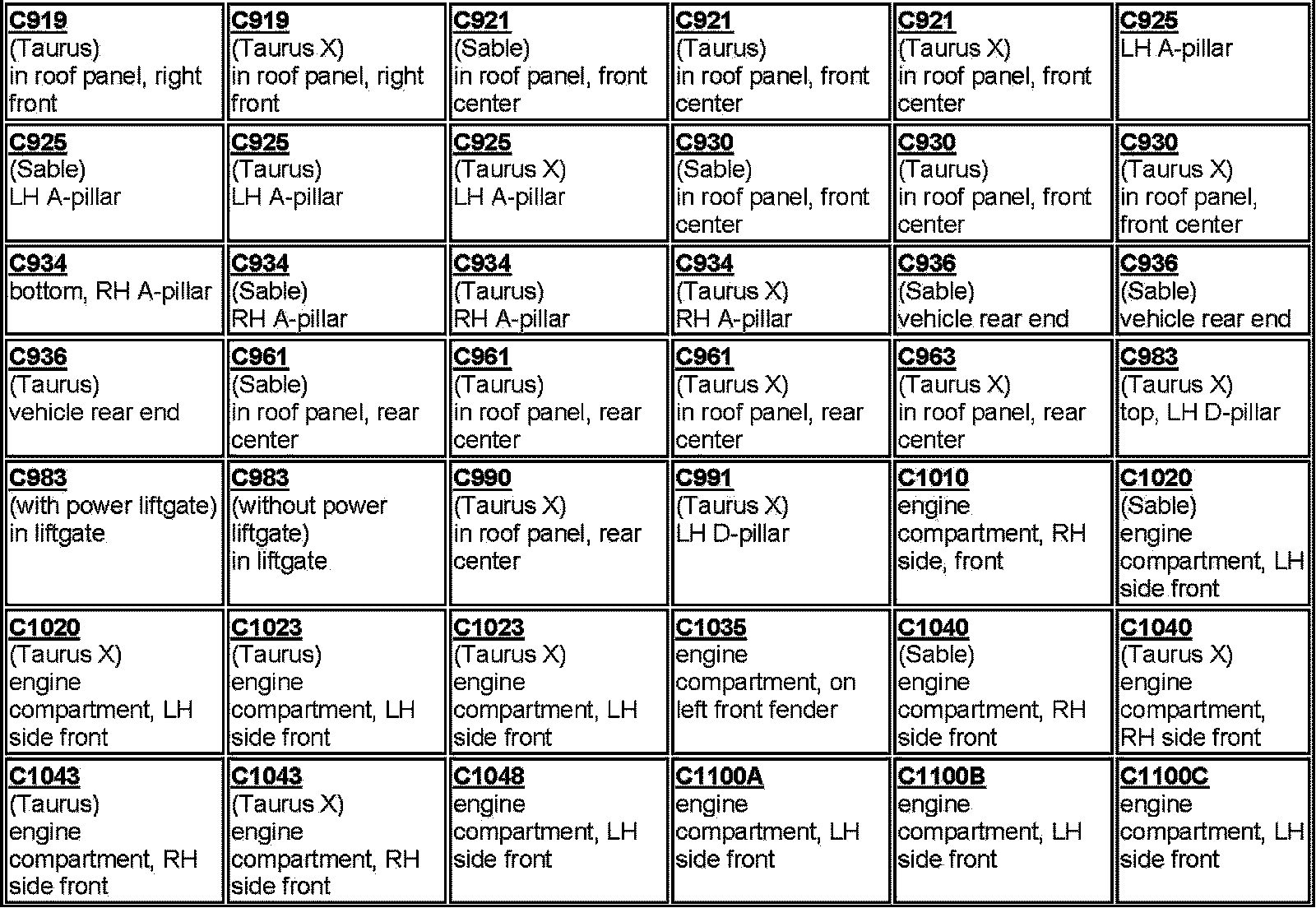

C919-C1100C:

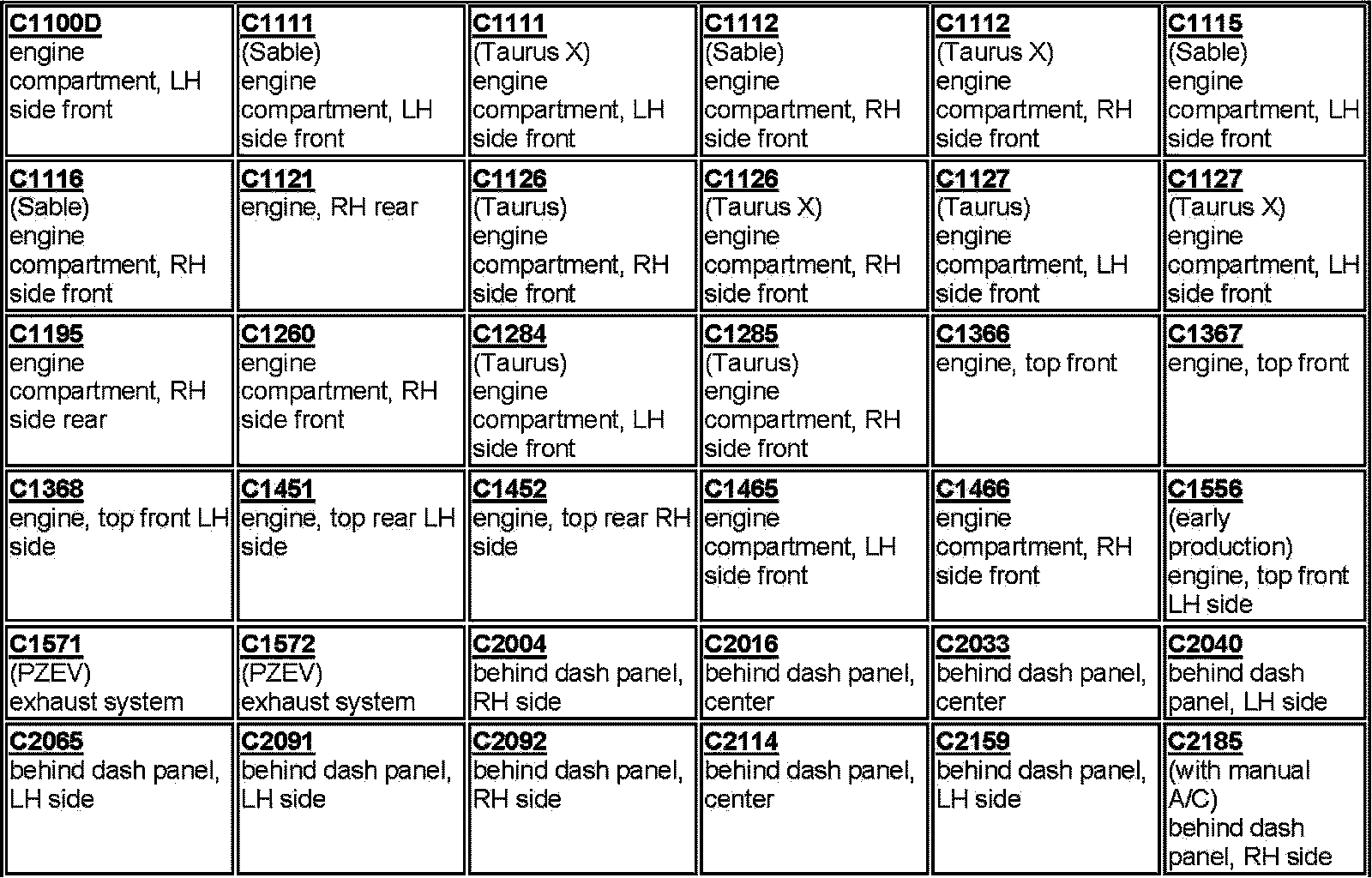

C1100D-C2185:

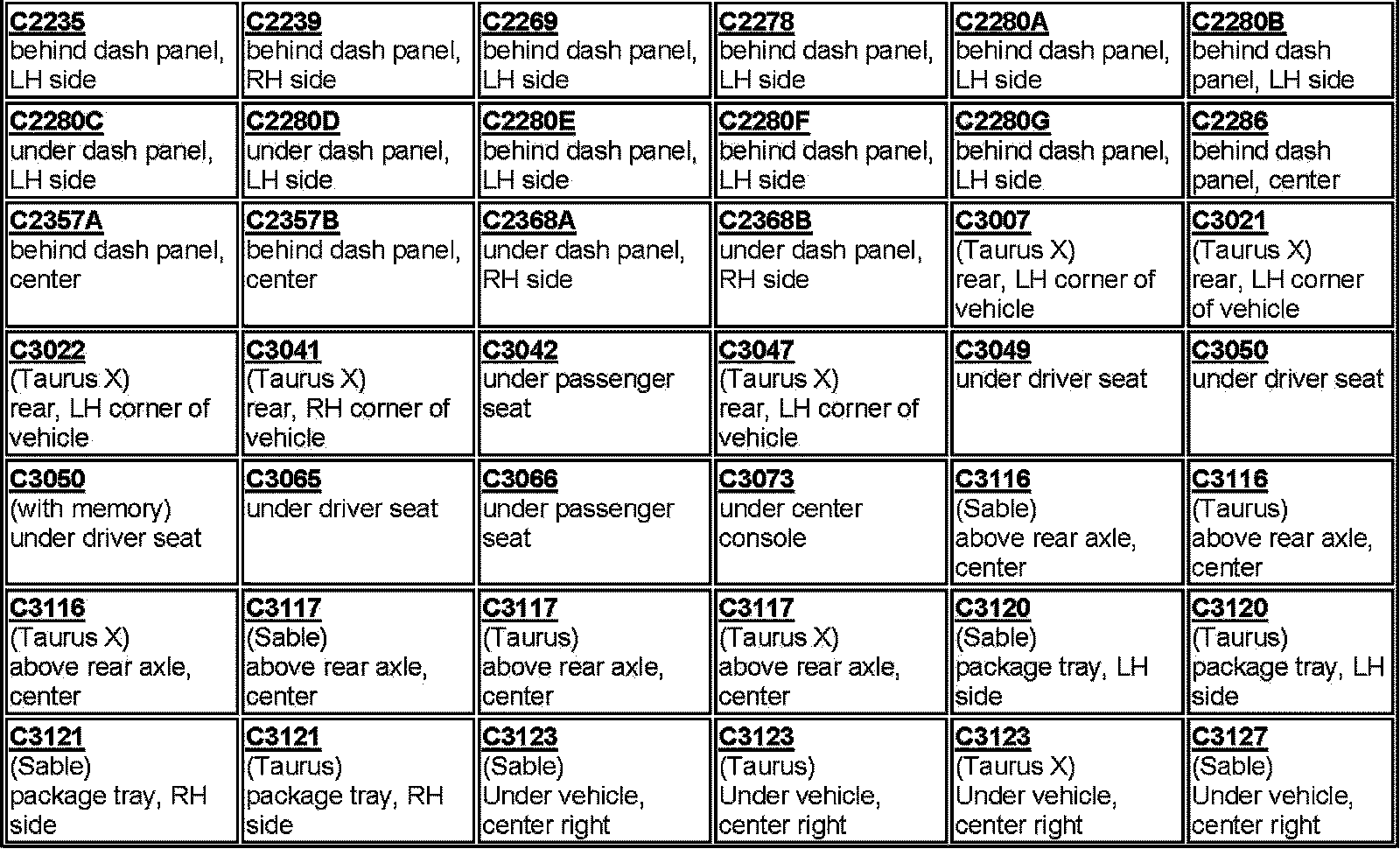

C2235-C3127:

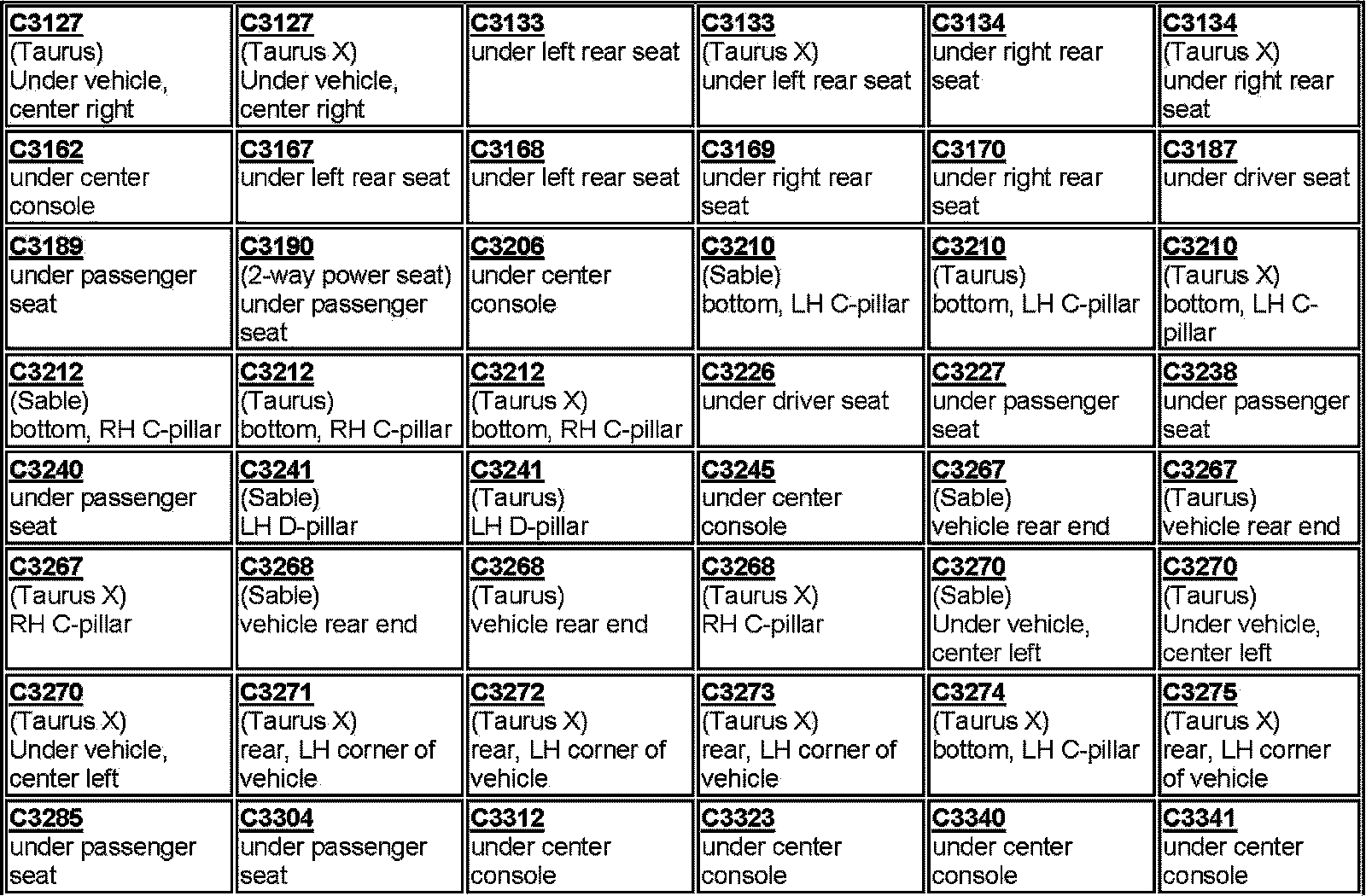

C3127-C3341:

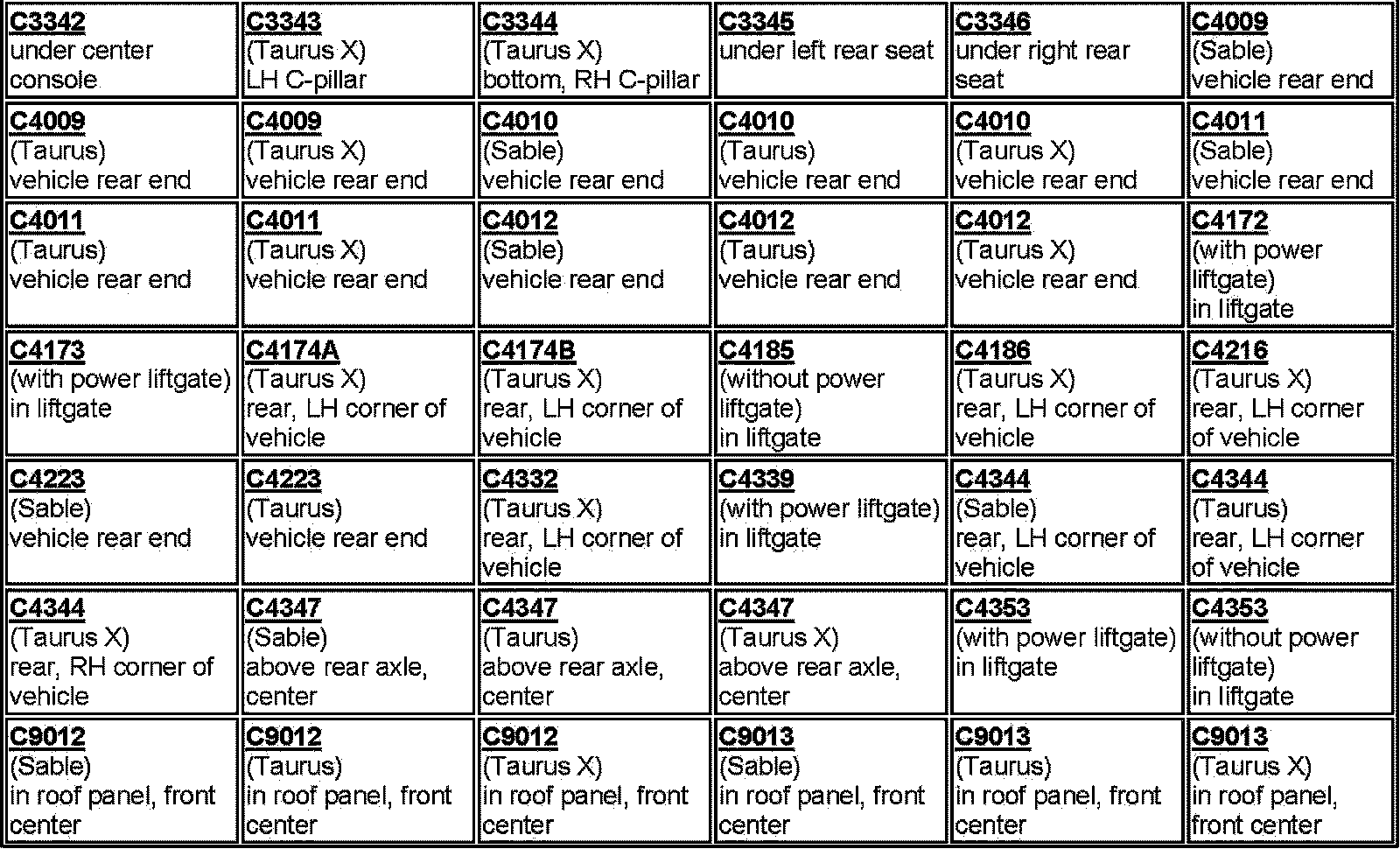

C3342-C9013:

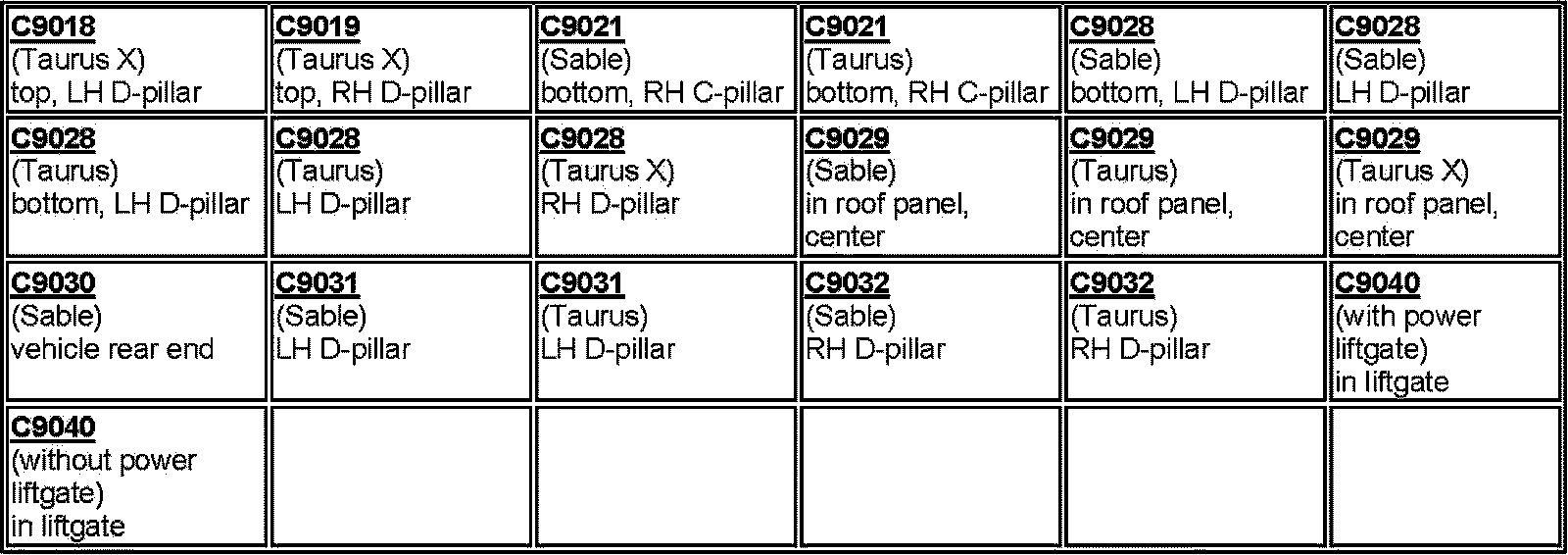

C9018-C9040:
