Main Control Valve Body
Main Control Valve Body

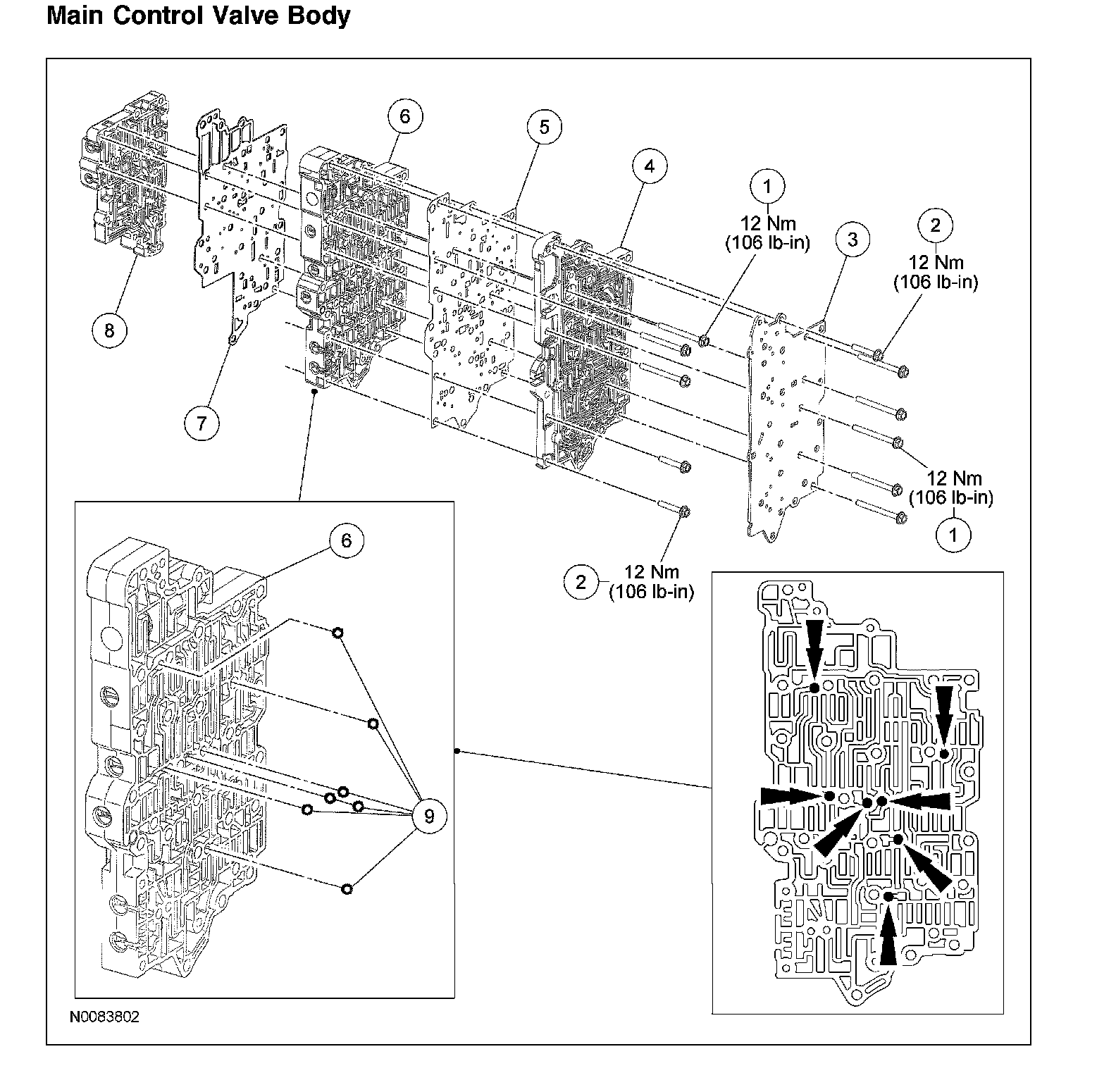

Main Control Valve Body:
Valve Body
Valve Body:
Lower Valve Body
Lower Valve Body (Part 1):
Lower Valve Body (Part 2):
