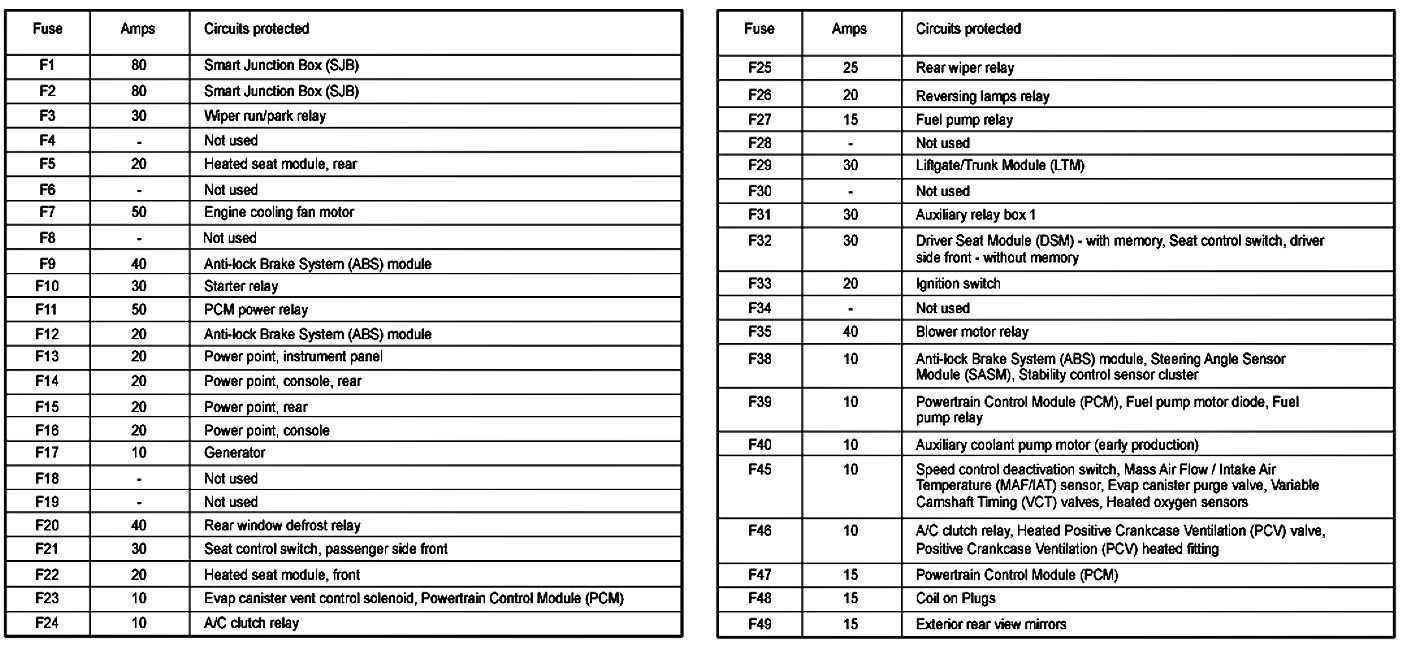

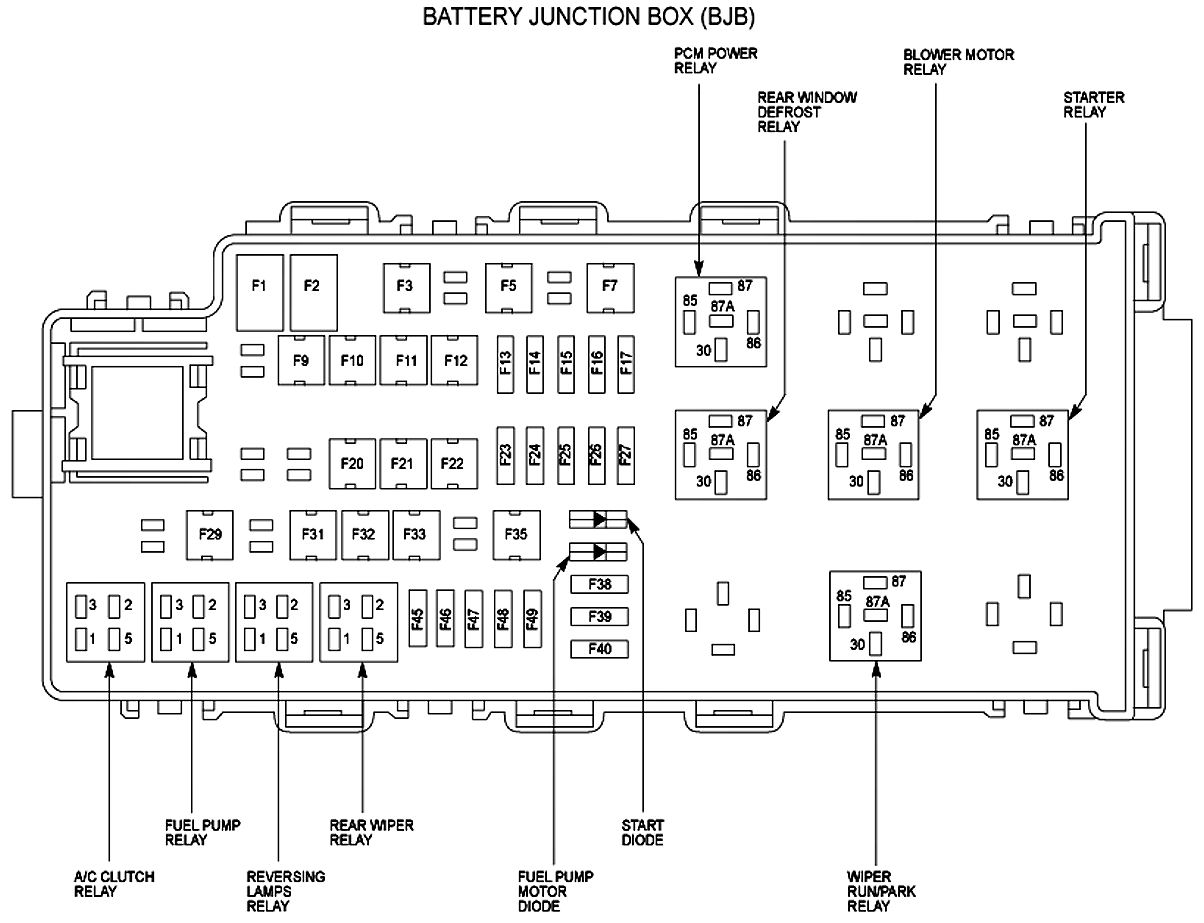

Battery Junction Box













Note: The Battery Junction Box is located in the engine compartment.
