Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION (CMP) SENSOR

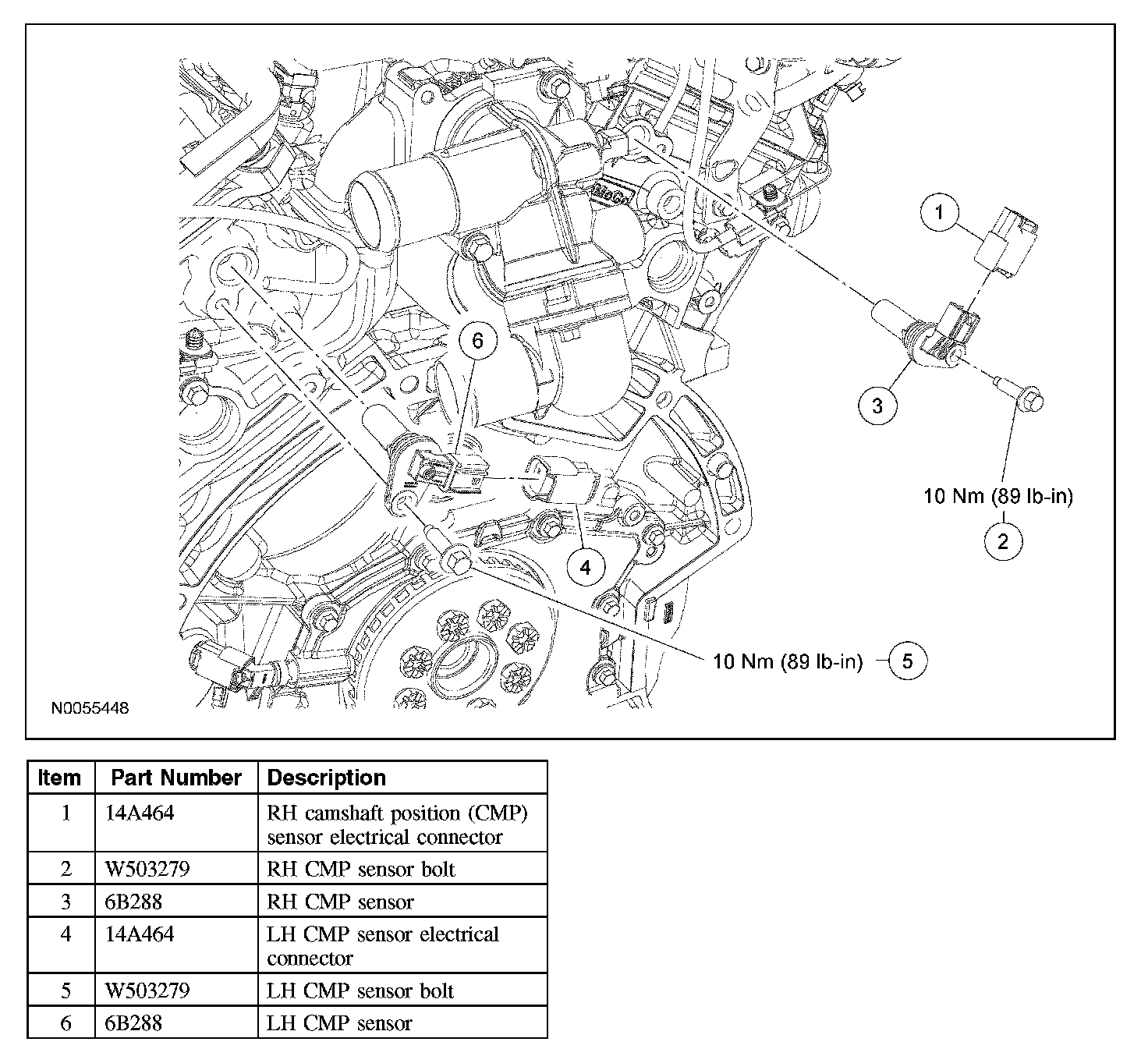

Removal and Installation
1. Remove the air cleaner outlet pipe.
2. Disconnect the camshaft position (CMP) sensor electrical connector.
3. Remove the bolt and the CMP sensor.
- To install, tighten to 10 Nm (89 lb-in).

4. NOTE: Lubricate the CMP sensor O-ring seal with clean engine oil.

To install, reverse the removal procedure.
