Tests DM: Manifold Absolute Pressure (MAP) Sensor

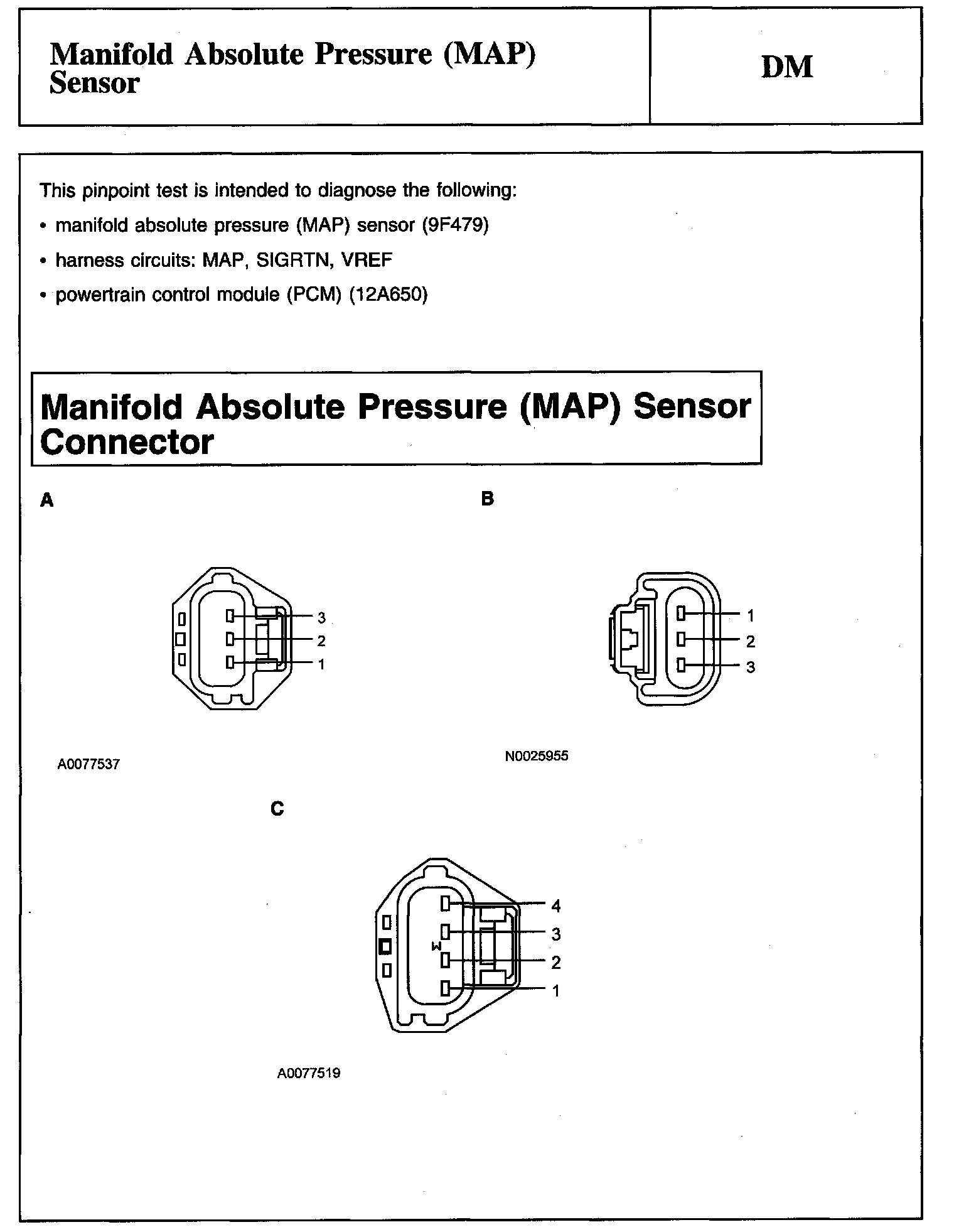

Description And Manifold Absolute Pressure (MAP) Sensor Connector:

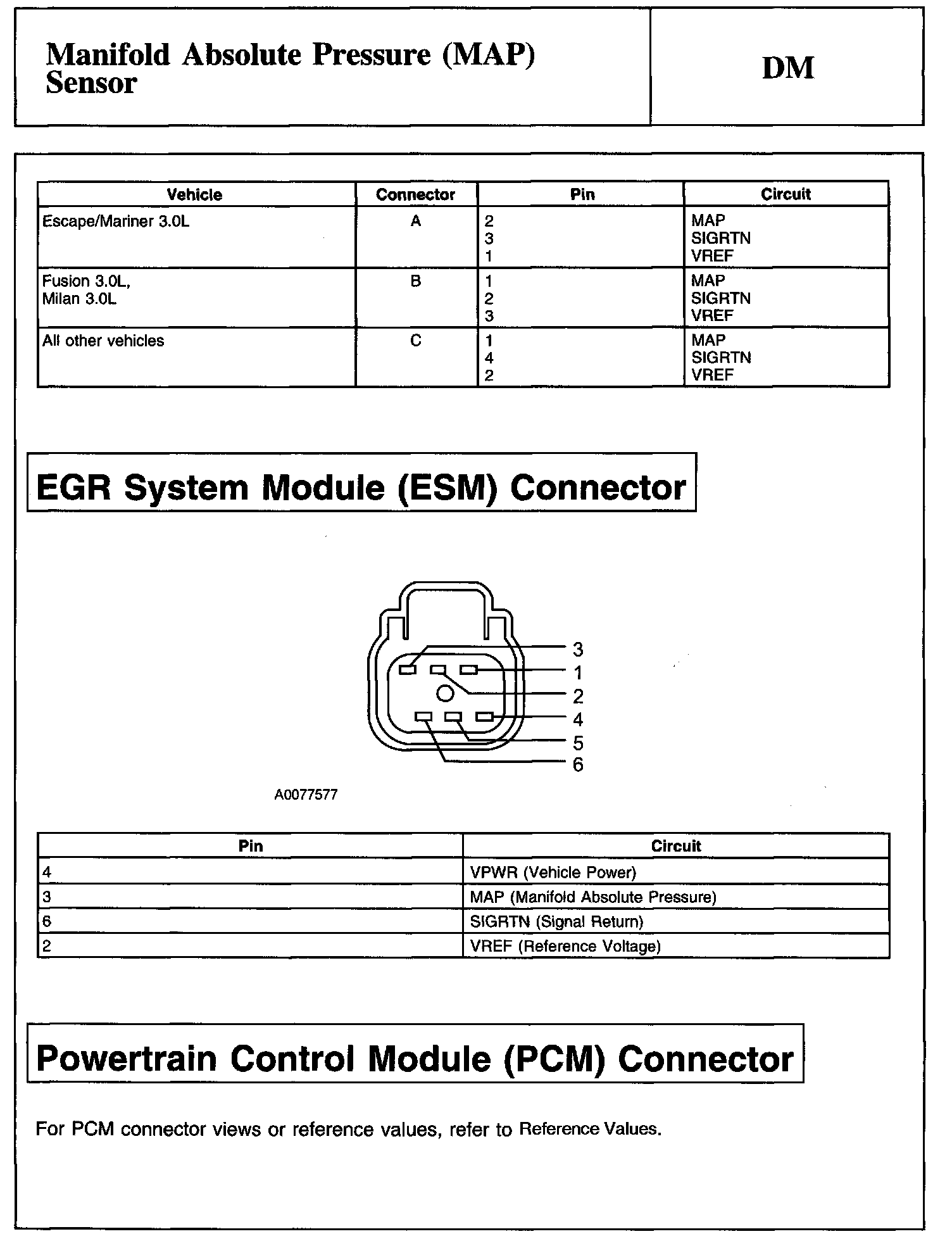

Manifold Absolute Pressure (MAP) Sensor Connector, EGR System Module (ESM) Connector And Powertrain Control Module (PCM) Connector:

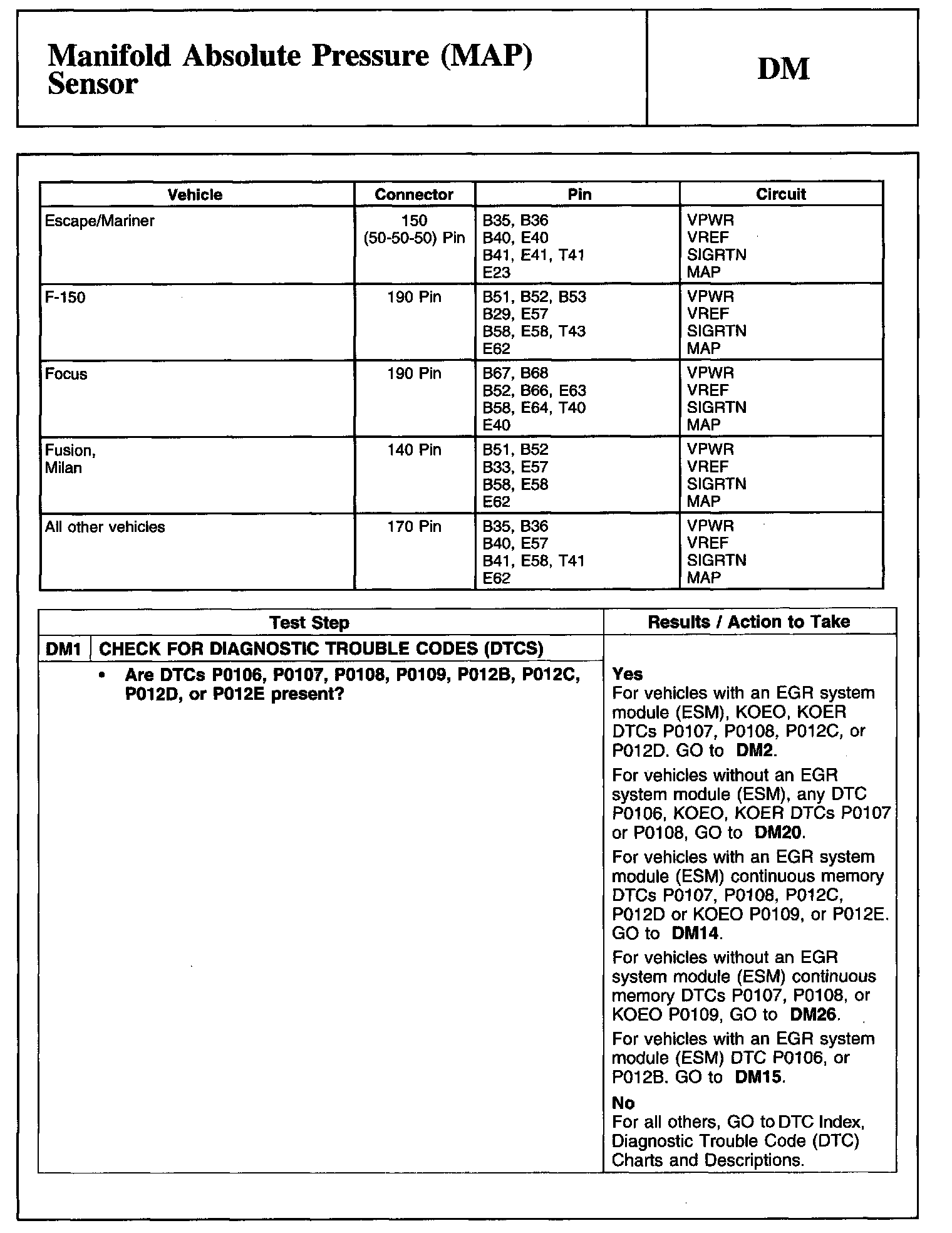

DM1:

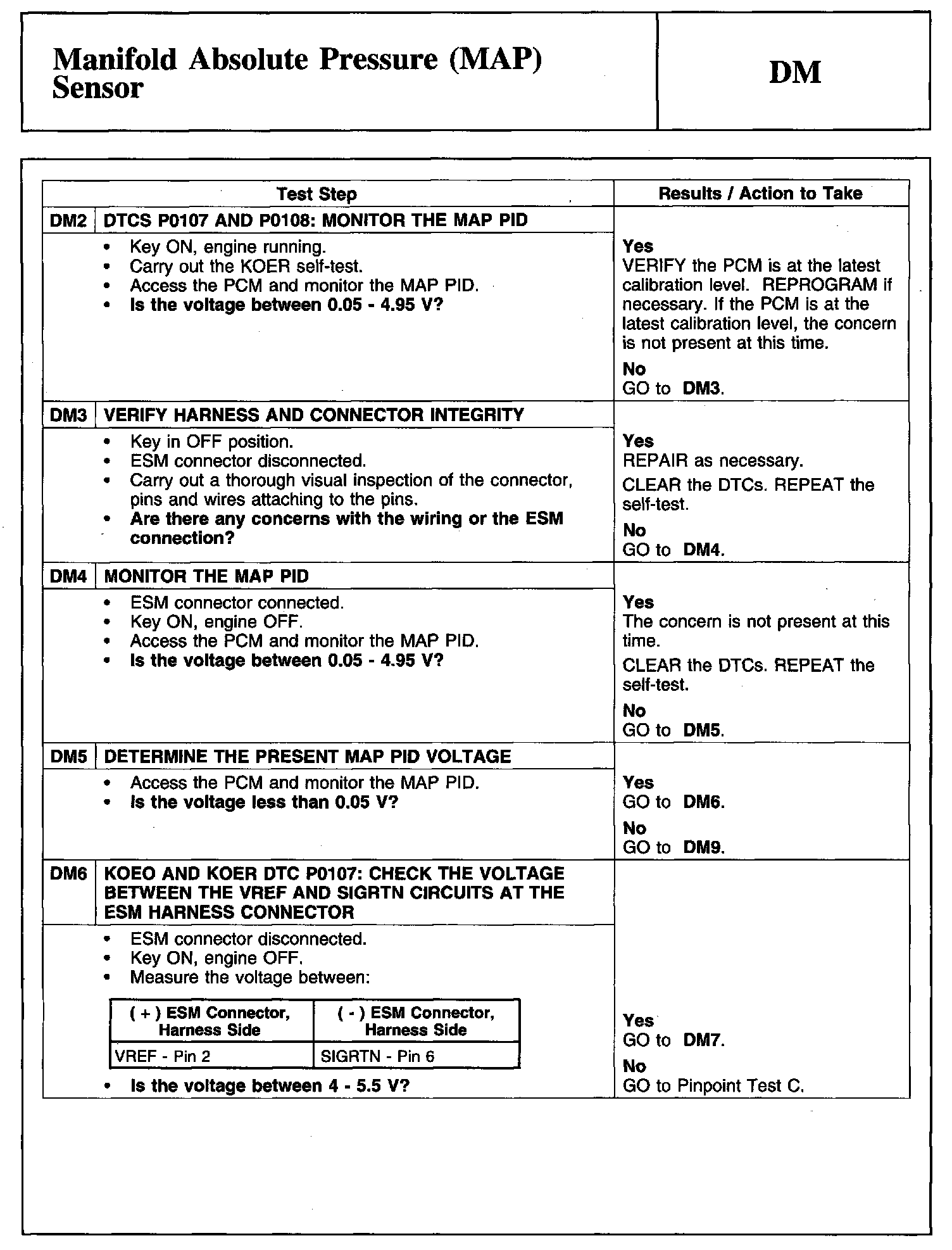

DM2-DM6:

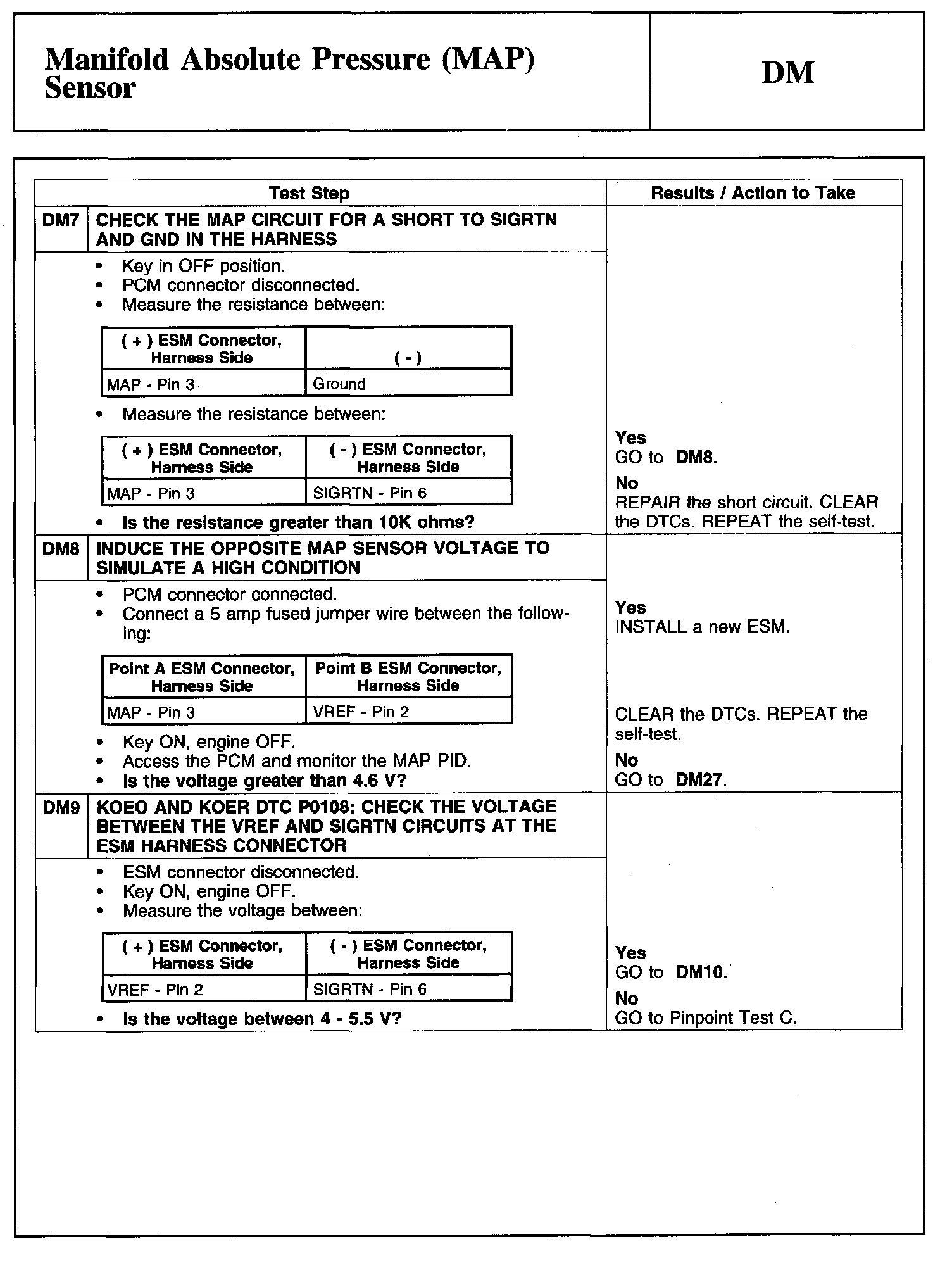

DM7-DM9:

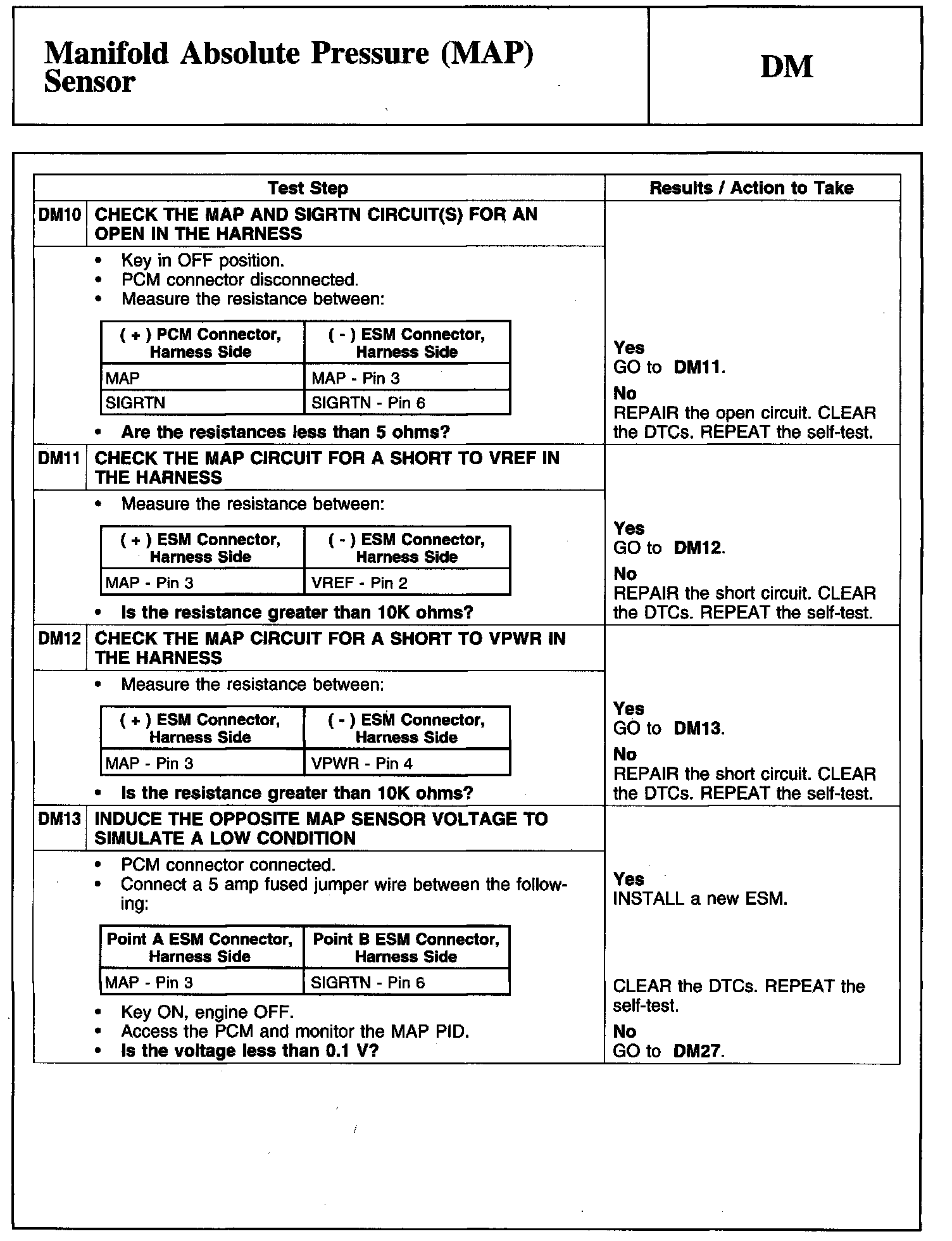

DM10-DM13:

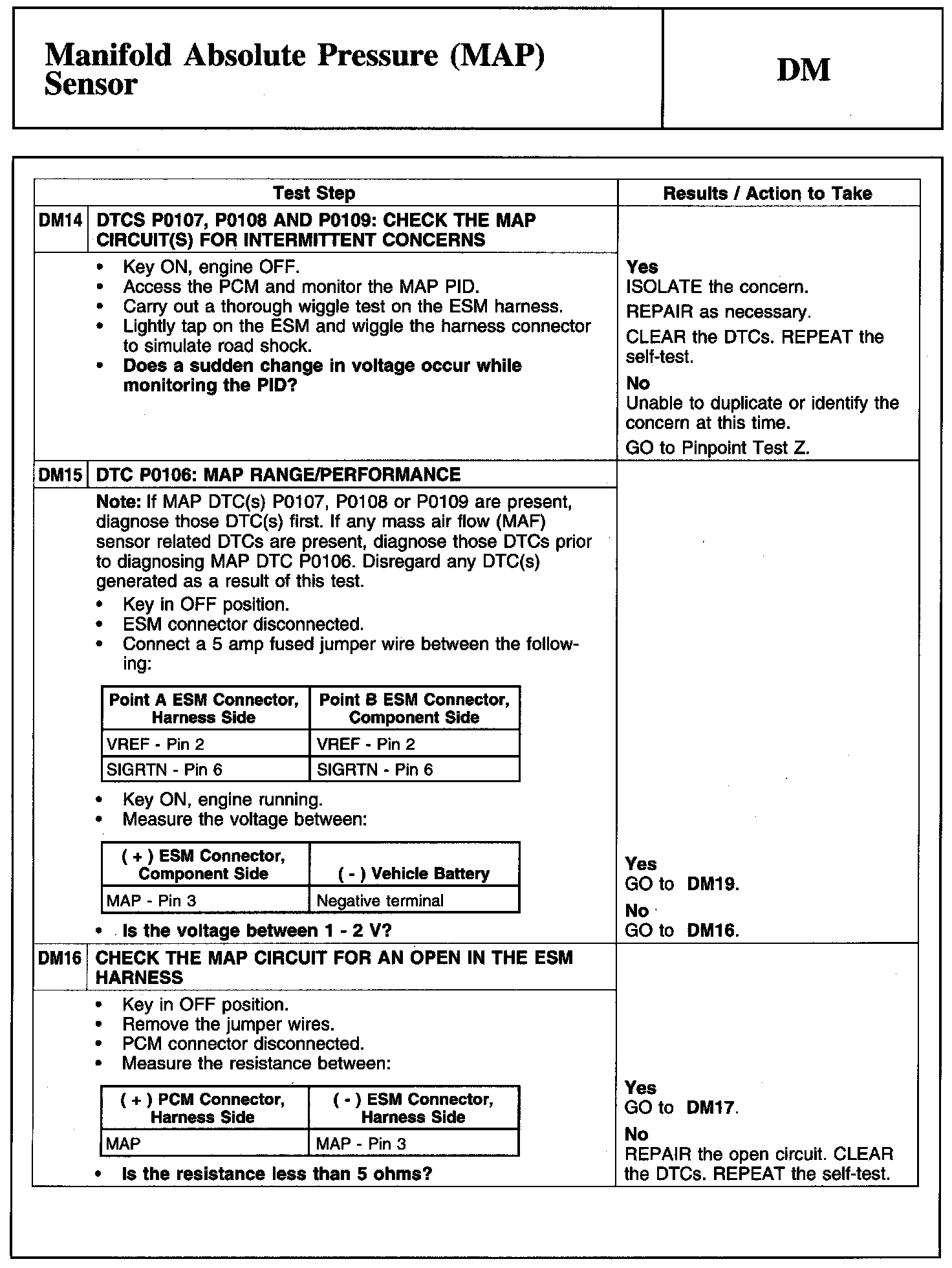

DM14-DM16:

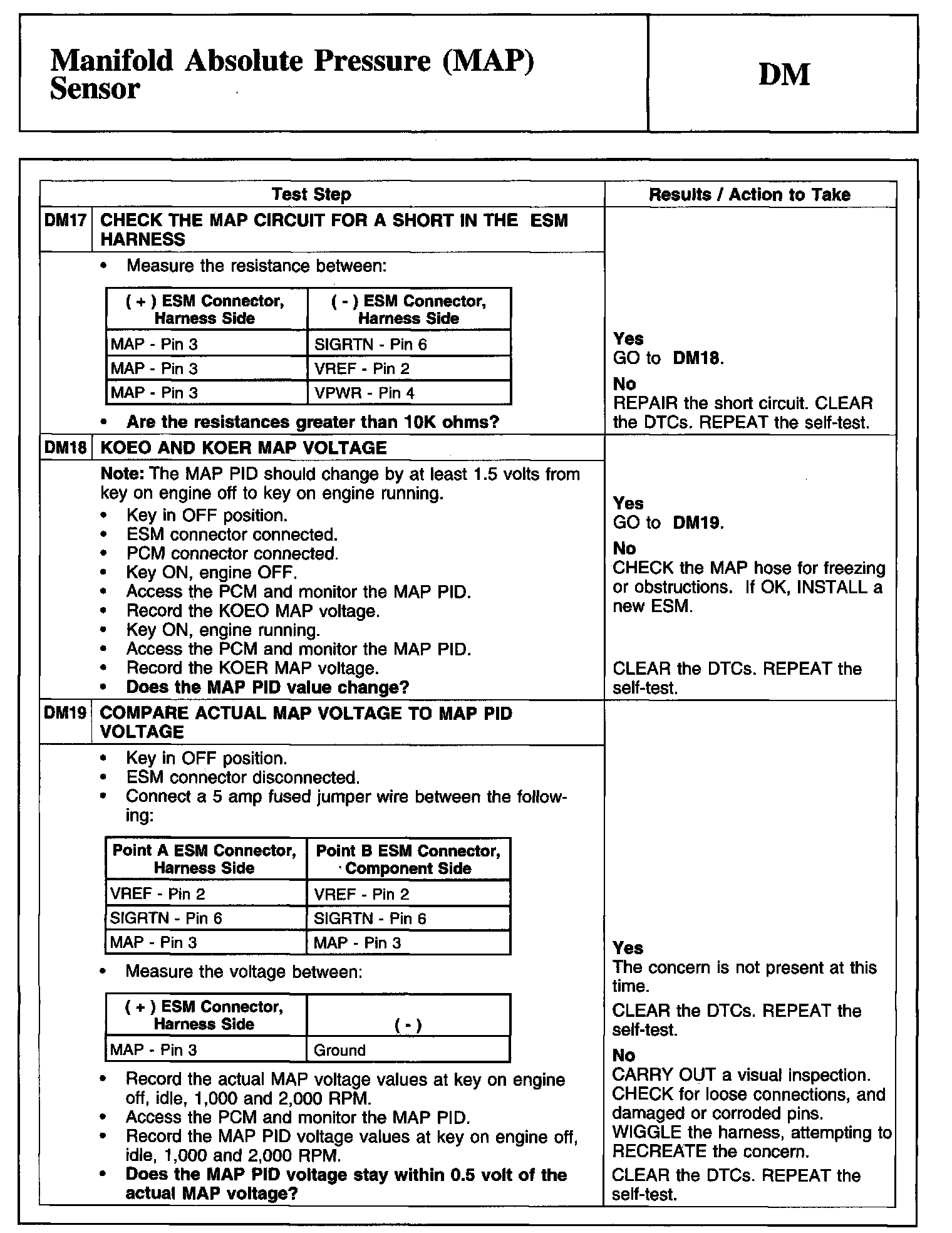

DM17-DM19:

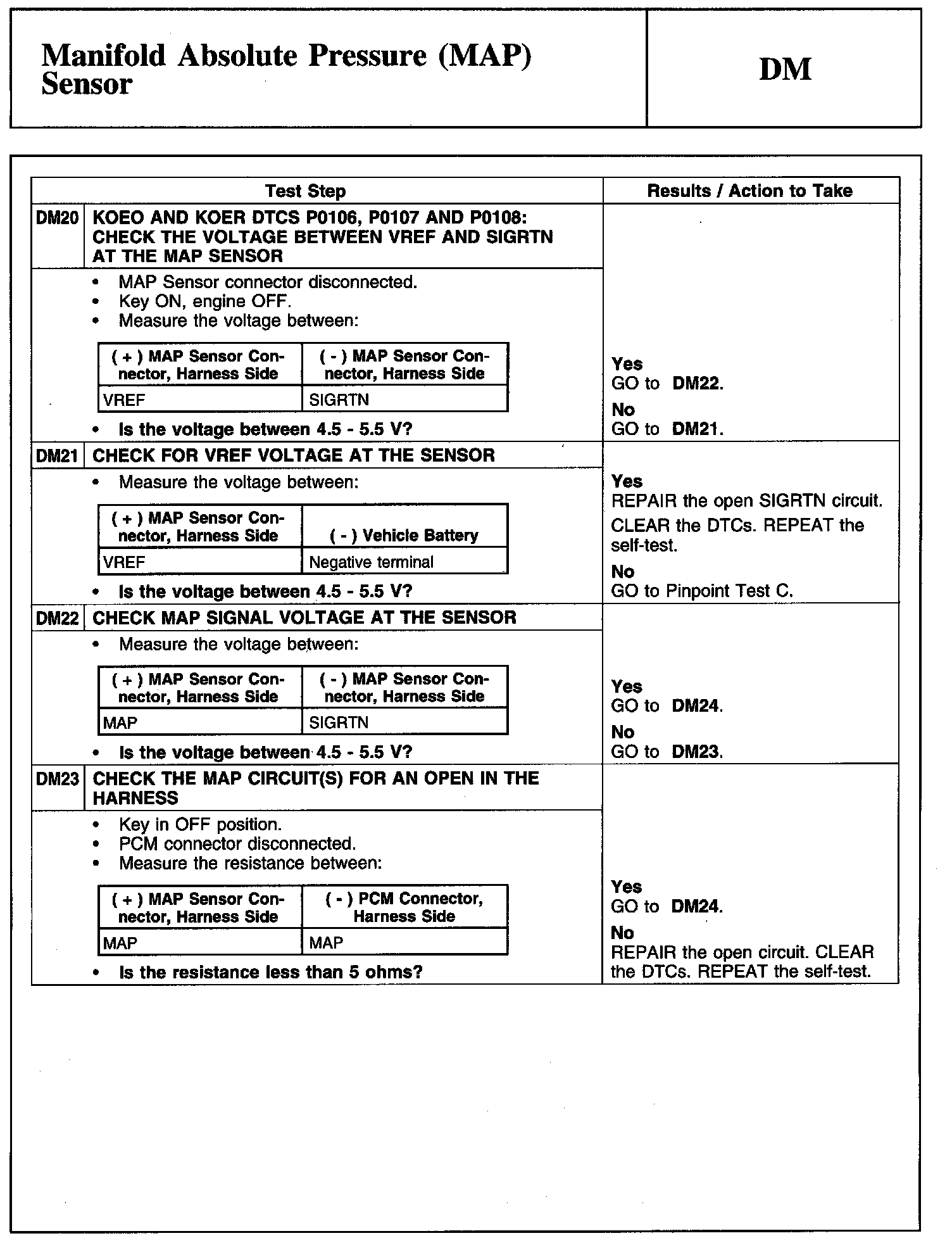

DM20-DM23:

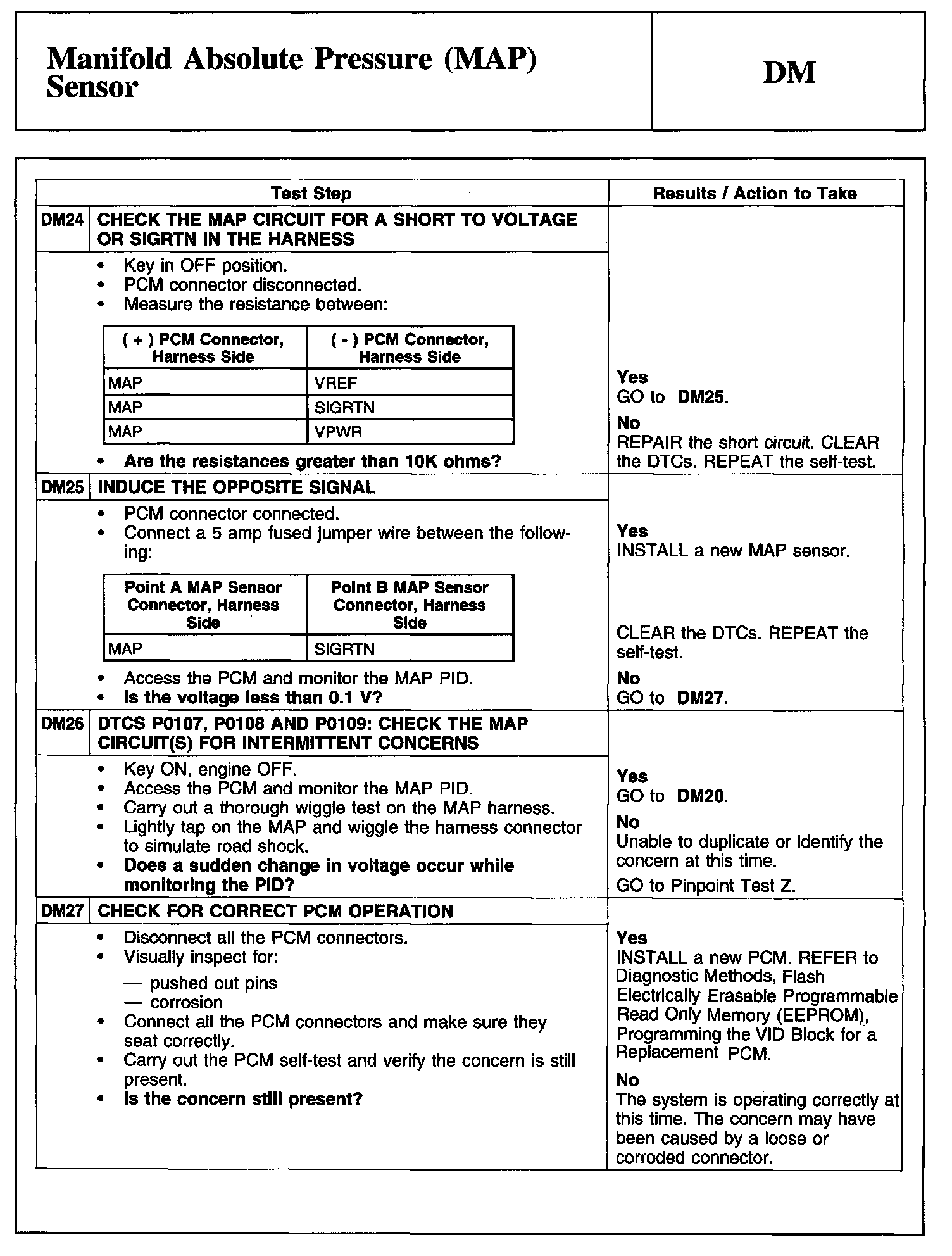

DM24-DM27:
