Pinpoint Tests

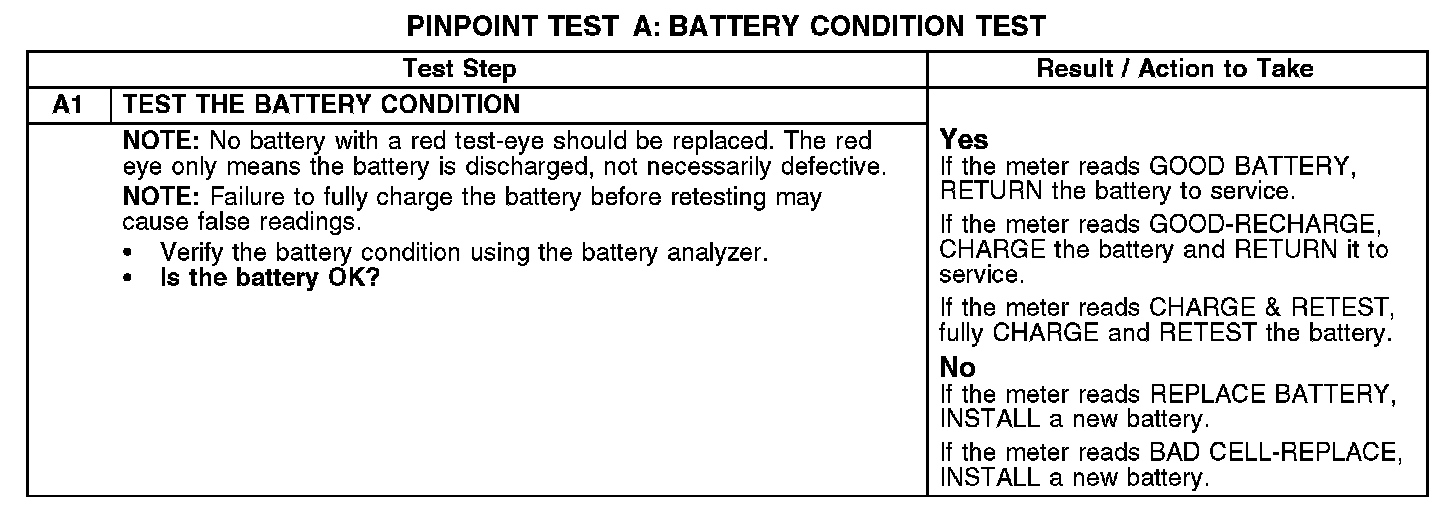

PINPOINT TEST A: BATTERY CONDITION TEST

Normal Operation
Battery condition is determined by measuring battery terminal voltage after a specific discharge current is applied for a specified time period.

This pinpoint test is intended to diagnose the following:
- Battery charge
- Battery


A1:
