Ignition Switch: Service and Repair

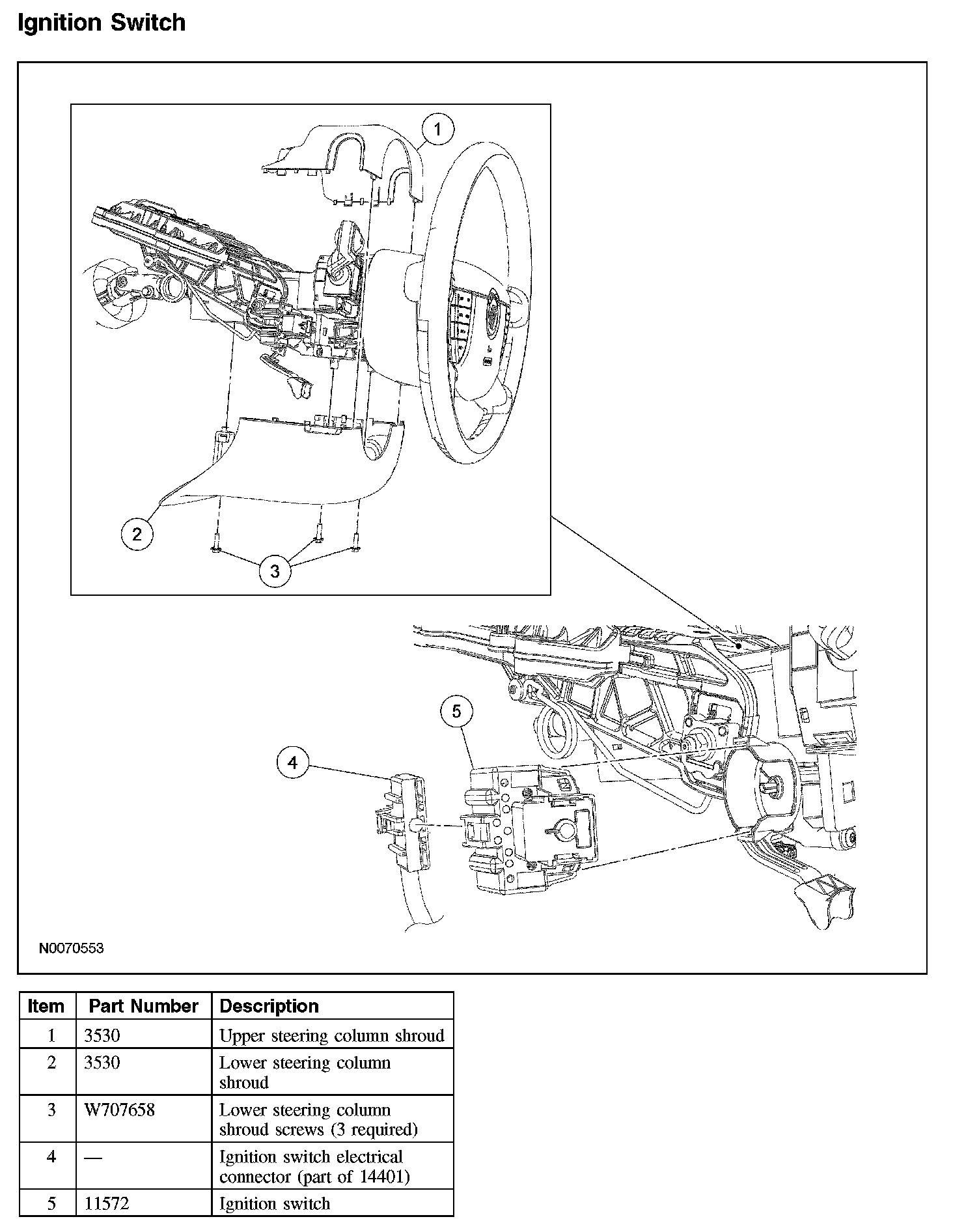

Ignition Switch

Ignition Switch:

Removal and Installation

CAUTION: Do not remove the ignition lock cylinder and the ignition switch at the same time or damage to the column may result.

1. Depower the supplemental restraint system (SRS).
2. Remove the 3 steering column shroud screws.
3. Separate and remove the upper and lower steering column shrouds.
4. Disconnect the ignition switch electrical connector.

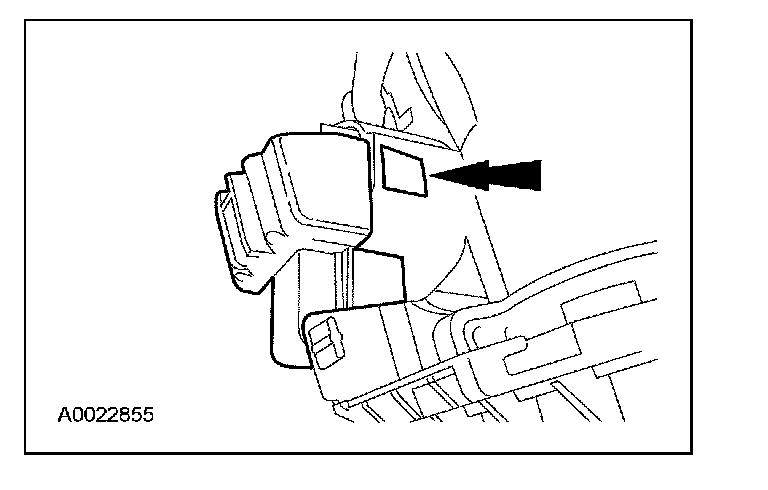

5. Release the 2 locking tabs and remove the ignition switch.





6. To install, reverse the removal procedure.
7. Repower the SRS.
