Power Window Switch: Service and Repair

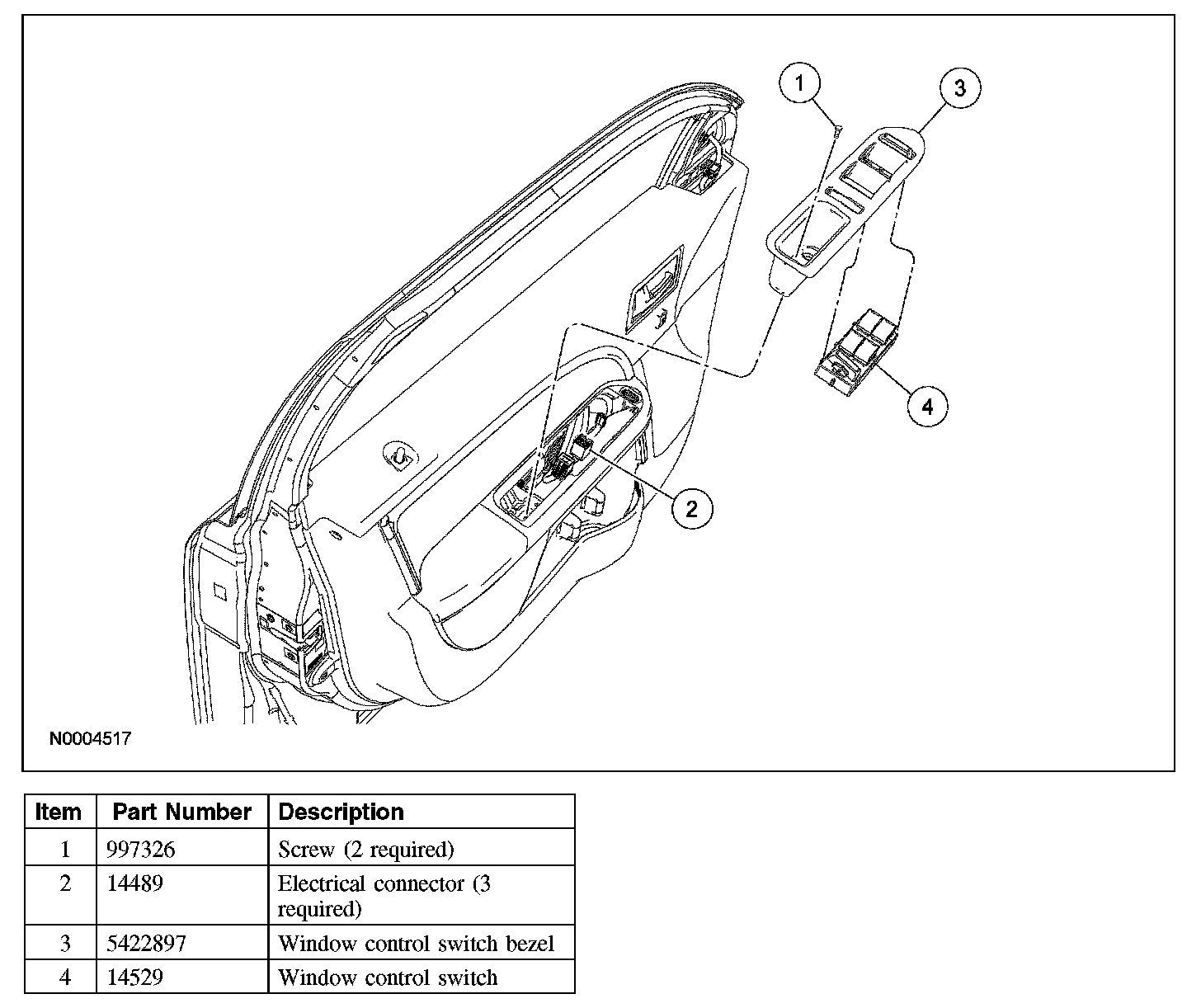

WINDOW CONTROL SWITCH







Removal and Installation
1. Remove the window regulator control switch bezel.
- Remove the 2 screws.
- Disconnect the electrical connectors.

2. Remove the window control switch.
3. To install, reverse the removal procedure.
